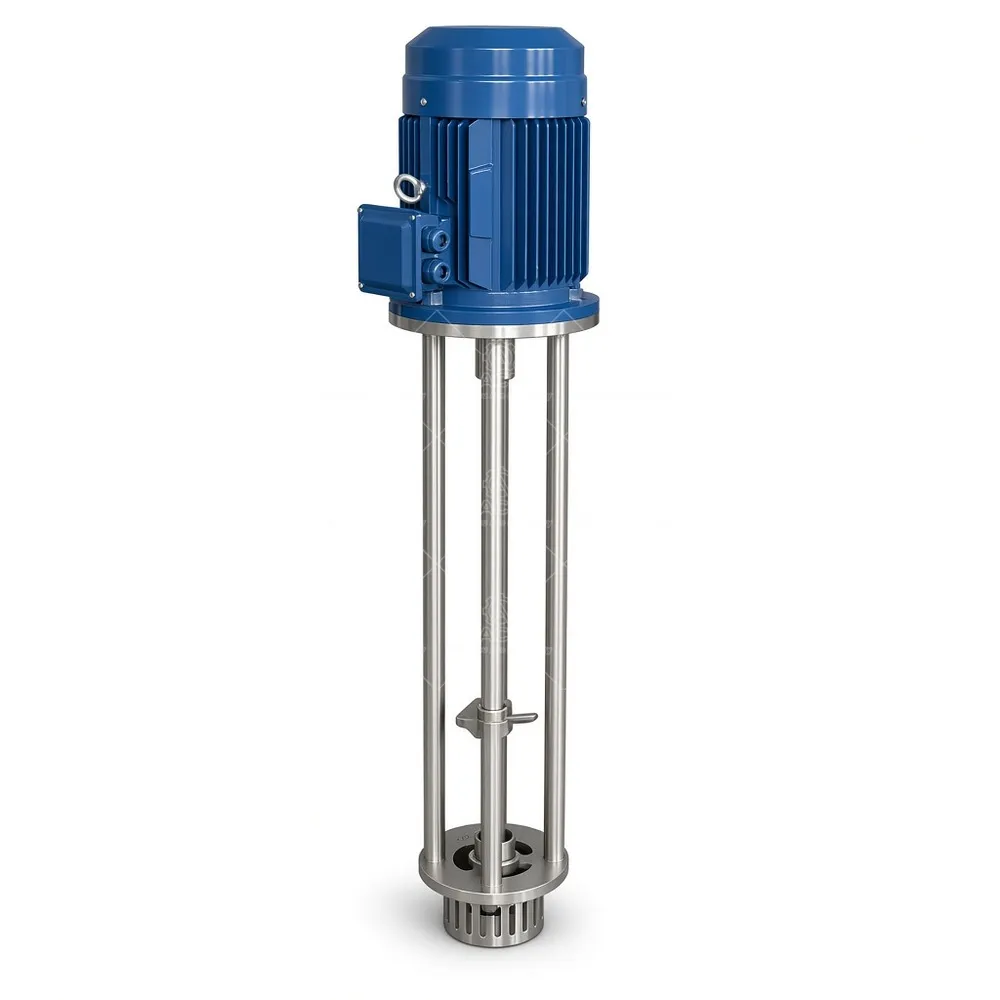

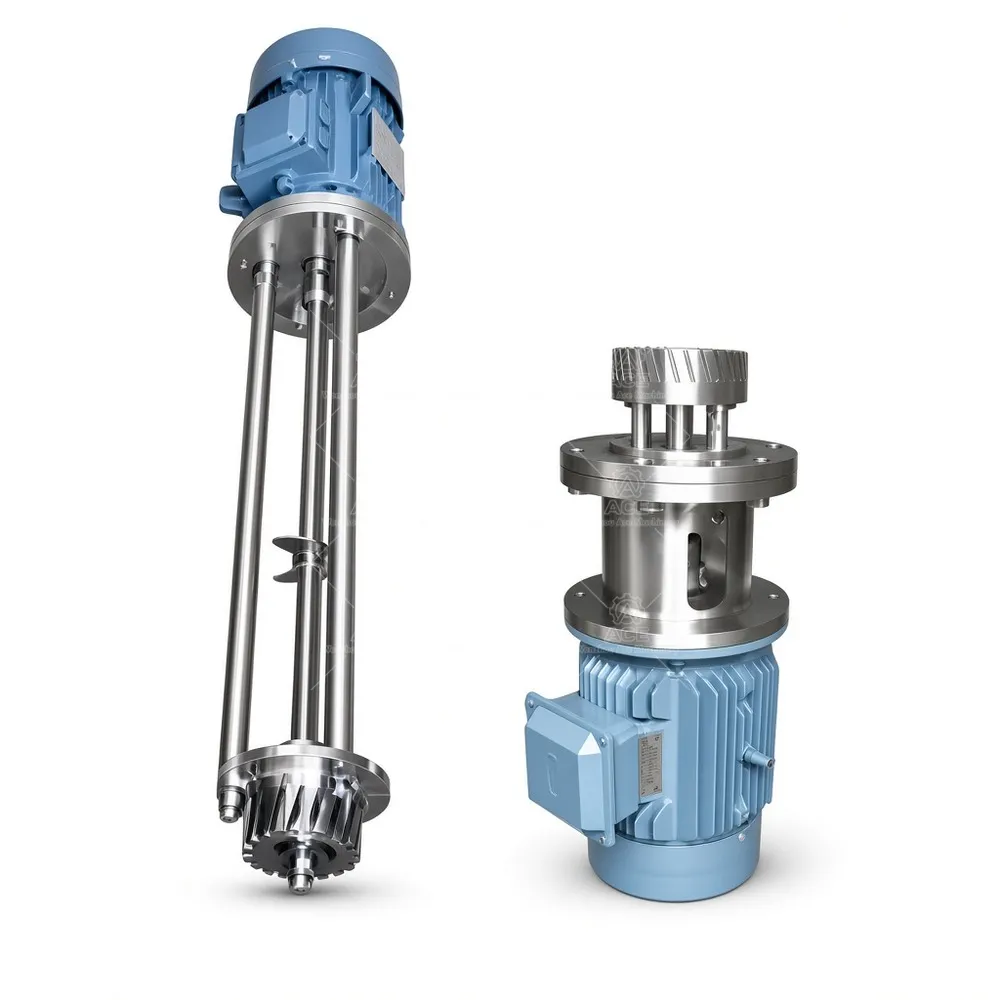

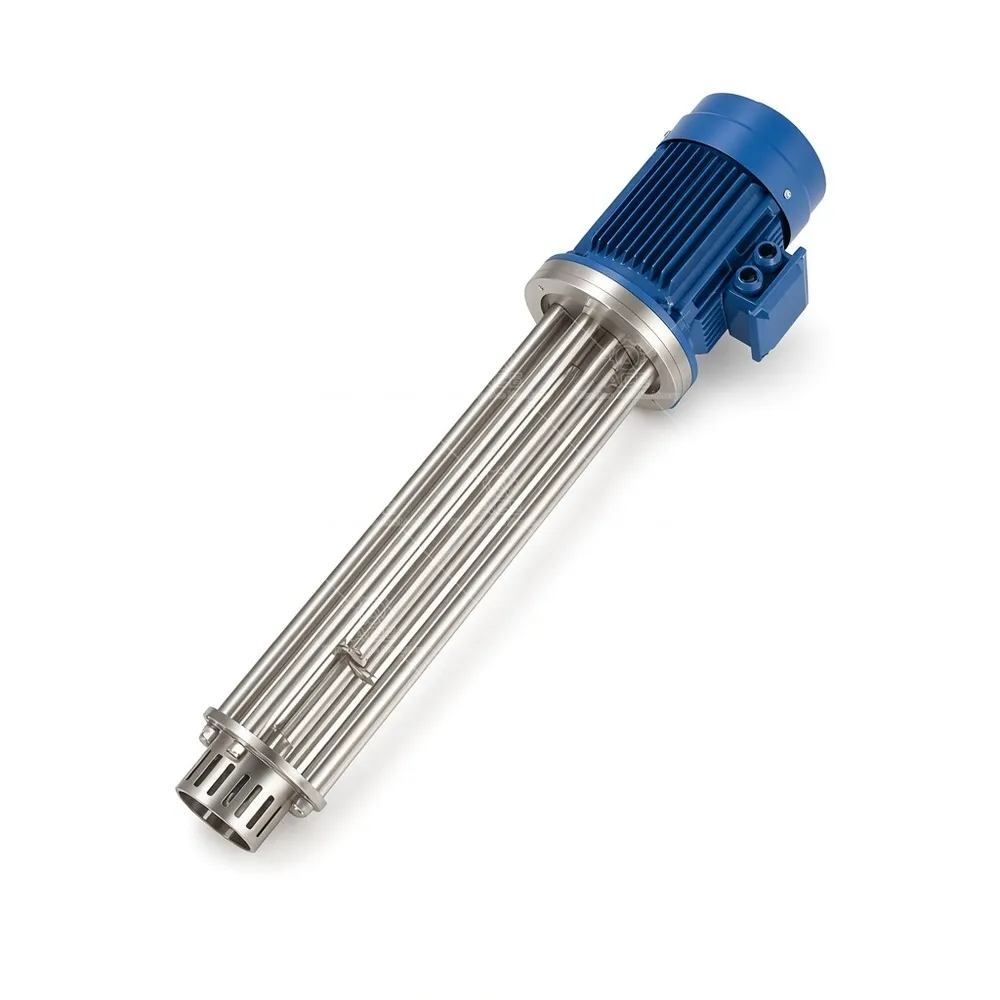

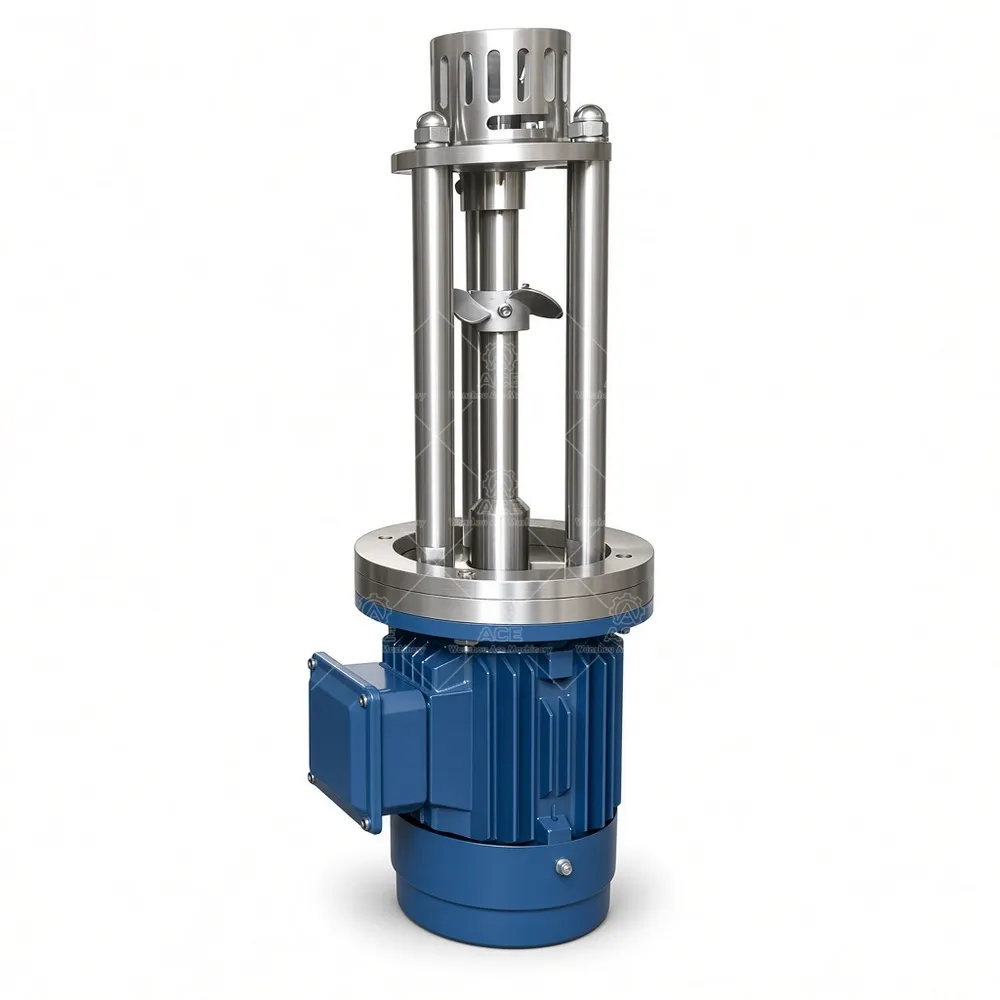

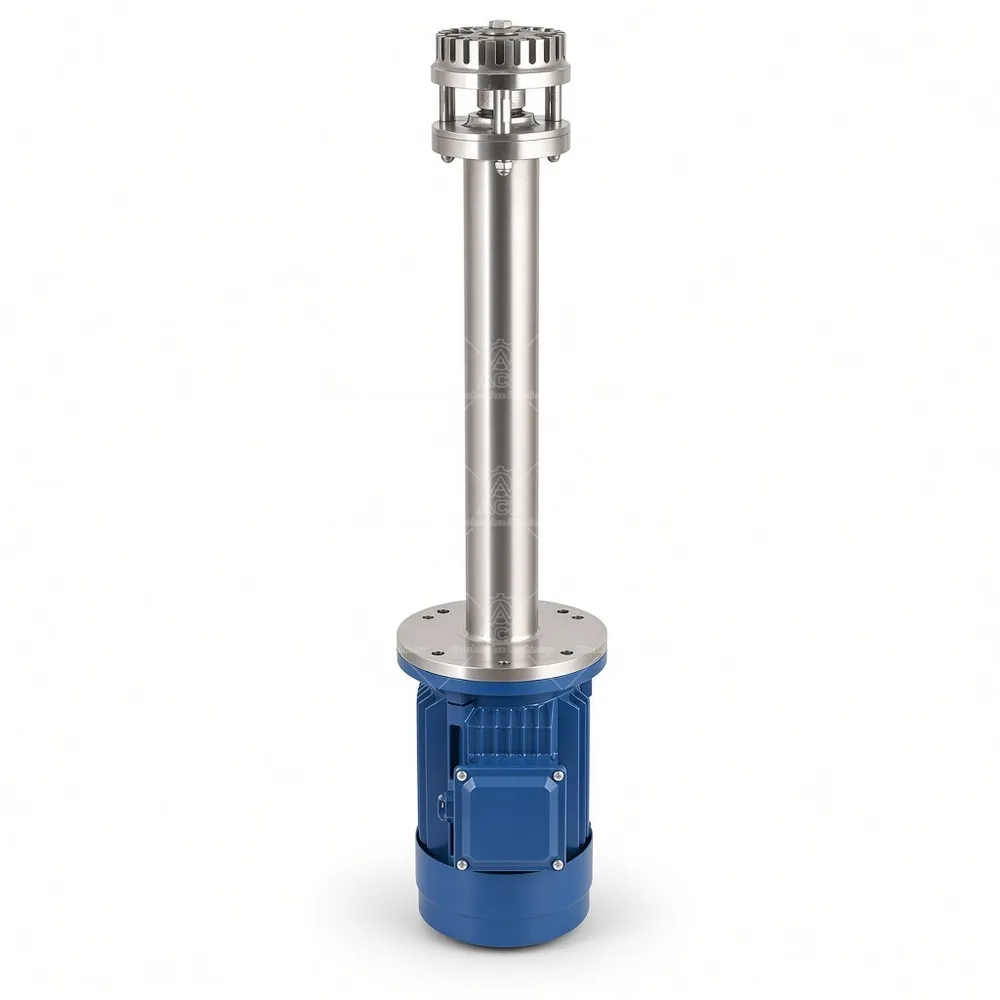

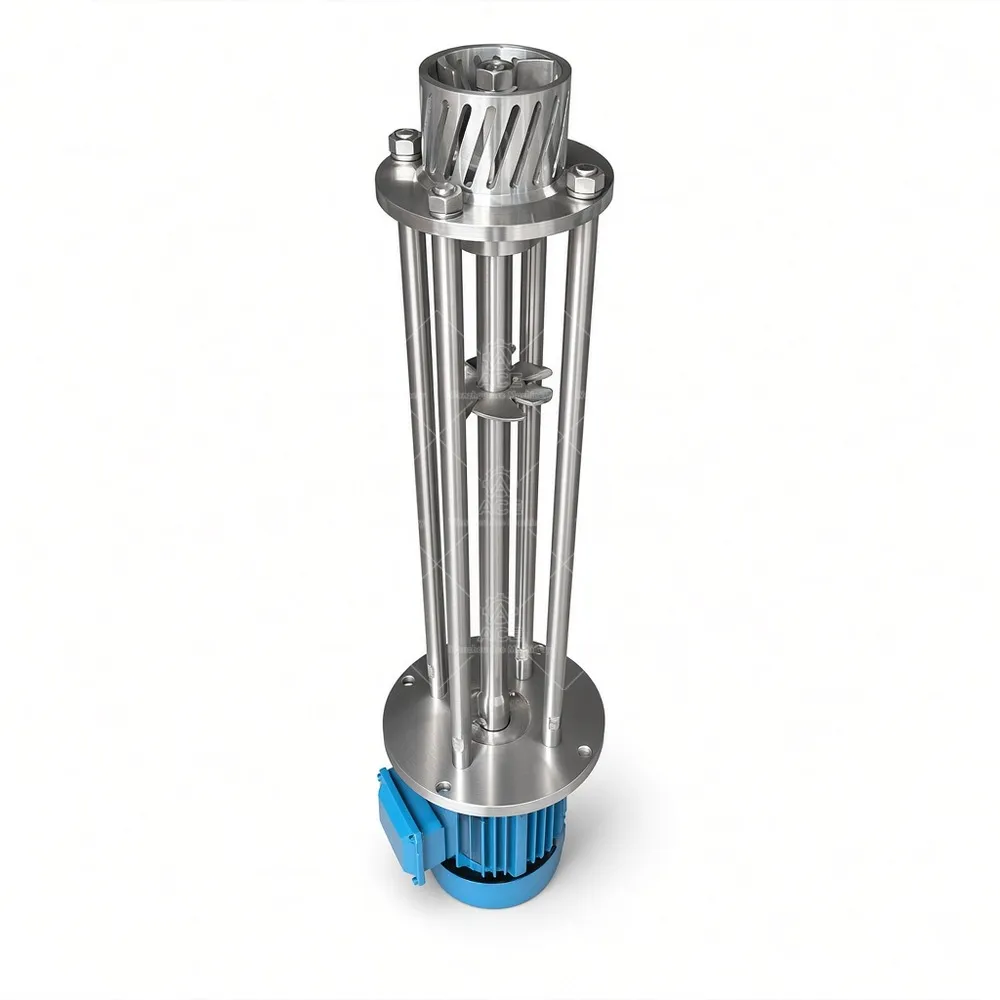

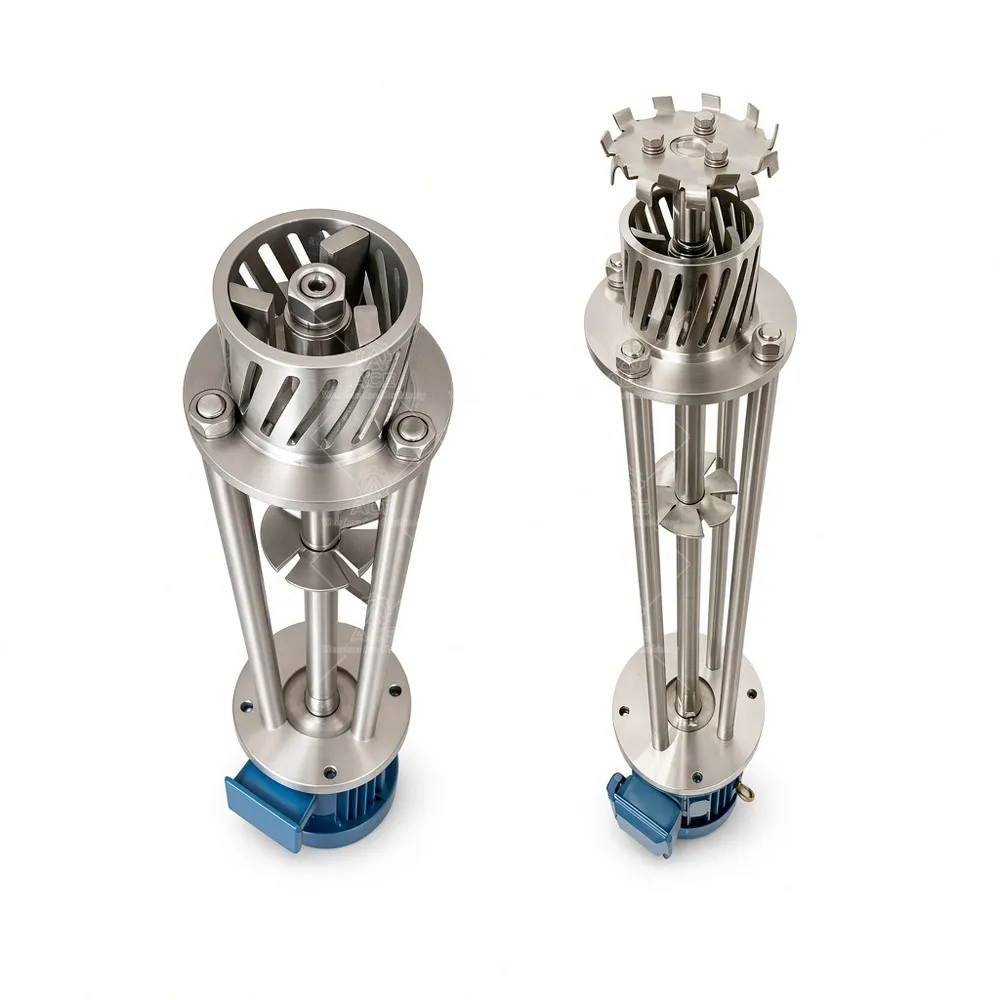

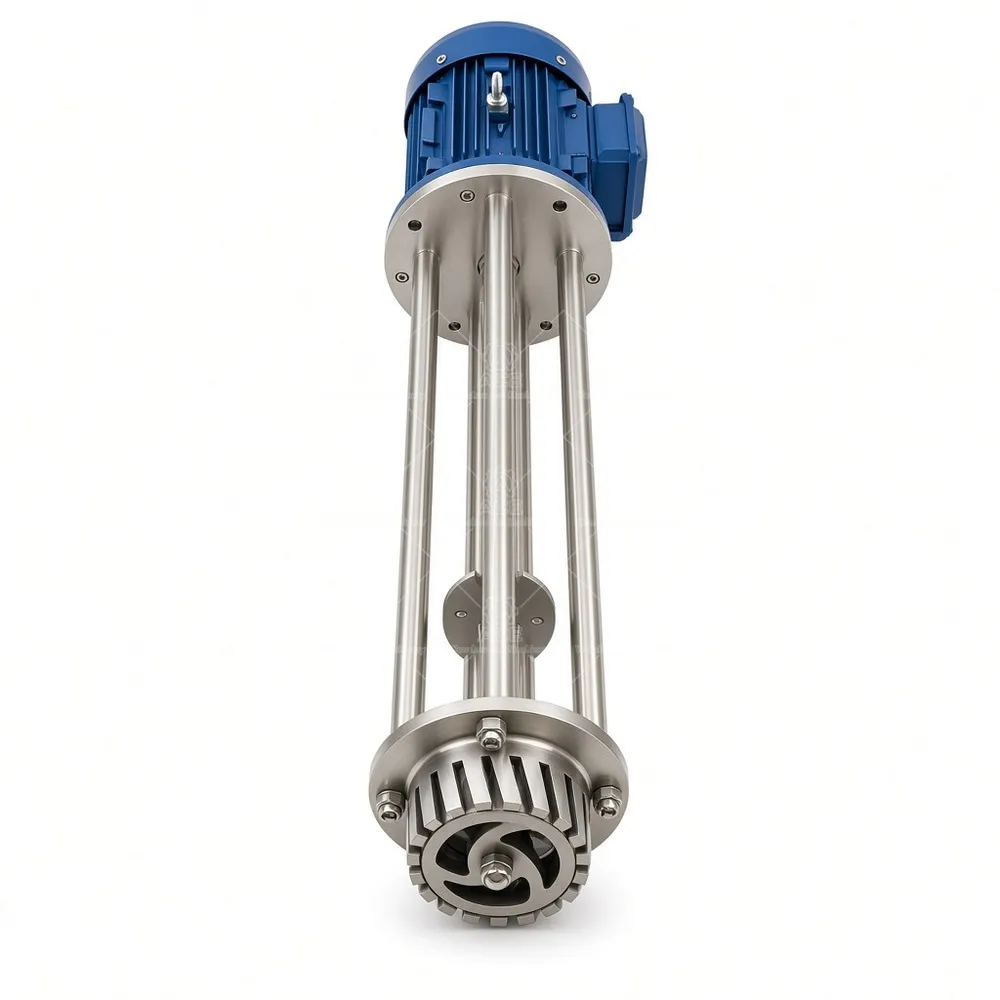

High-Speed High Shear Homogenizer Emulsifier Mixer for Cream, Cosmetic, Shampoo
- Material: 304 or 316L
- Voltage: 110V 208V 220V 380V 400V 415V 480V 600V
- Certificates: CE, GMP, UL, ATEX, ISO 9001
- Power：0.75KW-55KW （1 HP – 74 HP）
- Motor brands: ABB, Chinese brands, SEW, Siemens (optional)
- 1-year free warranty with door-to-door delivery.
- Optional: Variable-frequency drive, control panel
- MADE IN CHINA
- We have it in stock.
Please contact our sales team before placing your order.
Email:info@ace-chn.com
Tel:+86 18626835909
WeChat: ace-chn
Price range: $1,282.64 through $1,377.04
Guaranteed Safe Checkout
We manufacture and sell the following types of mixers
Mix, emulsify, homogenize, disintegrate and dissolve
Ideal for disintegrating solids and incorporating powders
Reduce mixing times by up to 80%
Reduce mixing times by up to 90%
Quickly disperse and hydrate powders, even at higher viscosities
Easy to move and lift
Features heating, cooling, vacuum, and other functions
Recommended RPM: 1480/2850 RPM
Ace Mixer builds this batch high shear mixer as configurable high shear mixing equipment for creams, cosmetics, shampoos, and liquid detergents. If a process needs fast dispersion, emulsification, or powder wet-out, the mixing head and motor package matter.
We build this industrial high shear mixer as a stainless steel high shear mixer with 304 or 316L wetted parts, depending on the formulation and cleaning regime. Motor power spans 1.5 kW to 55 kW. Speed control can be supplied with a VFD for 0–3000 rpm adjustable operation, and electrical configuration is confirmed against your market: 220V to 480V, with frequency and phase matched to site supply. That makes it usable as a variable speed high shear mixer for plants that run several products on one line.
What to define before an engineer sizes the unit
Batch size and vessel geometry come first. A mixer that suits a narrow, tall tank may not suit a wide open vessel. Next, viscosity and solids loading: creams, shampoo gels, and powder-heavy slurries behave differently at the head. State target rpm, motor power, and local voltage/frequency/phase. If the tank moves between rooms, a mobile high shear mixer may be more practical than a fixed installation. When specifying a high shear mixer for powder dispersion, tell us how the powder is added and whether lumps or fish-eyes are the current problem.
Applications we configure for
- Food and beverage processing: sauces, syrups, and liquid blends.
- Cosmetics and personal care: creams, lotions, shampoos, and gels.
- Pharmaceutical and healthcare preparations where wetted materials and cleanability are reviewed.
- Chemical processing and compatible industrial formulations.
- Paints, coatings, and pigment dispersions.
- Powder dispersion and liquid-liquid emulsification.
We do not quote a single head design for every product. The right rotor/stator, contact material, and operating parameters depend on viscosity, ingredients, and process target.
Procurement questions we hear
Can this run at variable speed?
Yes. A VFD high shear mixer configuration allows adjustable speed within the motor and drive limits selected for your process.
Is 304 or 316L better?
304 covers many cosmetic and food formulations. 316L is often specified for more aggressive chemistries or where wetted-part corrosion resistance is a priority.
What about mobile vs. fixed mounting?
Choose mobile when one unit serves multiple vessels; choose fixed when the tank, piping, and controls stay in one position.
Send batch size, material characteristics, target rpm, motor power, and electrical specifications. We will recommend a configuration and quote.
Ace Mixer builds configurable batch high shear homogenizers for creams, cosmetics, shampoo, and liquid products. Choose 304 or 316L wetted parts, 1.5–55 kW motor, VFD speed control, and site-matched voltage. Send batch size, viscosity, target rpm, and electrical specs for a practical configuration and quote.
