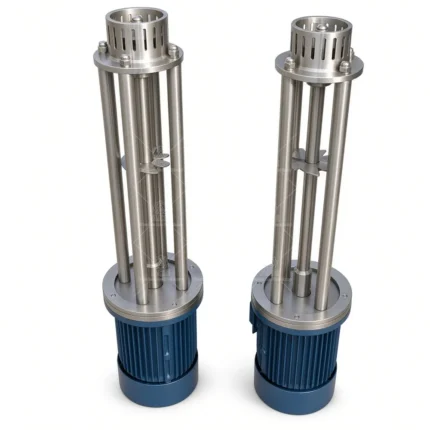

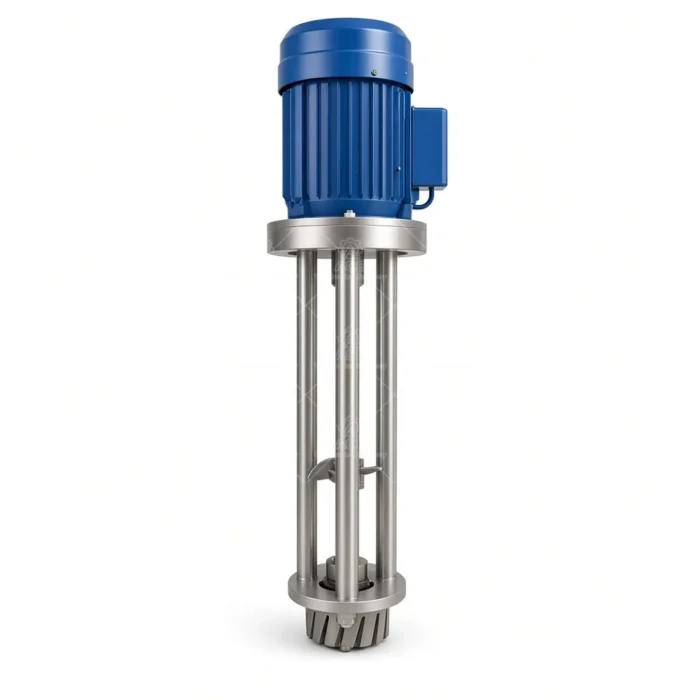

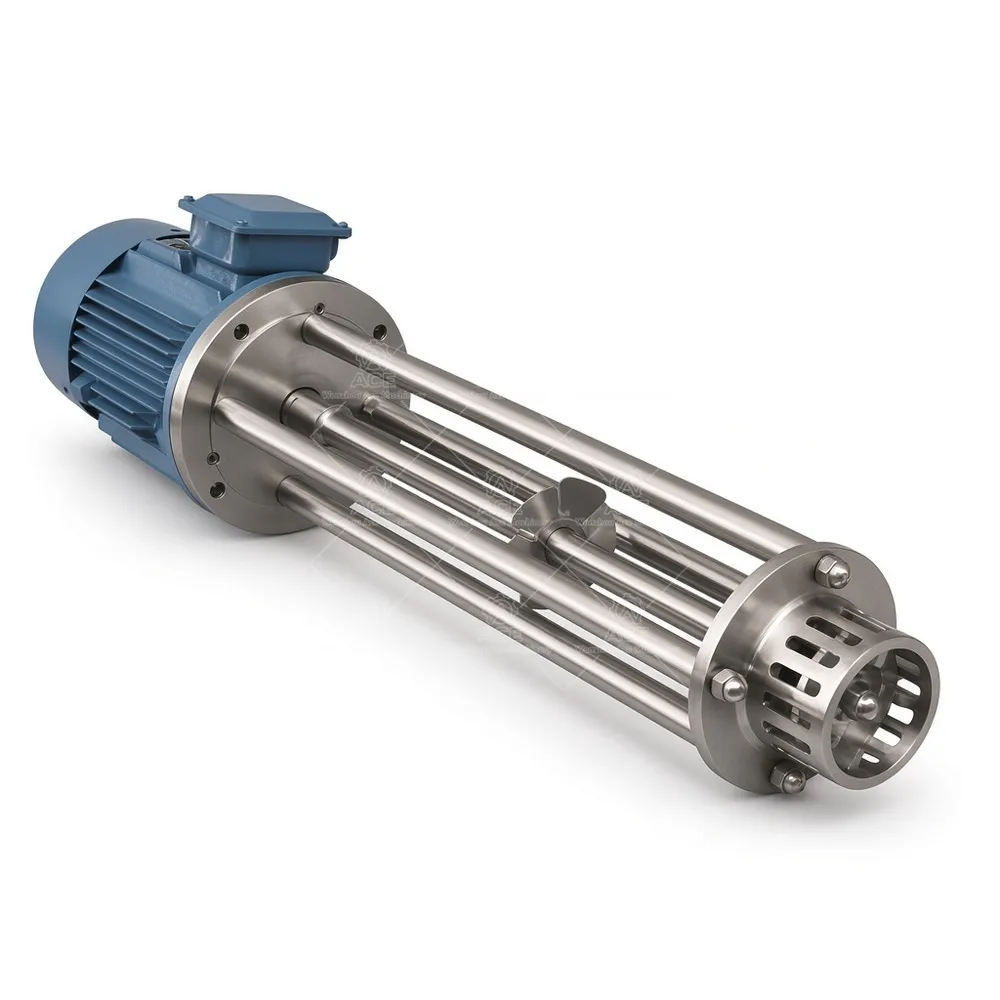

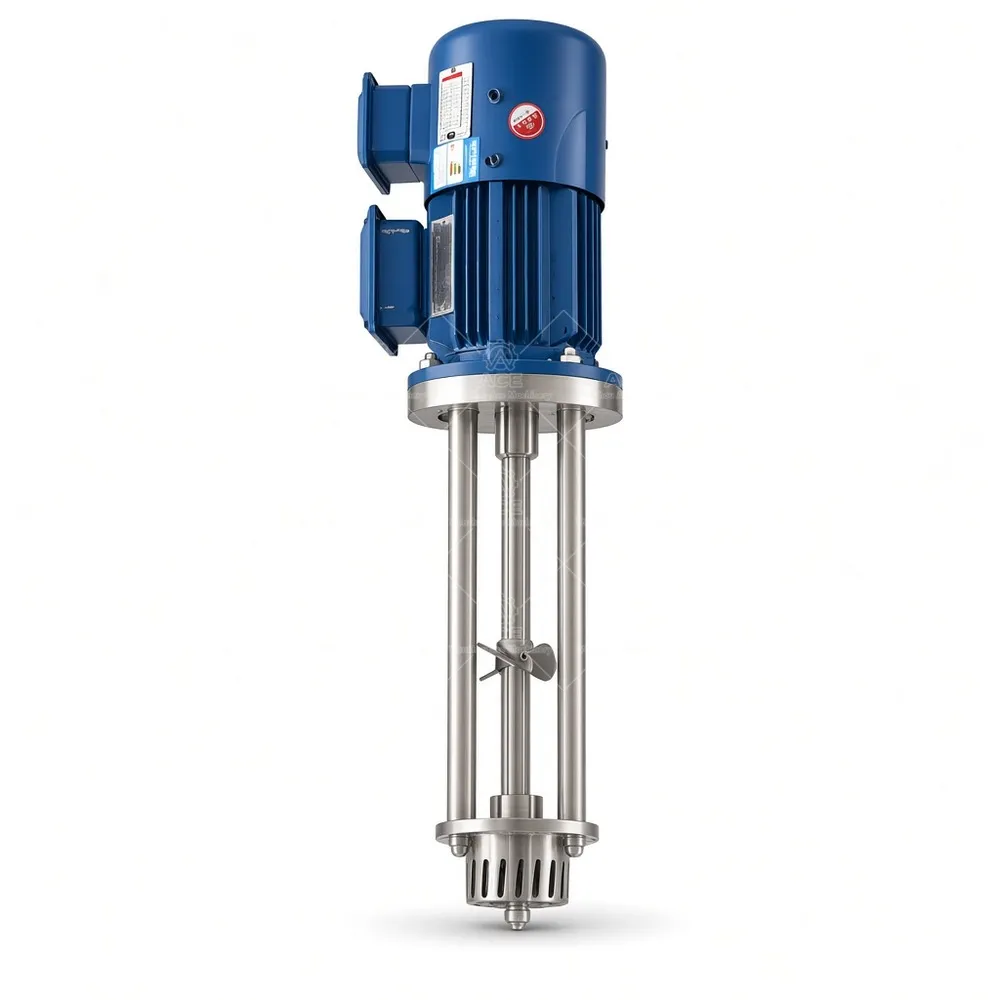

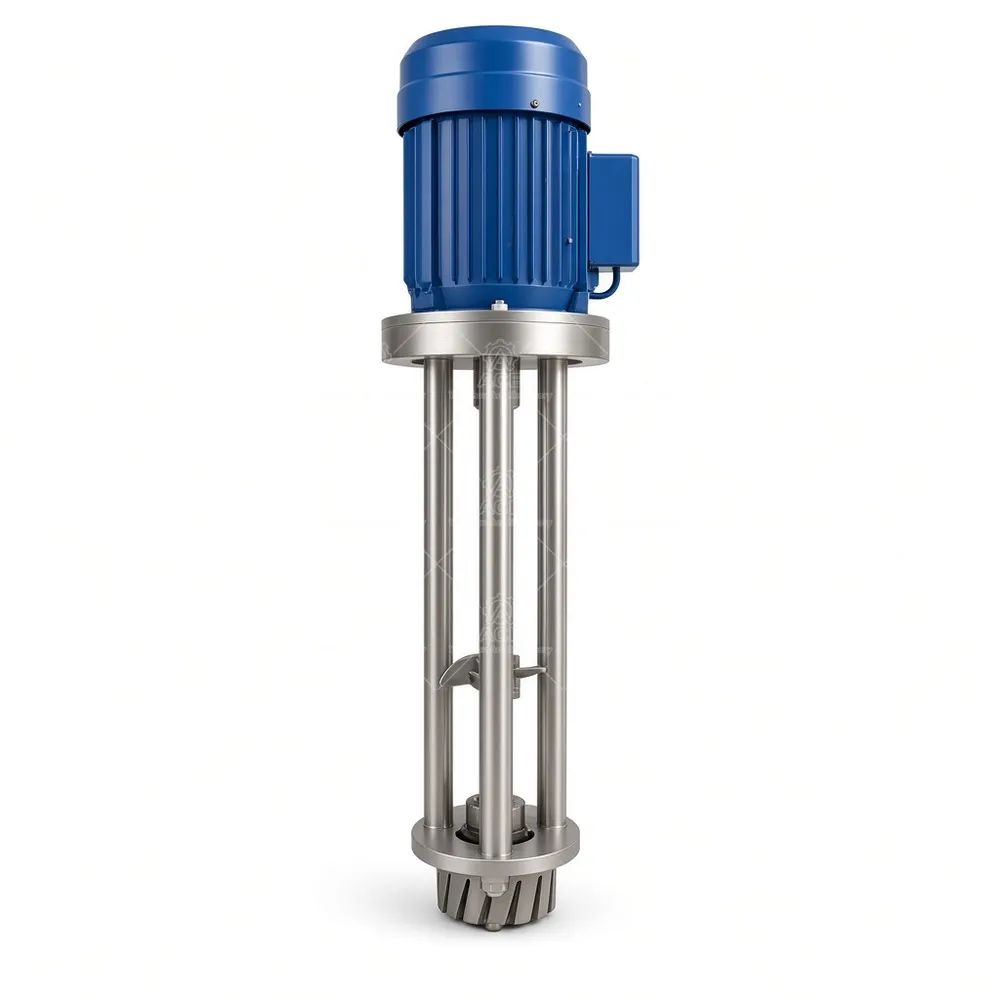

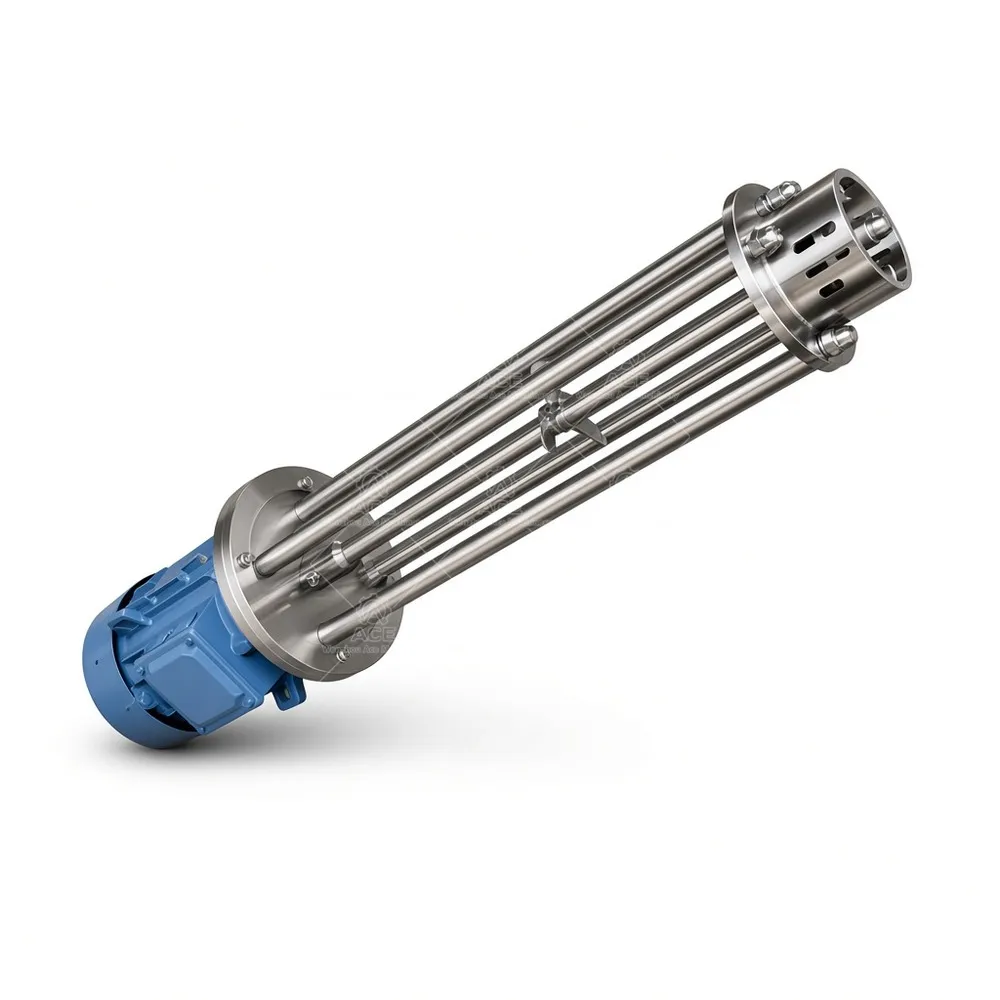

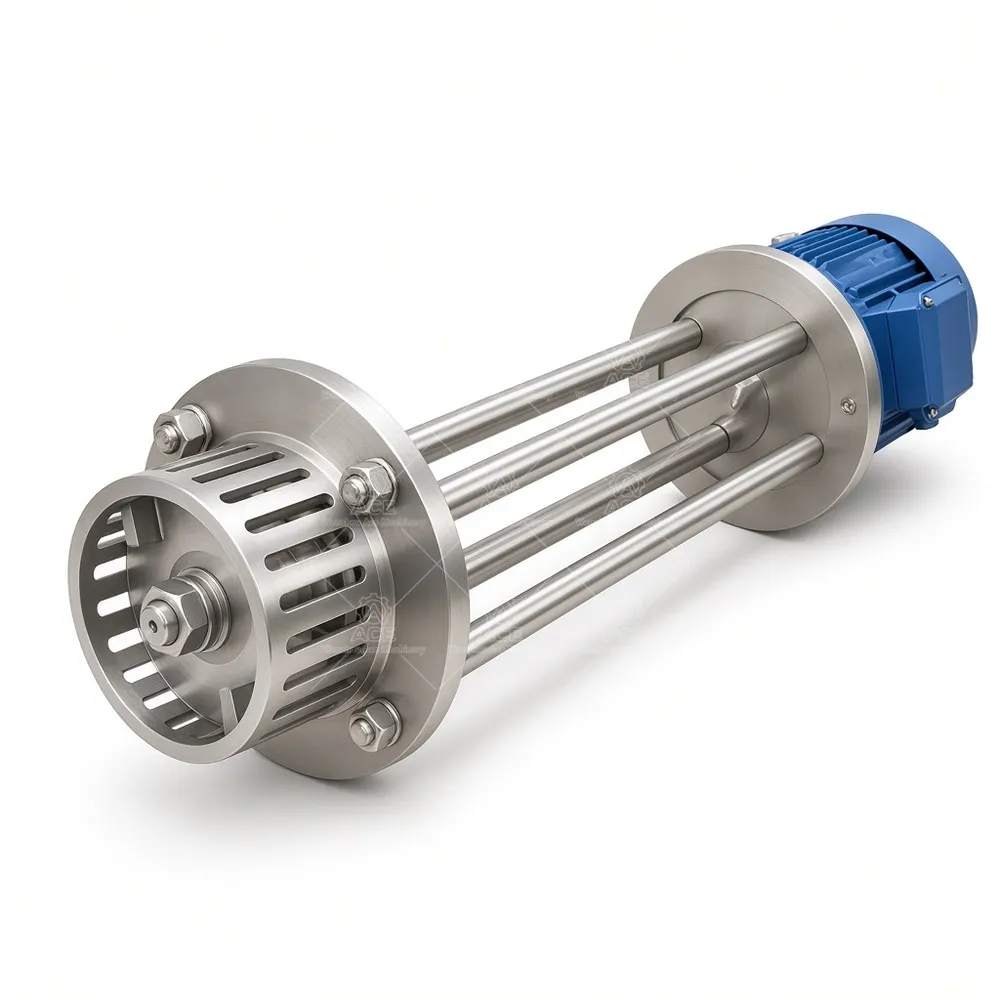

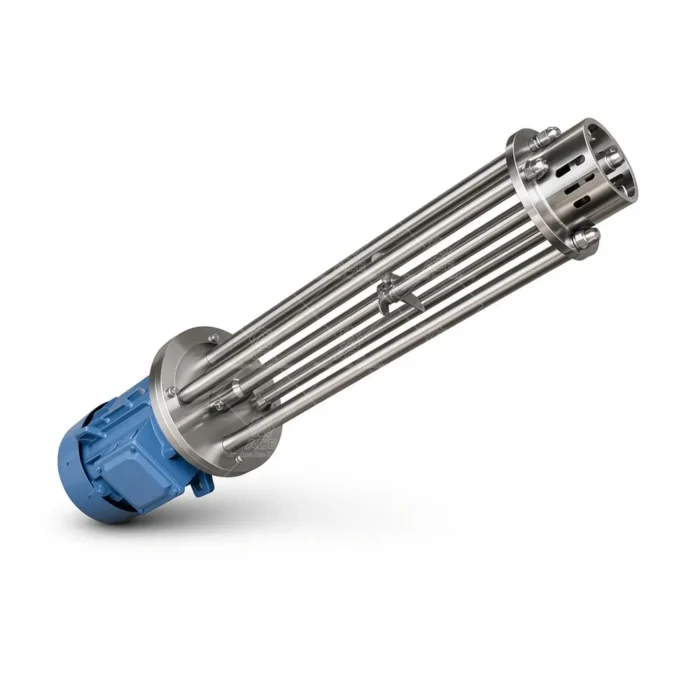

Industrial Batch High Shear Mixer for Cosmetics, Paint & Emulsions
- Material: 304 or 316L
- Voltage: 110V 208V 220V 380V 400V 415V 480V 600V
- Certificates: CE, GMP, UL, ATEX, ISO 9001
- Power：0.75KW-55KW （1 HP – 74 HP）
- Motor brands: ABB, Chinese brands, SEW, Siemens (optional)
- 1-year free warranty with door-to-door delivery.
- Optional: Variable-frequency drive, control panel
- MADE IN CHINA
- We have it in stock.
Please contact our sales team before placing your order.
Email:info@ace-chn.com
Tel:+86 18626835909
WeChat: ace-chn
Price range: $768.64 through $826.75
Guaranteed Safe Checkout
We manufacture and sell the following types of mixers
Mix, emulsify, homogenize, disintegrate and dissolve
Ideal for disintegrating solids and incorporating powders
Reduce mixing times by up to 80%
Reduce mixing times by up to 90%
Quickly disperse and hydrate powders, even at higher viscosities
Easy to move and lift
Features heating, cooling, vacuum, and other functions
Recommended RPM: 1480/2850 RPM
One vessel, one pass to a stable batch
Most inquiries about a batch high shear mixer start the same way: a formulation that separates overnight, pigment that refuses to wet out, or a cream that takes forty minutes to come together in a tank that should handle it in ten. The rotor/stator head is lowered into the product, shear is generated at the tip, and the batch recirculates until the emulsion or dispersion is uniform. High-speed dispersing, emulsifying, and powder wet-in run on the same shaft, which is why these units sit in plants where one tank handles several formulations a week.
Sizing starts with the batch, not the motor
Batch volume and viscosity set the head diameter. Head diameter and rheology set the power you actually need. A 5 kW unit that turns a 200 L water-thin emulsion will stall on a 3,000 cP cream in that same tank. Give us working viscosity at process temperature and the impeller-to-bottom clearance, and we will size from those numbers instead of from a catalog page.
Specifications
| Speed control | Optional VFD, 0–3000 rpm depending on motor and configuration |
| Motor power | 1.5 kW to 55 kW |
| Voltage | 220V–480V, confirmed per destination market (voltage, frequency, phase) |
| Wetted material | 304 or 316L stainless steel |
| Functions | High shear, dispersion, emulsification, powder incorporation |
Where these units run
Sauce, syrup, and gum hydration lines in food plants. Lotions, creams, and pigment dispersions in cosmetics. Suspensions and ointment bases in pharmaceutical compounding. Surfactants and polymer solutions in chemical processing. Tint pastes and latex letdown in paint shops. Powder dispersion into liquid and liquid-liquid emulsification both fall inside the range, though the correct mixing head, contact material, and operating parameters depend on viscosity, ingredients, and process conditions.
Mobile frame or fixed mount
A portable high shear mixer on a column and mobile frame suits plants running several tanks and pilot areas. Fixed top-entry or bottom-entry arrangements suit dedicated vessels and heavier bodies. Tell us the tank opening and travel distance; a long shaft on a short column is a common and avoidable mistake.
Questions we get before the PO
Can one head serve several tanks? Often yes, with a mobile frame and matched shaft length. Check tank geometry first, or you lose the vortex.
Why add a VFD? A variable speed high shear mixer lets you drop rpm during powder addition to control dusting, then ramp up for emulsification.
304 or 316L? 316L is usual for cosmetic, pharma, and aggressive chemical duty with frequent cleaning cycles.
Request a configuration
Send batch size, product viscosity and solids content, target rpm, required motor power, and local electrical supply. Our engineering team at Ace Mixer will return a recommended head, material, and drive package with pricing.
A batch high shear mixer for cosmetics, paints, food, pharma, and chemical processing. VFD speed control up to 3000 rpm, 1.5–55 kW motors, 304 or 316L wetted parts, and mobile or fixed mounting. Send batch size, viscosity, target rpm, and electrical specs for a configured quote from Ace Mixer.
