Food Grade High Shear Mixer Emulsifier Homogenizer for Cosmetic Shampoo Paste
- Material: 304 or 316L
- Voltage: 110V 208V 220V 380V 400V 415V 480V 600V
- Certificates: CE, GMP, UL, ATEX, ISO 9001
- Power：0.75KW-55KW （1 HP – 74 HP）
- Motor brands: ABB, Chinese brands, SEW, Siemens (optional)
- 1-year free warranty with door-to-door delivery.
- Optional: Variable-frequency drive, control panel
- MADE IN CHINA
- We have it in stock.
Please contact our sales team before placing your order.
Email:info@ace-chn.com
Tel:+86 18626835909
WeChat: ace-chn
Price range: $1,014.26 through $1,076.94
Guaranteed Safe Checkout
We manufacture and sell the following types of mixers
Mix, emulsify, homogenize, disintegrate and dissolve
Ideal for disintegrating solids and incorporating powders
Reduce mixing times by up to 80%
Reduce mixing times by up to 90%
Quickly disperse and hydrate powders, even at higher viscosities
Easy to move and lift
Features heating, cooling, vacuum, and other functions
Recommended RPM: 1480/2850 RPM
Shampoo pastes, creams, and food slurries often fail the same way: powders clump before wet-out, or emulsions separate because the rotor cannot deliver enough shear into a viscous batch. A batch high shear mixer combines dispersion and emulsification in one vessel. Ace Mixer configures this food-grade unit around your process.
Configuration matched to the process
Motor power runs from 1.5 kW to 55 kW. A thin shampoo base and a thick paste at the same volume need different torque. Optional VFD control makes this a variable speed high shear mixer, with 0–3000 rpm depending on motor and configuration. Confirm 220V to 480V, frequency, phase, and electrical setup for your plant. This stainless steel high shear mixer uses 304 or 316L contact parts.

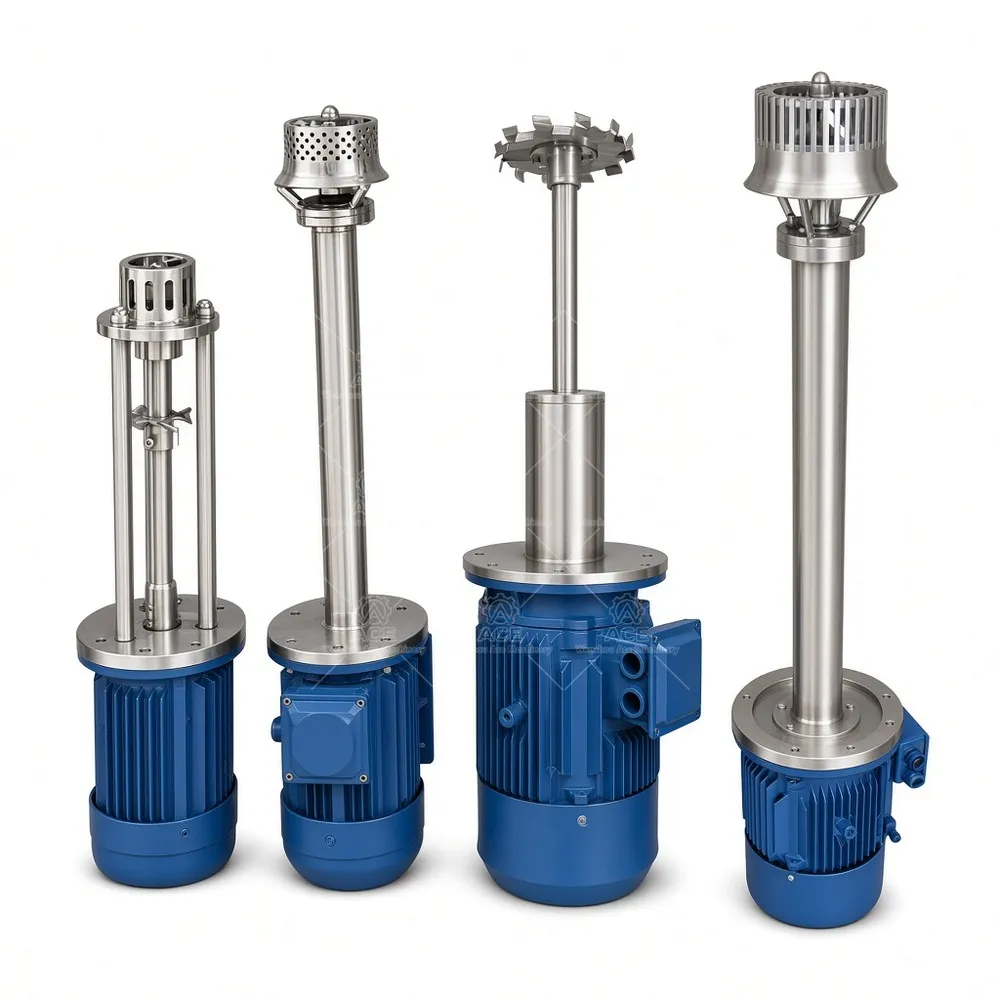

Heads and mounting
High shear mixing equipment is not one head design, and industrial high shear mixer choices vary by duty. We select rotor/stator or dispersion heads for powder dispersion, liquid-liquid emulsification, or paste homogenizing. A mobile high shear mixer suits changing tanks and pilot areas; fixed mounting with a dedicated vessel suits repeat batches. Share vessel geometry and batch size early; a head sized for a drum behaves differently in a wide tank.
Applications
- Food and beverage processing: sauces, slurries, stabilizer dispersion
- Cosmetics and personal care: shampoos, creams, pastes
- Pharmaceutical and healthcare preparations: compatible formulations
- Chemical processing and compatible coatings: emulsification and powder wet-out
For powder dispersion and liquid-liquid emulsions, the right head, material, and operating parameters depend on viscosity, ingredients, and process requirements.
Specifications
- Speed control: optional VFD, 0–3000 rpm depending on motor/configuration
- Voltage: 220–480V; frequency, phase, electrical configuration confirmed
- Motor: 1.5–55 kW
- Functions: high shear, dispersion, emulsification, powder incorporation
- Contact material: 304 or 316L stainless steel
- Manufacturer: Ace Mixer
Choosing the unit
Start with batch size and vessel dimensions, then viscosity and solids loading. These inputs usually decide motor power and head style. Confirm voltage, frequency, and phase before quotation; a 50 Hz motor on a 60 Hz supply changes operating speed. Decide between mobile and fixed installation. Review contact parts against the recipe.
FAQ
Can one mixer handle shampoo paste and food slurry? Sometimes, if viscosity and contact material suit both.
Is VFD necessary? It helps when viscosity varies or powder addition needs control.
For a quote, send batch size, vessel size, viscosity, target rpm, motor power, and local voltage, frequency, and phase.
We will recommend the motor, head, material, and electrical setup.
Ace Mixer builds food-grade batch high shear mixers with optional VFD speed control, 1.5–55 kW motors, and 304 or 316L contact parts. We configure the head, voltage, and mounting for cosmetic shampoo pastes, powder dispersion, and emulsions. Share batch size, viscosity, target rpm, and electrical specs for a matched quote.
Single-stage in-line mixer
Three-stage in-line mixer
High-Shear Mixer with lift
High shear mixer

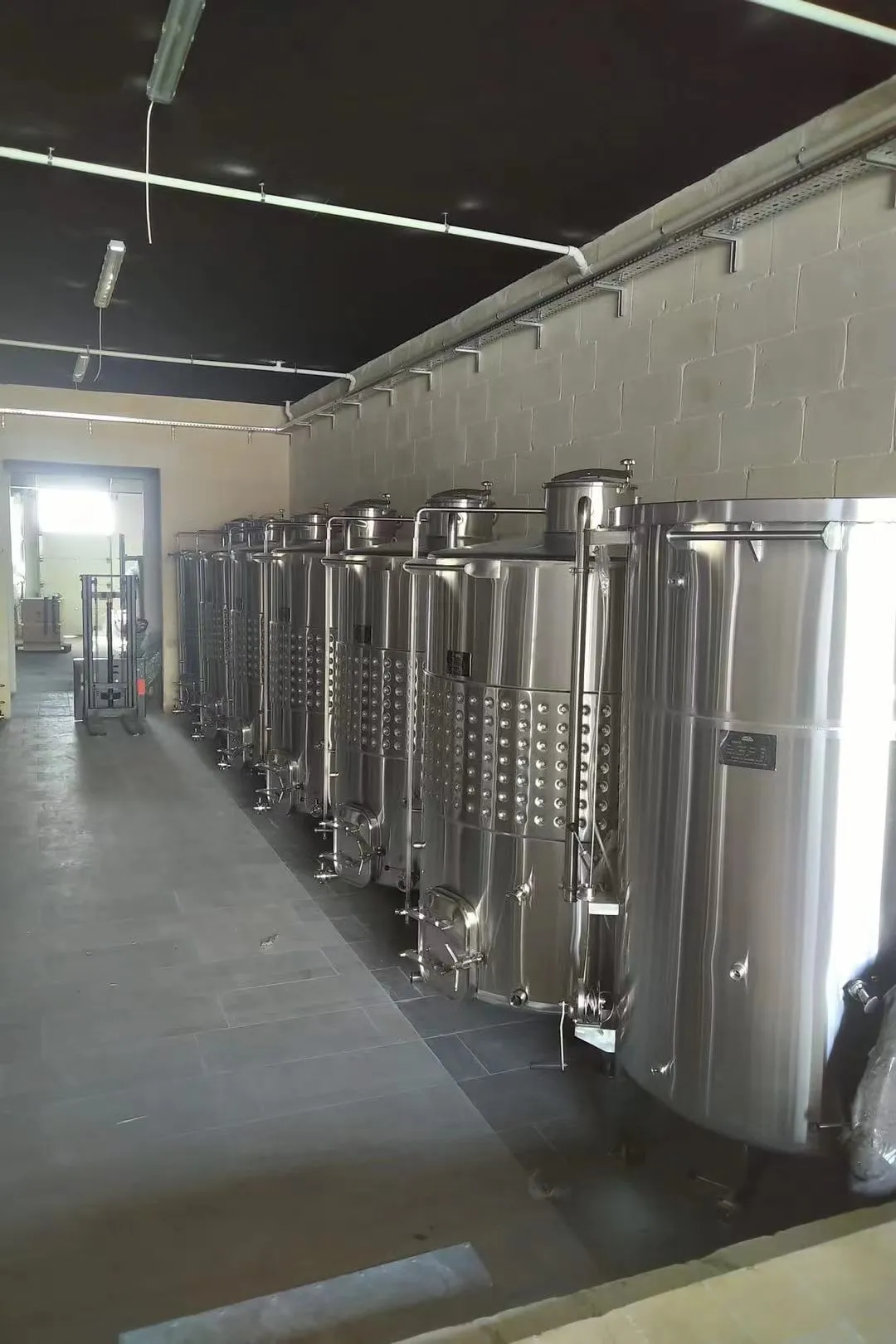

We are very happy with our new stainless steel wine tanks from ACE! The tanks arrived safely and were well protected during shipping. The stainless steel finish looks excellent, and the overall quality and workmanship meet our expectations. We also appreciate the professional service and support throughout the ordering and delivery process. Thank you, ACE, for providing reliable winery equipment. We look forward to working with you again!
