Batch High Shear Mixer Homogenizer for Cosmetic Cream & Food Paste
- Material: 304 or 316L
- Voltage: 110V 208V 220V 380V 400V 415V 480V 600V
- Certificates: CE, GMP, UL, ATEX, ISO 9001
- Power：0.75KW-55KW （1 HP – 74 HP）
- Motor brands: ABB, Chinese brands, SEW, Siemens (optional)
- 1-year free warranty with door-to-door delivery.
- Optional: Variable-frequency drive, control panel
- MADE IN CHINA
- We have it in stock.
Please contact our sales team before placing your order.
Email:info@ace-chn.com
Tel:+86 18626835909
WeChat: ace-chn
Price range: $567.72 through $603.77
Guaranteed Safe Checkout
We manufacture and sell the following types of mixers
Mix, emulsify, homogenize, disintegrate and dissolve
Ideal for disintegrating solids and incorporating powders
Reduce mixing times by up to 80%
Reduce mixing times by up to 90%
Quickly disperse and hydrate powders, even at higher viscosities
Easy to move and lift
Features heating, cooling, vacuum, and other functions
Recommended RPM: 1480/2850 RPM

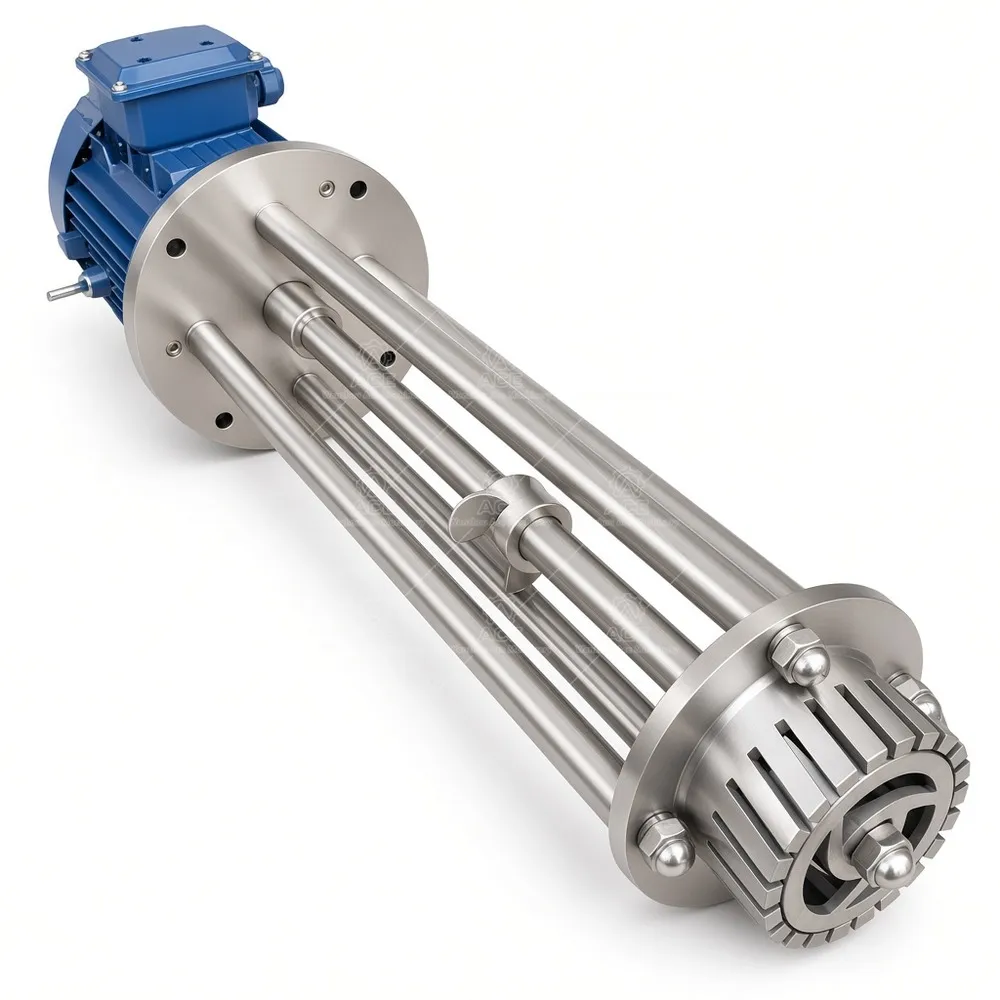

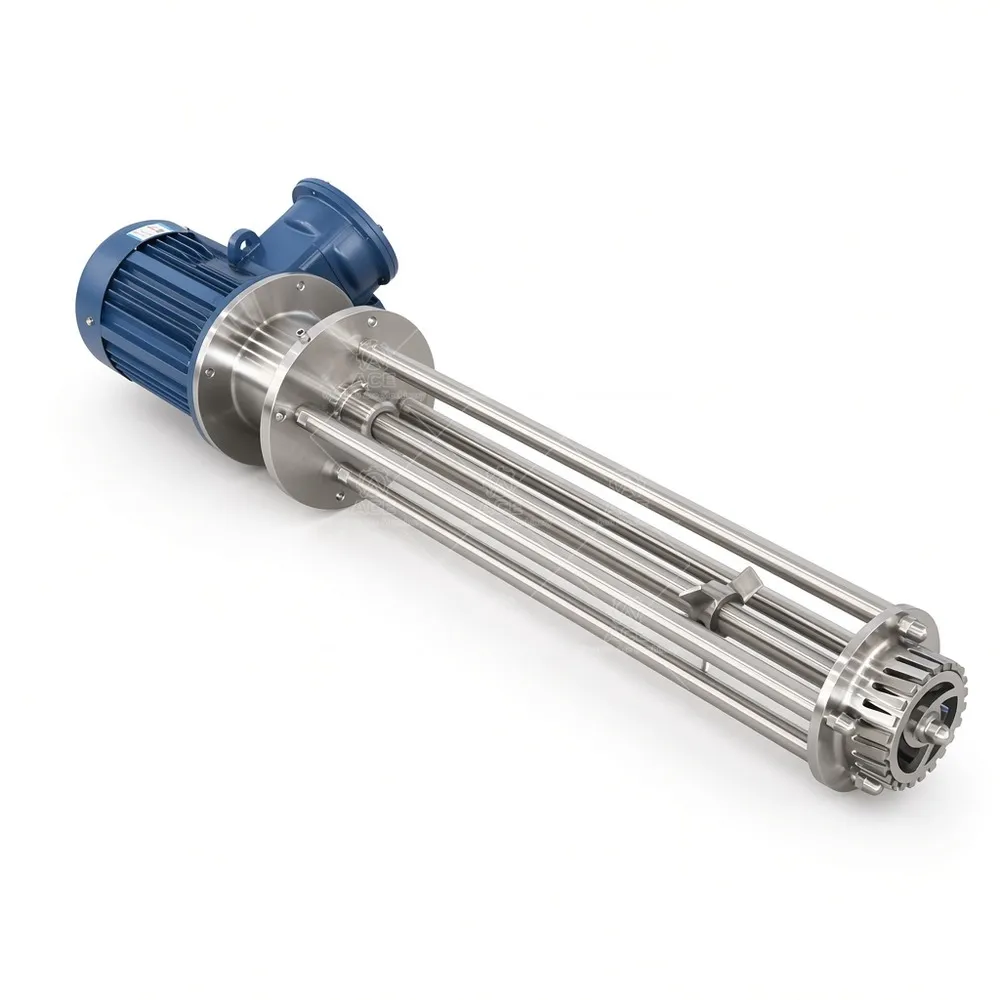

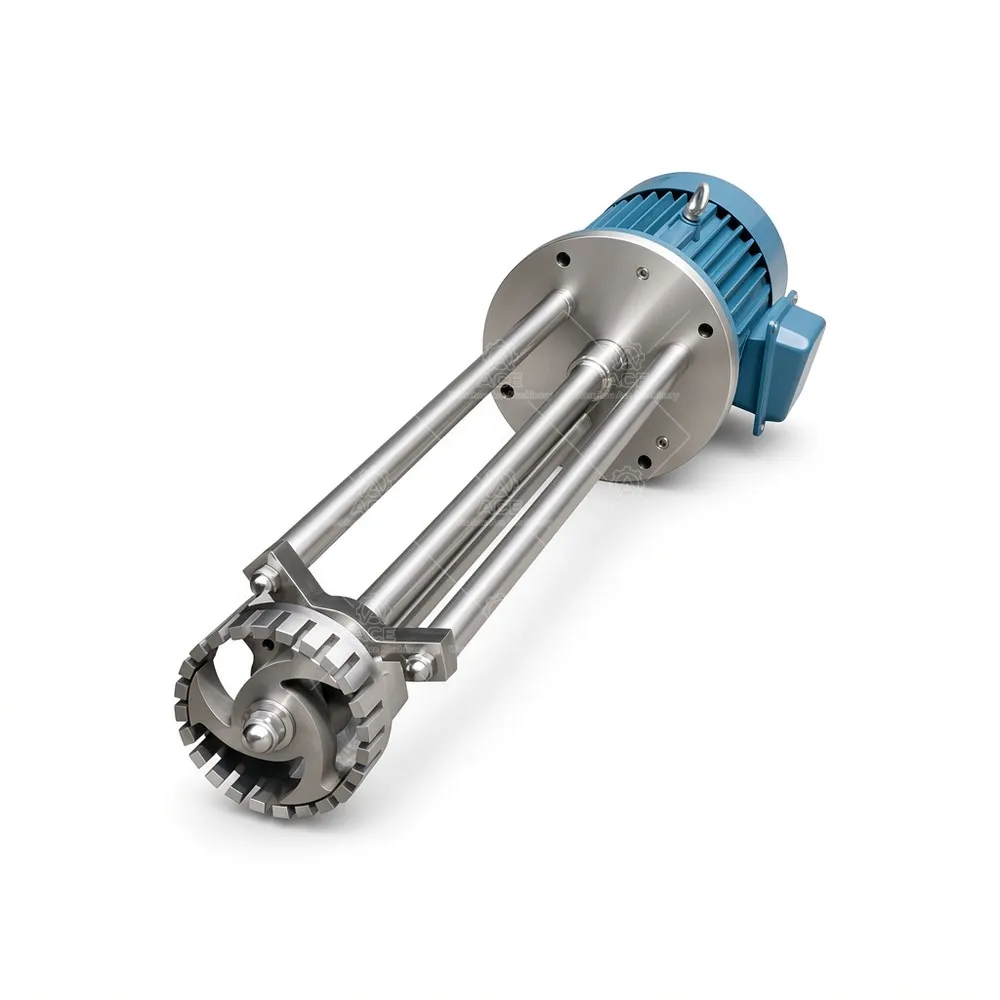

Streaks, agglomerates, or inconsistent emulsion usually point to the mixer first. Our batch high shear mixer is built for those moments: a rotor-stator head runs close to the vessel bottom, pulling powder into the liquid before it lumps, then shearing until the texture holds. Ace Mixer builds this high shear mixing equipment as an industrial high shear homogenizer for cosmetic creams, food pastes, and related formulations.
The setup is practical. A VFD is optional, giving 0–3000 rpm depending on motor and configuration. Motor power spans 1.5 kW to 55 kW. Voltage is confirmed for the destination market from 220V to 480V, including frequency and phase. Wetted parts are 304 or 316L stainless steel. Shaft length, head style, control cabinet, and mounting can be specified around your vessel. Portable high shear mixer configurations suit changing vessels; fixed arrangements fit dedicated tanks.
Specifications
- Speed control: optional VFD, 0–3000 rpm depending on motor/configuration
- Voltage: 220V–480V; frequency/phase confirmed per market
- Motor power: 1.5 kW–55 kW
- Functions: high-speed shear, dispersion, emulsification, powder incorporation
- Wetted material: 304 or 316L stainless steel
- Customization: motor, voltage, controls, mixing head, contact parts
- Manufacturer: Ace Mixer
Use it for food and beverage processing, cosmetic and personal care products, pharmaceutical and healthcare preparations, chemical processing, and compatible paints and coatings. Head style, wetted material, and operating parameters depend on viscosity, composition, and process aim. A high shear mixer for powder dispersion needs enough vortex to wet out solids without pulling in excess air. A variable speed high shear mixer with VFD helps tune that balance.
Before quoting, we ask for batch size, vessel dimensions, viscosity, composition, target rpm, motor power, and local electrical details. That prevents oversizing the drive or selecting a head that stalls on heavy paste. Tell us whether the batch must emulsify, disperse, or blend powder, and we will recommend a stainless steel high shear mixer configuration.
FAQ
Can one unit handle cream and food paste? Often yes, but the head and motor are selected around viscosity and batch size. Heavy paste may need more torque rather than higher rpm.
Is VFD required? No, but it is common where operators need to adjust shear without changing tools.
What information speeds a quote? Batch volume, tank size, product viscosity, solids, target speed, motor power, and voltage/frequency/phase.
Send your batch size, material characteristics, target rpm, required motor power, and local electrical specification to Ace Mixer for a configuration review and quote.
Ace Mixer\’s batch high shear mixer homogenizer handles cosmetic creams, food pastes, and comparable formulations. Optional VFD gives 0–3000 rpm; motors range from 1.5 to 55 kW, with 220–480V electrical options and 304 or 316L stainless steel wetted parts. Share batch size, viscosity, target speed, power, and local electrical details for a configured quote.
