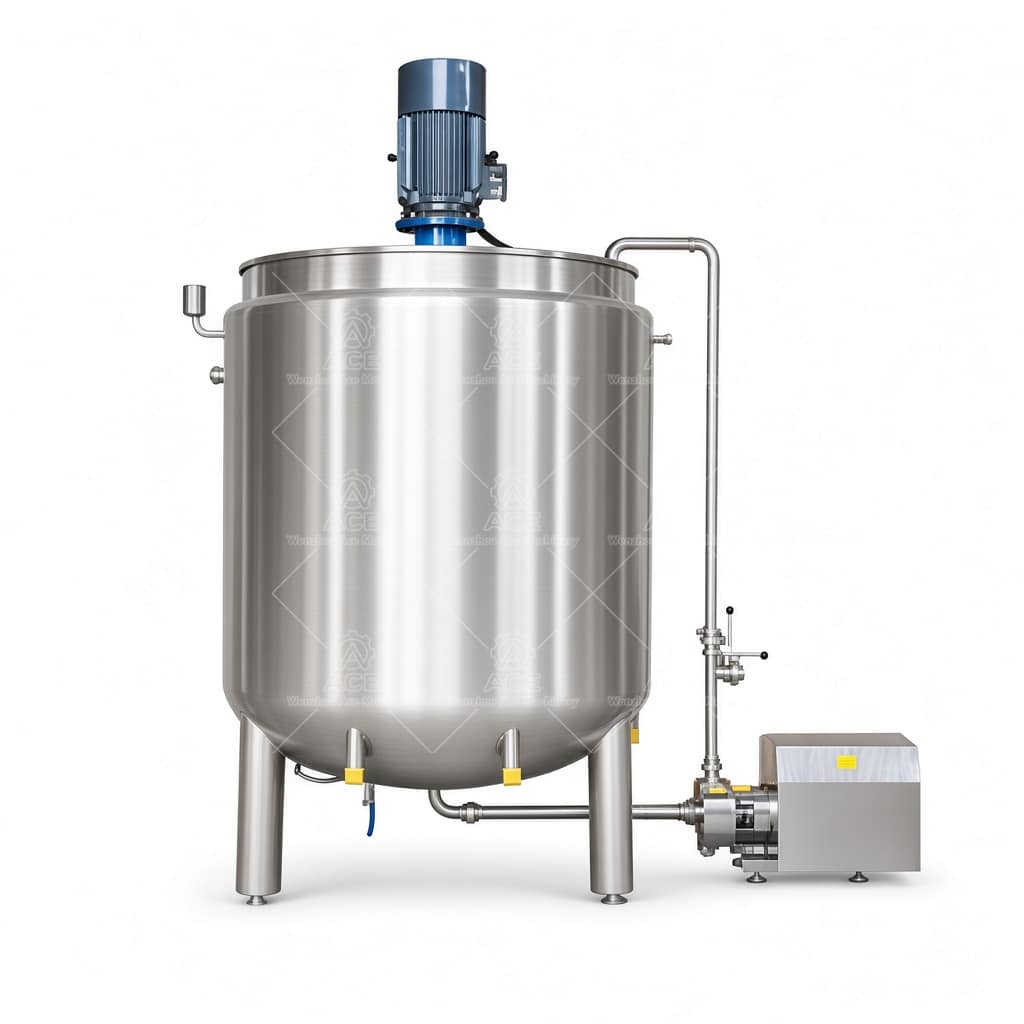

Electric Heating Shampoo Mixing Tank with Homogenizer for Hair Care Production
An electrically heated shampoo mixing tank combines batch agitation with an optional homogenizer for hair-care liquid production. Vessel capacity, stainless steel grade, heating arrangement, agitator and drive, seals, and control scope are specified around the formulation and production sequence. Share batch volume, viscosity, temperature targets, cleaning method, and available utilities to develop a configuration suited to your process.
- Capacity: 50 liters to 30,000 liters
- Mixer power: 1.5 kW to 55 kW
- Material: [SUS304 / SUS316L]
- Voltage: 110V / 220V / 380V / 400V / 440V / 480V / 600V
- Heating method: [Electric / Steam / Thermal Oil / Hot Water / No Heating]
- Cooling method: [Cooling Jacket / Dimple Jacket / Coil / No Cooling]
- Agitation system: [Top Entry Agitator / Anchor Mixer / Paddle / Turbine / High-Shear Mixer / Customized]
- Optional features: [Insulation / Load Cells / Temperature Sensor / Pressure Gauge / Manhole / CIP / PLC Control / Explosion-Proof Motor]
- Certificates: ASME, CE, GMP, UL, ATEX, ISO 9001
- Working pressure: [Atmospheric / Positive Pressure / Vacuum / Specify pressure]
- If you have drawings, we can process them for you.
Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909
Price range: $3,140.85 through $3,613.86
Guaranteed Safe Checkout
Recommend RPM: 0-960RPM
Viscosity: Low/medium viscosity
Application: Mainly Liquid mixing
Recommend RPM: 0-200RPM
Viscosity: Low/medium viscosity
Application: Mainly Liquid mixing
Recommend RPM: 30RPM
Viscosity: Medium/High viscosity
Application: Melting, High viscosity product mixing, For single wall tank
Recommend RPM: 30RPM
Viscosity: Medium/High viscosity
Application: Melting, High viscosity product mixing, For jacket tank
Recommend RPM: 1480/2850 RPM
Viscosity: Low/medium viscosity
Application: Liquid powder mixing and dispersion
Recommend RPM: 2800 - 3200 RPM
Viscosity: Low/medium/High viscosity
Application: Liquid powder mixing and homogenizing
Recommend RPM: 0-355RPM
Viscosity: Low/medium viscosity
Application: Install at bottom, No mechanical seal working condition
Recommend RPM: As above
Viscosity: Low/medium viscosity
Application: Liquid powder mixing and dispersion For tank volume >300L
Shampoo Mixing Tank for Controlled Batch Production
Shampoo production can involve dissolving surfactants, dispersing thickeners, blending fragrance, and managing foam without entraining excess air. We configure this electric-heated mixing tank around the batch sequence and formula behavior, rather than treating every hair-care liquid as the same process. The agitator circulates the batch; a homogenizer can provide additional high-shear mixing where the formulation requires it. Its speed, position, and operating sequence should be set against viscosity, batch size, and the risk of foaming.
Construction and process details
Product-contact construction can be specified in 304 or 316 stainless steel, depending on ingredients, cleaning chemicals, and corrosion requirements. Weld profile, internal polishing, drainability, and surface finish should be agreed on the drawing. A smooth, accessible vessel interior helps reduce retained product and simplifies cleaning, but the appropriate finish depends on the process and cleaning method. Seal materials also need checking against surfactants, fragrances, temperature, and cleaning agents.
Electric heating can be designed around the required heat-transfer arrangement and temperature range. Control accuracy depends on sensor location, batch circulation, vessel geometry, and the heating surface—not just the controller. We recommend defining ramp-up time and temperature limits with the actual product or a representative process. The motor and gearbox are selected from working volume, viscosity, agitator type, and required speed. A high-shear homogenizer may be unnecessary for a formula that only needs gentle blending; conversely, an undersized drive can struggle as a batch thickens.
Typical configuration information
| Item | Specification basis |
|---|---|
| Working capacity | Set from batch size, headspace, and operating fill level |
| Contact material | 304 or 316 stainless steel, subject to formulation review |
| Heating | Electric system; arrangement and control range to be confirmed |
| Mixing system | Agitator and optional homogenizer selected for viscosity and process |
| Controls | Automation scope, sensors, and recipe functions specified per project |
Applications and FAQs
Typical uses include shampoo, conditioner, body wash, and related cosmetic liquids. Can one tank handle several formulas? Often, but changeover, cleaning access, and seal compatibility need review. Is a homogenizer always required? No; it depends on dispersion and uniformity requirements. Does electric heating set the batch temperature automatically? Control functions and sensor placement must be defined in the equipment specification.
For a useful quotation, send target batch and working volumes, ingredient list or compatibility notes, viscosity range, process steps, heating time and temperature, cleaning method, available power, and required automation. These details let our engineering team recommend a vessel and drive configuration that fits the production process.
