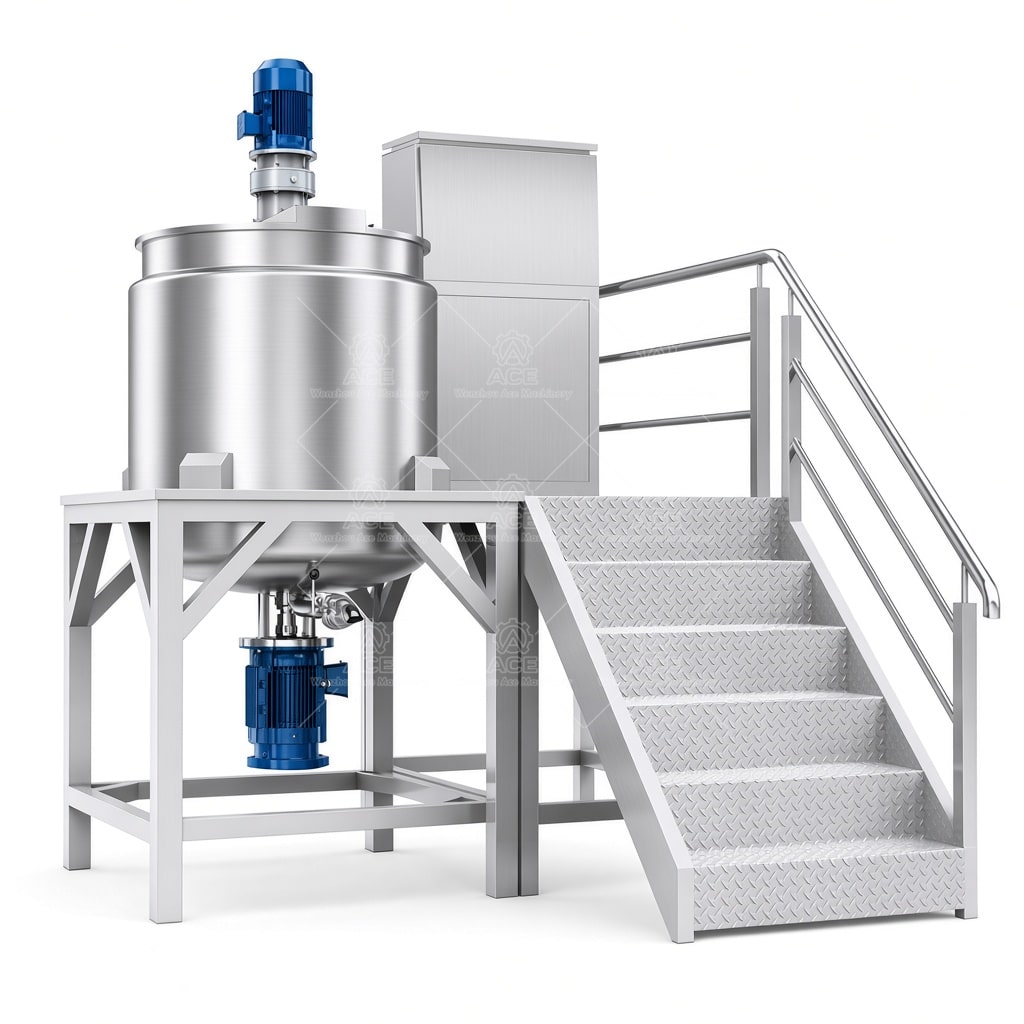

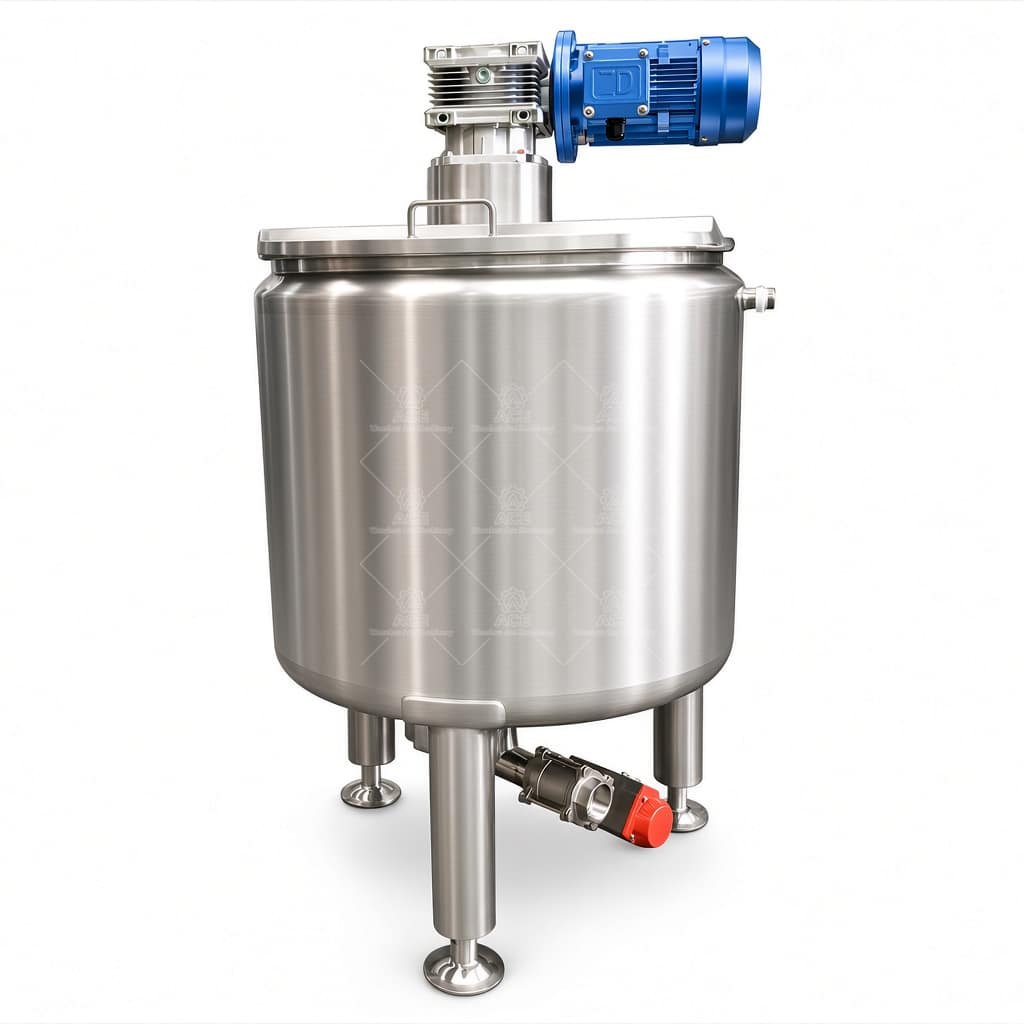

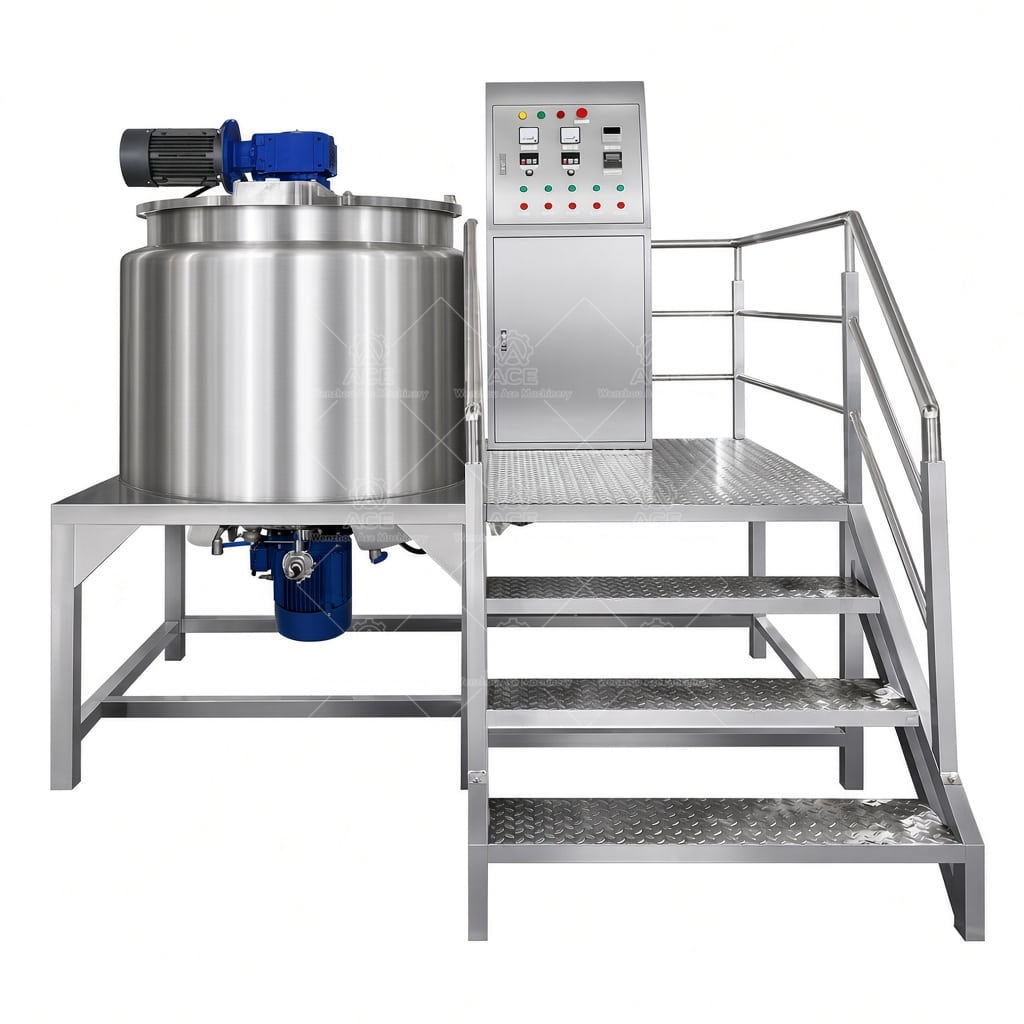

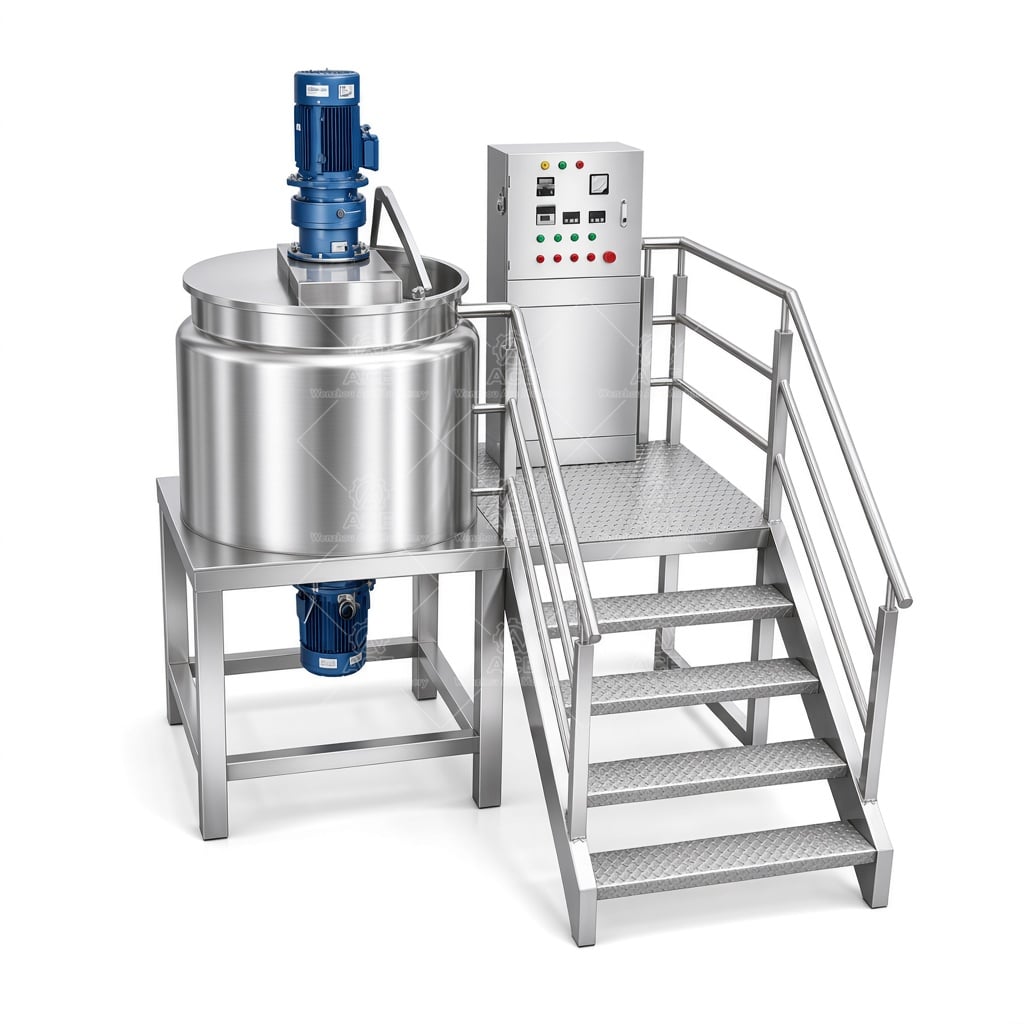

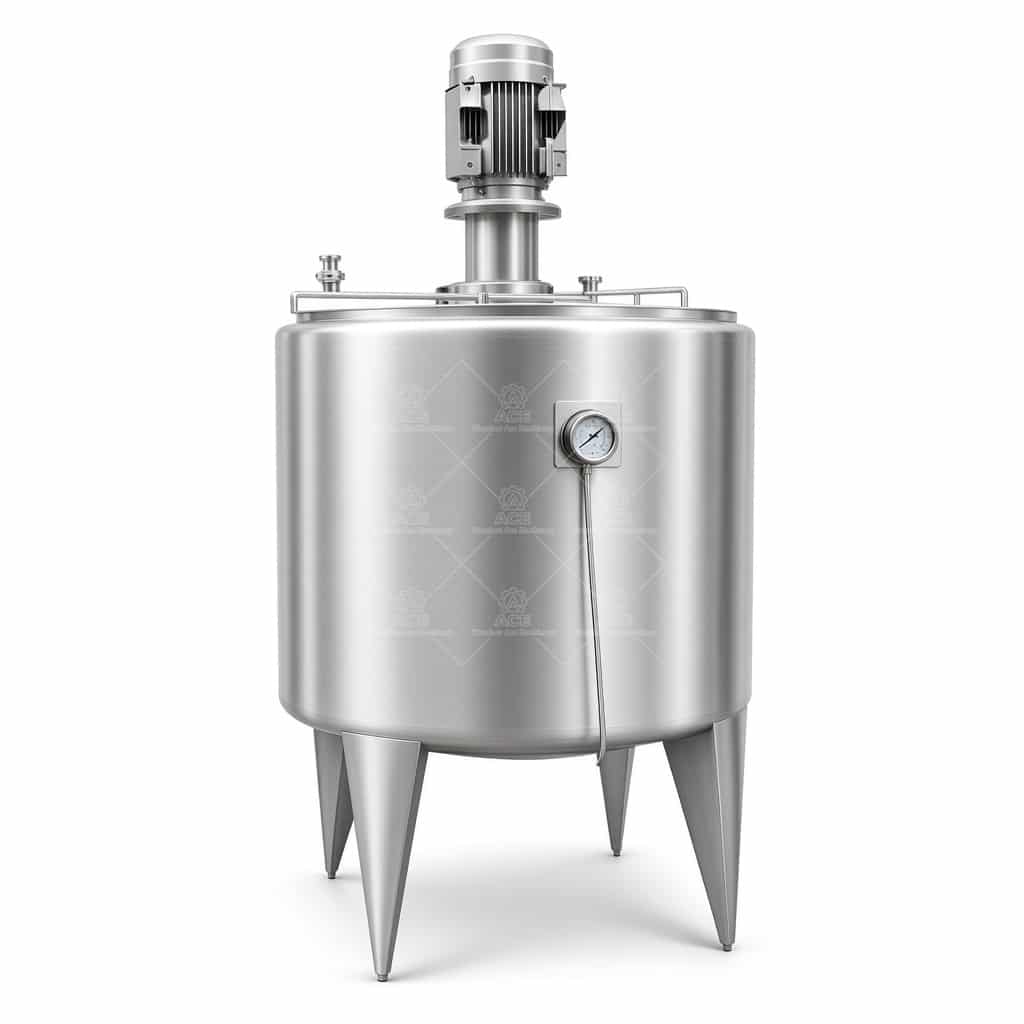

10 to 1000L Vacuum Homogenizing Emulsifier Mixing Tank
A configurable 10–1000 L vacuum homogenizing emulsifier for cosmetic creams, lotions, gels, and compatible chemical emulsions. Vessel materials, surface finish, seal arrangement, agitator, homogenizer, and heating or cooling options depend on the formulation and production conditions. Share batch volume, viscosity, process temperatures, cleaning method, and plant utilities to help define a suitable configuration.
- Capacity: 50 liters to 30,000 liters
- Mixer power: 1.5 kW to 55 kW
- Material: [SUS304 / SUS316L]
- Voltage: 110V / 220V / 380V / 400V / 440V / 480V / 600V
- Heating method: [Electric / Steam / Thermal Oil / Hot Water / No Heating]
- Cooling method: [Cooling Jacket / Dimple Jacket / Coil / No Cooling]
- Agitation system: [Top Entry Agitator / Anchor Mixer / Paddle / Turbine / High-Shear Mixer / Customized]
- Optional features: [Insulation / Load Cells / Temperature Sensor / Pressure Gauge / Manhole / CIP / PLC Control / Explosion-Proof Motor]
- Certificates: ASME, CE, GMP, UL, ATEX, ISO 9001
- Working pressure: [Atmospheric / Positive Pressure / Vacuum / Specify pressure]
- If you have drawings, we can process them for you.
Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909
Price range: $2,687.96 through $3,051.91
Guaranteed Safe Checkout
Recommend RPM: 0-960RPM
Viscosity: Low/medium viscosity
Application: Mainly Liquid mixing
Recommend RPM: 0-200RPM
Viscosity: Low/medium viscosity
Application: Mainly Liquid mixing
Recommend RPM: 30RPM
Viscosity: Medium/High viscosity
Application: Melting, High viscosity product mixing, For single wall tank
Recommend RPM: 30RPM
Viscosity: Medium/High viscosity
Application: Melting, High viscosity product mixing, For jacket tank
Recommend RPM: 1480/2850 RPM
Viscosity: Low/medium viscosity
Application: Liquid powder mixing and dispersion
Recommend RPM: 2800 - 3200 RPM
Viscosity: Low/medium/High viscosity
Application: Liquid powder mixing and homogenizing
Recommend RPM: 0-355RPM
Viscosity: Low/medium viscosity
Application: Install at bottom, No mechanical seal working condition
Recommend RPM: As above
Viscosity: Low/medium viscosity
Application: Liquid powder mixing and dispersion For tank volume >300L
Vacuum Homogenizing Mixing for Emulsions and Gels
This 10–1000 L automatic vacuum homogenizing emulsifier is configured for batch processes that need controlled mixing, dispersion, and air removal. Typical work includes cosmetic creams and lotions, gels, and compatible chemical emulsions. Vacuum can help reduce entrained air during processing, but the required vacuum level and cycle depend on the formulation, batch size, and process sequence.
We size the vessel and mixing package around the product’s viscosity and behavior as it thickens. A wall-scraping agitator may be appropriate for viscous batches; a high-shear homogenizer is selected for the required dispersion and particle reduction. Motor power, reducer ratio, impeller geometry, and operating speed are engineering selections, not fixed values across the full capacity range. Heating or cooling can be specified when the process requires temperature control. The heating method, jacket arrangement, temperature range, and control strategy should be confirmed against the product and available plant utilities.
Construction and configuration
Product-contact parts are commonly specified in stainless steel, with grade selected for ingredient compatibility, cleaning chemicals, and regulatory requirements. We confirm the required grade rather than assuming one material suits every formula. Welds, internal corners, drainability, and surface finish affect cleanability; polishing requirements should be defined for the product-contact surfaces. Shaft seals are selected according to vacuum conditions, temperature, and the risk of product leakage or contamination. Where cleaning between batches is important, include cleaning method and access requirements in the design review.
Preliminary specification guide
| Item | Selection basis |
|---|---|
| Working capacity | 10–1000 L nominal range; confirm usable batch volume and headspace |
| Process | Vacuum mixing and homogenizing; sequence depends on formulation |
| Agitation | Impeller and drive selected for viscosity and batch behavior |
| Temperature control | Heating or cooling arrangement defined by process requirements |
| Materials and finish | Specified from compatibility, cleaning, and product-contact needs |
Questions to resolve before ordering
Can one configuration handle every product? Not necessarily. A low-viscosity lotion and a gel may need different impellers, speeds, and drive sizing. What should be included in a quotation request? Provide batch volume, ingredient viscosity or a sample, process steps, target temperature, cleaning method, utilities, and site electrical requirements. Share any limits on floor space, vessel access, or discharge height as well. These details let our engineers recommend a practical configuration and identify which specifications still require confirmation.
