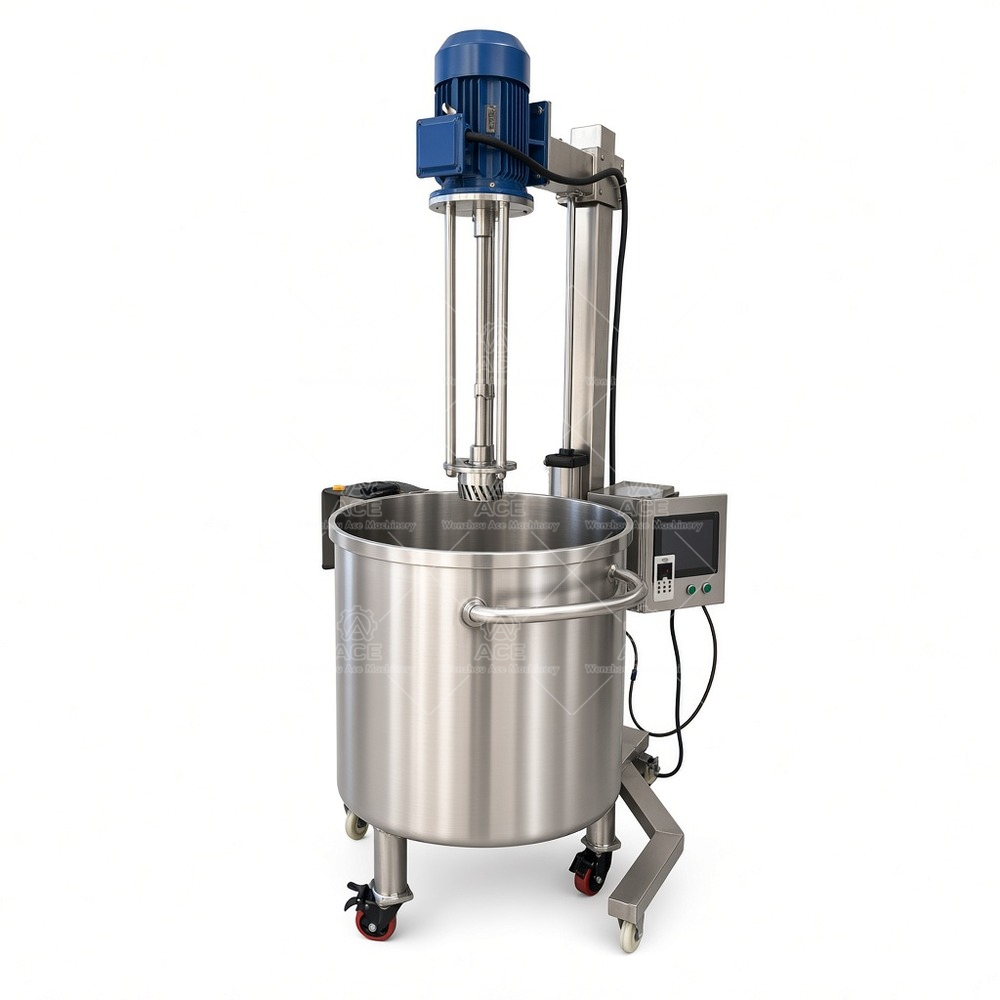

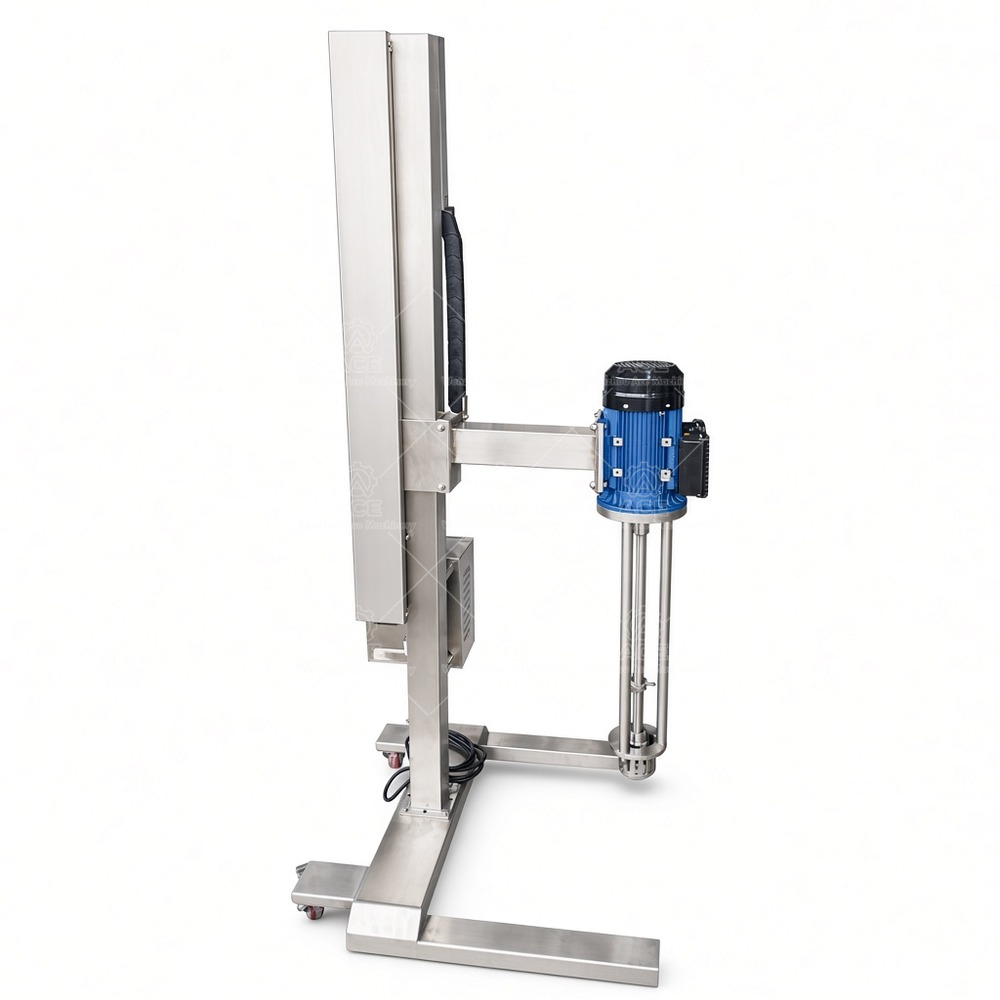

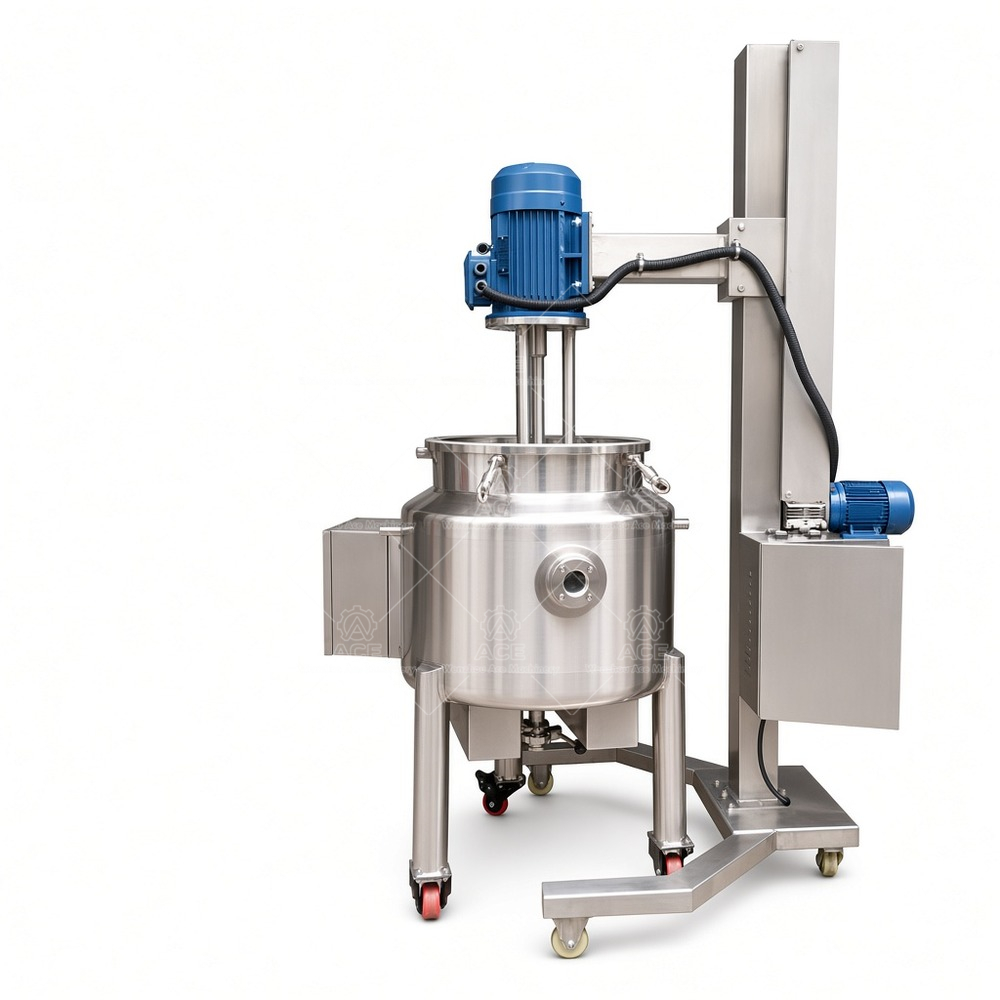

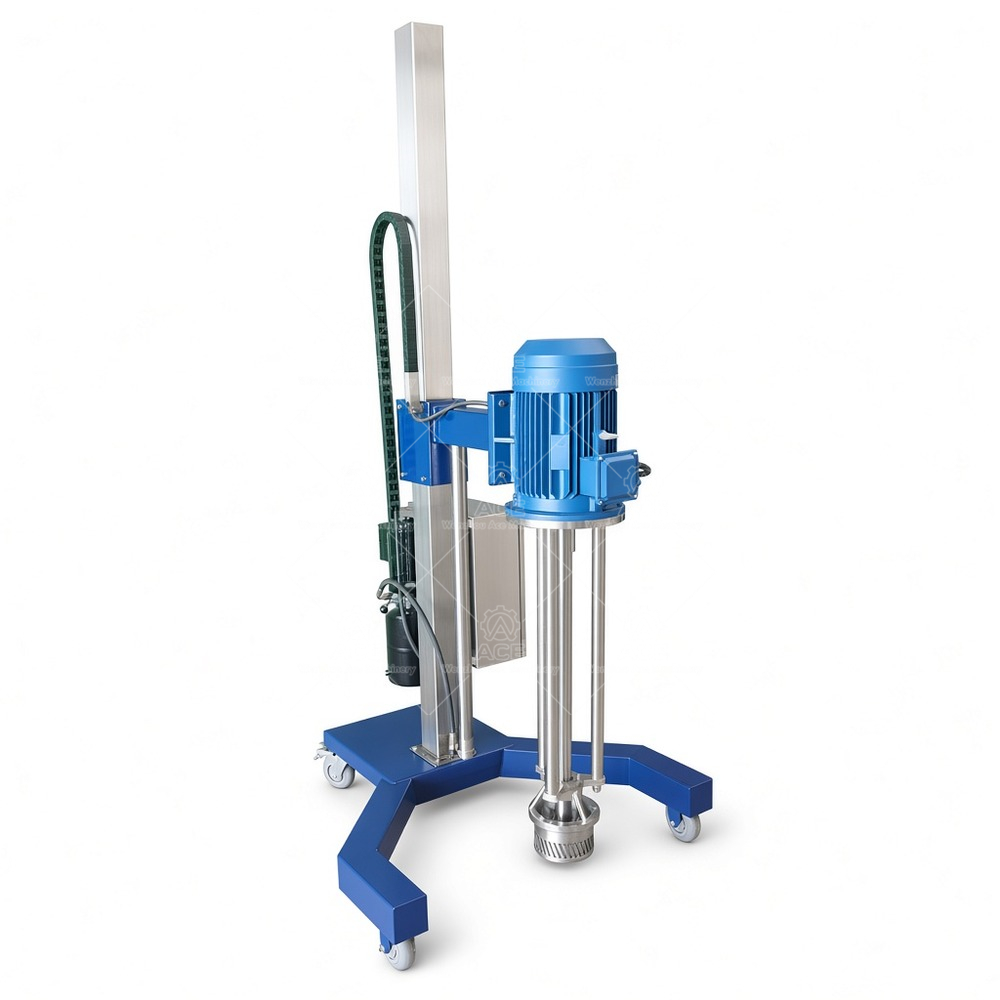

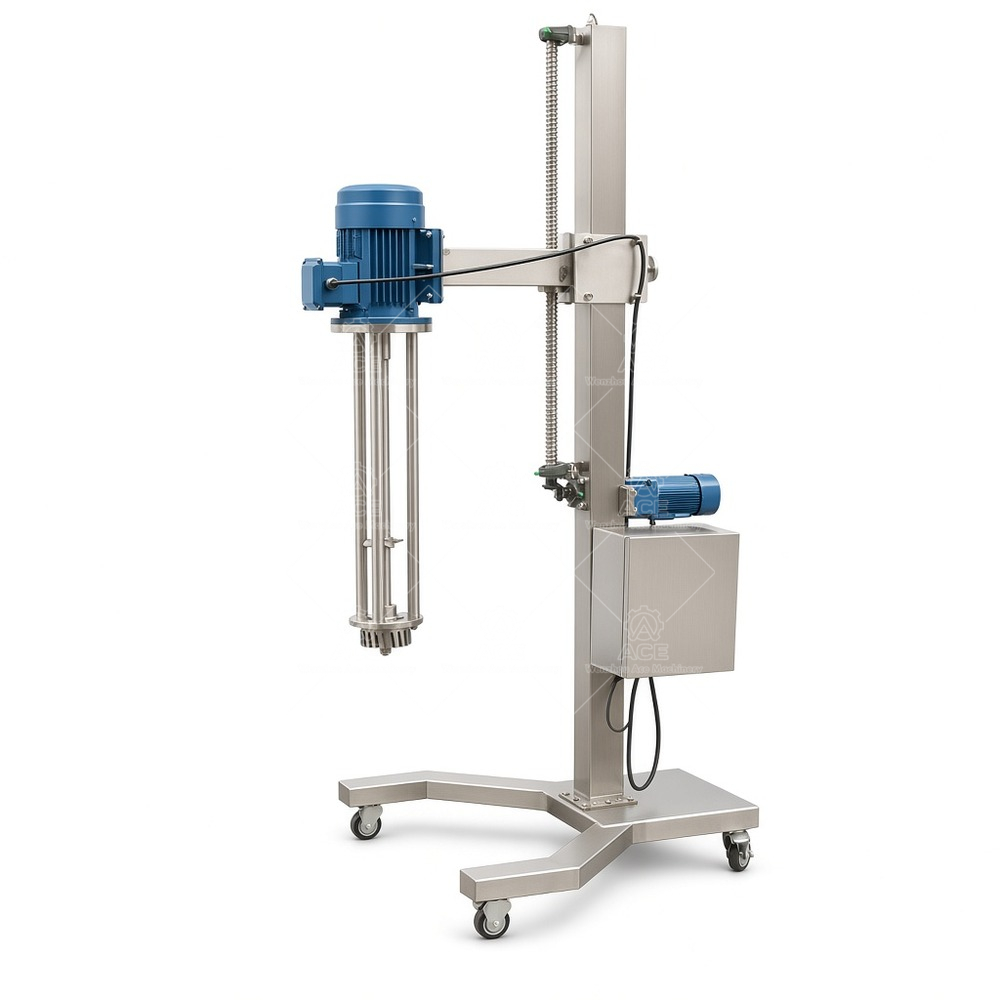

SS304 Sanitary Batch Homogenizer High Shear Emulsifier with Hydraulic Lift
- Material: 304 or 316L
- Voltage: 110V 208V 220V 380V 400V 415V 480V 600V
- Certificates: CE, GMP, UL, ATEX, ISO 9001
- Power：0.75KW-55KW （1 HP – 74 HP）
- Motor brands: ABB, Chinese brands, SEW, Siemens (optional)
- 1-year free warranty with door-to-door delivery.
- Optional: Variable-frequency drive, control panel
- MADE IN CHINA
- We have it in stock.
Please contact our sales team before placing your order.
Email:info@ace-chn.com
Tel:+86 18626835909
WeChat: ace-chn
Price range: $2,280.59 through $3,372.57
Guaranteed Safe Checkout
We manufacture and sell the following types of mixers
Mix, emulsify, homogenize, disintegrate and dissolve
Ideal for disintegrating solids and incorporating powders
Reduce mixing times by up to 80%
Reduce mixing times by up to 90%
Quickly disperse and hydrate powders, even at higher viscosities
Easy to move and lift
Features heating, cooling, vacuum, and other functions
Recommended RPM: 1480/2850 RPM
When you\’re scaling up a cosmetic emulsion or trying to eliminate agglomerates in a batch, the mixer often becomes the bottleneck. We build the SS304 sanitary batch homogenizer with hydraulic lift to handle high-shear dispersion, emulsification, and powder wet-out in one vessel. The hydraulic lift raises the head for easy cleaning and vessel changes—no overhead crane needed.
What you get
Mobile frame with casters lets you move the unit between tanks. Motor options from 1.5 kW to 11 kW, with optional VFD for 0–3000 rpm control (depending on motor and configuration). Voltage 220–480V, 50/60 Hz, single or three phase—we confirm against your plant. Wetted parts in SS304 or SS316L upon request. The rotor/stator head is matched to your product viscosity and solids loading. We don\’t quote shear gap or particle size until we see your formulation.
Where it fits
Cosmetics and personal care: lotions, creams, serums. Food and beverage: sauces, dressings, syrups. Pharmaceuticals: ointments, gels (sanitary design). Chemical and coatings: pigment dispersions. Powder dispersion into liquids is a common use—adding thickeners or actives without lumps. The right head, speed, and material depend on viscosity, solids, and process temperature. Tell us those and we\’ll recommend.
Selection pointers
Start with batch size and vessel dimensions. A 200L batch with 10,000 cps needs different torque than a 2,000L water-like product. Check electrical service before choosing a motor—voltage, frequency, phase. Consider whether you need mobility; casters work on smooth floors but fixed mounting may suit permanent lines. For powder incorporation, a disperser head with appropriate tooth geometry helps. Don\’t oversize the motor hoping for faster mixing; shear and turnover depend on head design and speed.
FAQ
Q: Can I use this for flammable solvents? A: Standard motor is not explosion-proof. We can discuss hazardous-location configurations, but that requires a separate quote.
Q: How do I clean it? A: The lift exposes the head for manual cleaning. For CIP, we need to review your cleaning protocol and vessel design.
Q: What\’s the lead time? A: Typically 6–8 weeks, depending on configuration and current shop load.
Ready to specify? Send your batch size, product viscosity, target rpm, motor power, and local electrical details. Our engineers will come back with a recommended configuration and quote.
SS304 sanitary batch homogenizer with hydraulic lift for cosmetics, food, and pharmaceutical emulsions. Mobile frame, optional VFD (0–3000 rpm), 1.5–11 kW motor, 220–480V. High-shear rotor/stator for dispersion, emulsification, and powder wet-out. Wetted parts in SS304/316L. Ace Mixer customizes head and configuration based on your batch size, viscosity, and electrical service. Request a quote with your process details.
