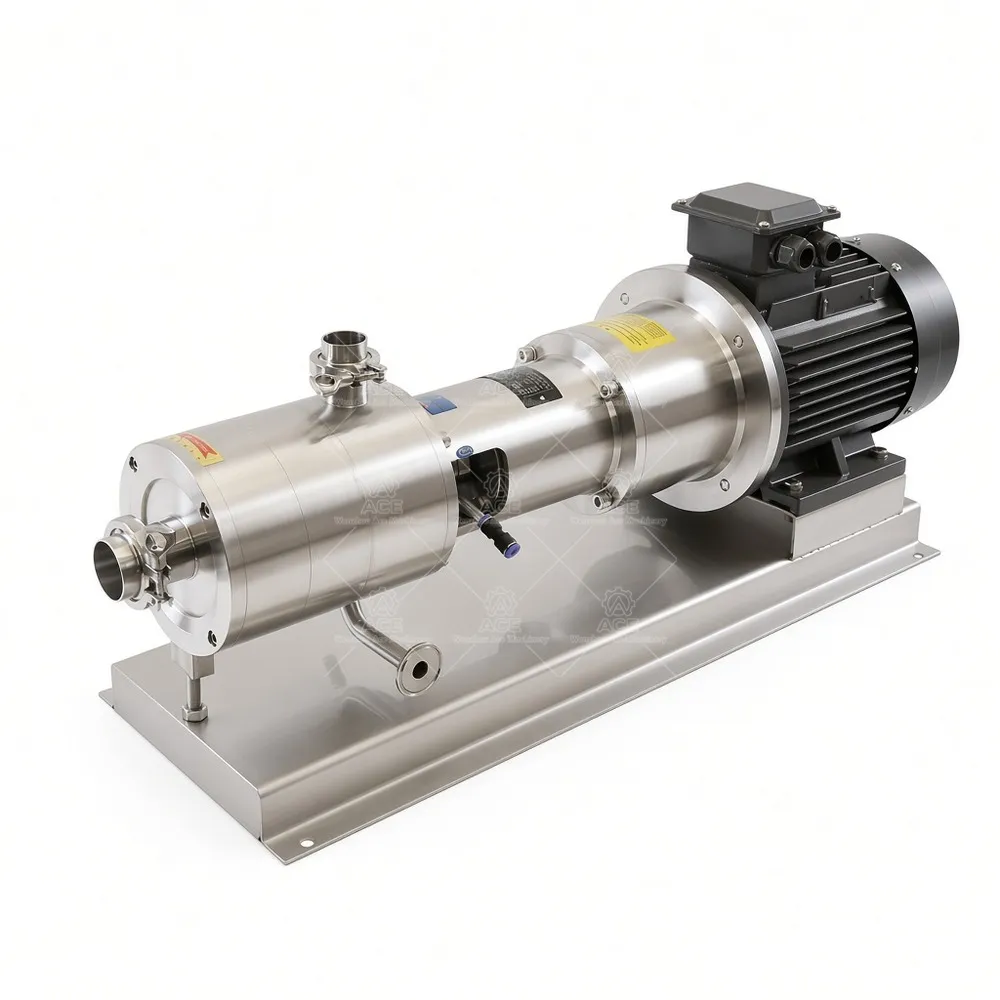

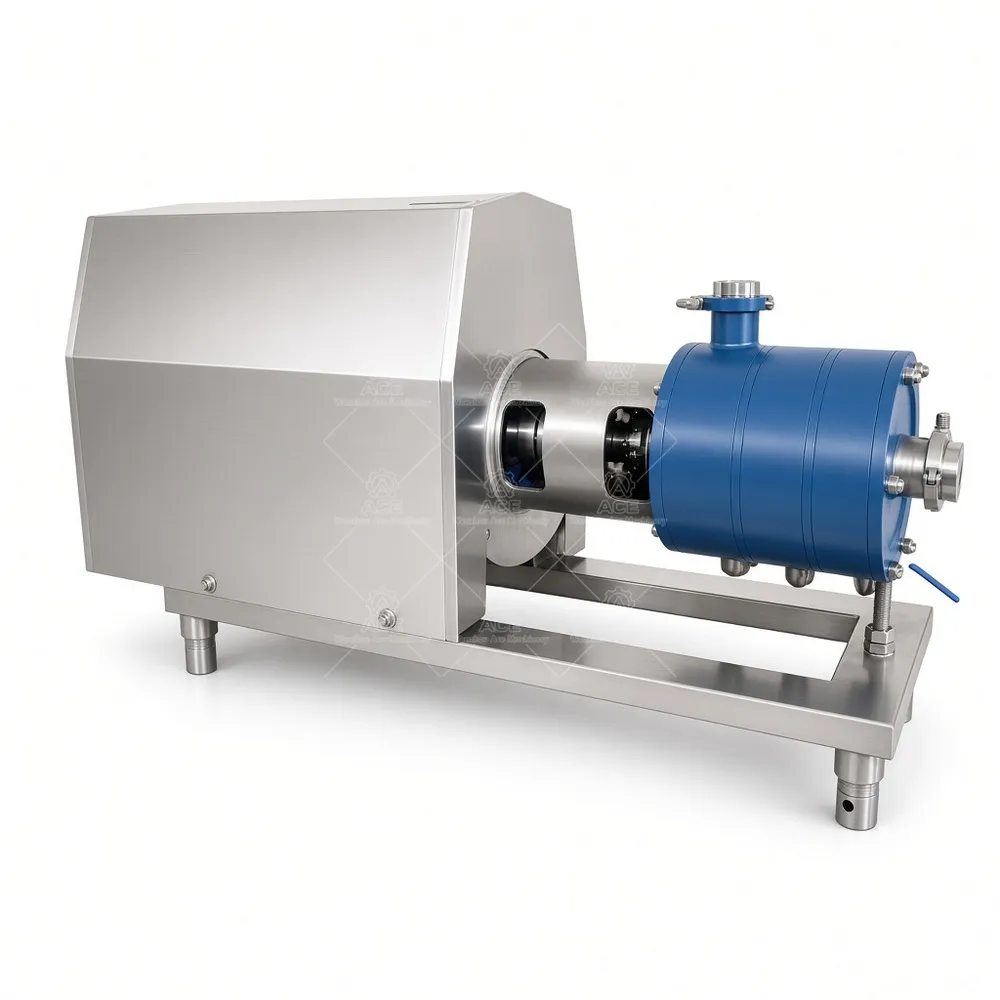

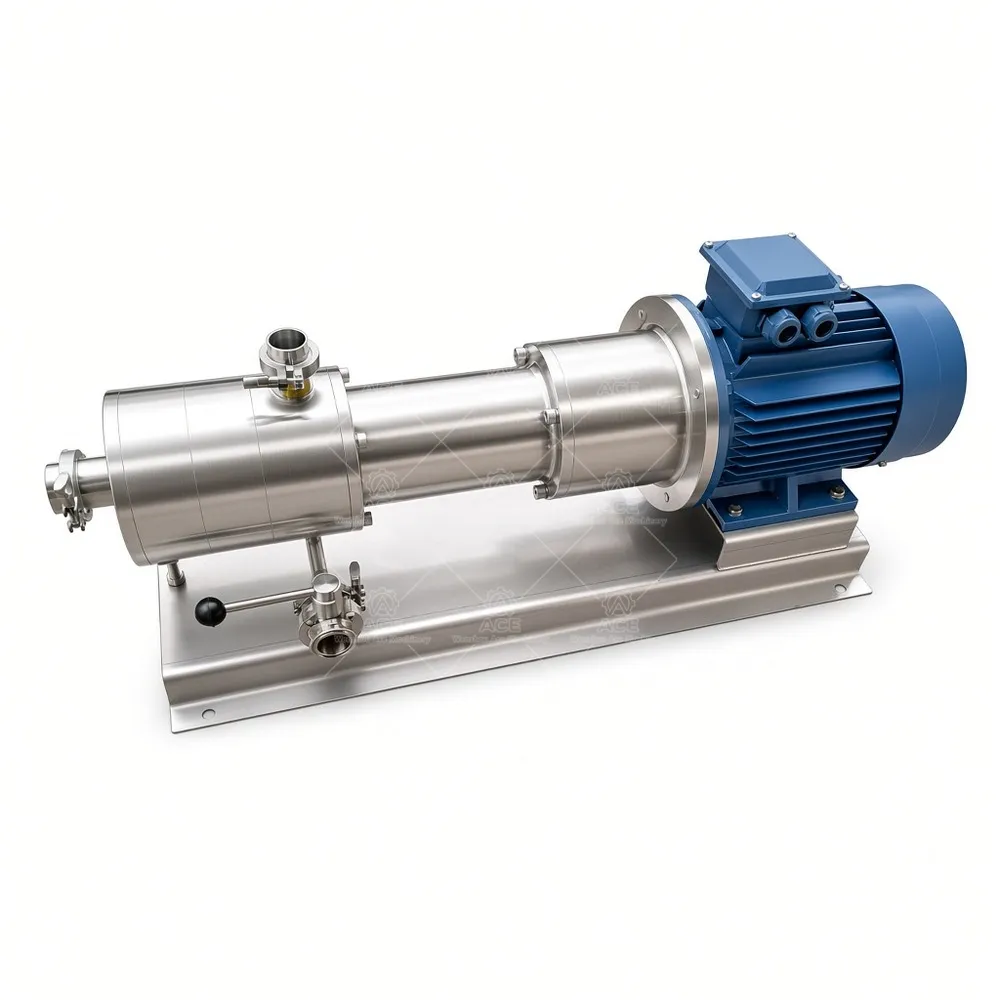

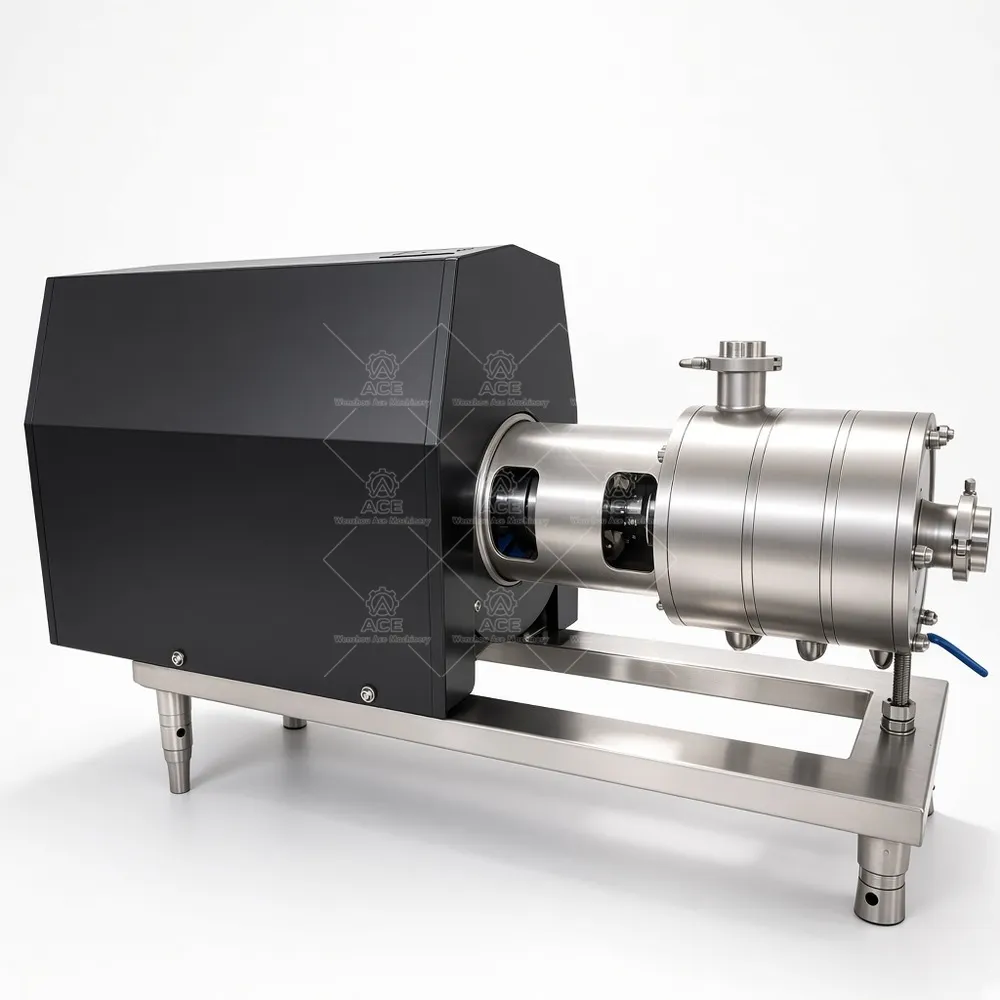

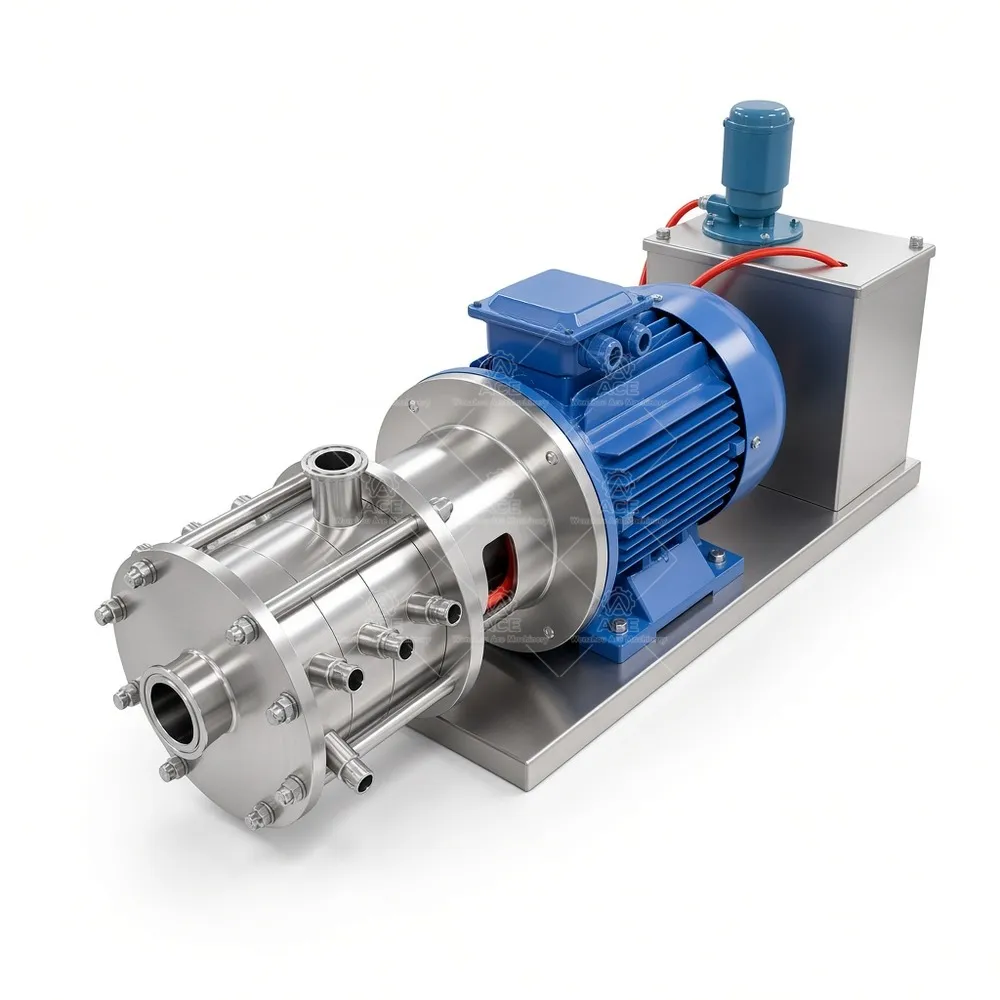

Ace Mixer Automatic Inline High Shear Homogenizer Pump SUS316L
- Material: 304 or 316L
- Voltage: 110V 208V 220V 380V 400V 415V 480V 600V
- Certificates: CE, GMP, UL, ATEX, ISO 9001
- Power：0.75KW-55KW （1 HP – 74 HP）
- Motor brands: ABB, Chinese brands, SEW, Siemens (optional)
- 1-year free warranty with door-to-door delivery.
- Optional: Variable-frequency drive, control panel
- MADE IN CHINA
- We have it in stock.
Please contact our sales team before placing your order.
Email:info@ace-chn.com
Tel:+86 18626835909
WeChat: ace-chn
Price range: $2,127.14 through $2,326.45
Guaranteed Safe Checkout
We manufacture and sell the following types of mixers
Mix, emulsify, homogenize, disintegrate and dissolve
Ideal for disintegrating solids and incorporating powders
Reduce mixing times by up to 80%
Reduce mixing times by up to 90%
Quickly disperse and hydrate powders, even at higher viscosities
Easy to move and lift
Features heating, cooling, vacuum, and other functions
Recommended RPM: 1480/2850 RPM

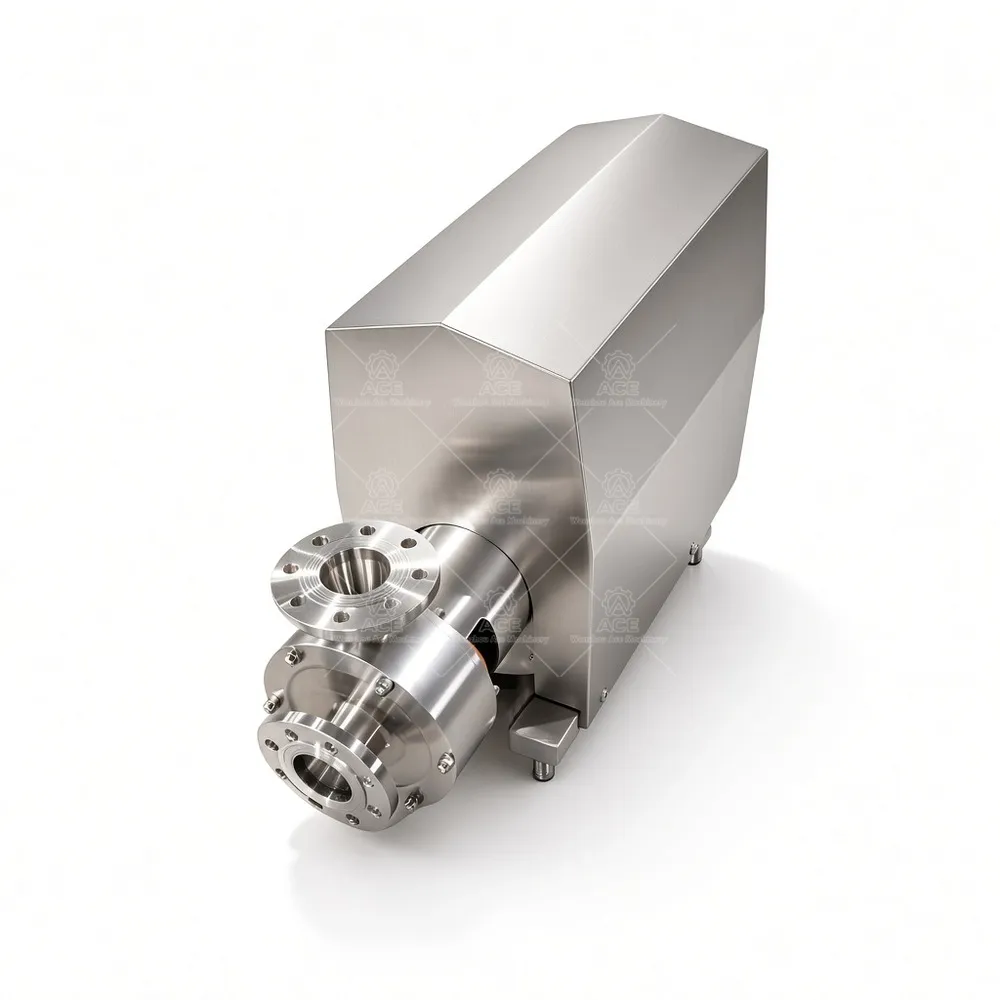

Inline high shear mixing for shampoo, emulsions, and chemical dispersions
Ace Mixer builds this automatic inline rotor-stator homogenizer for plants that need faster powder wet-out, tighter emulsions, and fewer lumps before filling. The pump mounts in a pipe or recirculation loop, so the product passes through the shear head while your tank agitator handles bulk turnover. You can add powders directly into a flowing stream or pull from the bottom of a tank and return through the loop.

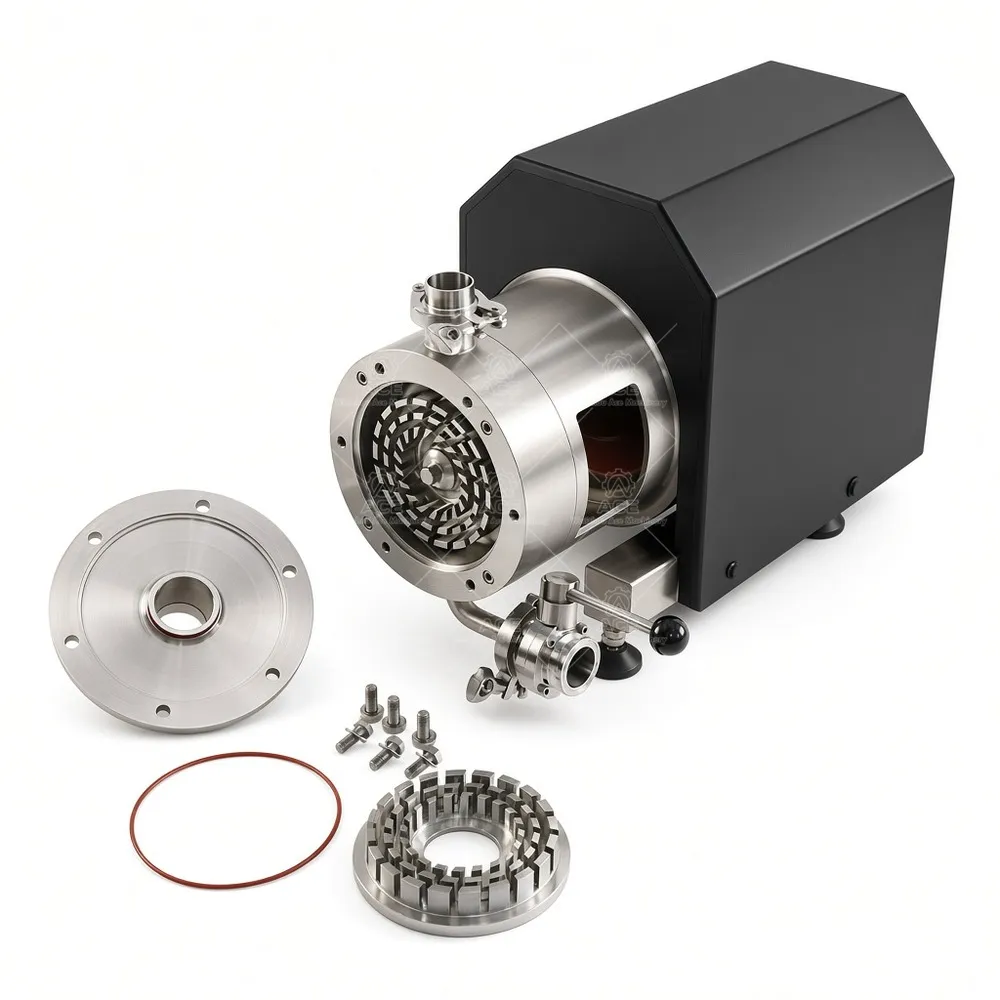

The high-speed rotor-stator head creates intense shear in a small zone. That is useful for liquid-liquid emulsification, dispersing gums and thickeners, breaking up agglomerates, and reducing particle size in compatible formulations. Results depend on formulation, solids loading, temperature, flow rate, and rotor-stator configuration, so we size the head and motor around your process rather than a catalog guess.
Practical benefits on the line
- Inline installation keeps the unit compact and easy to integrate with existing tanks, piping, and recirculation skids.
- High-shear action shortens mixing cycles and reduces manual powder addition, which helps batch consistency from one run to the next.
- SUS316L wetted parts suit many cosmetic, chemical, and food-contact duties when gaskets and seals are selected for the product.
- Optional VFD control lets operators tune speed to the product; motor, seal, connection, and contact-material options are available.
Where it fits
Common duties include shampoos, conditioners, creams, lotions, liquid detergents, sauces, dressings, syrups, dairy blends, starch and gum dispersions, pharmaceutical liquid preparations where the equipment is suitable, and water-based chemical dispersions, coatings, and adhesives compatible with the selected materials.
FAQ
Can it replace my batch mixer? Sometimes, but many plants keep a tank agitator for bulk movement and use the inline unit for shear and powder incorporation. We review your viscosity and flow path first.
How do I choose a model? Start with batch size, viscosity, solids content, target flow rate, discharge pressure, cleaning method, and available electrical supply.
Will it eliminate all lumps? No single configuration handles every powder. Gum hydration, temperature, and addition rate matter as much as shear.
What do you need for a quote? Send batch size, product characteristics, required motor power, connection standard, seal preference, and local voltage/hertz.
Share those details with Ace Mixer and we will recommend a practical configuration for your line.
Ace Mixer\’s automatic inline high shear homogenizer pump combines rotor-stator emulsification, powder dispersion, and milling-style shear in a compact SUS316L package. It integrates with tanks and recirculation loops to improve batch consistency and shorten mixing cycles. Tell us your batch size, viscosity, solids, motor power, and local electrical specs for a matched configuration and quote.
