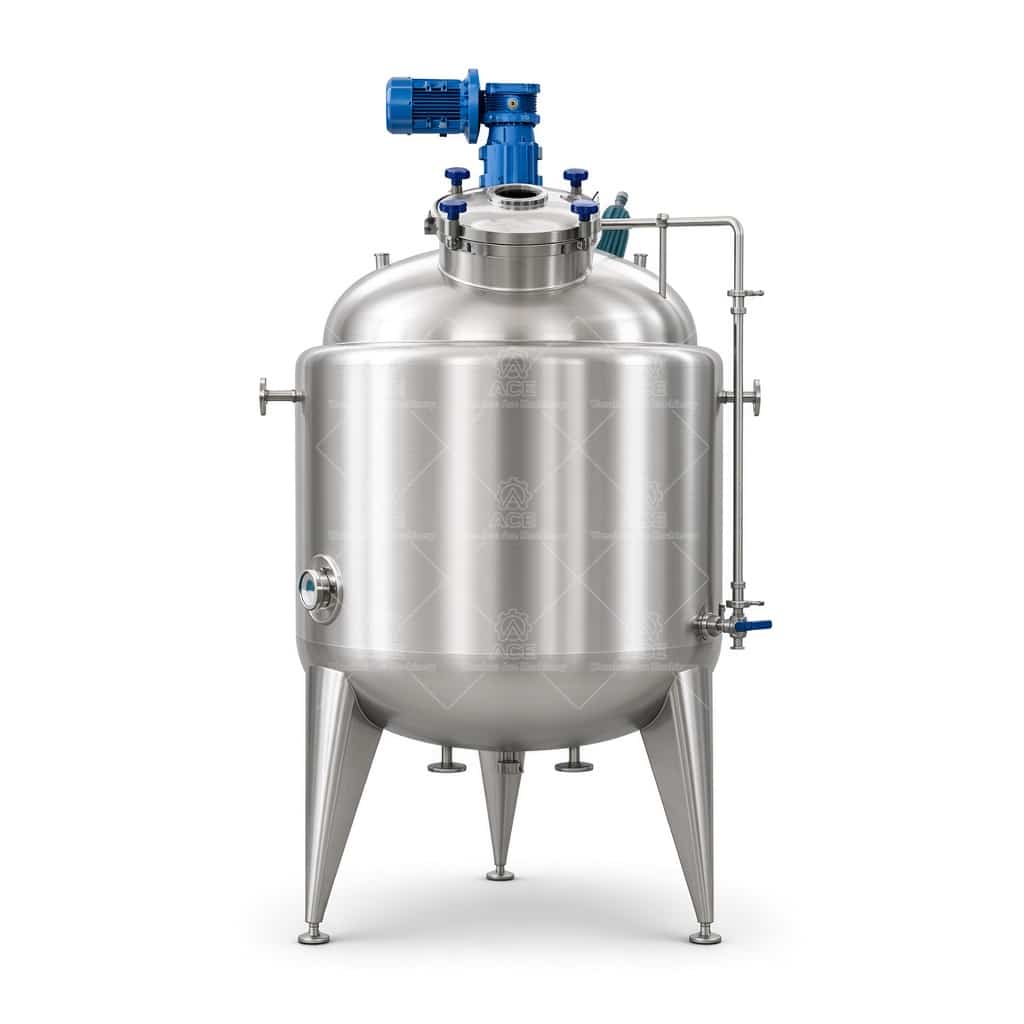

316L Jacketed High-Shear Mixer Tank for Liquid Soap and Detergent
A configurable 316L jacketed mixer tank for liquid hand soap and detergent production. High-shear mixing, vessel geometry, drive, seals, and jacket controls are selected around batch volume, viscosity, formulation chemistry, and heating or cooling needs. Share process conditions and cleaning requirements so the manufacturer can recommend a practical configuration without relying on assumed performance figures.
- Capacity: 50 liters to 30,000 liters
- Mixer power: 1.5 kW to 55 kW
- Material: 304 or 316L
- Voltage: 110V to 600V
- Heating method: Electric or steam heating
- Layer:single/double jacket/three jacket
- Mixer types: Impeller-type, Anchor-type, Turbine-type, High-shear-type, Magnetic mixer, Anchor-type mixer with scrapers,dispersing
- Optional: platform, wheels, ladder,variable frequency drive,explosion-proof device
- Certificates: ASME, CE, GMP, UL, ATEX, ISO 9001
- Our equipment supports customisation, global delivery, and a 1-year warranty.
- If you have drawings, we can process them for you.
Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909
Price range: $3,282.51 through $3,791.63
Guaranteed Safe Checkout
Recommend RPM: 0-960RPM
Viscosity: Low/medium viscosity
Application: Mainly Liquid mixing
Recommend RPM: 0-200RPM
Viscosity: Low/medium viscosity
Application: Mainly Liquid mixing
Recommend RPM: 30RPM
Viscosity: Medium/High viscosity
Application: Melting, High viscosity product mixing, For single wall tank
Recommend RPM: 30RPM
Viscosity: Medium/High viscosity
Application: Melting, High viscosity product mixing, For jacket tank
Recommend RPM: 1480/2850 RPM
Viscosity: Low/medium viscosity
Application: Liquid powder mixing and dispersion
Recommend RPM: 2800 - 3200 RPM
Viscosity: Low/medium/High viscosity
Application: Liquid powder mixing and homogenizing
Recommend RPM: 0-355RPM
Viscosity: Low/medium viscosity
Application: Install at bottom, No mechanical seal working condition
Recommend RPM: As above
Viscosity: Low/medium viscosity
Application: Liquid powder mixing and dispersion For tank volume >300L
Jacketed mixing for soap and detergent batches
Liquid hand soap and detergent production often involves incorporating surfactants, thickeners, fragrances, and other ingredients without trapping excessive air or leaving unmixed material at the vessel wall. We configure this double-jacket tank around the batch size, product viscosity, and addition sequence. A high-shear rotor-stator can help disperse compatible ingredients; it does not replace a sweep or anchor agitator when viscous product needs continuous wall movement.
The jacket can be designed for a specified heating or cooling utility. Utility type, operating pressure, target temperature, and heat-up or cool-down time determine jacket design and control requirements. Temperature instrumentation and a control panel can be specified to suit the process. We confirm the required duty before recommending a configuration rather than assuming the jacket will provide a particular temperature range.
Materials and mechanical design
316L stainless steel is commonly selected for product-contact surfaces where formulation chemistry or cleaning conditions call for its corrosion resistance. Final material selection should account for chloride content, pH, temperature, and cleaning chemicals. Welds in wetted areas require suitable finishing; the specified internal surface finish and any passivation requirements should be agreed before fabrication. External surfaces and non-product-contact components can be specified separately.
Drive power, reducer, shaft, and impeller depend on working volume, viscosity, density, and the desired shear. Seal selection also depends on product properties, cleaning method, and operating conditions. For reliable discharge and cleanability, provide details about outlet location, bottom geometry, access, and whether the vessel must drain with little residual product. An anchor or scraper arrangement may be considered for higher-viscosity batches, subject to the vessel and process design.
Configuration overview
| Item | Configuration basis |
|---|---|
| Vessel | Double jacket; capacity and geometry specified to order |
| Product-contact material | 316L stainless steel, subject to formulation review |
| Mixing | High-shear assembly; impeller and auxiliary agitation selected for process |
| Heating or cooling | Jacket utility and controls defined by process duty |
| Drive and seal | Selected for batch properties and operating requirements |
Applications and purchasing questions
Typical applications include liquid hand soap, body wash, and detergent blends. Before requesting a quotation, share batch volume, ingredient list or chemical compatibility notes, viscosity range, addition order, target temperature, cleaning procedure, and available power and utilities.
FAQ
Can the tank process high-viscosity soap? It may, but viscosity and batch size determine the required drive and whether auxiliary agitation is needed.
What should we specify for the jacket? Identify the heating or cooling medium, supply conditions, temperature targets, and desired cycle time. These details let our engineers assess the appropriate vessel and control configuration.
