Vertical 500L-1500L Stainless Steel 304/316L Water Storage Tank for Ground & Purified Water
Vertical 500L–1500L stainless steel water storage tanks in 304 or 316L. Built for groundwater or purified water with welded seams, polished options, and custom connections. Request a quote with your process details.
- Tank Capacity: [50L–100,000L or specify actual capacity]
- Tank Type: [Vertical / Horizontal / Single-wall / Double-wall / Jacketed]
- Material: 304 or 316L
- Optional Features: [Insulation / Heating / Cooling / Agitator / Level Gauge / Manway / CIP Spray Ball / Load Cells / Wheels / Custom Connections]
- Surface Finish: [2B / Brushed / Polished / Mirror Polish]
- If you have drawings, we can process them for you.
Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909
Price range: $2,780.87 through $3,506.40
Guaranteed Safe Checkout

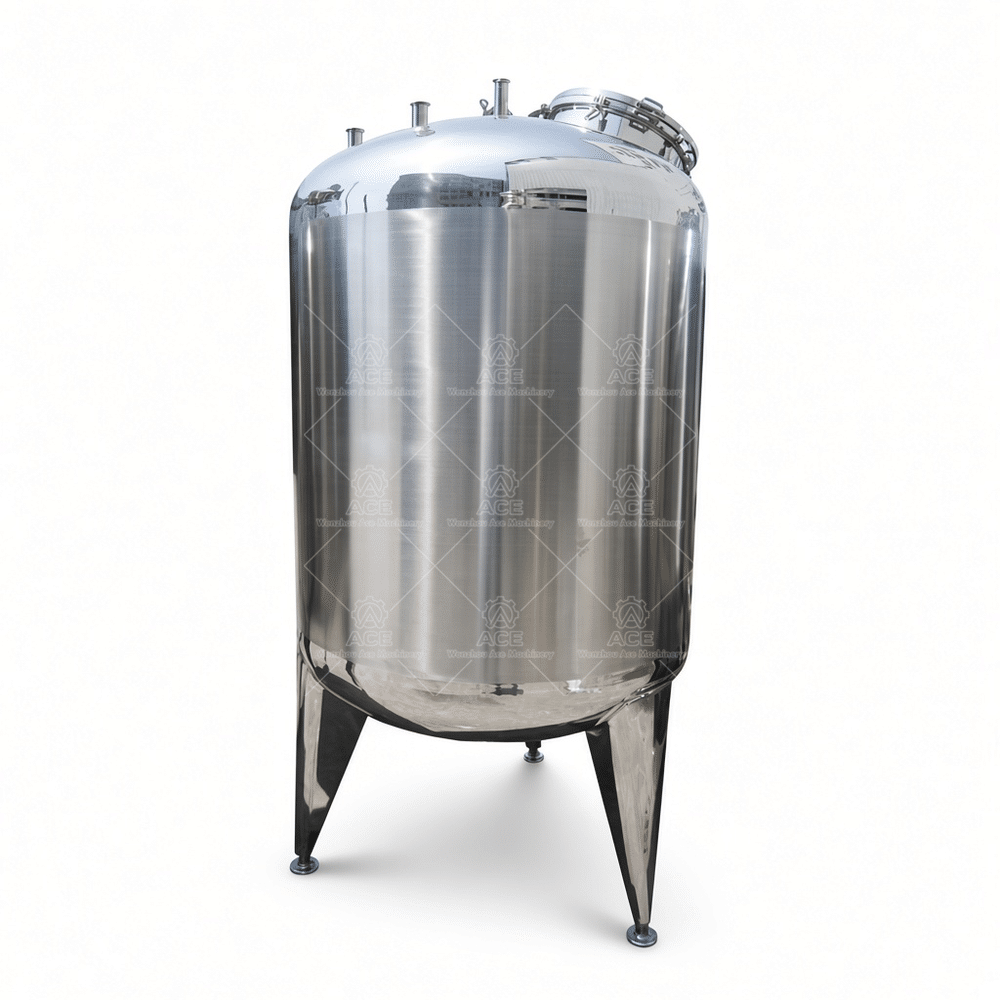

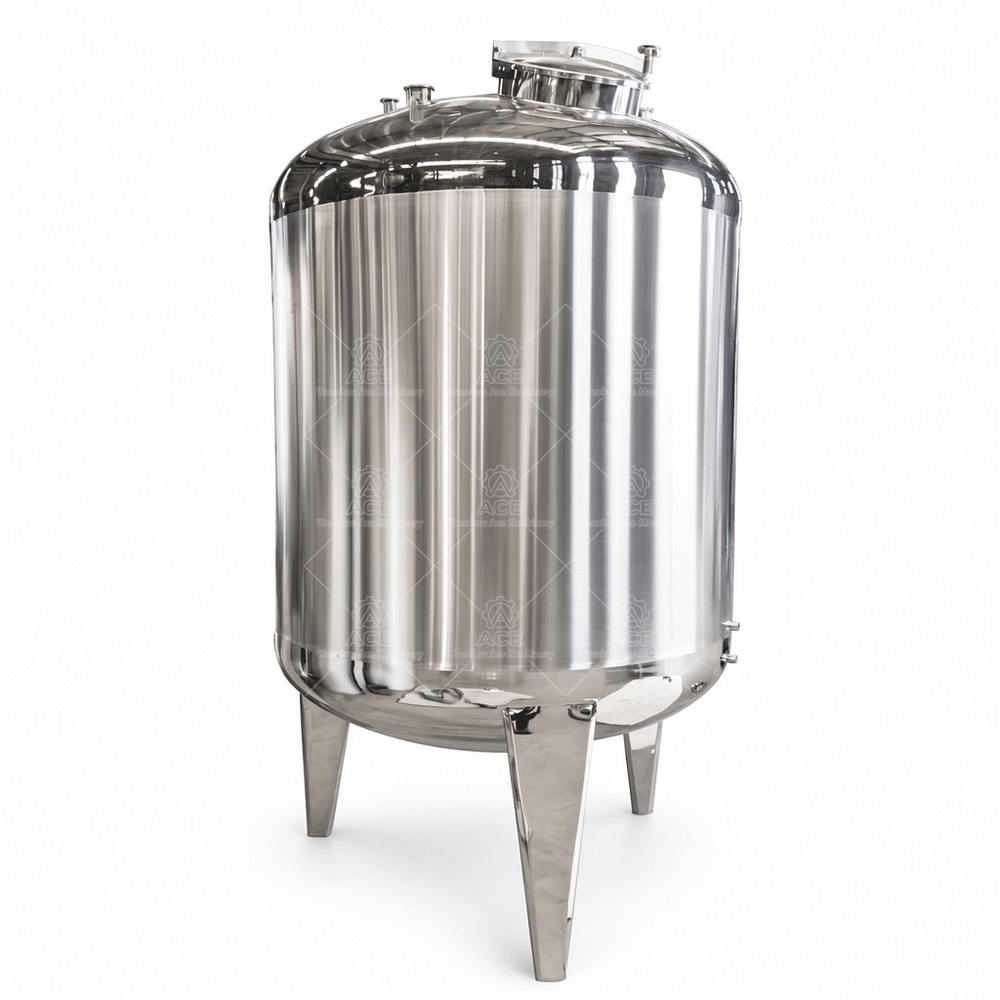

Vertical 500L–1500L Stainless Steel Water Storage Tank
We build vertical storage tanks for water systems that need reliable containment without taking up excessive floor space. This series covers 500L to 1500L working volumes, fabricated from either SUS304 or SUS316L depending on what you are storing and how you plan to clean the tank.
The vertical design is straightforward: a cylindrical shell with a dished or flat bottom, a top opening sized for your mixer or level instrumentation, and welded inlet/outlet connections positioned to suit your piping layout. We use TIG welding with full penetration on the wetted seams, followed by pickling and passivation unless you specify a mirror polish. For purified water applications, we recommend 316L with an internal surface finish of Ra ≤ 0.6 µm to minimize bacterial adhesion and make CIP validation easier.
Groundwater storage, by contrast, is a less demanding duty. 304 is usually sufficient, and a 2B mill finish with a simple atmospheric vent will do the job. That said, if you are injecting chlorine or ozone, we still recommend confirming the material grade with us—oxidizing environments can stress-corrode 304 over time, especially at elevated temperatures.
Standard details on these tanks:
- Capacity: 500L, 800L, 1000L, 1500L (custom sizes on request)
- Materials: SUS304 or SUS316L, with material test certificates available
- Shell thickness: based on liquid density and height, typically 1.5mm–3.0mm
- Connections: tri-clamp, flange, or threaded—your choice
- Options: level sensors, temperature probe, manway, leg height adjustment, insulation cladding
These tanks are not pressure vessels. If you need to operate under vacuum or internal pressure, we will design the shell and heads to the applicable code, but that is a separate conversation—tell us your rated pressure before we quote.
What to Tell Us Before You Request a Quote
To give you an accurate price and configuration, we need a few basics:
- What liquid are you storing, and at what temperature?
- Working volume versus total volume—do you need headspace?
- Available installation height and floor footprint.
- Material grade preference, or let us recommend based on your process.
- Any cleaning method (CIP spray ball, manual wash, etc.) that affects surface finish.
Send us those details, and we will confirm the right tank configuration, surface finish, and connection layout for your application.
Related Products

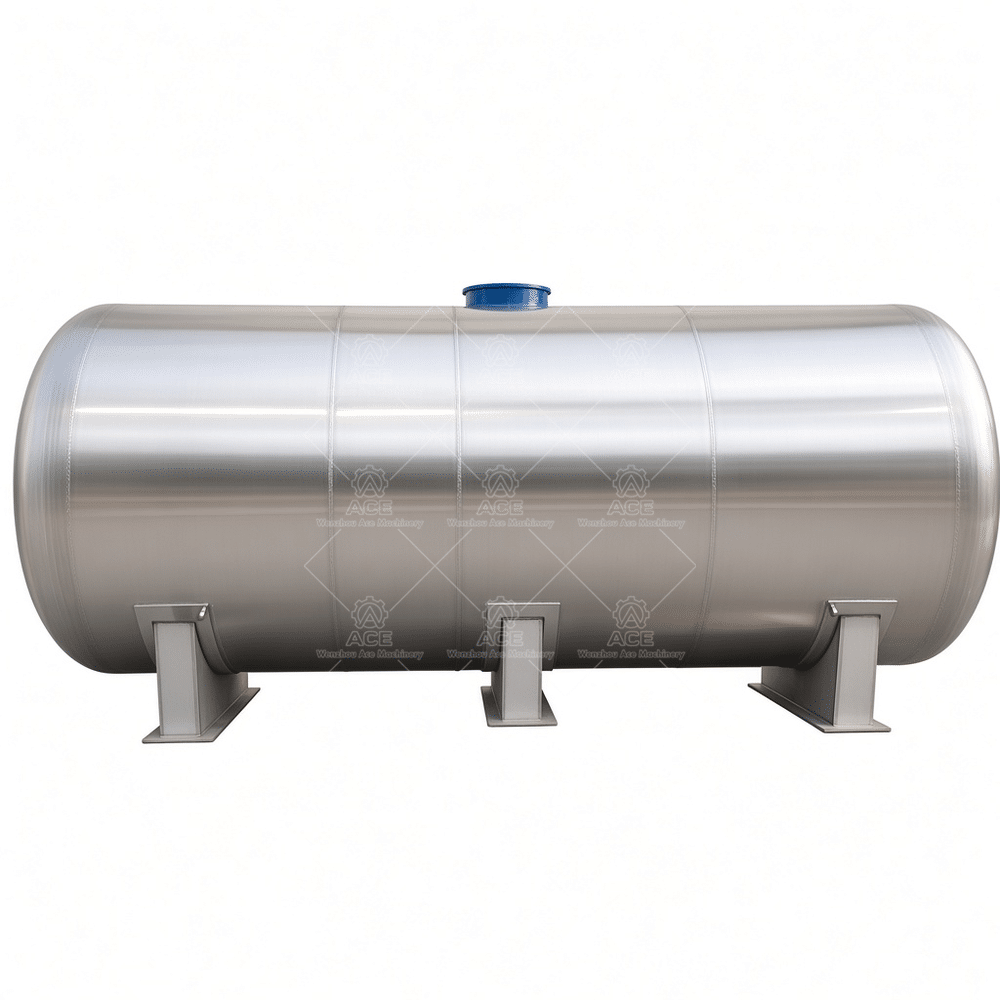

10000L Stainless Steel Water Tank SS304 Horizontal Storage Food Grade
Price range: $2,862.08 through $3,506.91
100L-300L Food Grade Stainless Steel Storage Tank for Oil, Glue, Chemical & Water
Price range: $2,957.56 through $3,678.91

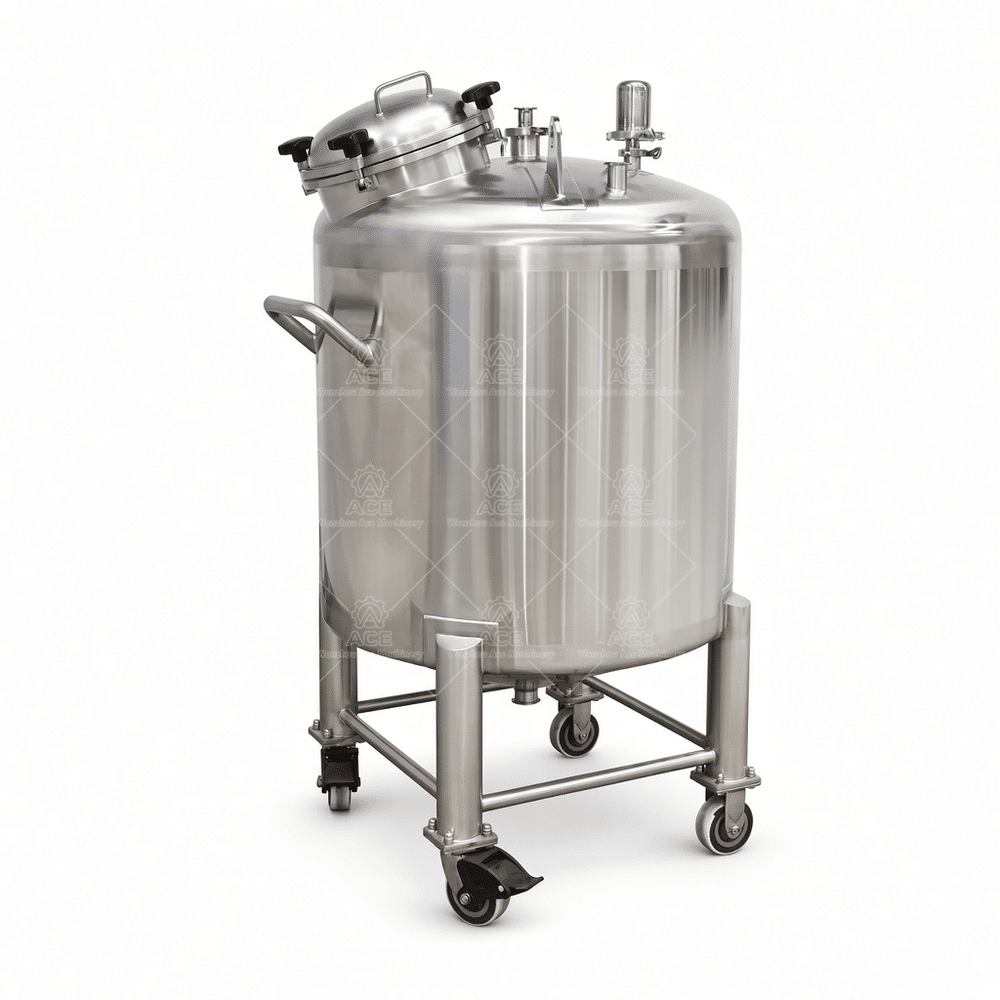

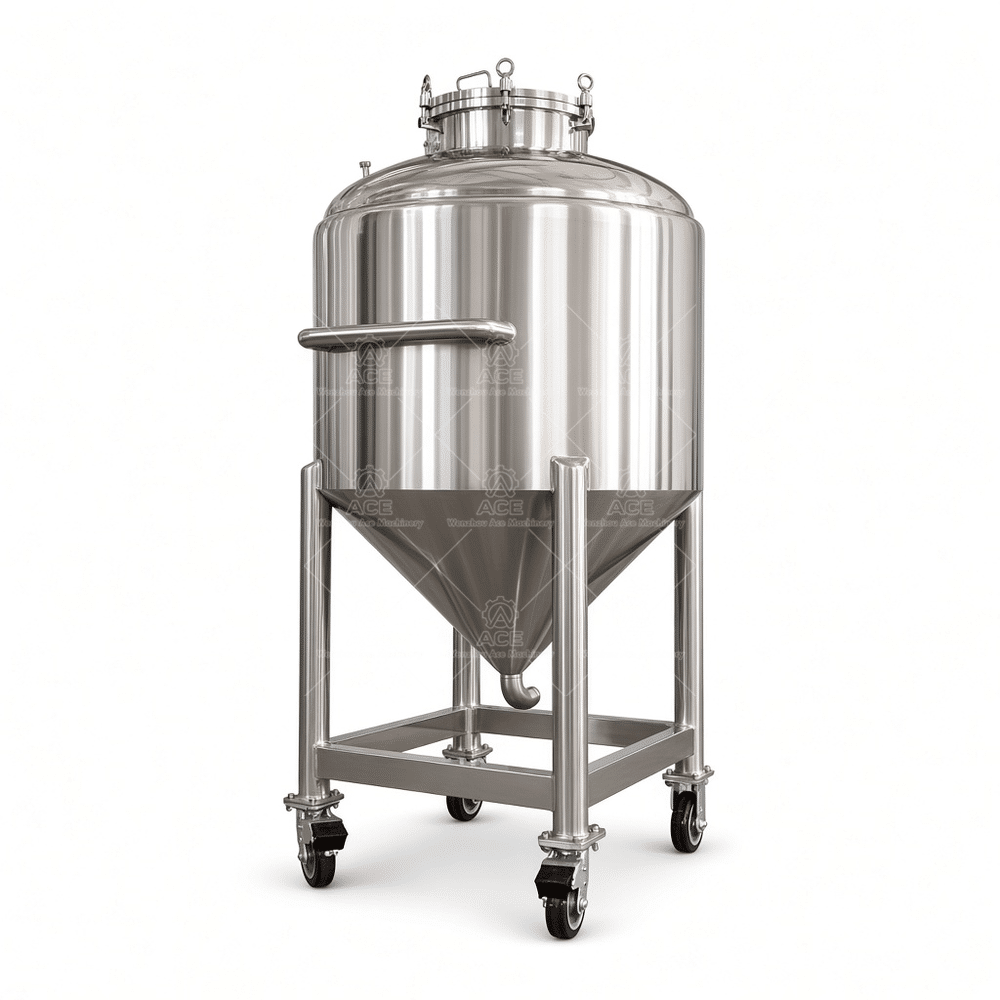

304/316L Stainless Steel Mobile Storage Tank with Wheels | Vertical Beverage Processing Container
Price range: $2,515.88 through $3,190.39

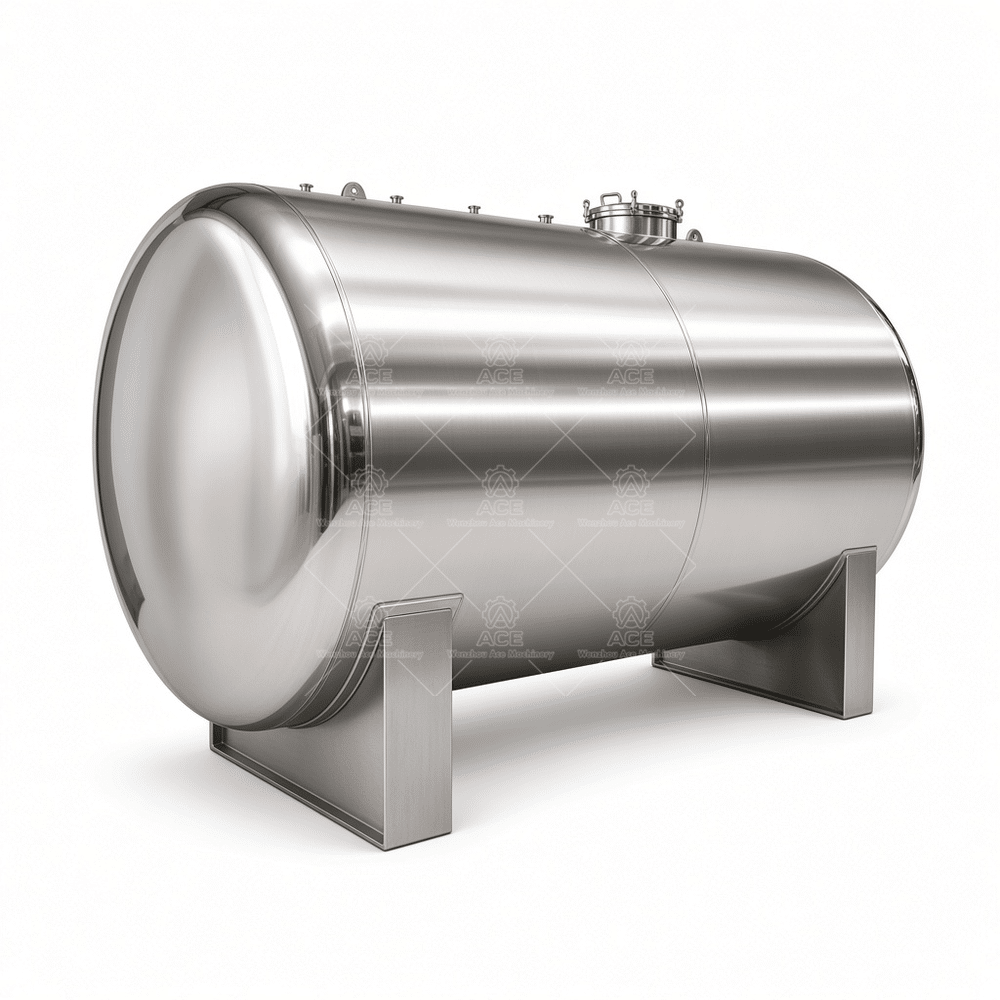

20,000L Stainless Steel Horizontal Storage Tank – Food Grade for Dairy, Oil & Beverage
Price range: $2,716.18 through $3,402.29
OEM Stainless Steel Sanitary Horizontal Movable Liquid Storage Tank
Price range: $2,572.53 through $3,312.39
30000L Stainless Steel Pressure Vessel Water Tank 304/316L Horizontal/Vertical CE
Price range: $2,612.05 through $3,360.40

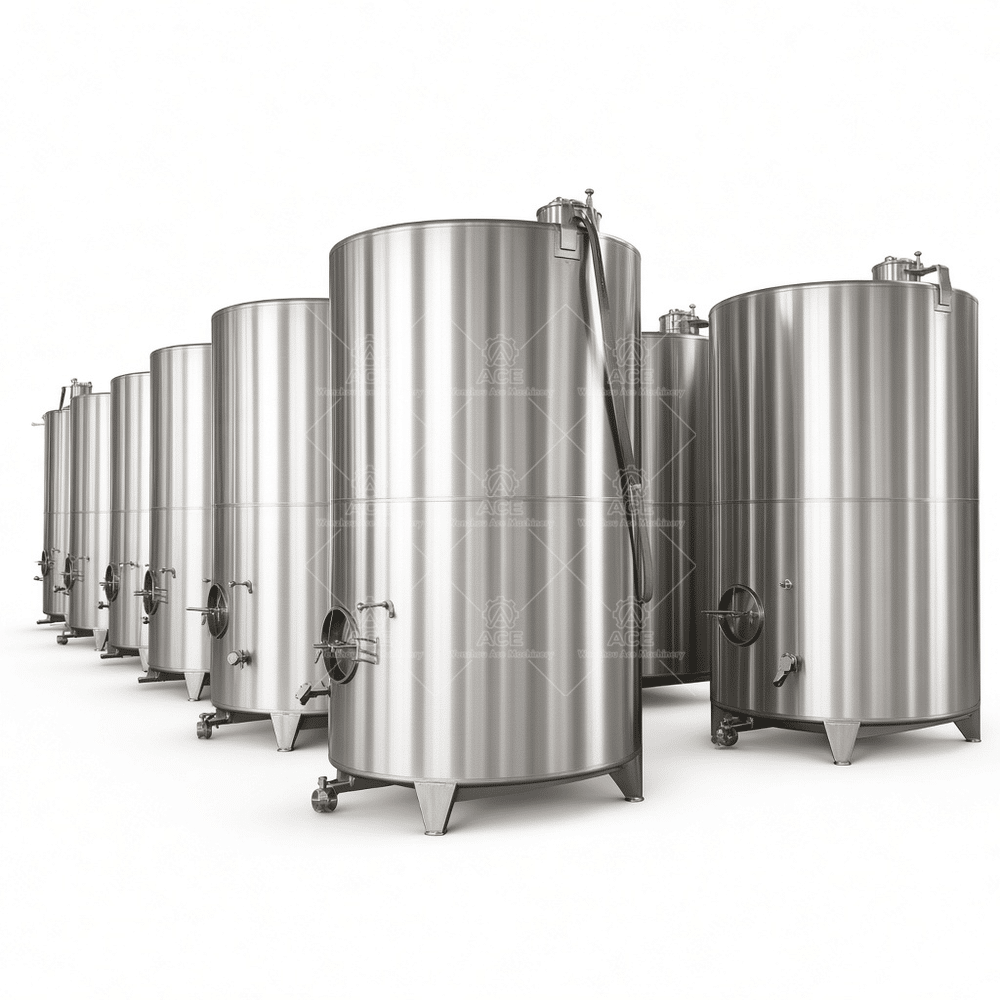

25000L SS304/316L Stainless Steel Vertical Water Storage Tank for Drinking Water
Price range: $2,799.50 through $3,500.49

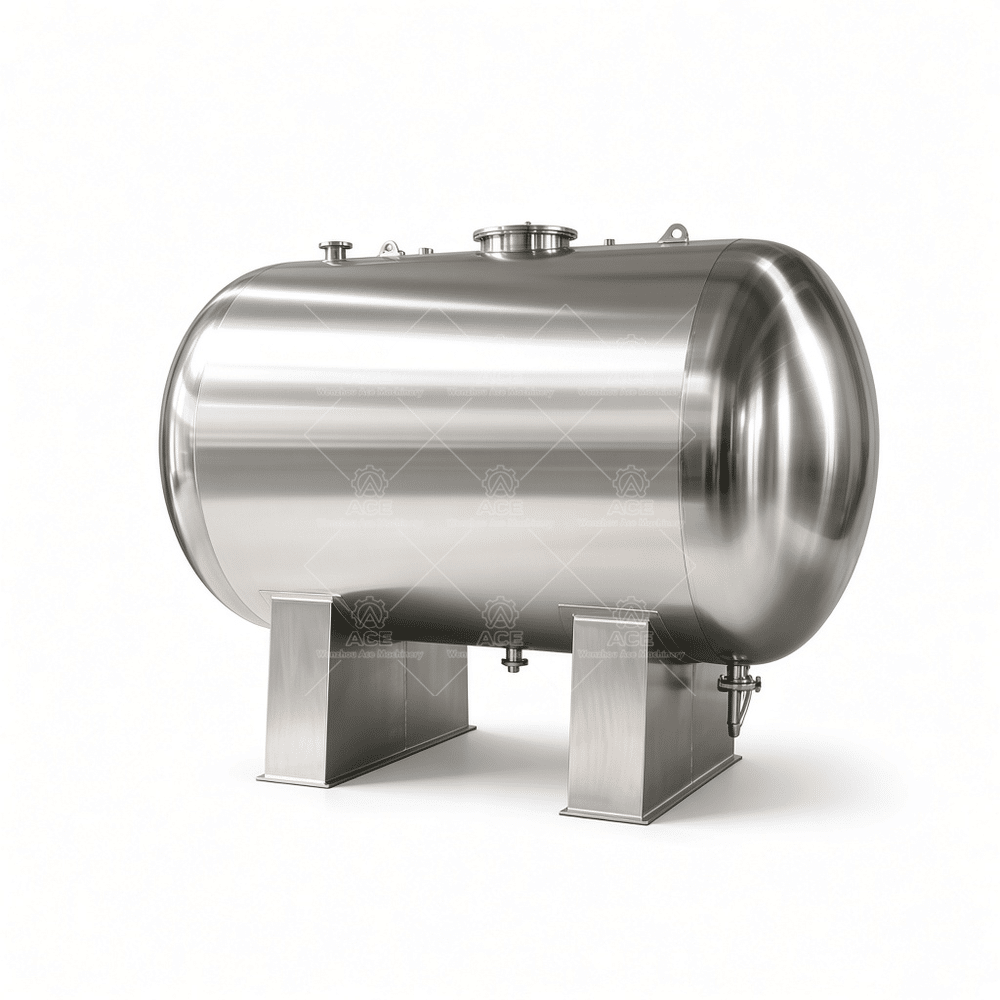

20000L 20 Ton Horizontal Stainless Steel Storage Tank for Water, Edible Oil & Bulk Liquids
