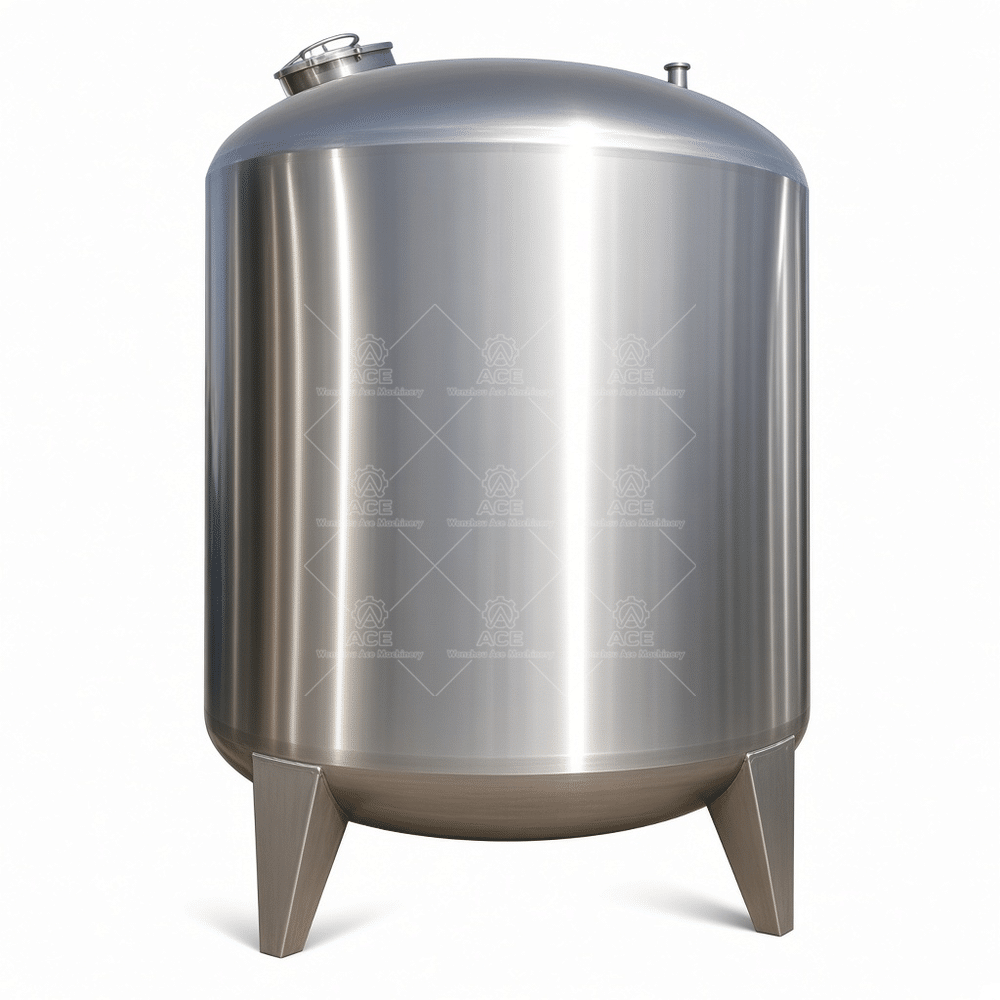

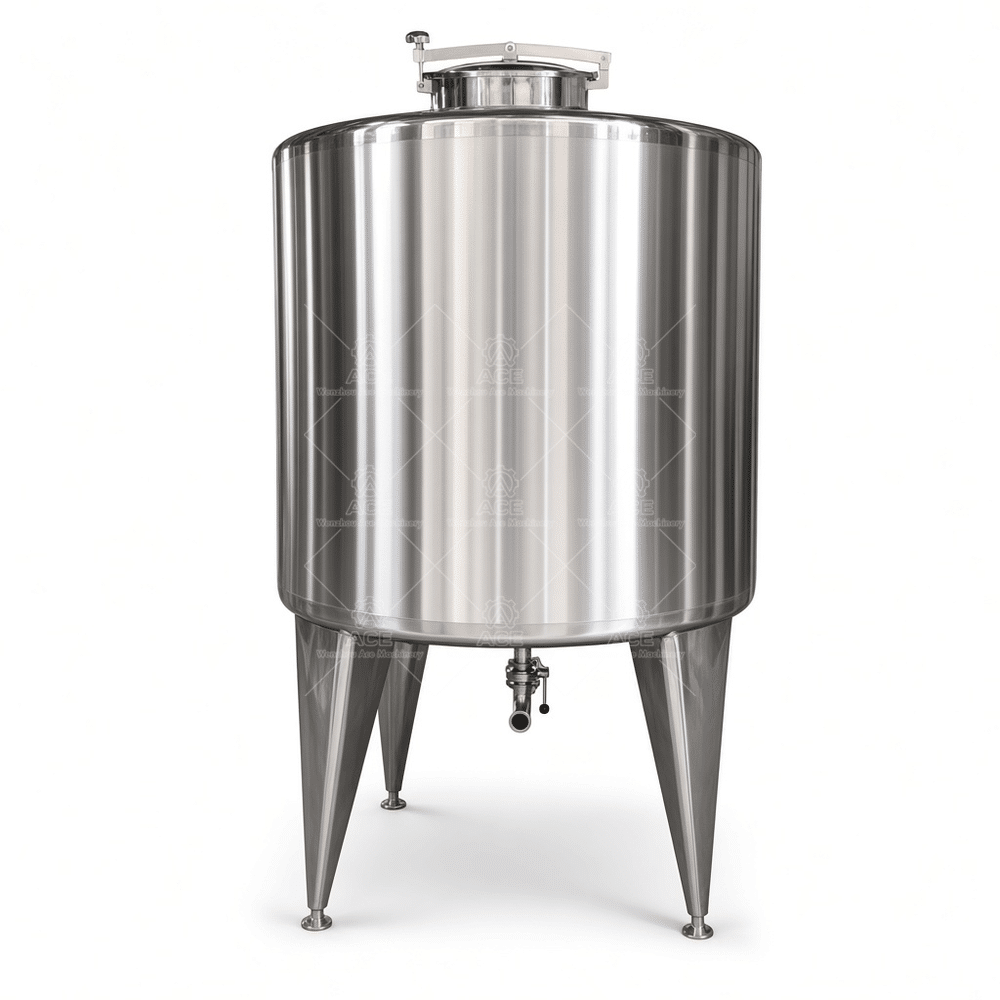

100-300L Vertical Stainless Steel Tank for Chemical, Water, Oil, Glue, Food

We build vertical stainless steel storage tanks in 100L, 200L, and 300L capacities for handling chemical solutions, water, oils, adhesives, and food-grade liquids. These are not generic vessels — each unit is fabricated to match the specific properties of the product you store.

Material selection matters. For most food and beverage applications, we use SUS304. For aggressive chemicals or high-chloride environments, SUS316L is the safer call. The choice affects corrosion resistance, service life, and cleaning behavior. We\’ll walk you through the trade-offs based on your actual process.

The tank body is rolled from a single sheet of stainless steel, with a continuous weld seam. All welds are ground smooth and passivated. Interior surfaces can be finished to 2B, BA, or mirror polish depending on your requirement. For food and pharmaceutical use, we recommend a sanitary finish with minimal roughness to prevent bacterial holdout.

Standard construction includes a dished bottom for complete drainage, a flat or domed top, and a vent with a filter. You can add ports for level sensors, temperature probes, or a CIP spray ball. Agitation, heating jackets, and insulation are available as options. But remember — if you need vacuum or pressure service, that requires a pressure-rated design with appropriate wall thickness and certification. We do not cut corners there.

These tanks are used in dairy, beverage, cosmetic, and chemical plants. A typical scenario: storing liquid glucose at 50°C with a heating jacket, or holding a pH-neutral cleaning solution at ambient temperature. The right tank depends on the liquid\’s viscosity, corrosiveness, and whether you need to keep it hot or cold.

Every tank is built to order. While 100L, 200L, and 300L are standard, we can adjust height and diameter to fit your floor plan. Legs, casters, and mounting brackets are available. We also provide material certificates and weld inspection reports on request.

Quick Specifications

FAQ

Q: Can I use this tank for storing concentrated sulfuric acid?
A: No. Concentrated sulfuric acid requires specialized materials like PTFE-lined tanks. Our stainless steel tanks are not suitable for that service.

Q: What is the difference between 304 and 316L for my application?
A: 316L adds molybdenum, which improves resistance to chlorides and acids. If you\’re storing salt solutions or cleaning agents with chlorine, 316L is the safer choice. For neutral water or mild chemicals, 304 works fine.

Q: Do you provide tanks with a heating jacket?
A: Yes. We can add a half-pipe or full-pipe jacket for heating or cooling. You\’ll need to specify the heat transfer fluid and target temperature.

Before you request a quote, gather a few details: the liquid you\’ll store, its working temperature, the required capacity (working volume vs. total volume), available floor space, and any cleaning or agitation needs. Also note if the tank will be indoors or outdoors, and whether it needs to handle vacuum or pressure. With that information, our engineers can recommend the correct material grade, wall thickness, and accessory package.

Send us your process parameters, and we\’ll respond with a tank design that fits your operation — not a one-size-fits-all unit.
