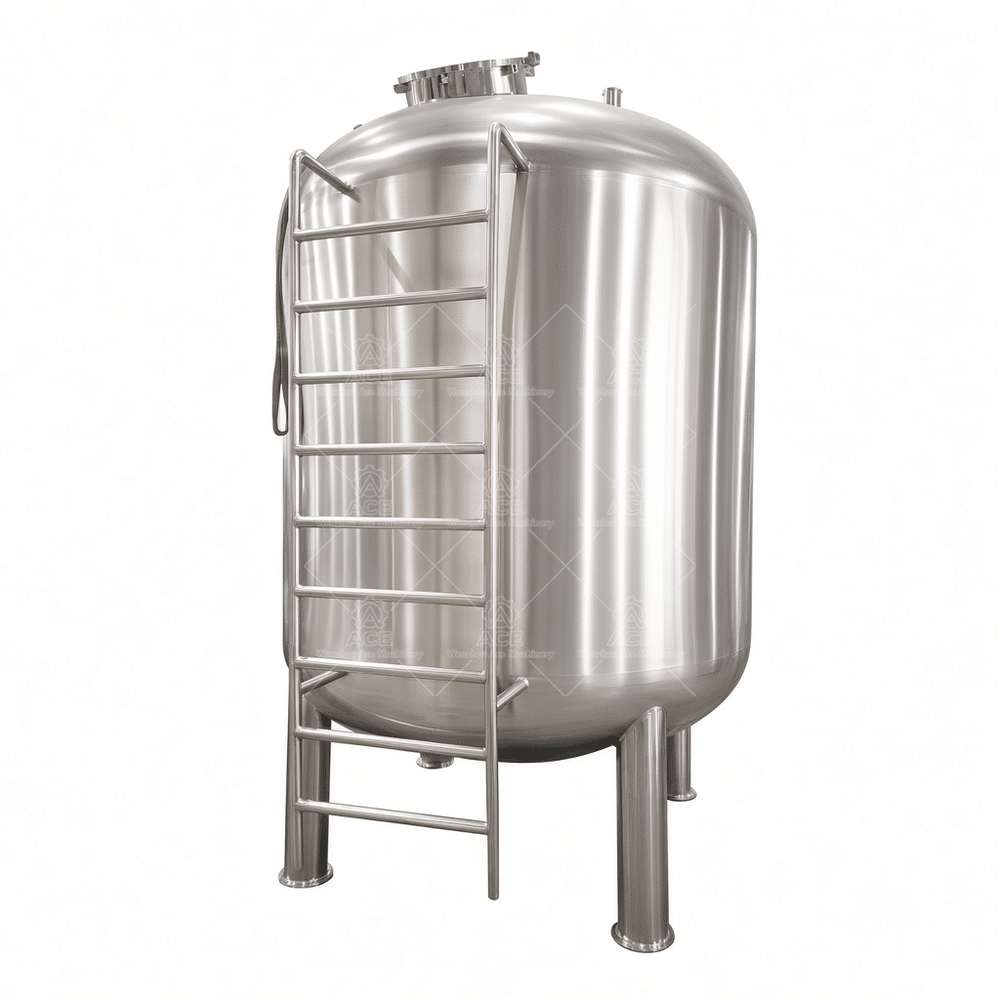

25000L SS304/316L Stainless Steel Vertical Water Storage Tank for Drinking Water
A 25,000L vertical stainless steel water storage tank in SS304 or SS316L, built for drinking water systems. TIG-welded, passivated, and customizable with CIP nozzles, level sensors, and insulation. Ideal for municipal, industrial, and food-grade applications.
- Tank Capacity: [50L–100,000L or specify actual capacity]
- Tank Type: [Vertical / Horizontal / Single-wall / Double-wall / Jacketed]
- Material: 304 or 316L
- Optional Features: [Insulation / Heating / Cooling / Agitator / Level Gauge / Manway / CIP Spray Ball / Load Cells / Wheels / Custom Connections]
- Surface Finish: [2B / Brushed / Polished / Mirror Polish]
- If you have drawings, we can process them for you.
Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909
Price range: $2,799.50 through $3,500.49
Guaranteed Safe Checkout
We build vertical water storage tanks for municipal, commercial, and industrial drinking water systems. This 25,000-liter unit is a straightforward, well-engineered vessel for bulk water storage where reliability and material integrity matter more than decorative features.
The tank is available in either SS304 or SS316L. For potable water, SS304 is usually sufficient and more economical. If the water source has higher chloride levels, or if the tank will be cleaned with aggressive sanitizers, SS316L gives extra corrosion resistance. We weld with TIG, using full penetration on the shell seams and a sanitary finish on all interior welds. Interior surfaces are pickled and passivated, and we can polish to a 0.4 µm Ra if your spec requires it.
This vertical tank has a dished or flat bottom, depending on your drainage needs. The standard top is a sealed manhole with a vent, but we can add a pressure/vacuum relief valve, level sensors, or a CIP spray ball. The tank is designed for atmospheric storage only—if your process requires pressure or vacuum service, that\’s a different vessel entirely, and we\’ll quote accordingly.
Typical applications include raw or finished drinking water storage, rainwater harvesting, and water treatment buffer tanks. It also suits food-grade liquid storage where the material and finish meet FDA or EU requirements, but verify compatibility with your specific liquid before ordering.
Specifications
| Capacity | 25,000 L (6,600 gal) |
| Material | SS304 or SS316L (2B or BA finish) |
| Type | Vertical, atmospheric |
| Bottom | Flat or dished |
| Top | Dished with manhole |
| Options | CIP nozzles, level transmitters, insulation, heating jacket |
Procurement Guidance
Before requesting a quote, know the chemical composition of the liquid you\’re storing, the required working volume (don\’t fill to the brim—leave headroom), and your available floor space. Also decide whether you need heating, cooling, mixing, or a specific outlet arrangement. Our engineers need these details to recommend the right material grade, wall thickness, and fittings.
Send us your liquid type, capacity, material preference, operating temperature, and any special requirements. We\’ll respond with a technical drawing and a firm quote.
