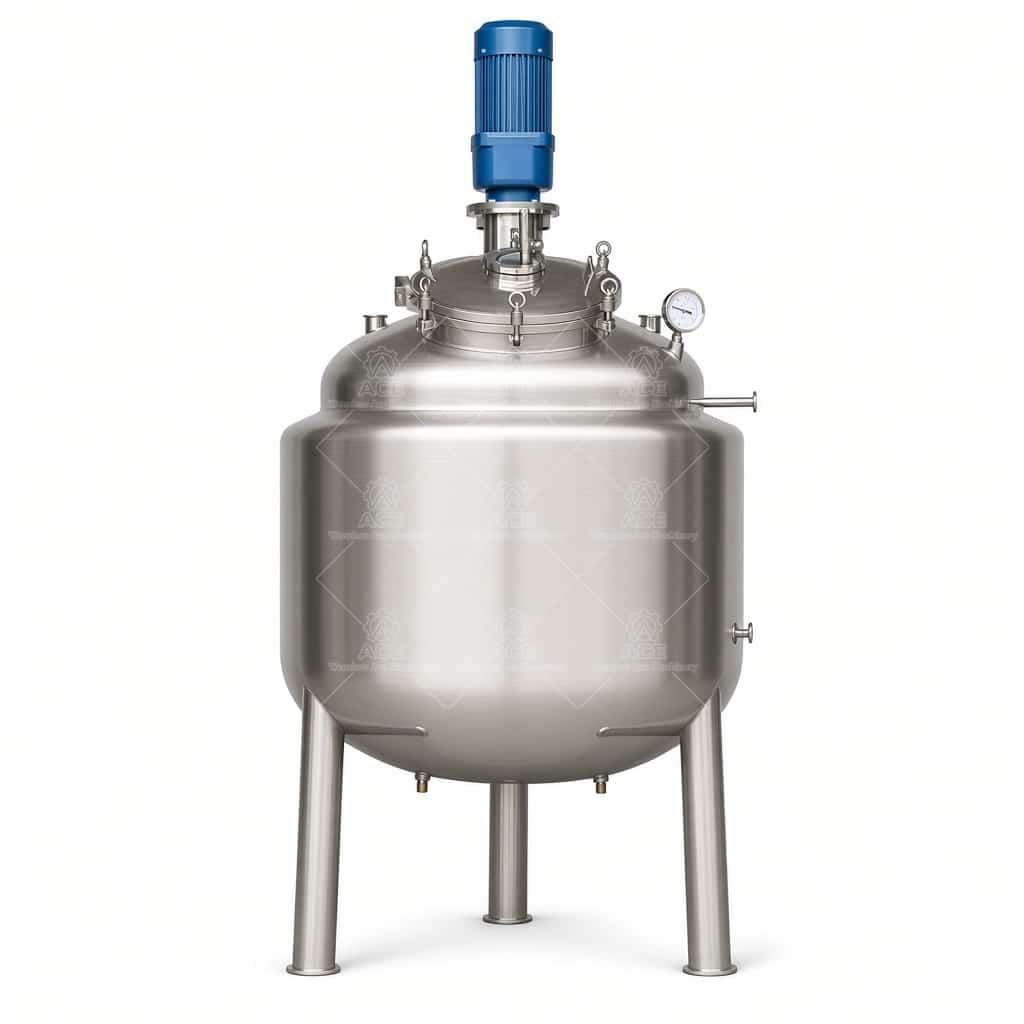

Stainless Steel Reactor with Agitator, Pressure Gauge & Temperature Control for Chemical Industry
Stainless steel reactor with agitator, pressure gauge, and temperature control for chemical processing. Customizable capacity, heating, cooling, and mixing configurations. Built for reliable batch production.
- Capacity: 50 liters to 30,000 liters
- Mixer power: 1.5 kW to 55 kW
- Material: [SUS304 / SUS316L]
- Voltage: 110V / 220V / 380V / 400V / 440V / 480V / 600V
- Heating method: [Electric / Steam / Thermal Oil / Hot Water / No Heating]
- Cooling method: [Cooling Jacket / Dimple Jacket / Coil / No Cooling]
- Agitation system: [Top Entry Agitator / Anchor Mixer / Paddle / Turbine / High-Shear Mixer / Customized]
- Optional features: [Insulation / Load Cells / Temperature Sensor / Pressure Gauge / Manhole / CIP / PLC Control / Explosion-Proof Motor]
- Certificates: ASME, CE, GMP, UL, ATEX, ISO 9001
- Working pressure: [Atmospheric / Positive Pressure / Vacuum / Specify pressure]
- If you have drawings, we can process them for you.
Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909
$3,326.57 – $4,161.21Price range: $3,326.57 through $4,161.21
Guaranteed Safe Checkout

Recommend RPM: 0-960RPM
Viscosity: Low/medium viscosity
Application: Mainly Liquid mixing

Recommend RPM: 0-200RPM
Viscosity: Low/medium viscosity
Application: Mainly Liquid mixing

Recommend RPM: 30RPM
Viscosity: Medium/High viscosity
Application: Melting, High viscosity product mixing, For single wall tank

Recommend RPM: 30RPM
Viscosity: Medium/High viscosity
Application: Melting, High viscosity product mixing, For jacket tank

Recommend RPM: 1480/2850 RPM
Viscosity: Low/medium viscosity
Application: Liquid powder mixing and dispersion

Recommend RPM: 2800 - 3200 RPM
Viscosity: Low/medium/High viscosity
Application: Liquid powder mixing and homogenizing

Recommend RPM: 0-355RPM
Viscosity: Low/medium viscosity
Application: Install at bottom, No mechanical seal working condition

Recommend RPM: As above
Viscosity: Low/medium viscosity
Application: Liquid powder mixing and dispersion For tank volume >300L
We build stainless steel reactors for processes where mixing, heating, and pressure control need to work together reliably. This unit comes with an agitator, pressure gauge, and temperature control as standard, making it suitable for chemical synthesis, resin production, and liquid blending operations.
The vessel is constructed from 304 or 316L stainless steel, depending on the corrosiveness of your feedstocks. 316L is the safer choice for chloride-containing media or pharmaceutical applications. Internal surfaces are mirror-polished to reduce product adhesion and simplify cleaning between batches. Welds are full-penetration and ground smooth, so there are no crevices where residue can accumulate.
The agitator can be configured as anchor, paddle, or turbine type, depending on your viscosity and mixing requirements. Anchor agitators work well for heat-sensitive slurries, while turbine designs provide higher shear for emulsification and dispersion. The shaft is sealed with either a mechanical seal or a stuffing box, depending on your pressure and hygiene requirements. For vacuum operation or volatile solvents, we recommend a double mechanical seal with a flush plan.
Heating and cooling are achieved through a jacketed outer shell. You can specify steam, thermal oil, or electric heating, and the jacket can be divided into zones to improve temperature uniformity in larger vessels. The temperature control system maintains setpoint within a reasonable range, which matters for exothermic reactions that need stable conditions.
Typical Applications
- Chemical synthesis and hydrolysis reactions
- Resin, adhesive, and coating production
- Pharmaceutical intermediate processing
- Food-grade mixing and heating
- Cosmetic emulsion preparation
Technical Specifications
| Capacity | Customized (50L to 20,000L) |
| Material | SS304 / SS316L |
| Inner tank wall thickness | Per design pressure |
| Heating | Steam / thermal oil / electric |
| Cooling | Jacket cooling / coil optional |
| Working pressure | Atmospheric to full vacuum / positive pressure |
| Design temperature | Up to 180°C (standard) |
| Agitator | Anchor / paddle / turbine |
| Seal | Mechanical seal / stuffing box |
| Surface finish | Mirror polish / matte |
Choosing the Right Reactor
Before requesting a quote, define your process parameters. What exactly are you processing, and at what concentration? What is the batch volume and working volume? What is the maximum operating temperature and pressure? Is the process under vacuum? What is the viscosity and solids content?
These details determine the wall thickness, agitator type, seal configuration, and jacket design. A reactor that works well for a low-viscosity solution may not handle a thick paste. Similarly, a vessel designed for atmospheric operation should not be used under pressure without proper engineering review.
Cleaning and maintenance access also matter. If you run multiple products per day, look for features like spray balls, manholes, and easy-clean agitator designs. For sterile processes, specify sanitary tri-clamp connections and electropolished surfaces.
We are a factory-direct manufacturer, so you specify the configuration, and we build it accordingly. Send us your material, batch capacity, operating temperature, pressure requirements, and mixing needs. We will recommend the right configuration and provide a quotation based on your actual process conditions.
