Sanitary Batch High Shear Emulsifying Mixer for Shampoo, Syrup & Gel
- Material: 304 or 316L
- Voltage: 110V 208V 220V 380V 400V 415V 480V 600V
- Certificates: CE, GMP, UL, ATEX, ISO 9001
- Power：0.75KW-55KW （1 HP – 74 HP）
- Motor brands: ABB, Chinese brands, SEW, Siemens (optional)
- 1-year free warranty with door-to-door delivery.
- Optional: Variable-frequency drive, control panel
- MADE IN CHINA
- We have it in stock.
Please contact our sales team before placing your order.
Email:info@ace-chn.com
Tel:+86 18626835909
WeChat: ace-chn
Price range: $1,469.54 through $1,587.84
Guaranteed Safe Checkout
We manufacture and sell the following types of mixers
Mix, emulsify, homogenize, disintegrate and dissolve
Ideal for disintegrating solids and incorporating powders
Reduce mixing times by up to 80%
Reduce mixing times by up to 90%
Quickly disperse and hydrate powders, even at higher viscosities
Easy to move and lift
Features heating, cooling, vacuum, and other functions
Recommended RPM: 1480/2850 RPM
Batch Mixing for Shampoo, Syrup, Gels, and Emulsions

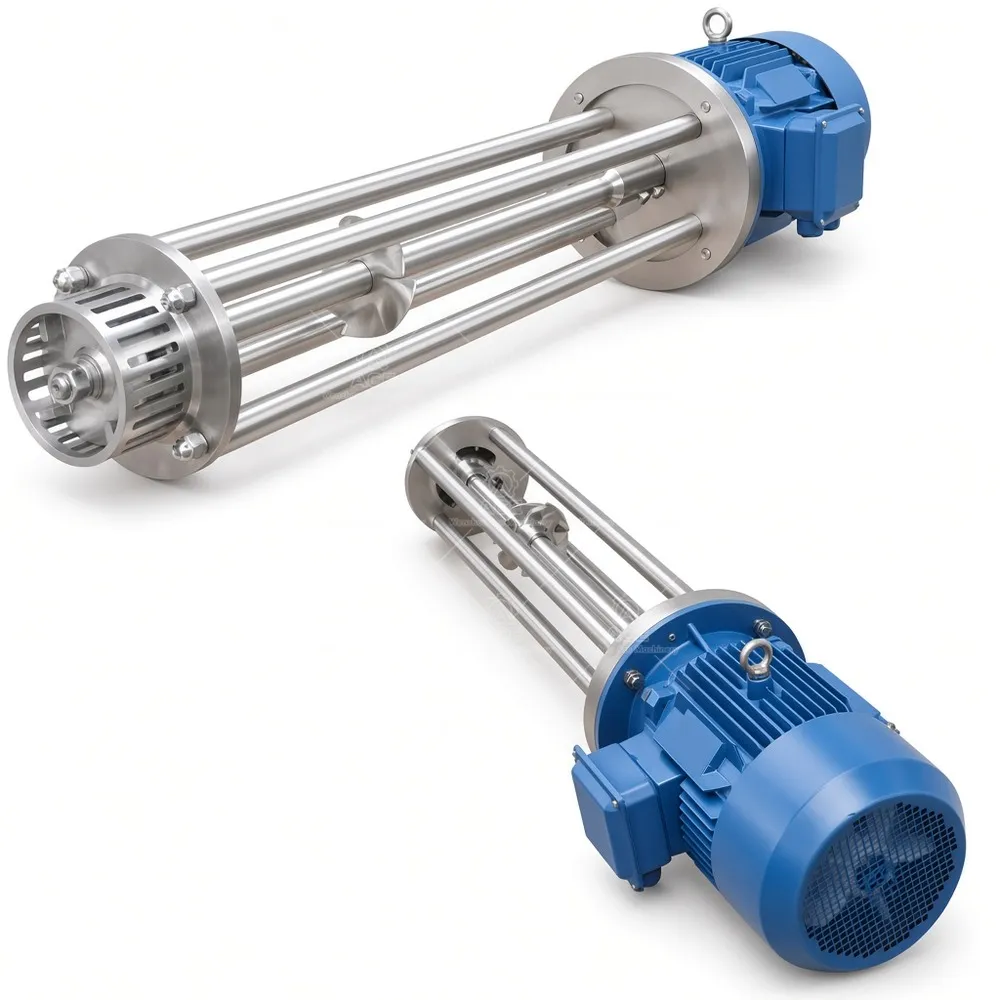

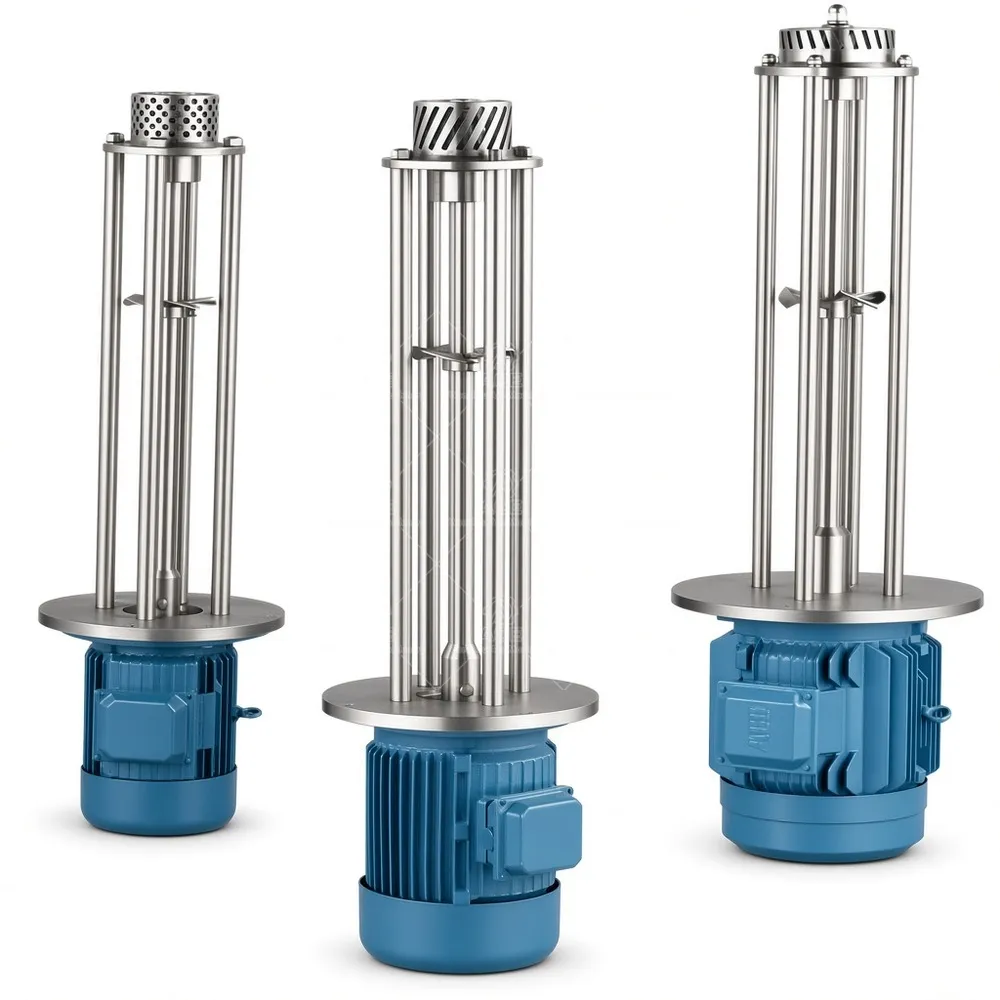

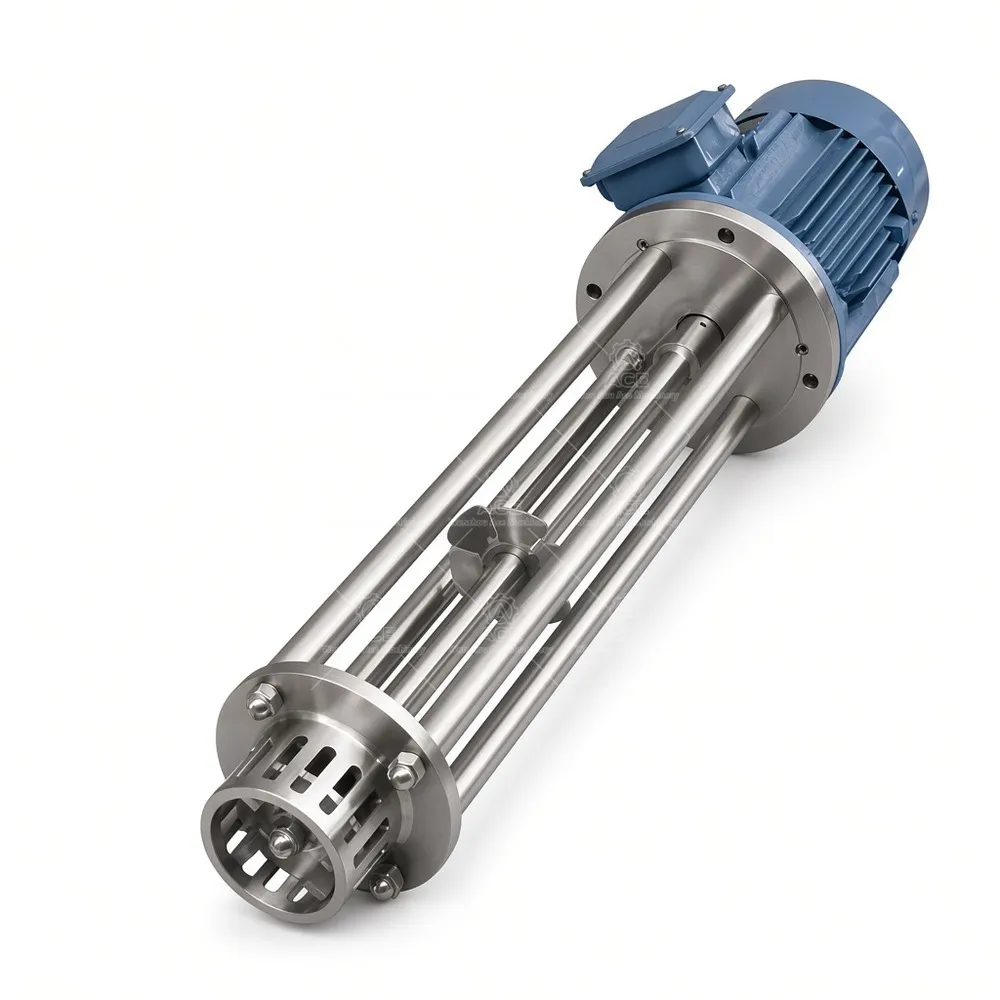

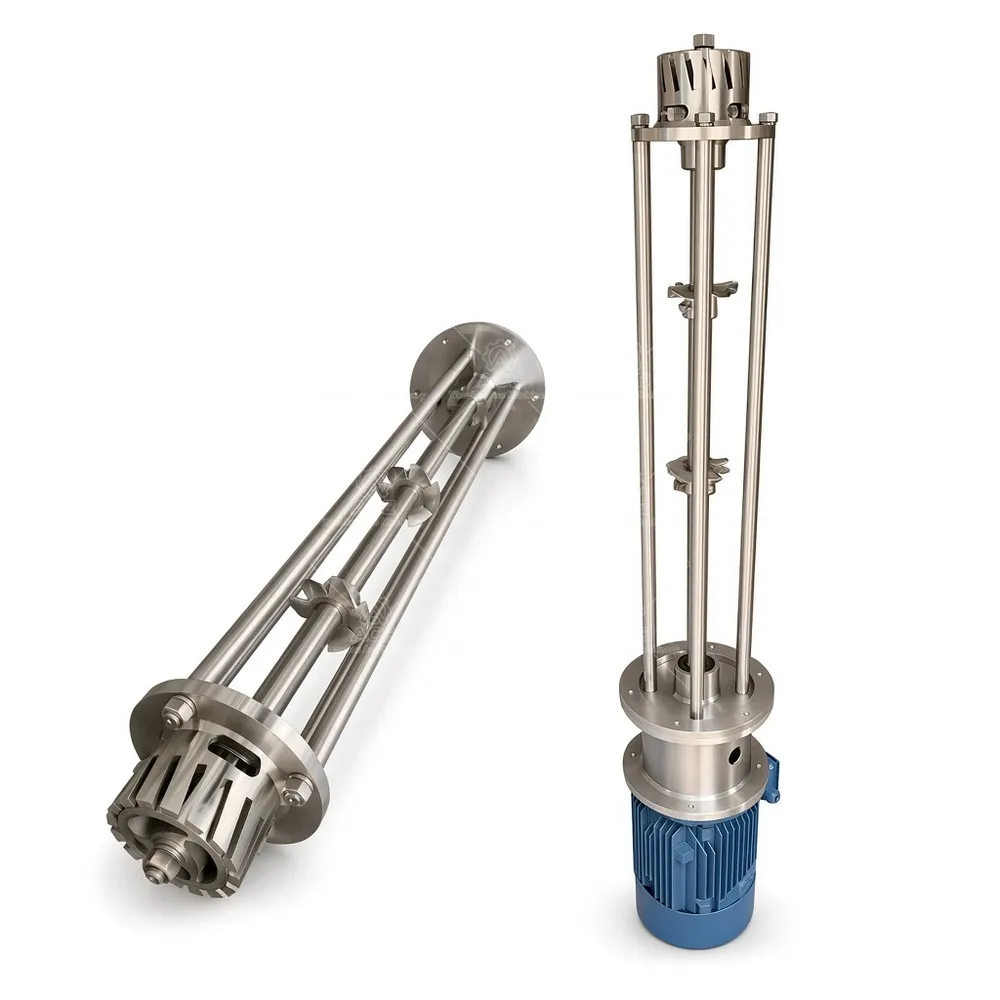

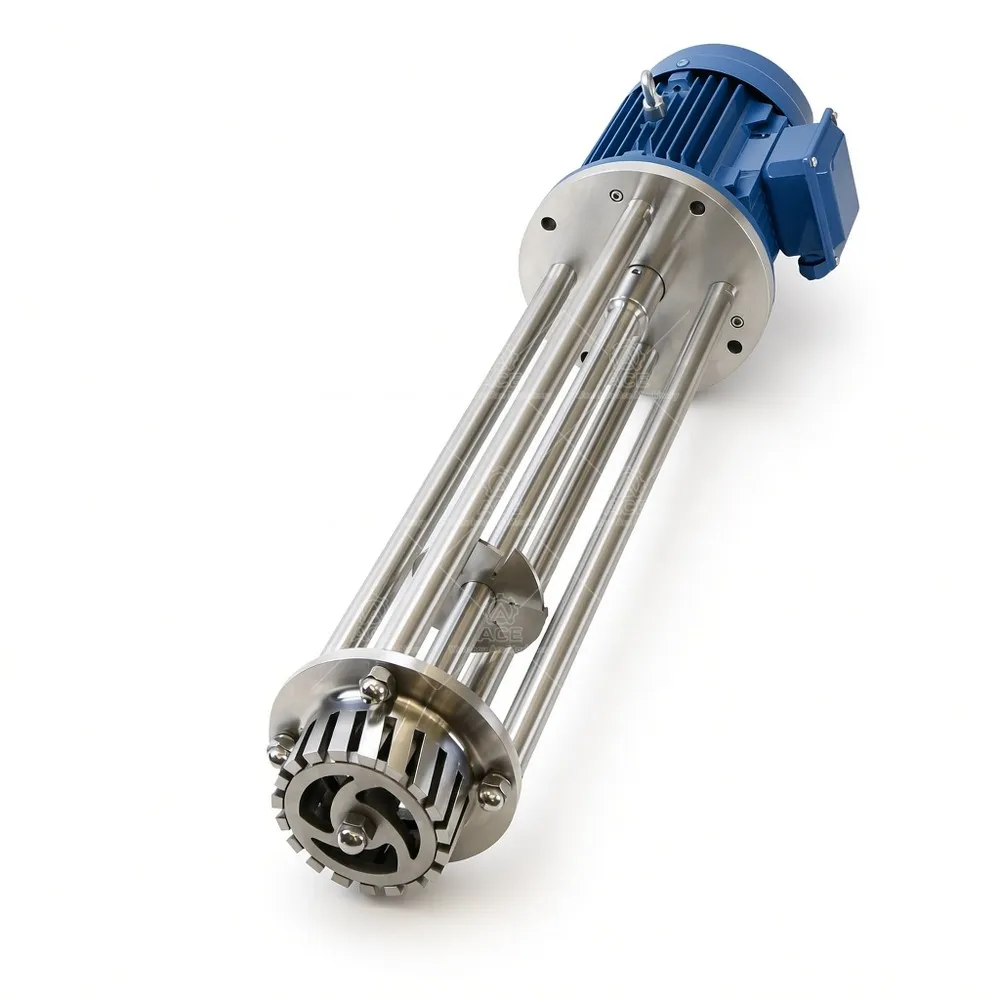

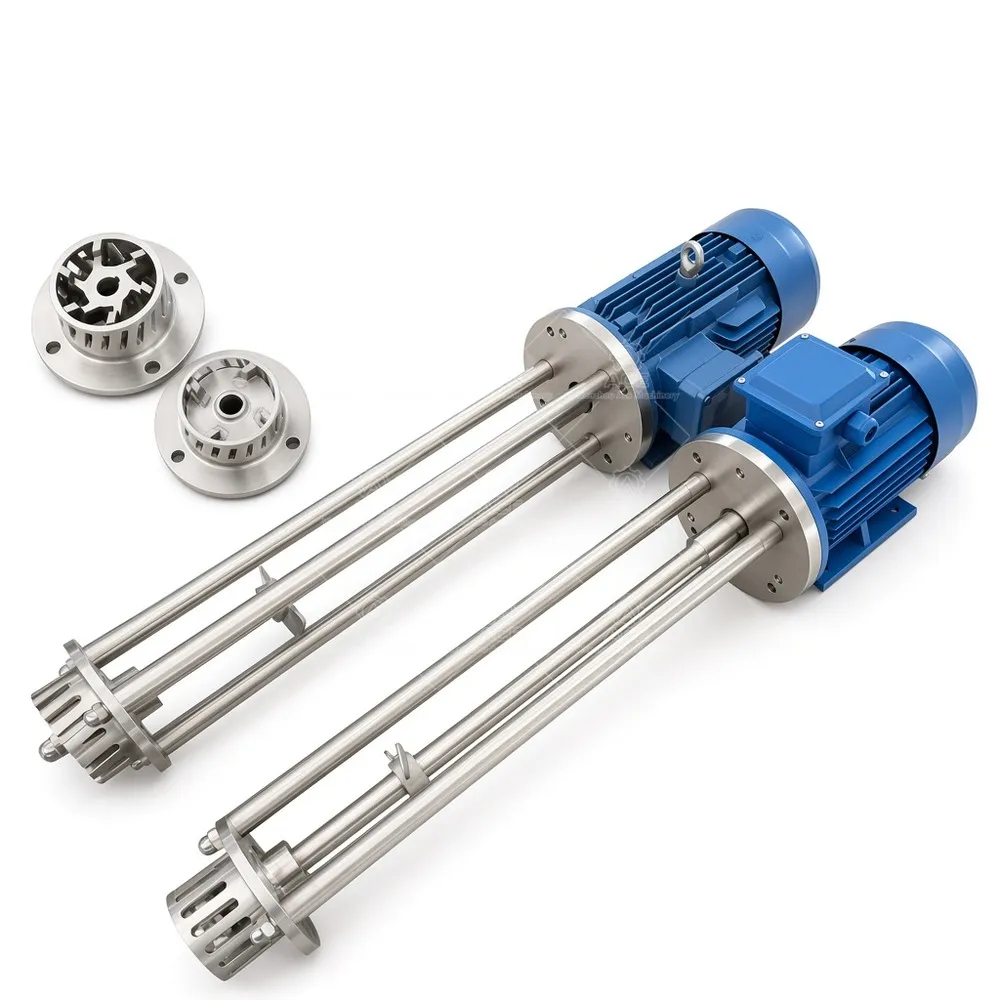

We build Ace Mixer sanitary batch high shear mixers for manufacturers working with shampoo, sugar syrup, carbomer gels, alcohol gels, creams, sauces, and compatible chemical formulations. The unit combines high-speed shear, dispersion, emulsification, and powder wet-out in one tank. Because the head, shaft, mounting, and contact materials are configurable, the same platform can serve pilot batches and production lines—provided the mechanical arrangement matches the vessel and product.
Specifications
- Speed control: optional VFD, 0–3000 rpm depending on motor and configuration.
- Voltage: 220–480 V; voltage, frequency, phase, and electrical setup confirmed for the destination market.
- Motor power: 1.5–55 kW, selected around process demand and model.
- Mixing functions: high-speed shear, dispersion, emulsification, and powder incorporation.
- Contact materials: 304 or 316L stainless steel; other contact-part requirements can be specified.
- Configuration: motor power, controls, mixing head, and mounting arranged by application.
Matching the Mixer to the Line
Start with batch size and vessel dimensions. Product viscosity and solids content drive the head style, shaft length, and motor size. A variable speed high shear mixer with VFD gives room to tune shear without changing hardware, but the turntable range must suit the product. Confirm voltage, frequency, and phase before release. With a high shear mixer for powder dispersion, consider feed location and wet-out behavior; for liquid-liquid emulsification, head design and shear-zone residence matter. Mobile high shear mixer builds help where vessels change between batches; fixed tank-mounted units suit dedicated tanks and higher-power installations. We review the tank, product, and electrical supply before recommending an industrial high shear mixer configuration.
Applications
Food and beverage processing, cosmetics and personal care, pharmaceutical and healthcare preparations, chemical processing, paints and compatible coatings, powder dispersion, and liquid-liquid emulsification. Suitable head, material, and operating parameters depend on viscosity, ingredients, and process requirements.
FAQ
Can one unit run shampoo and carbomer gel? Often, with the correct head and VFD range. Viscosity and powder loading still determine motor size and tank layout.
Is a mobile frame available? Yes, mobile high shear mixer configurations are available. Dedicated tank mounting may be better for high-power duty.
What details speed up a quote? Batch size, vessel dimensions, viscosity, solids, target rpm, motor power, and local electrical specifications.
Send those details to Ace Mixer. We will recommend a stainless steel high shear mixer and high shear mixing equipment setup for your process, then quote the configured build.
Ace Mixer builds sanitary batch high shear mixers for shampoo, sugar syrup, carbomer gels, alcohol gels, and compatible emulsions. Optional VFD speed control, 1.5–55 kW motors, 220–480 V electrical configurations, and 304 or 316L contact parts support food, cosmetic, pharmaceutical, and chemical production. Share batch size, viscosity, target rpm, and local power details for a configured quote.
