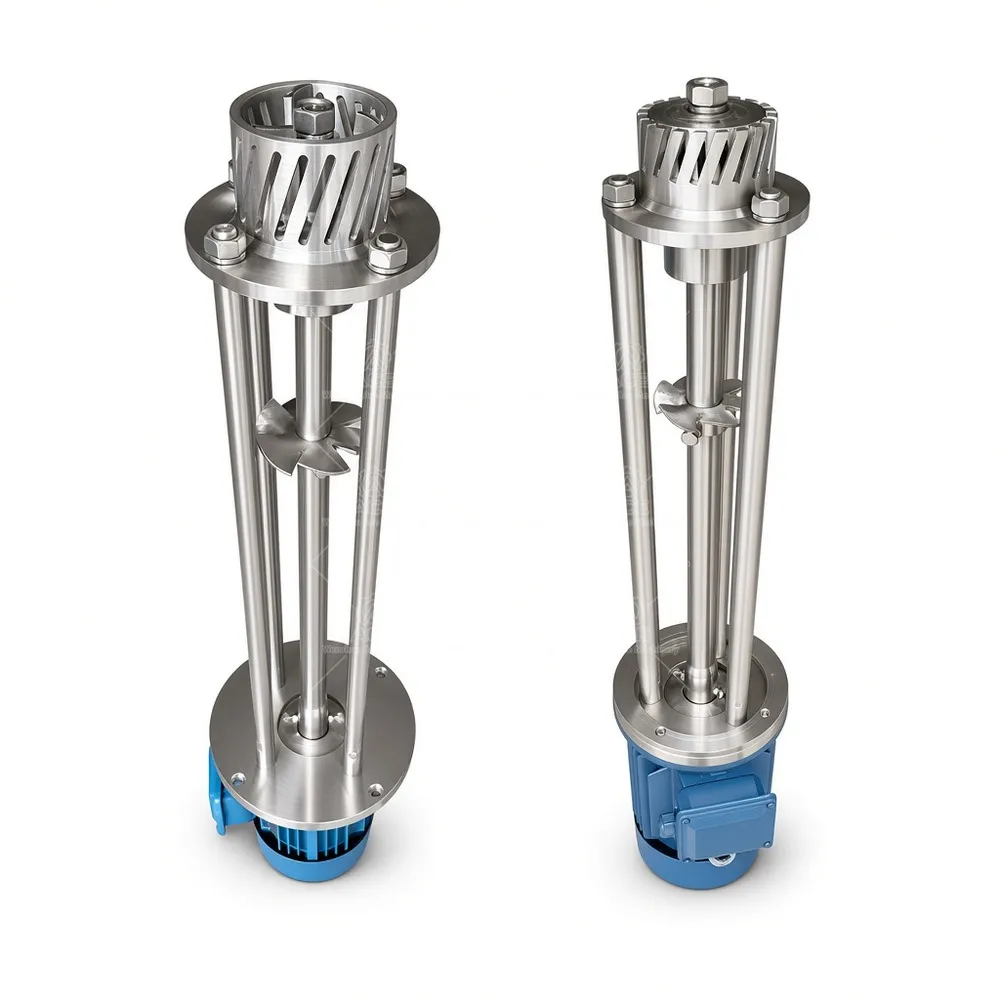

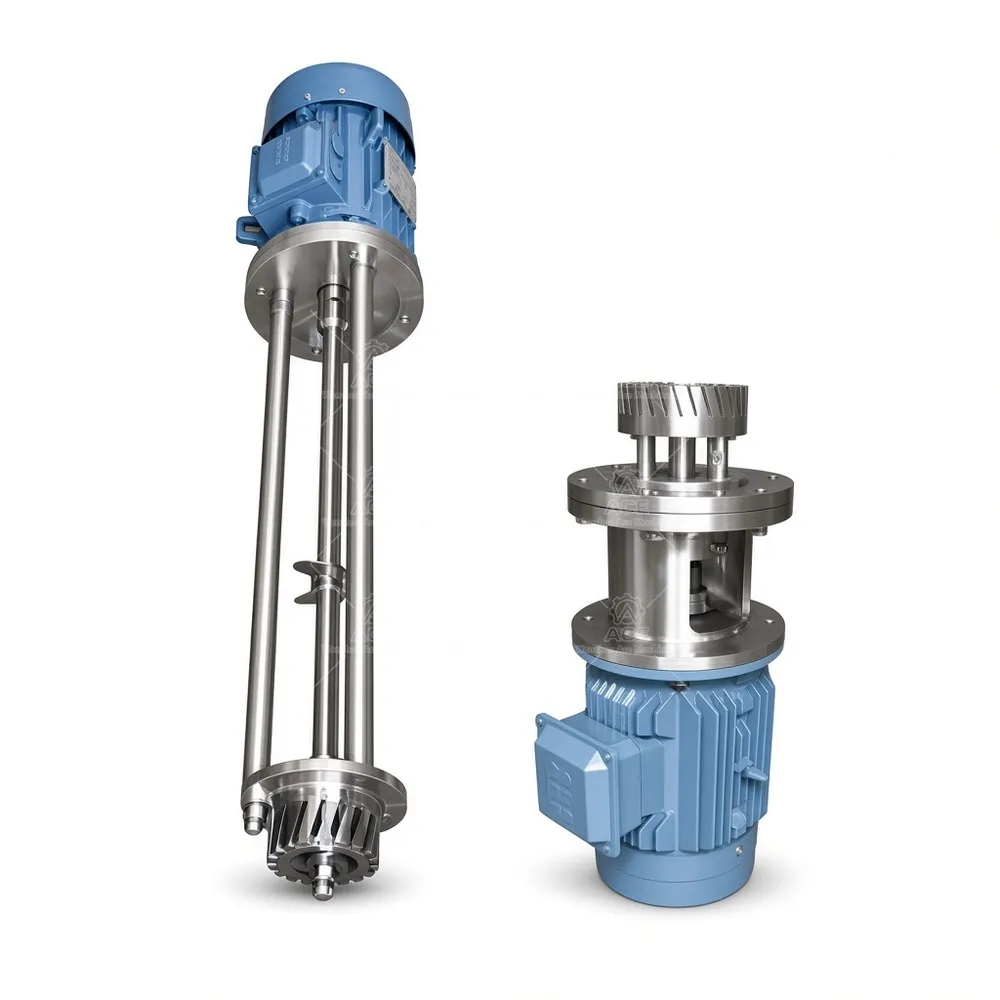

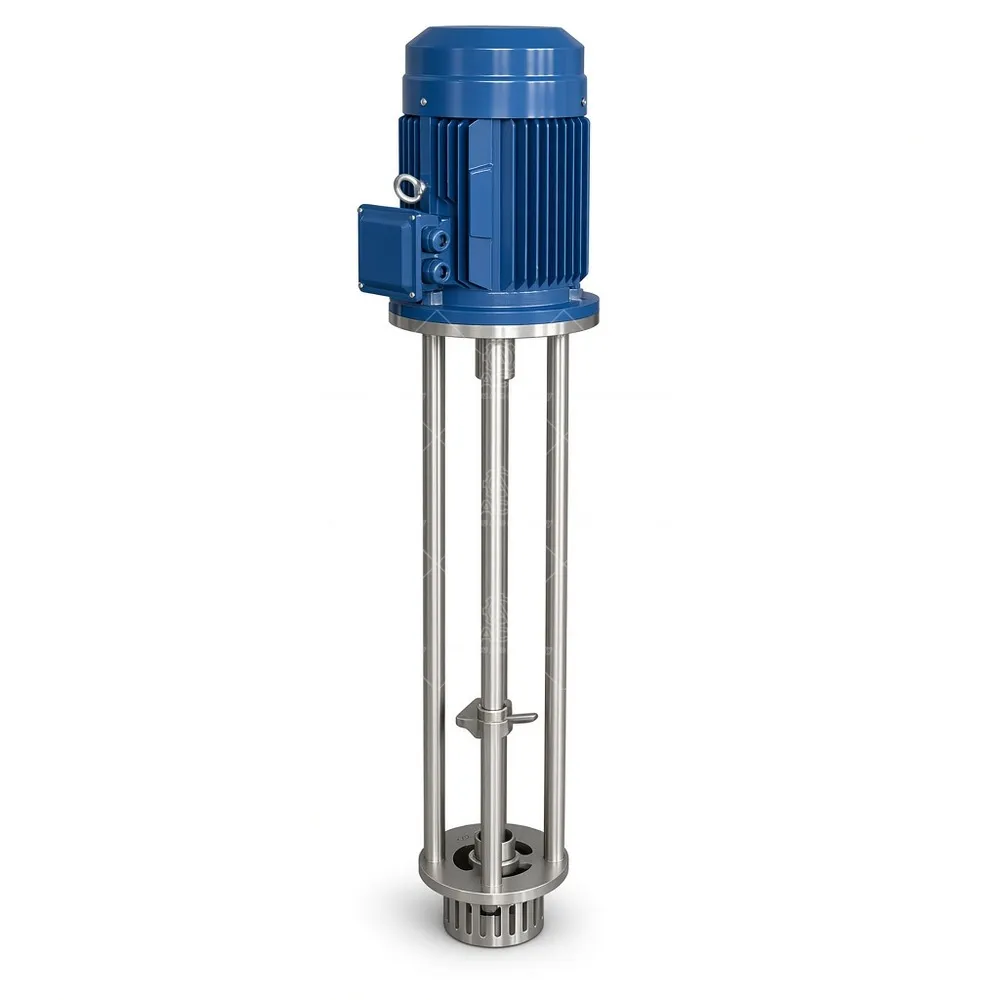

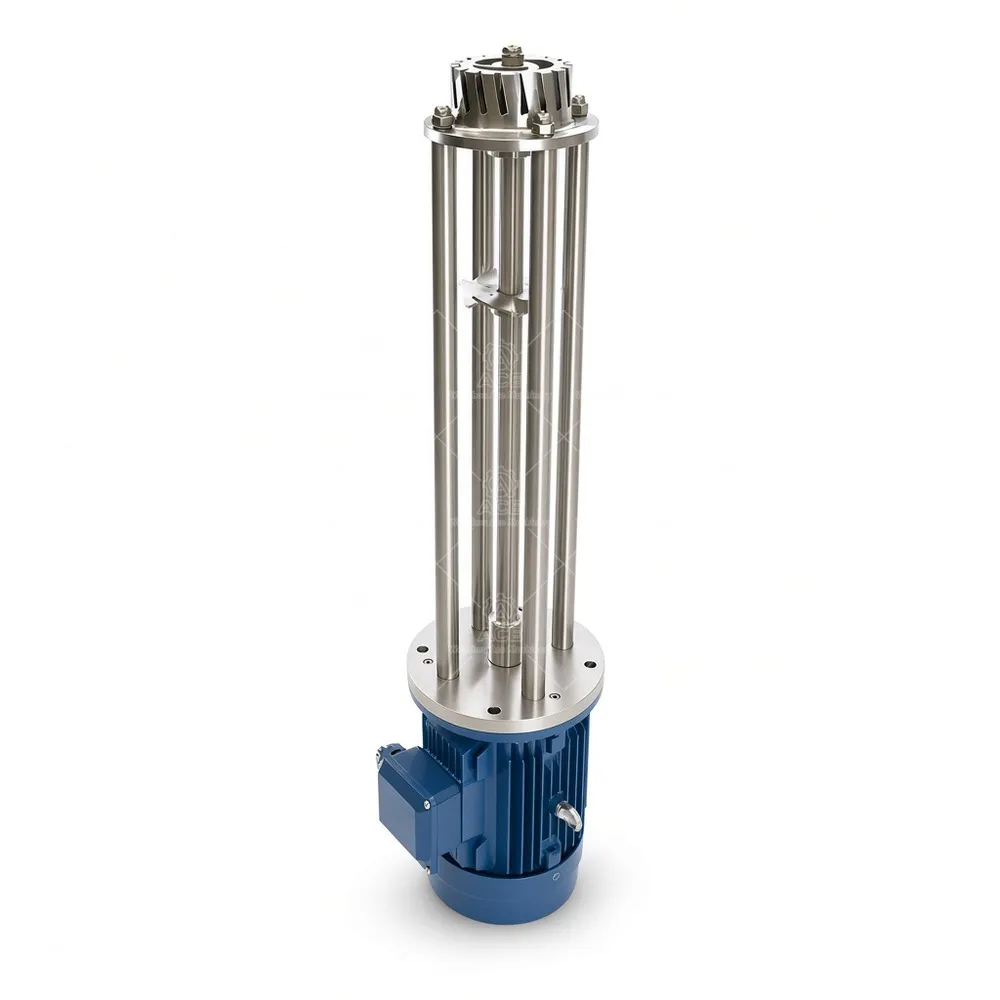

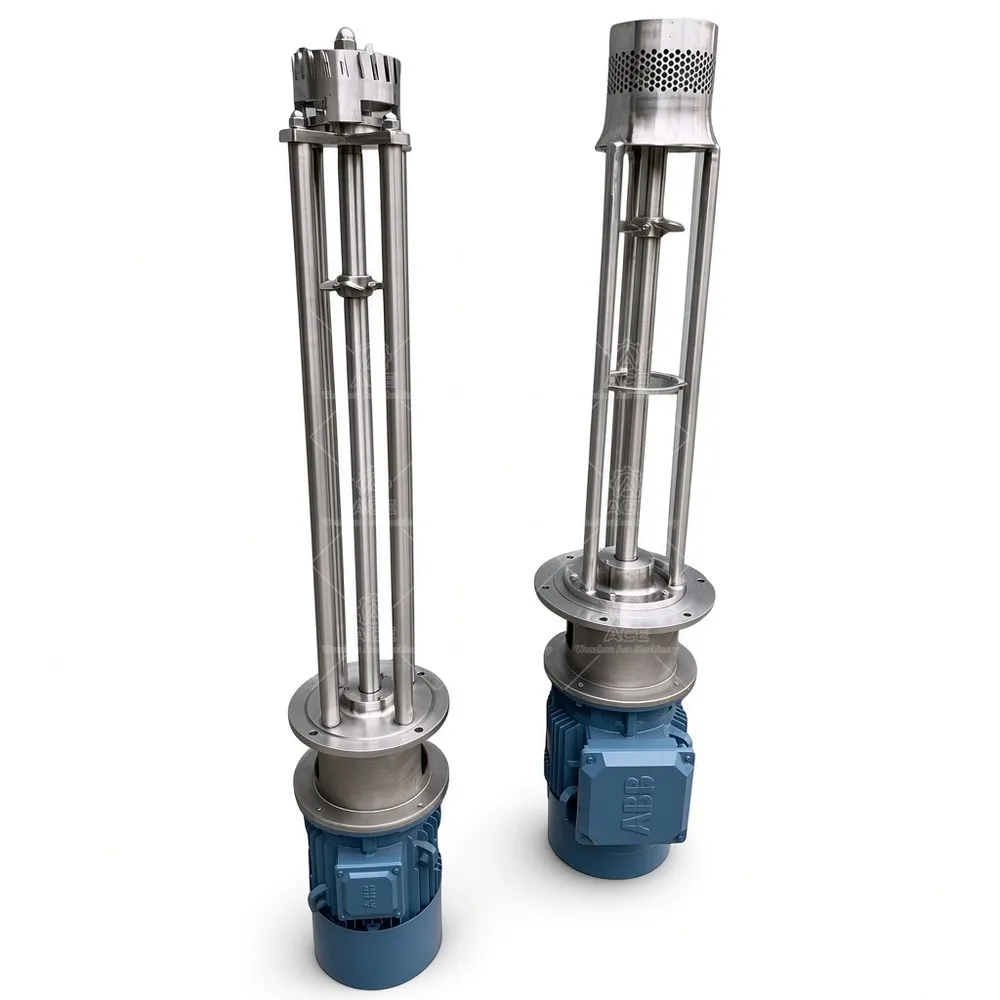

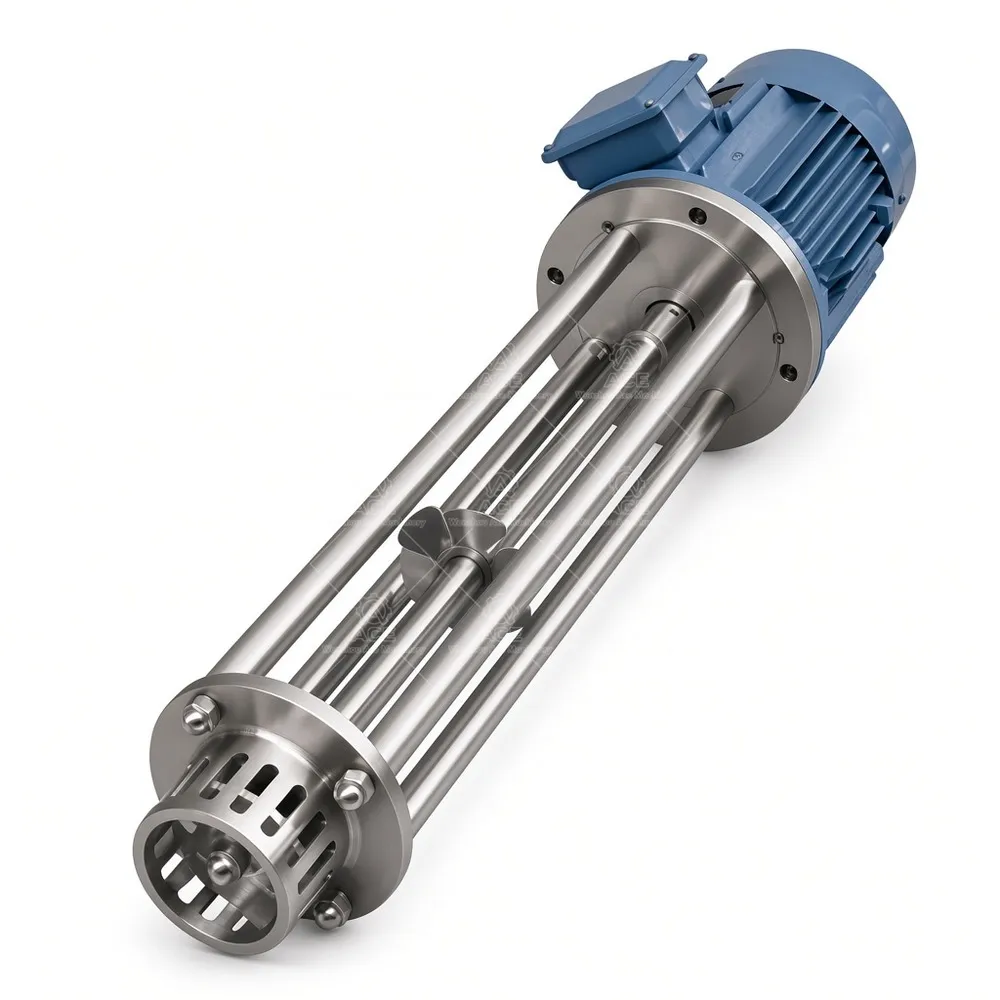

Batch High Shear Homogenizer Mixer for Liquid Soap, Detergent & Cosmetics
- Material: 304 or 316L
- Voltage: 110V 208V 220V 380V 400V 415V 480V 600V
- Certificates: CE, GMP, UL, ATEX, ISO 9001
- Power：0.75KW-55KW （1 HP – 74 HP）
- Motor brands: ABB, Chinese brands, SEW, Siemens (optional)
- 1-year free warranty with door-to-door delivery.
- Optional: Variable-frequency drive, control panel
- MADE IN CHINA
- We have it in stock.
Please contact our sales team before placing your order.
Email:info@ace-chn.com
Tel:+86 18626835909
WeChat: ace-chn
Price range: $1,087.72 through $1,173.65
Guaranteed Safe Checkout
We manufacture and sell the following types of mixers
Mix, emulsify, homogenize, disintegrate and dissolve
Ideal for disintegrating solids and incorporating powders
Reduce mixing times by up to 80%
Reduce mixing times by up to 90%
Quickly disperse and hydrate powders, even at higher viscosities
Easy to move and lift
Features heating, cooling, vacuum, and other functions
Recommended RPM: 1480/2850 RPM
When production teams need to blend viscous liquids, disperse powders, or create stable emulsions, a batch high shear homogenizer often becomes the workhorse. We build these units at Ace Mixer to handle the daily realities of soap, detergent, cosmetic, and chemical manufacturing—not just laboratory conditions.
Configurable to Your Process
Our batch high shear mixers are available with motor power from 1.5 kW to 55 kW. An optional VFD provides variable speed control from 0 to 3000 RPM, letting you fine-tune shear for different products. Voltage options range from 220V to 480V; we confirm frequency, phase, and electrical configuration based on your location. Wetted parts come in 304 or 316L stainless steel, and we can specify the mixing head design to match your viscosity and flow patterns.
Selection Criteria
Choosing the right batch high shear mixer starts with your batch size and vessel dimensions. The mixer must fit the tank and provide adequate circulation without dead zones. Product viscosity and composition dictate the mixing head style and motor power. Low-viscosity liquids may need higher speeds, while thick pastes require more torque. Voltage, frequency, and phase must match your plant\’s electrical supply. Consider whether a mobile high shear mixer on a cart or a fixed-mounted unit suits your workflow.
For powder dispersion, the mixing head must create enough shear to wet out and break down agglomerates. Liquid-liquid emulsification requires a different head geometry. We help you match the head to your process.
Applications
Batch high shear mixing equipment serves food and beverage processing, cosmetics and personal care, pharmaceutical and healthcare preparations, chemical processing, and paints and coatings. The suitable mixing head, materials, and operating parameters depend on your product\’s viscosity, composition, and process requirements.
Common Questions
Can I use one mixer for both liquid soap and detergent? Yes, but confirm the wetted materials are compatible with all ingredients.
What information do you need for a quote? Batch size, material characteristics, target RPM, required motor power, and local electrical specifications.
Is a VFD necessary? It adds flexibility for multiple products, but a fixed-speed unit may suffice for a single dedicated process.
Tell us your batch size, material characteristics, target speed, required motor power, and local electrical specifications. Our engineers will recommend the right configuration and provide a detailed quote.
Ace Mixer offers batch high shear homogenizers for liquid soap, detergent, cosmetics, and chemical production. Configurable motor power 1.5-55 kW, VFD up to 3000 rpm, 220-480V. Stainless steel 304/316L. Ideal for emulsifying, dispersing, and powder incorporation. Contact us with your batch size and material specs for a tailored quote.
