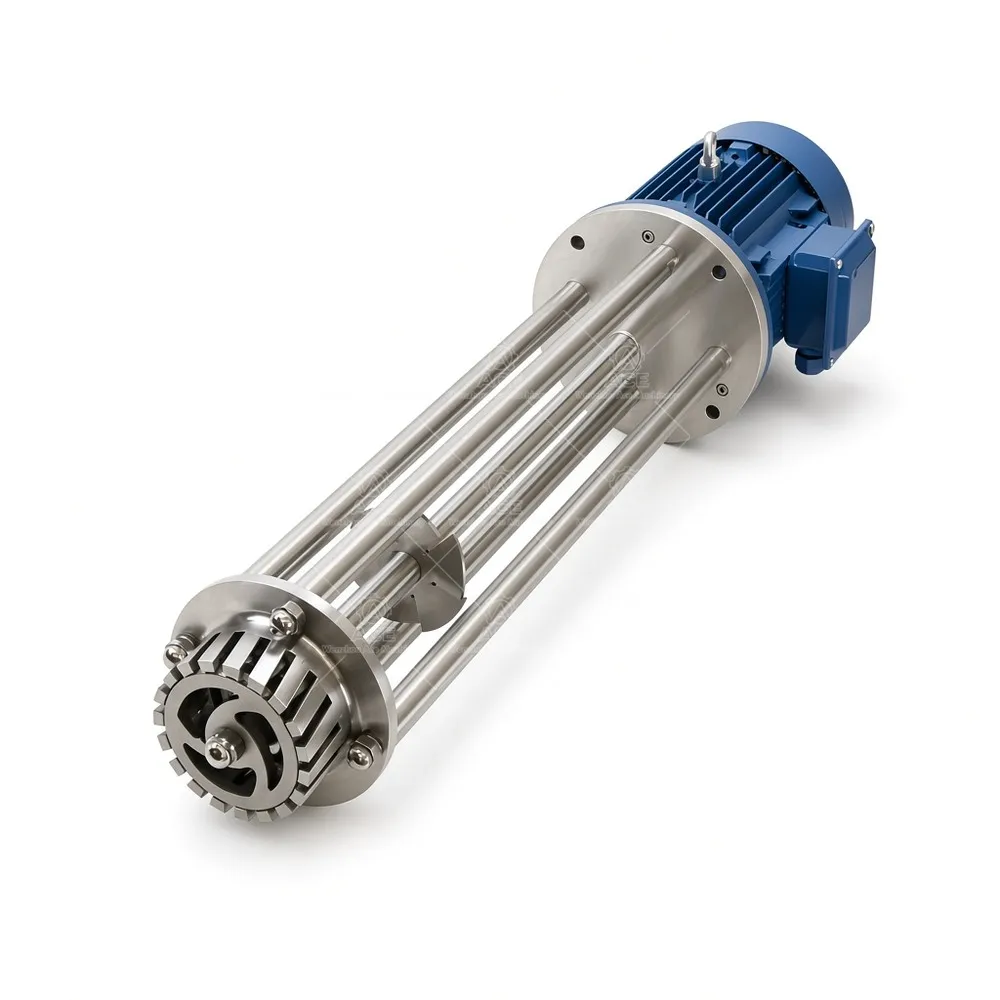

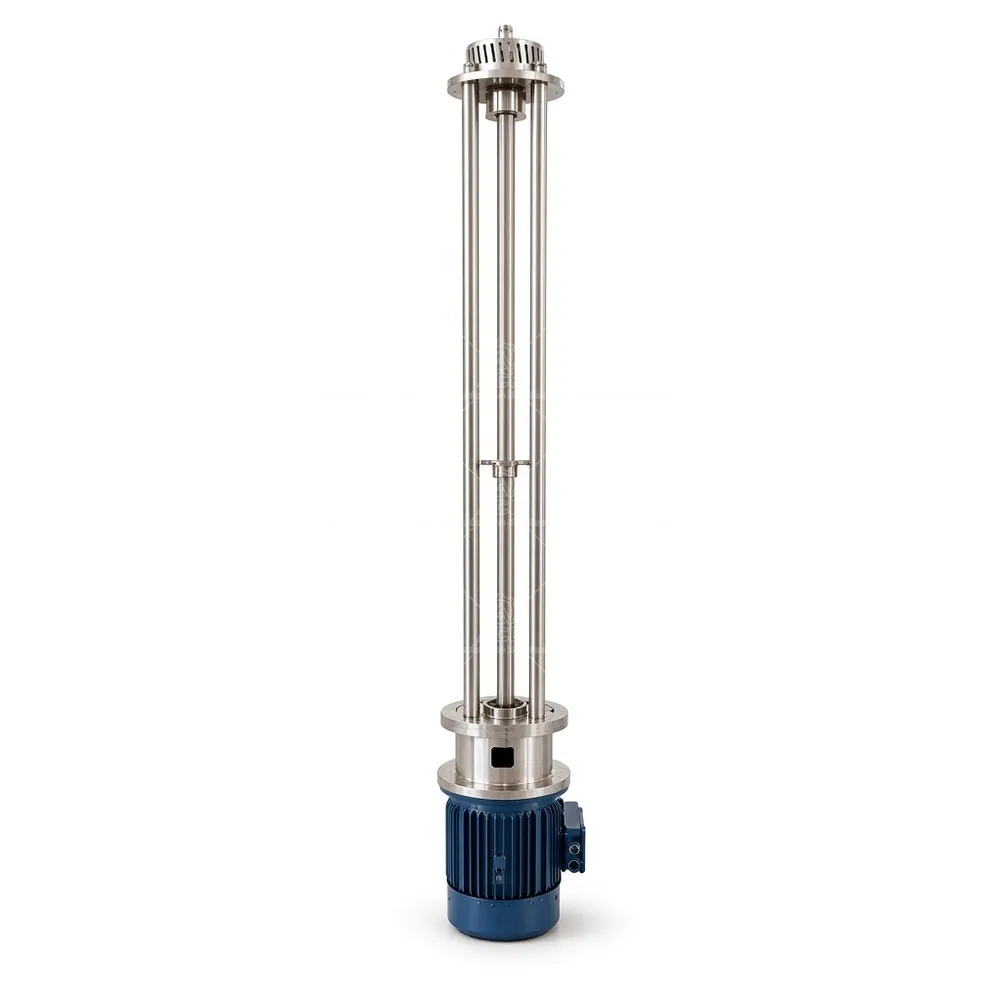

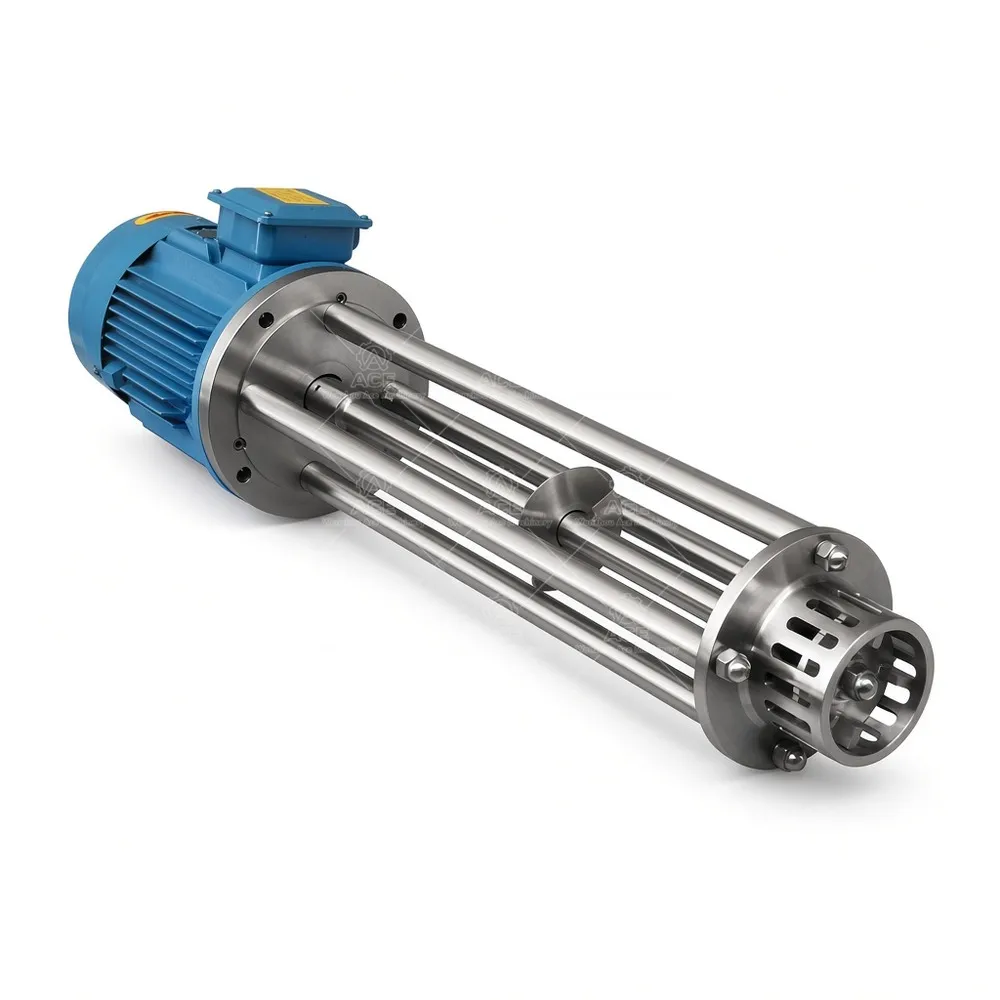

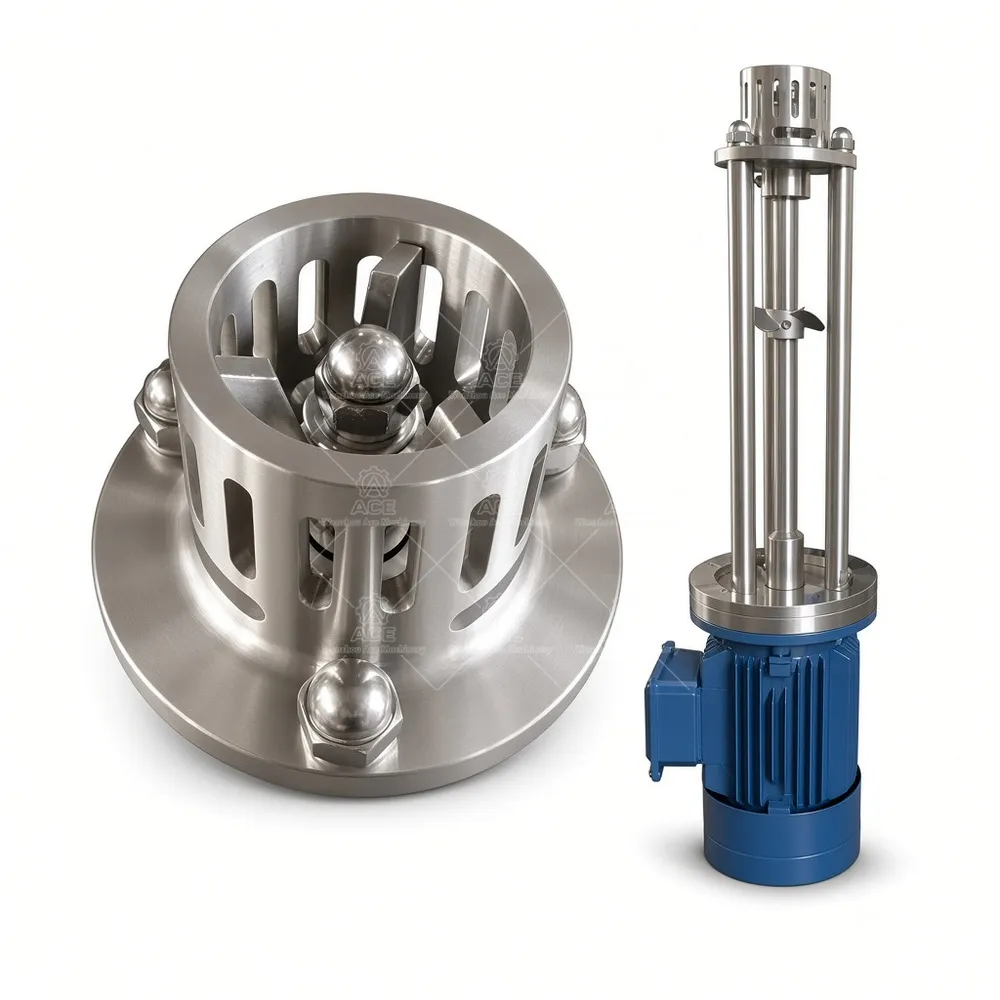

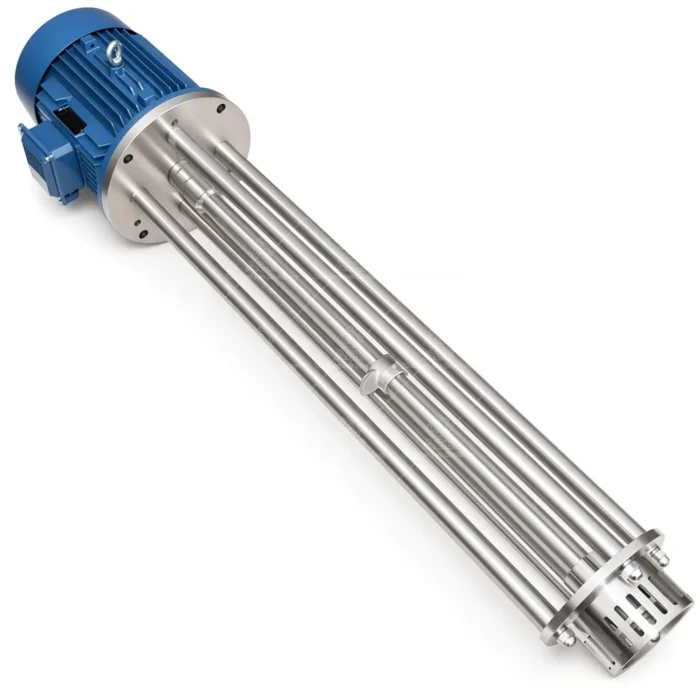

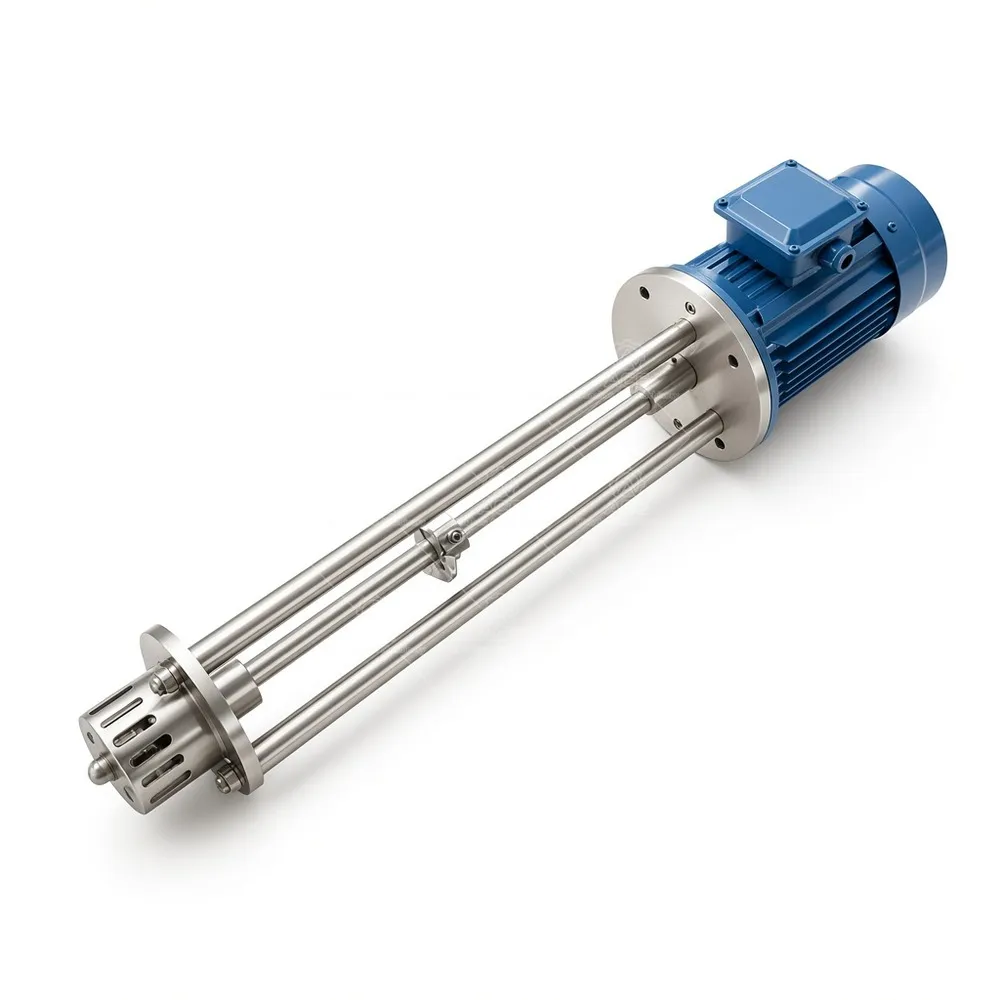

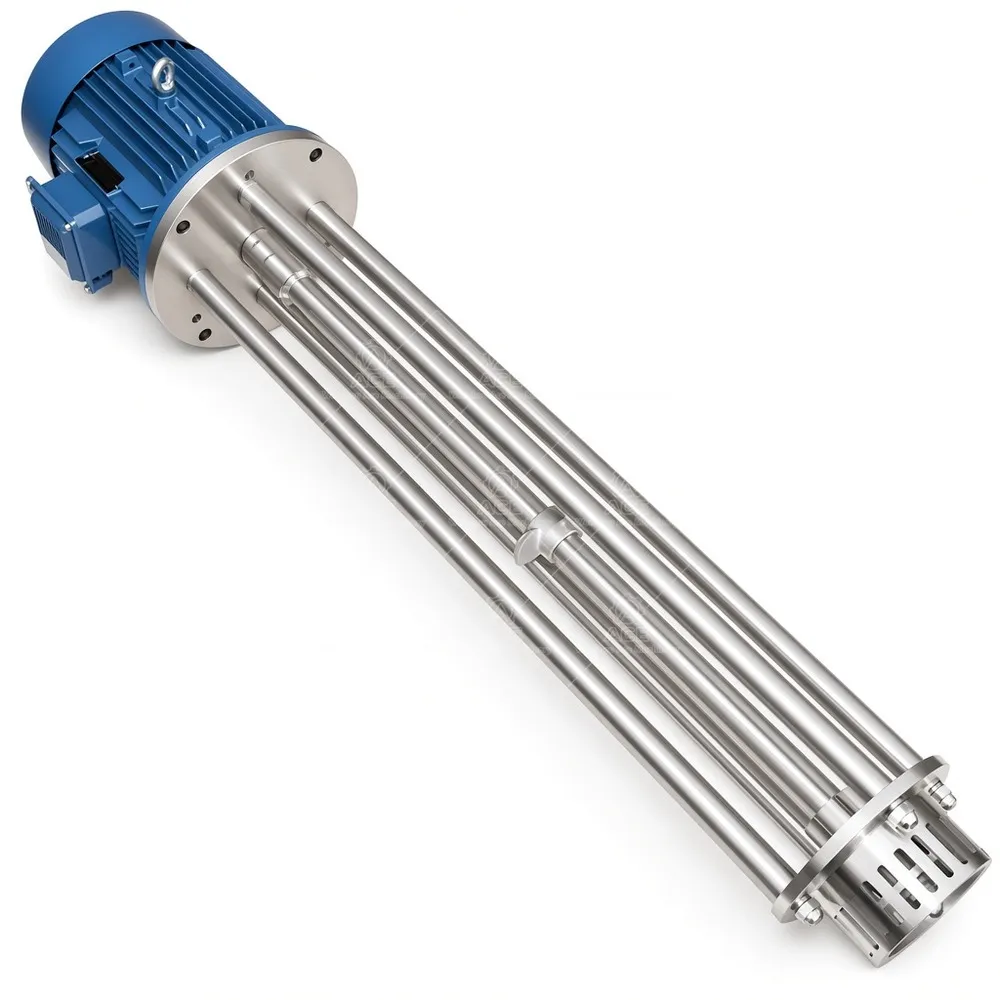

Sanitary Batch High Shear Mixer | Emulsifier & Homogenizer
- Material: 304 or 316L
- Voltage: 110V 208V 220V 380V 400V 415V 480V 600V
- Certificates: CE, GMP, UL, ATEX, ISO 9001
- Power：0.75KW-55KW （1 HP – 74 HP）
- Motor brands: ABB, Chinese brands, SEW, Siemens (optional)
- 1-year free warranty with door-to-door delivery.
- Optional: Variable-frequency drive, control panel
- MADE IN CHINA
- We have it in stock.
Please contact our sales team before placing your order.
Email:info@ace-chn.com
Tel:+86 18626835909
WeChat: ace-chn
Price range: $552.49 through $604.81
Guaranteed Safe Checkout
We manufacture and sell the following types of mixers
Mix, emulsify, homogenize, disintegrate and dissolve
Ideal for disintegrating solids and incorporating powders
Reduce mixing times by up to 80%
Reduce mixing times by up to 90%
Quickly disperse and hydrate powders, even at higher viscosities
Easy to move and lift
Features heating, cooling, vacuum, and other functions
Recommended RPM: 1480/2850 RPM
A Batch High Shear Mixer Sized Around the Job
Most inquiries start the same way: powder clumping on top of a liquid, an emulsion breaking down after a few days on the shelf, or a lab formula that will not scale into a 500-gallon tank. The head geometry, shaft length, and speed curve decide whether those problems go away or get worse.
Our sanitary units do shear, dispersion, and emulsification on one shaft, with an impeller designed to pull powders down into the liquid instead of letting them raft on the surface. Motors run 1.5 kW to 55 kW. Optional VFD control gives adjustable speed up to 3000 rpm, depending on motor and configuration. Electrical supply is built to 220V–480V with frequency and phase matched to the destination market. Wetted parts in 304 or 316L stainless, machined for cleanable service.
Details we ask for before quoting
- Batch size and vessel dimensions — diameter, straight wall height, headspace
- Viscosity and solids loading; a 200 cP solution and a 20,000 cP paste do not share a head design
- Target rpm and motor power, or the outcome you need to reach
- Voltage, frequency, and phase at the site
- Fixed bridge mount or a portable high shear mixer moved between tanks
Shaft length is where most buyers get caught. A unit sized for a drum will not wet out the bottom of a tall reactor, and an oversized head in a narrow vessel can starve the impeller and aerate the product. Send the drawing of the tank and the fill level; it saves a round of redesign.
Where these units run
Food and beverage plants use them for sauces, dressings, and gum hydration. Cosmetics and personal care lines handle creams, gels, and carbomer dispersions. Pharmaceutical and healthcare formulators use them for suspensions and ointment bases. Chemical processors, paint and coating producers, and powder dispersion or liquid-liquid emulsification work all fall into the same family. Suitable head style, contact material, and operating parameters depend on viscosity, formulation, and process requirements — there is no universal setting.
Common questions
Can one unit handle both powder dispersion and emulsification? Usually yes, with the right head and speed range. Very high solids loading may call for a different impeller.
Is a mobile frame worth it? If you run several small tanks, yes. For one large reactor, a fixed bridge mount is more stable.
Do you supply controls? VFD panels and local starters are available; specify the voltage and enclosure needed.
Send your batch size, material characteristics, target rpm, required motor power, and local electrical specification. Our engineering team will return a configuration and a quotation for the stainless steel high shear mixer that fits it.
Sanitary batch high shear mixer for emulsification, dispersion, and powder wet-out. Motors from 1.5 kW to 55 kW, optional VFD up to 3000 rpm, 220V–480V supply, and 304 or 316L wetted parts. Configured per batch size, viscosity, and tank dimensions.
