Mobile Pneumatic Lift High Shear Rotor Stator Mixer for Creams and Shampoos
- Material: 304 or 316L
- Voltage: 110V 208V 220V 380V 400V 415V 480V 600V
- Certificates: CE, GMP, UL, ATEX, ISO 9001
- Power：0.75KW-55KW （1 HP – 74 HP）
- Motor brands: ABB, Chinese brands, SEW, Siemens (optional)
- 1-year free warranty with door-to-door delivery.
- Optional: Variable-frequency drive, control panel
- MADE IN CHINA
- We have it in stock.
Please contact our sales team before placing your order.
Email:info@ace-chn.com
Tel:+86 18626835909
WeChat: ace-chn
Price range: $2,026.28 through $2,942.13
Guaranteed Safe Checkout
We manufacture and sell the following types of mixers
Mix, emulsify, homogenize, disintegrate and dissolve
Ideal for disintegrating solids and incorporating powders
Reduce mixing times by up to 80%
Reduce mixing times by up to 90%
Quickly disperse and hydrate powders, even at higher viscosities
Easy to move and lift
Features heating, cooling, vacuum, and other functions
Recommended RPM: 1480/2850 RPM
Mobile Pneumatic Lift High Shear Mixer for Creams, Shampoos, and Polymer Work

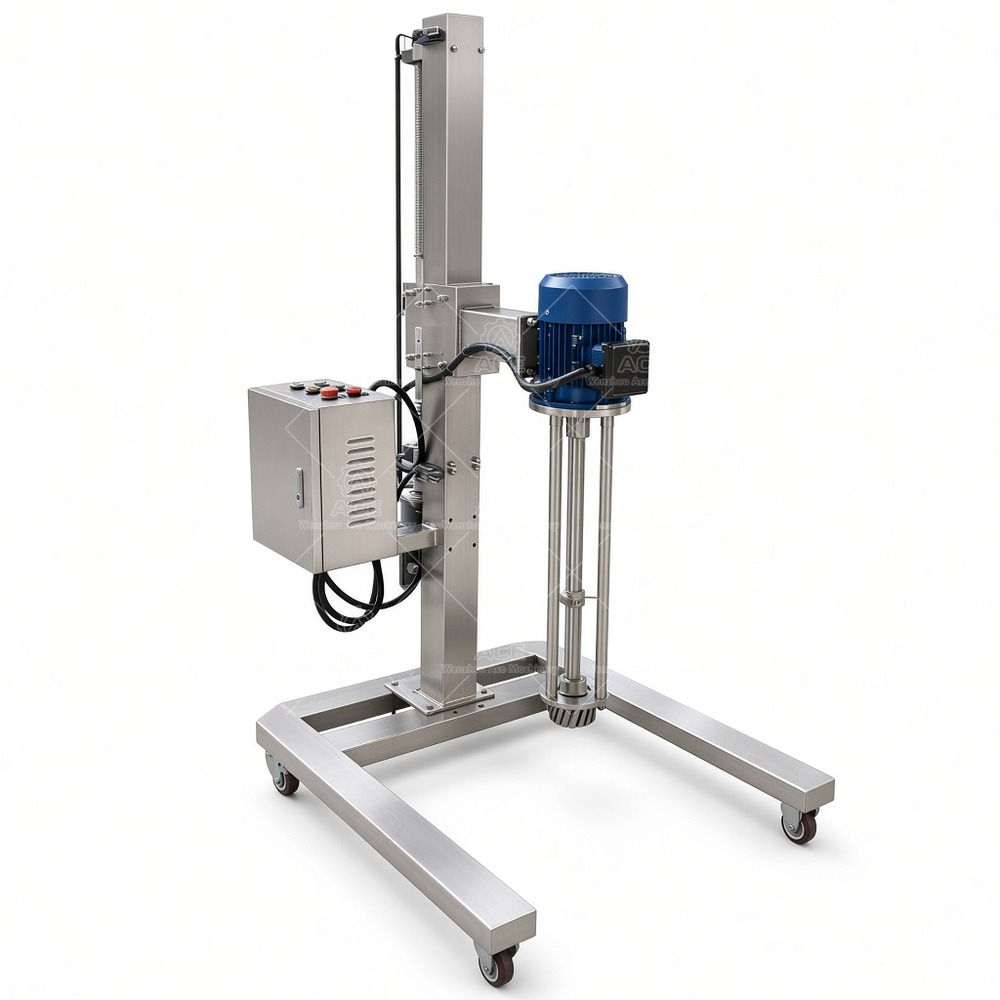

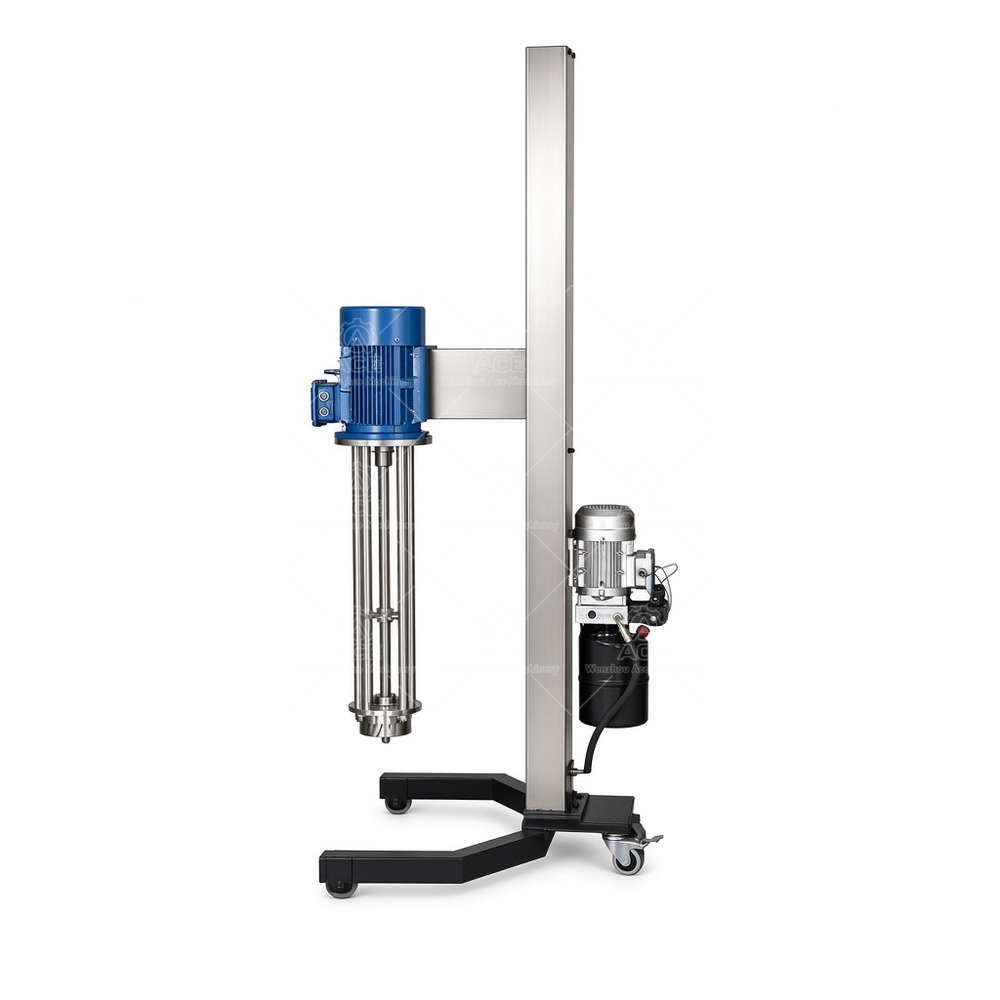

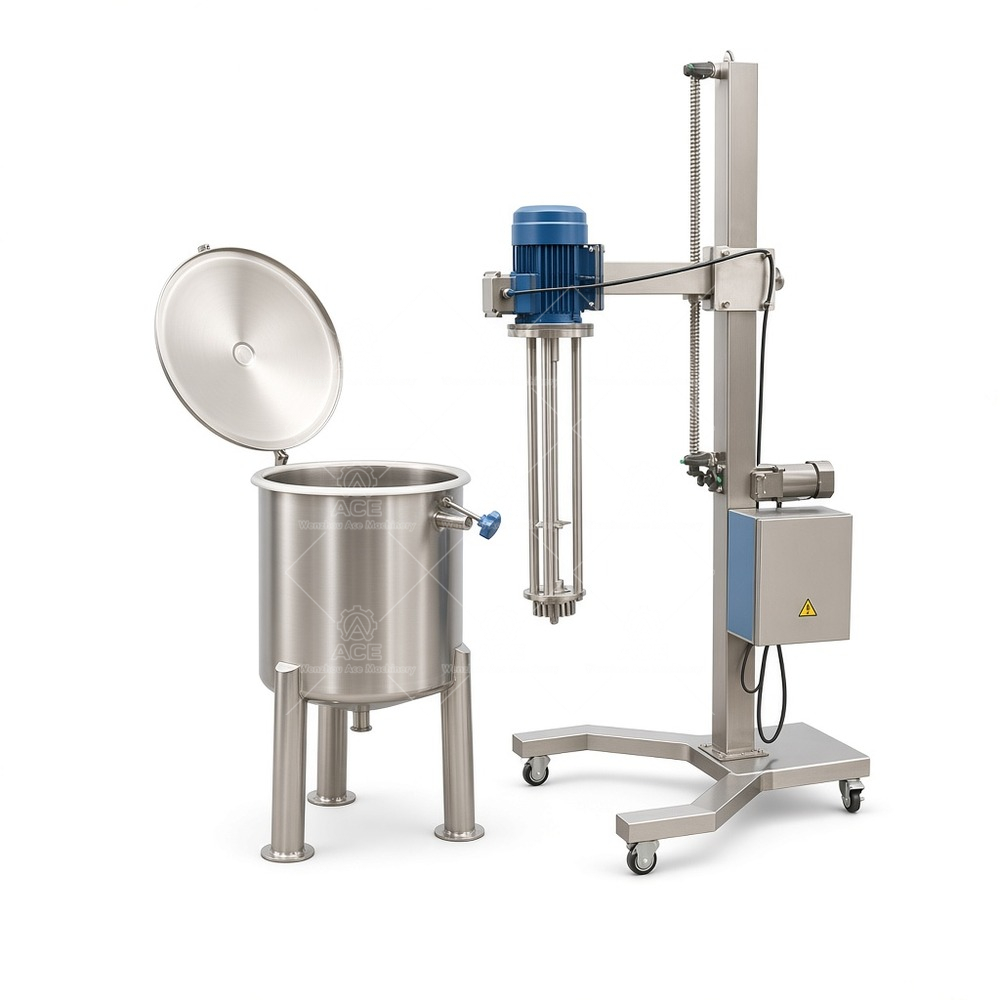

We manufacture this movable pneumatic-lifting rotor-stator unit for plants that want one batch high shear mixer to cover several vessels without dedicating a fixed drive to each one. Casters let operators move it between mix tanks and processing stations where the layout allows. The pneumatic lift raises and lowers the mixing head to match container height. It is used for cosmetic creams, shampoos, conditioners, polymer breaking, powder wet-out, dispersion, and emulsion work.
Configuration details
- Mobile frame with casters; pneumatic lifting head.
- Motor power: 1.5 kW to 11 kW, depending on the application and model.
- Speed control: VFD option for 0 to 3000 rpm adjustable speed, based on selected motor and setup.
- Voltage: 220V to 480V; final voltage, frequency, and phase confirmed for the destination market.

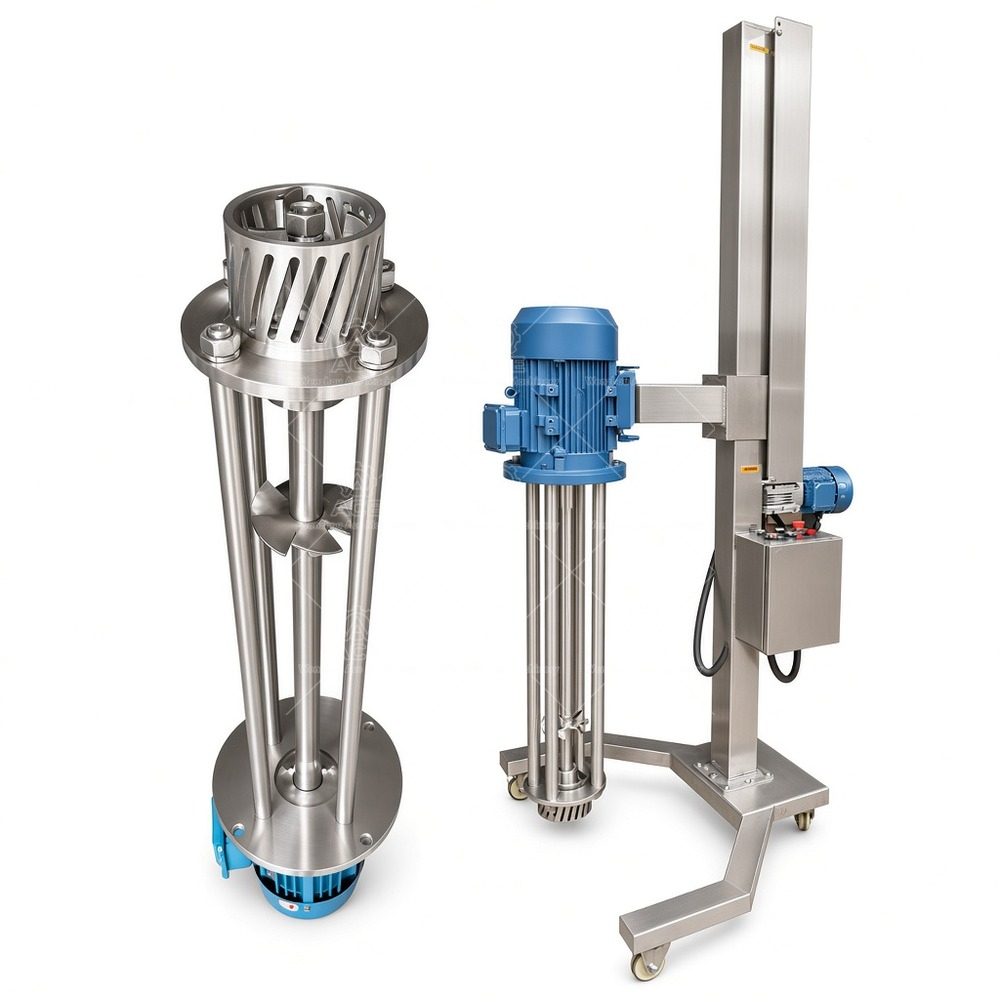

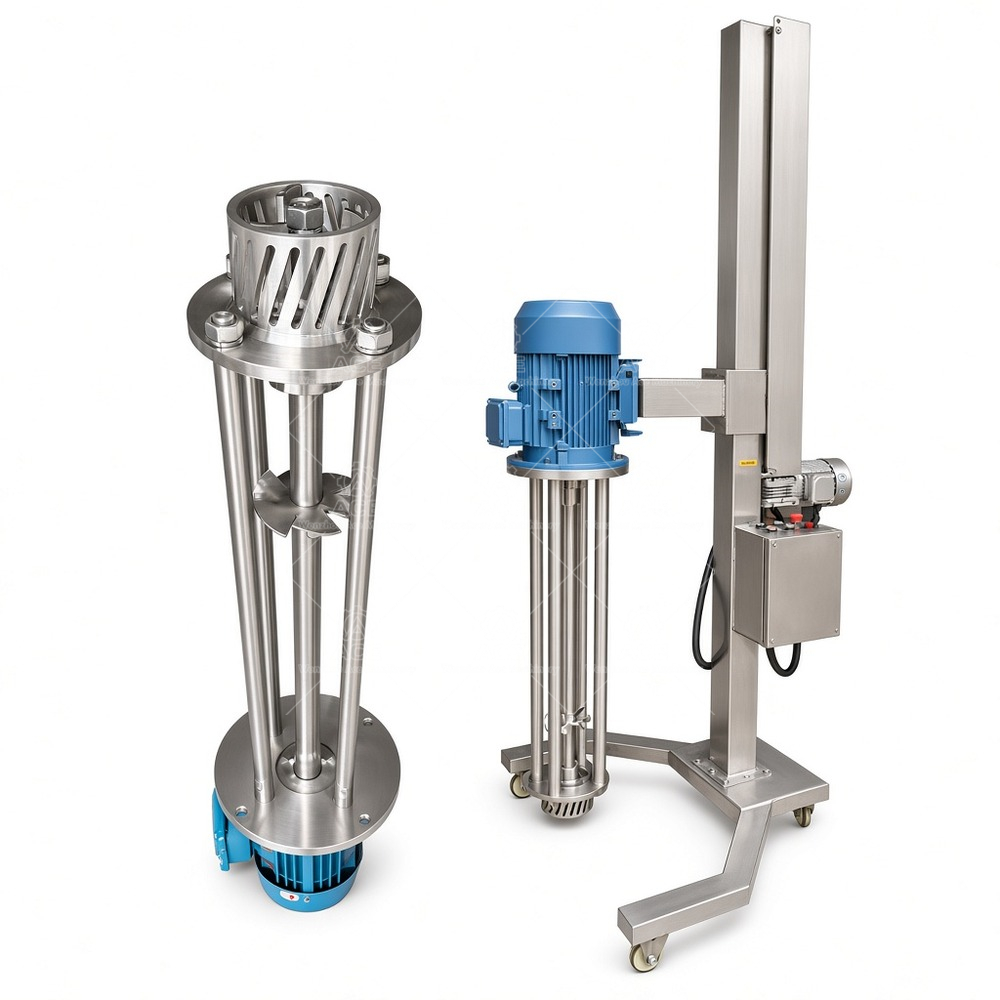

- Rotor-stator head for high shear, dispersing, emulsifying, and powder incorporation.
- Wetted stainless steel parts and contact materials selected to suit the product.
- Custom motor, controls, head style, and electrical configuration available.
Selecting a batch high shear mixer
Start with batch size and vessel size, then product viscosity and solids content. Those factors drive the rotor-stator head style, motor power, and target tip speed. A variable speed high shear mixer with VFD gives room to tune shear without changing hardware, which helps when one unit handles several formulations. Confirm voltage, frequency, and phase before ordering; electrical supply differences are a common source of delay on export projects. The mixing head and wetted materials should match the product\’s chemistry and cleaning routine. Decide whether a mobile high shear mixer or fixed installation fits your floor plan, vessel heights, and operator access.
Applications
This high shear mixing equipment is used in food and beverage processing, cosmetics and personal care, pharmaceutical and healthcare preparations, chemical processing, paints and compatible coatings, powder dispersion, and liquid-liquid emulsification. The right head, materials, and operating parameters still depend on viscosity, ingredients, and process requirements.
FAQ
Can one unit serve several tanks? Yes, if the layout, vessel heights, and power supply allow safe movement and positioning.
Do we need a VFD? It helps when formulations need different shear levels or when scale-up data is still being confirmed.
What should we send for a quote? Batch size, container dimensions, product viscosity, target rpm, required motor power, and local electrical specifications.
Send those details to Ace Mixer, and we will recommend a suitable industrial high shear mixer configuration for your process.
Ace Mixer builds this movable pneumatic-lifting rotor-stator batch high shear mixer for creams, shampoos, conditioners, polymer breaking, and powder dispersion. It uses a VFD-ready variable speed drive, 1.5 to 11 kW motor options, 220V to 480V electrical configurations, and product-contact stainless steel parts. Tell us batch size, viscosity, container dimensions, target rpm, and local power supply for a suitable configuration.
