Lift-Type High-Shear Emulsifier Homogenizer for Shampoo & Carbomer Cream
- Material: 304 or 316L
- Voltage: 110V 208V 220V 380V 400V 415V 480V 600V
- Certificates: CE, GMP, UL, ATEX, ISO 9001
- Power：0.75KW-55KW （1 HP – 74 HP）
- Motor brands: ABB, Chinese brands, SEW, Siemens (optional)
- 1-year free warranty with door-to-door delivery.
- Optional: Variable-frequency drive, control panel
- MADE IN CHINA
- We have it in stock.
Please contact our sales team before placing your order.
Email:info@ace-chn.com
Tel:+86 18626835909
WeChat: ace-chn
Price range: $2,090.13 through $3,301.32
Guaranteed Safe Checkout
We manufacture and sell the following types of mixers
Mix, emulsify, homogenize, disintegrate and dissolve
Ideal for disintegrating solids and incorporating powders
Reduce mixing times by up to 80%
Reduce mixing times by up to 90%
Quickly disperse and hydrate powders, even at higher viscosities
Easy to move and lift
Features heating, cooling, vacuum, and other functions
Recommended RPM: 1480/2850 RPM

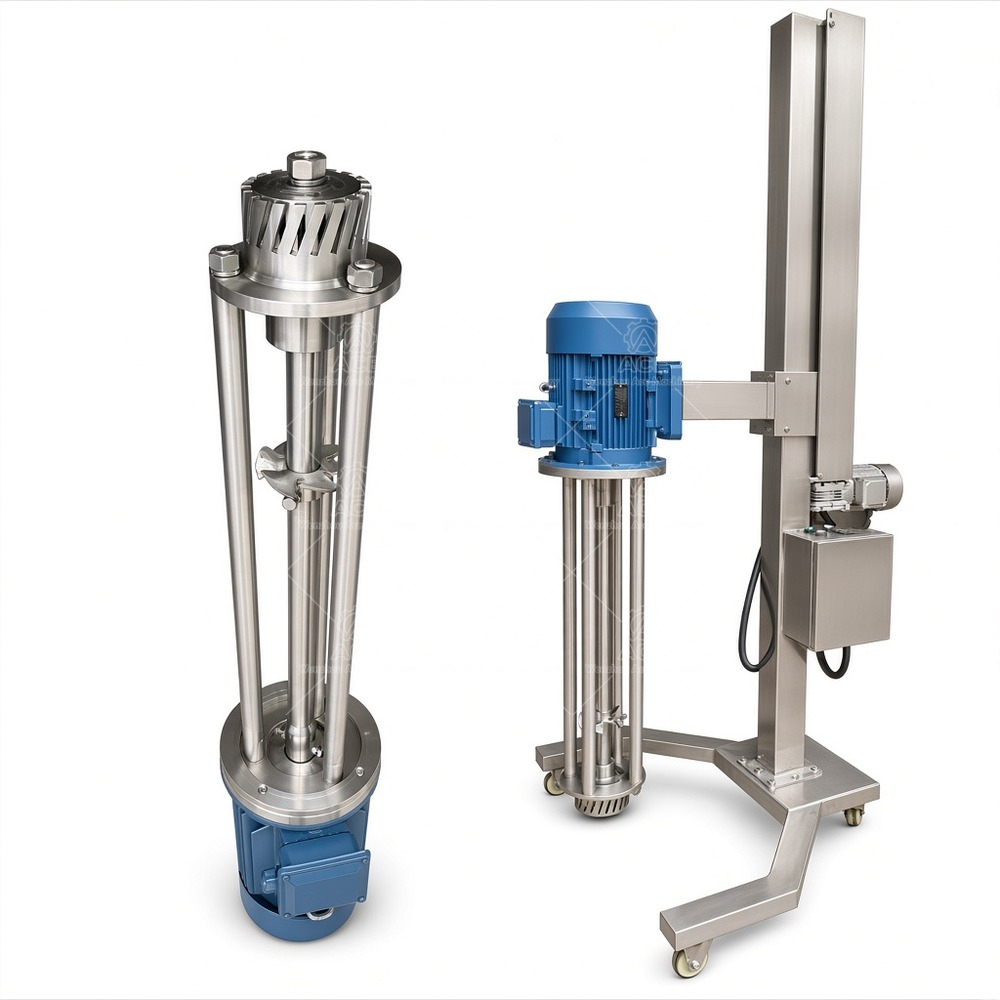

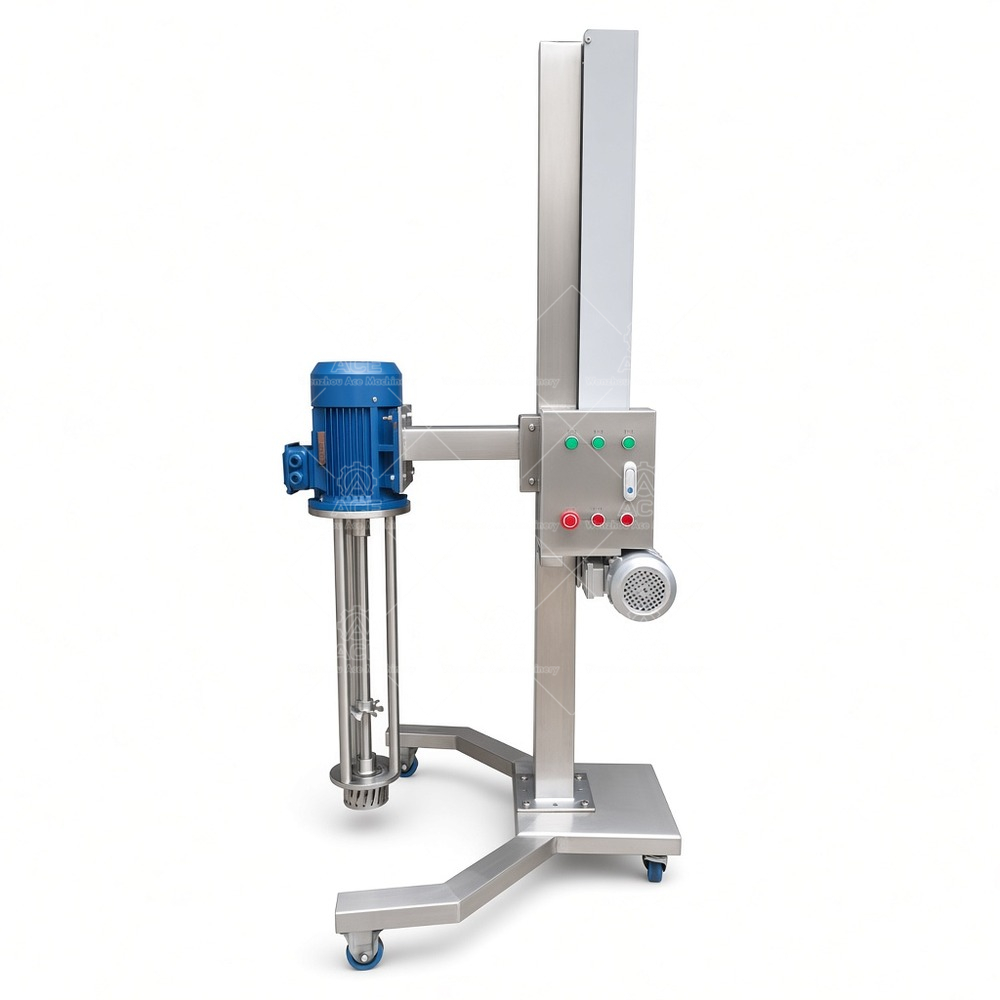

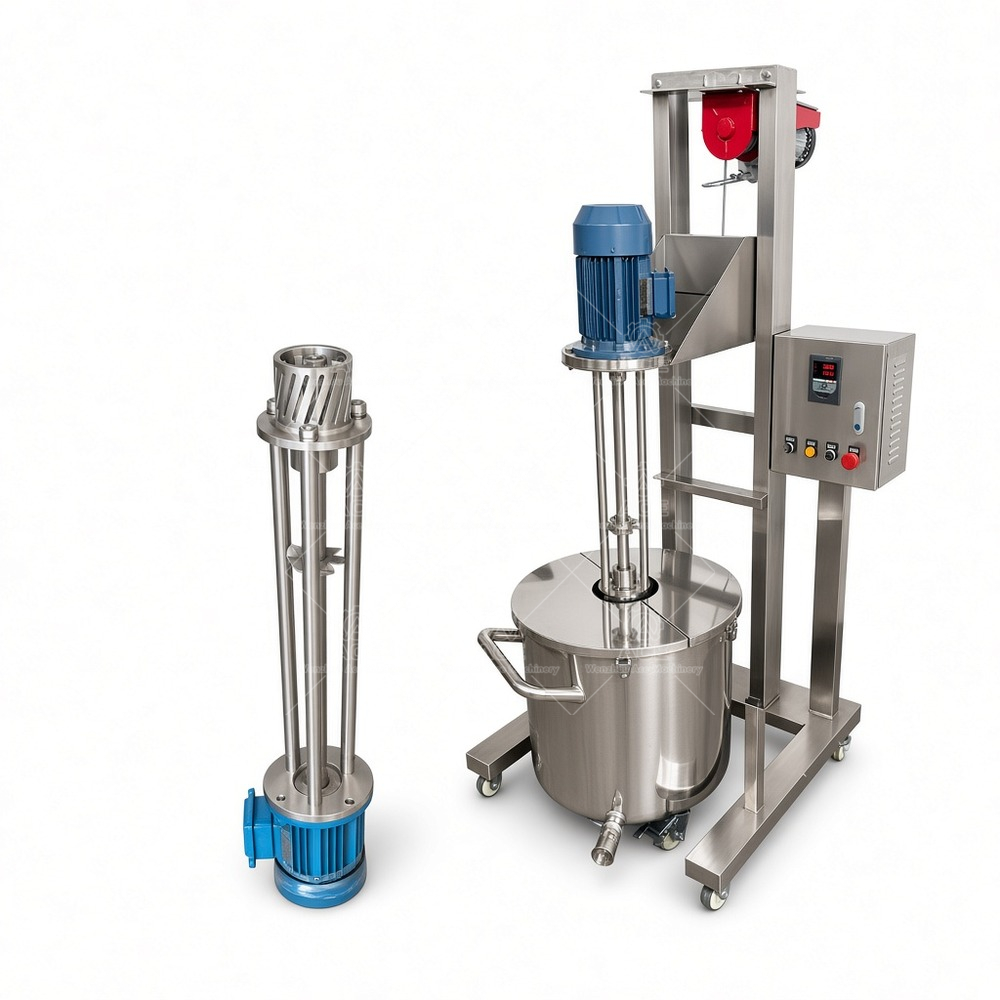

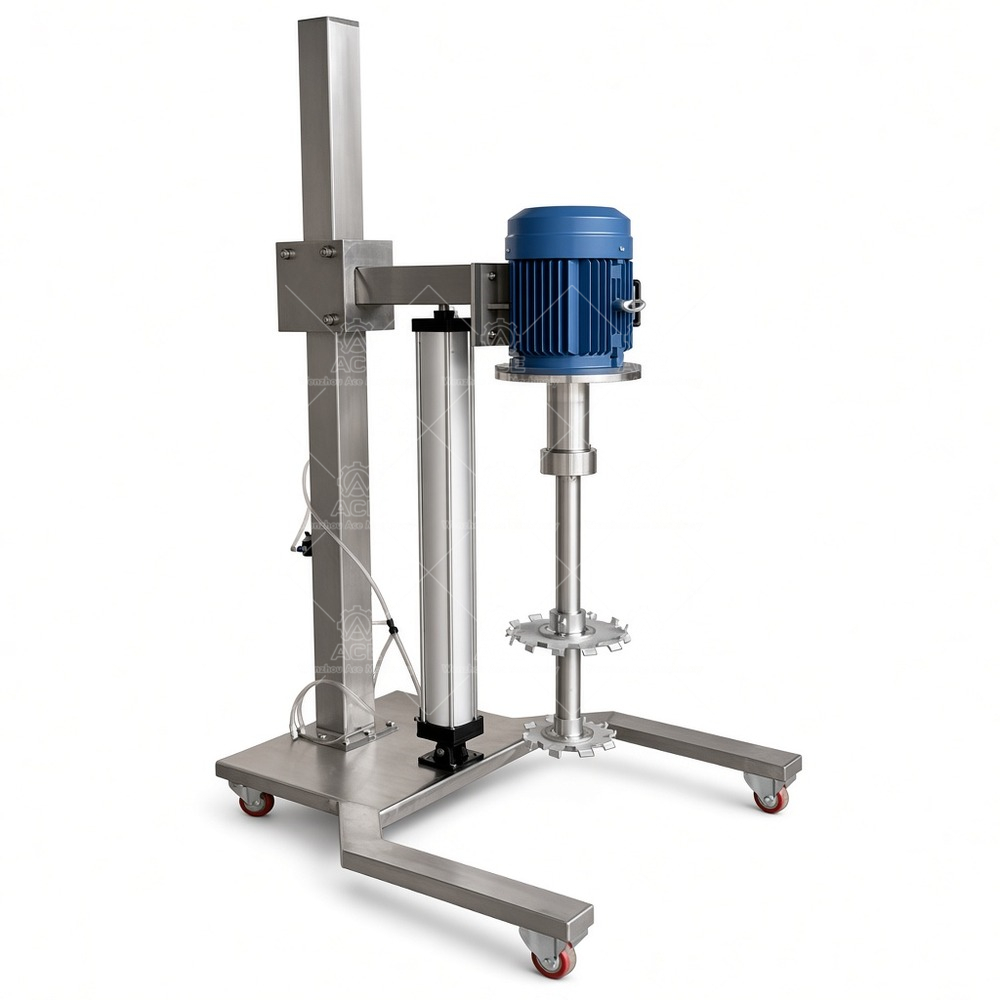

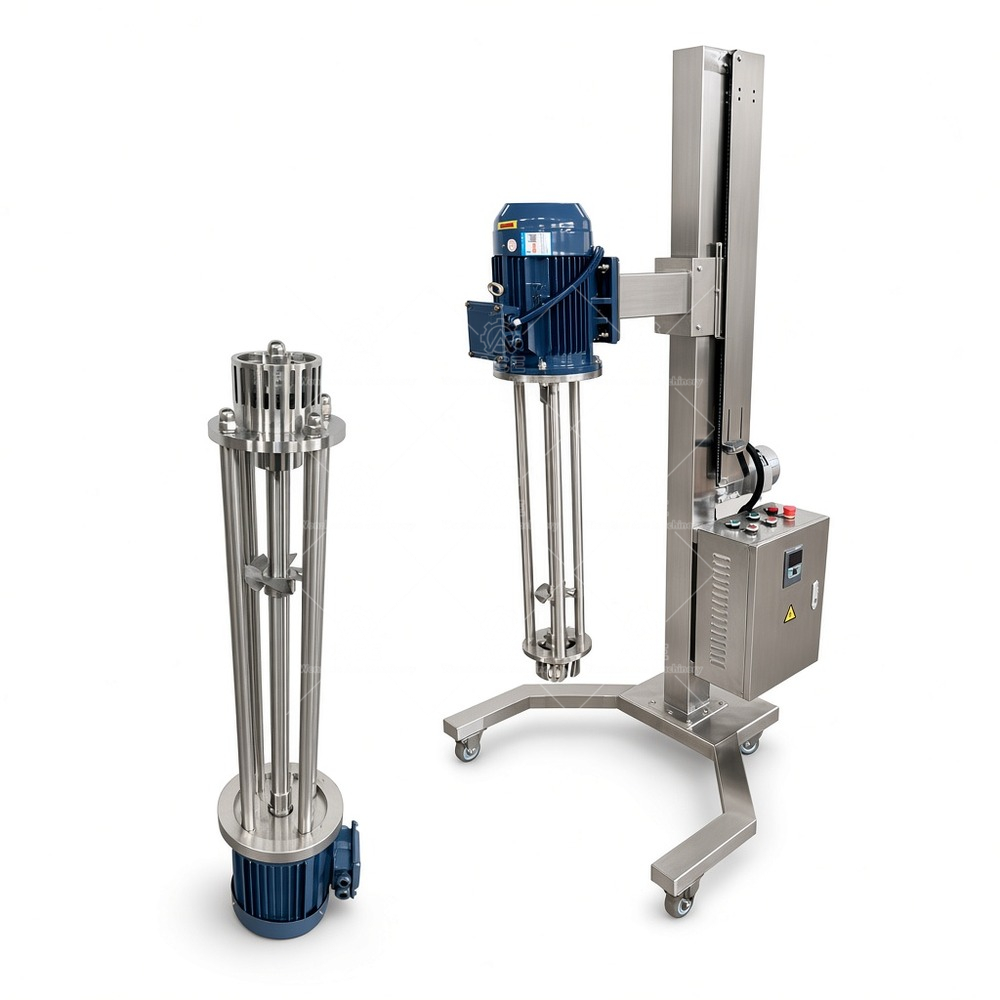

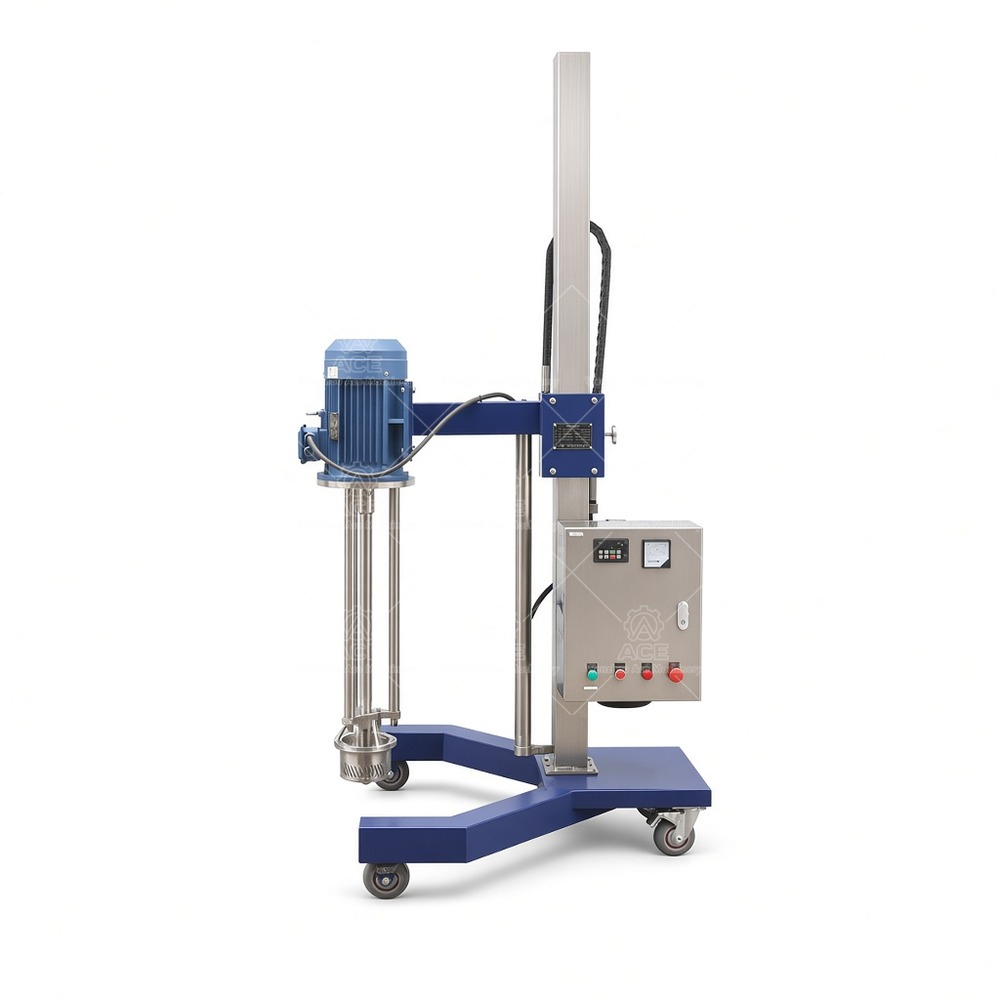

Lift-Type High-Shear Mixer for Shampoo and Carbomer Creams
This industrial high shear mixer is a lift-type batch high shear mixer for emulsifying, dispersing, and powder wet-in in cosmetic creams, shampoos, and similar personal-care products. Ace Mixer builds it as a mobile high shear mixer on casters, so operators can move it between vessels where the layout allows. The lifting frame raises the high-shear head for cleaning or vessel changes.
Motor power runs from 1.5 kW to 11 kW. Voltage is confirmed for the destination market from 220V to 480V, including frequency and phase. A VFD makes it a variable speed high shear mixer with control up to 3000 rpm depending on motor and head selection—useful when dispersing carbomer or adjusting a liquid-liquid emulsion without changing hardware. Wetted parts can be specified in stainless steel and other contact materials to suit the formulation and cleaning routine.
Production Applications
- Cosmetic and personal care: creams, lotions, shampoos, gels, carbomer systems
- Food and beverage: compatible dispersions and emulsions
- Pharmaceutical and healthcare preparations
- Chemical processing, paints, coatings, and compatible industrial formulations
- Powder dispersion into liquids and liquid-liquid emulsification
The right high shear mixing equipment depends on batch size, vessel dimensions, viscosity, solids loading, and target droplet or particle size. A 20 L carbomer gel and a 1,000 L shampoo batch do not behave the same at the same nominal rpm. Confirm batch size and product behavior before comparing motor power.
Buyer Checklist
Decide between mobile and fixed installation based on vessel layout and changeover frequency. For viscous creams, check lift height and frame clearance. For a high shear mixer for powder dispersion, discuss head design and feed method—dumping powder into a high-shear vortex differs from controlled induction. Confirm voltage, frequency, phase, and control language early; a high shear mixer with VFD still needs the correct electrical supply. Stainless steel high shear mixer construction is common, but contact grade and surface finish vary.
FAQ
Can one unit handle shampoo and carbomer cream? Often yes, but head, speed range, and motor power must suit both viscosities. We confirm with your formulas.
Is a VFD necessary? Variable speed helps control vortexing, aeration, and powder wet-out. It is optional by configuration.
What do you need for a quote? Batch size, vessel size, viscosity, ingredients, target rpm, motor power, and local voltage/frequency/phase.
Send your batch size, material characteristics, target speed, required motor power, and electrical specifications. We will recommend a suitable lift-type high shear emulsifier mixer configuration and quote accordingly.
Ace Mixer’s lift-type batch high shear mixer is a mobile, variable-speed emulsifier homogenizer for cosmetic shampoos, carbomer creams, and compatible personal-care, food, pharmaceutical, and chemical batches. Configure motor power from 1.5 to 11 kW, voltage from 220 to 480V, VFD speed control, and stainless steel contact parts. Share batch size, viscosity, target rpm, and electrical specs for a recommended configuration and quote.
