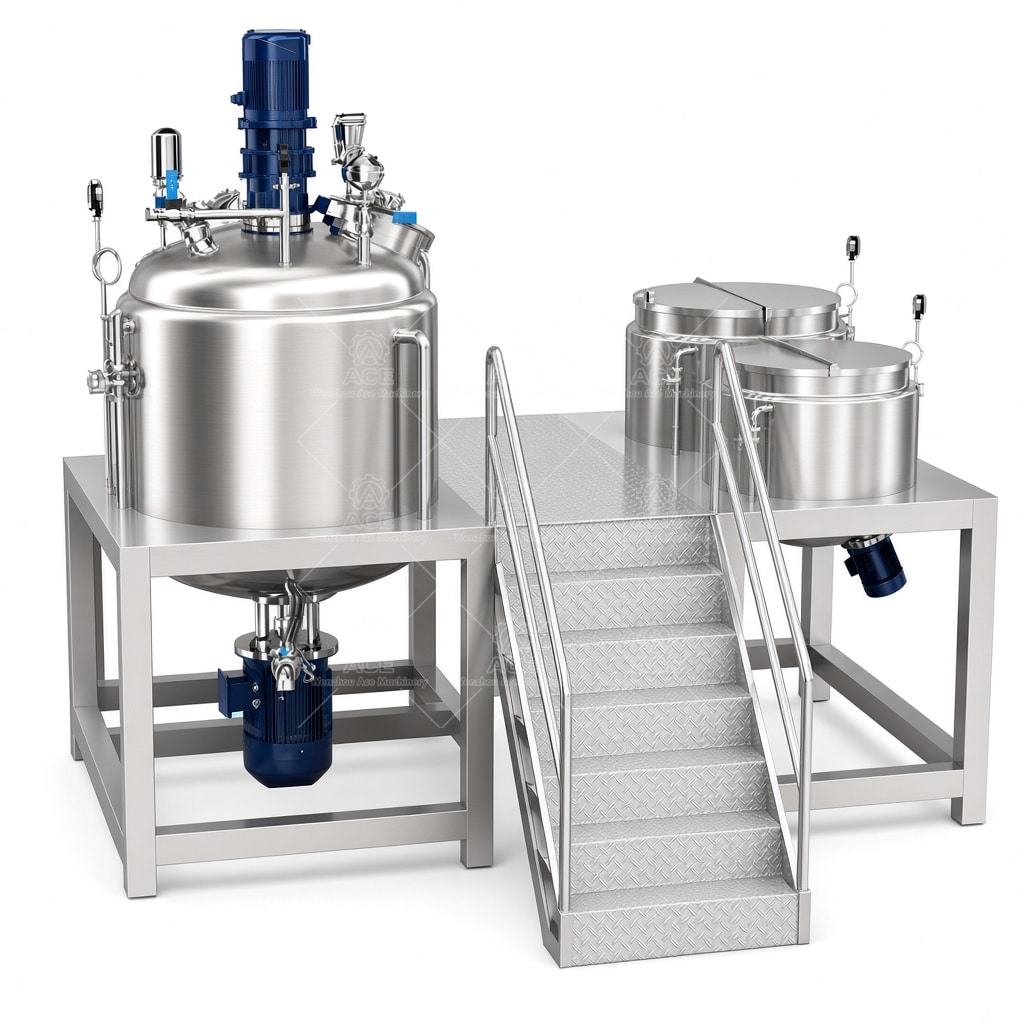

Jacketed Vacuum Mixer Reactor for Cream, Mayonnaise, Lotion and Sunscreen - Image 1

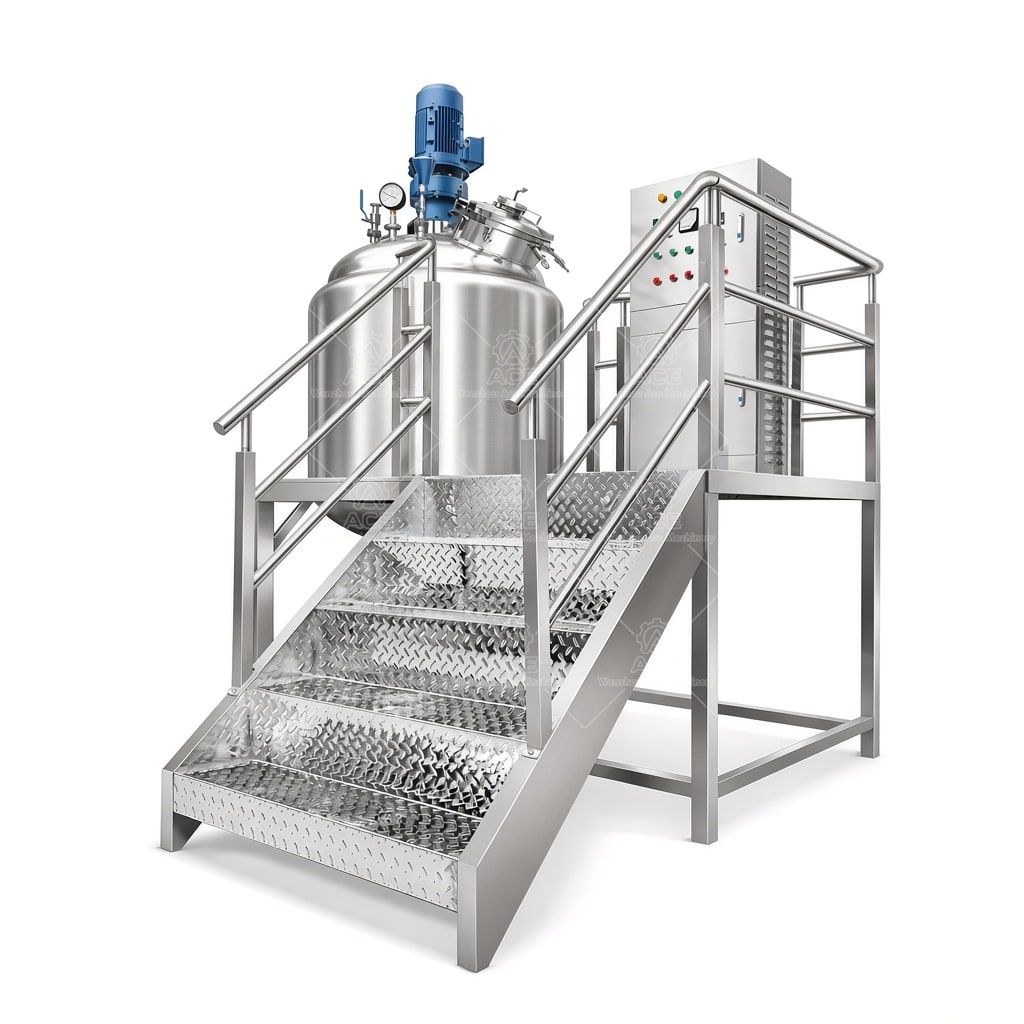

Jacketed Vacuum Mixer Reactor for Cream, Mayonnaise, Lotion and Sunscreen - Image 2

Click to enlarge

Jacketed Vacuum Mixer Reactor for Cream, Mayonnaise, Lotion and Sunscreen

This jacketed vacuum mixer reactor is configurable for processing creams, mayonnaise, lotions, and sunscreen formulations. Vessel materials, surface finish, vacuum arrangement, jacket duty, seals, and agitator design depend on the recipe, batch size, cleaning method, and plant utilities. Share process and operating details to help determine a suitable configuration.

Capacity: 50 liters to 30,000 liters
Mixer power: 1.5 kW to 55 kW
Material: 304 or 316L
Voltage: 110V to 600V
Heating method: Electric or steam heating
Layer:single/double jacket/three jacket
Mixer types: Impeller-type, Anchor-type, Turbine-type, High-shear-type, Magnetic mixer, Anchor-type mixer with scrapers,dispersing
Optional: platform, wheels, ladder,variable frequency drive,explosion-proof device
Certificates: ASME, CE, GMP, UL, ATEX, ISO 9001
Our equipment supports customisation, global delivery, and a 1-year warranty.
If you have drawings, we can process them for you.

Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909

Price range: $8,541.81 through $9,441.26

Ask For A Quotation

Guaranteed Safe Checkout

Jacketed Vacuum Mixer Reactor

Creams, mayonnaise, lotions, and sunscreens can be difficult to process in the same basic tank configuration. High viscosity, powder wet-out, air entrainment, and heat-sensitive ingredients each affect the required mixing arrangement. We configure this jacketed vacuum reactor around the batch recipe, target texture, and cleaning method rather than assuming one agitator will suit every product.

Vacuum can help remove entrained air and support powder incorporation, but its value depends on the process sequence and product behavior. The vessel, cover, shaft seals, ports, and vacuum connection must be designed for the specified operating conditions. Tell us whether ingredients are charged under vacuum, whether the vessel is opened between stages, and how the batch is discharged.

Construction and mixing considerations

Product-contact parts are commonly specified in 304 or 316L stainless steel. The choice depends on ingredients, cleaning chemicals, chloride exposure, and applicable plant standards. Welds should be finished to the agreed hygienic requirement, with internal surfaces polished to a specified finish where needed. Seal material and shaft-seal arrangement also depend on temperature, vacuum level, product compatibility, and cleaning procedure.

Jacket heating or cooling may use a plant-supplied thermal fluid or another agreed utility. Temperature range, heat-up time, jacket pressure, and batch size guide the jacket design and control package. For viscous products, an anchor or scraper arrangement may improve wall turnover; a high-shear head may be needed for emulsification or powder dispersion. Drive power and reducer selection depend on viscosity, batch volume, mixing speed, and startup conditions. Combining high shear with a slow-speed sweep is a process-specific option, not a default requirement.

Configuration information

Item	Selection basis
Working capacity	Batch volume, fill ratio, and headspace
Vessel and contact material	Product chemistry and cleaning regime
Agitator and drive	Viscosity, shear needs, and batch cycle
Jacket and controls	Heating or cooling duty and utility conditions
Vacuum and seals	Process sequence and specified operating range

FAQs

Can one mixer process both mayonnaise and lotion? Possibly, but recipes, shear requirements, sanitation procedures, and changeover expectations determine whether shared equipment is practical.

What should be included in a quotation request? Provide batch size, ingredient sequence, viscosity or flow behavior, target temperatures, vacuum needs, cleaning method, utilities, and discharge requirements. These details let our engineers recommend a vessel and drive configuration without guessing.

To identify the right model, start with the most demanding recipe and operating step. Include product samples or process data when available, plus site voltage and installation limits. Those inputs help define a buildable configuration and a useful quotation.
