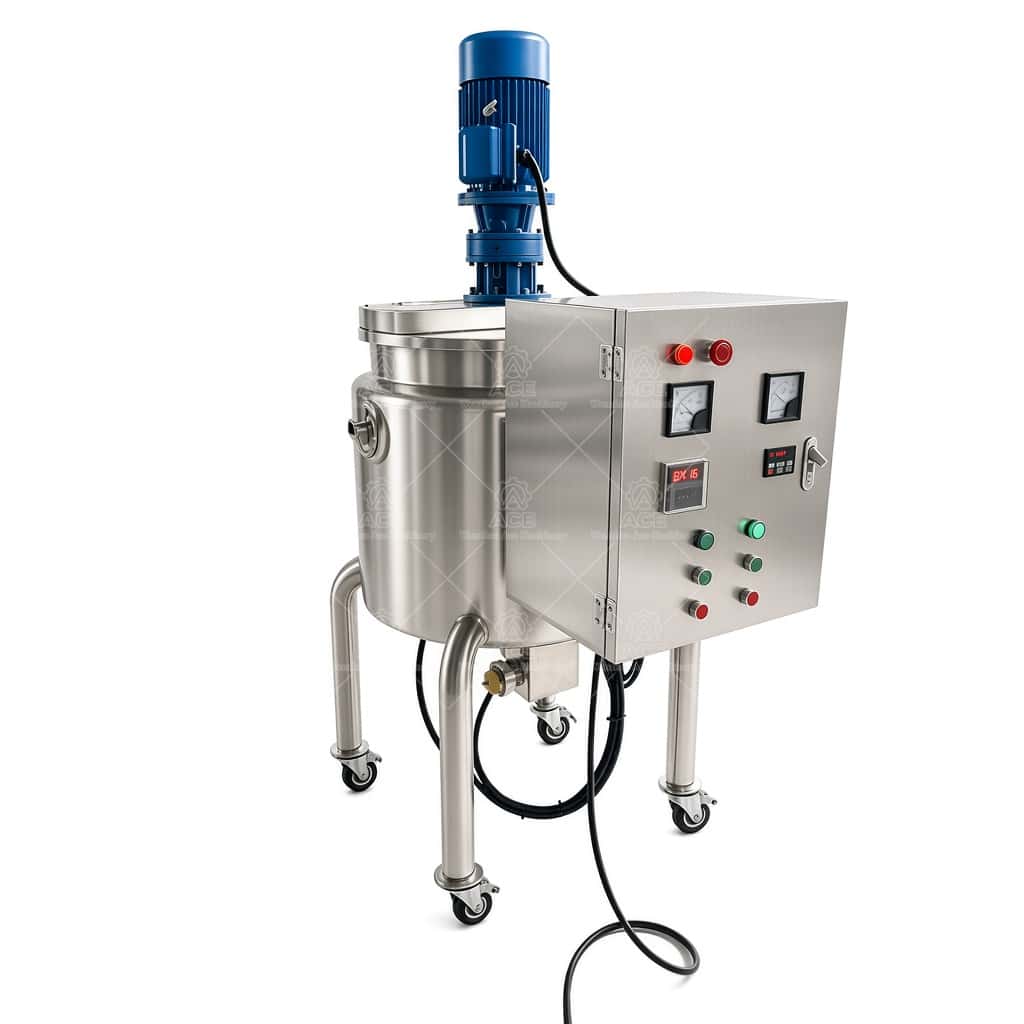

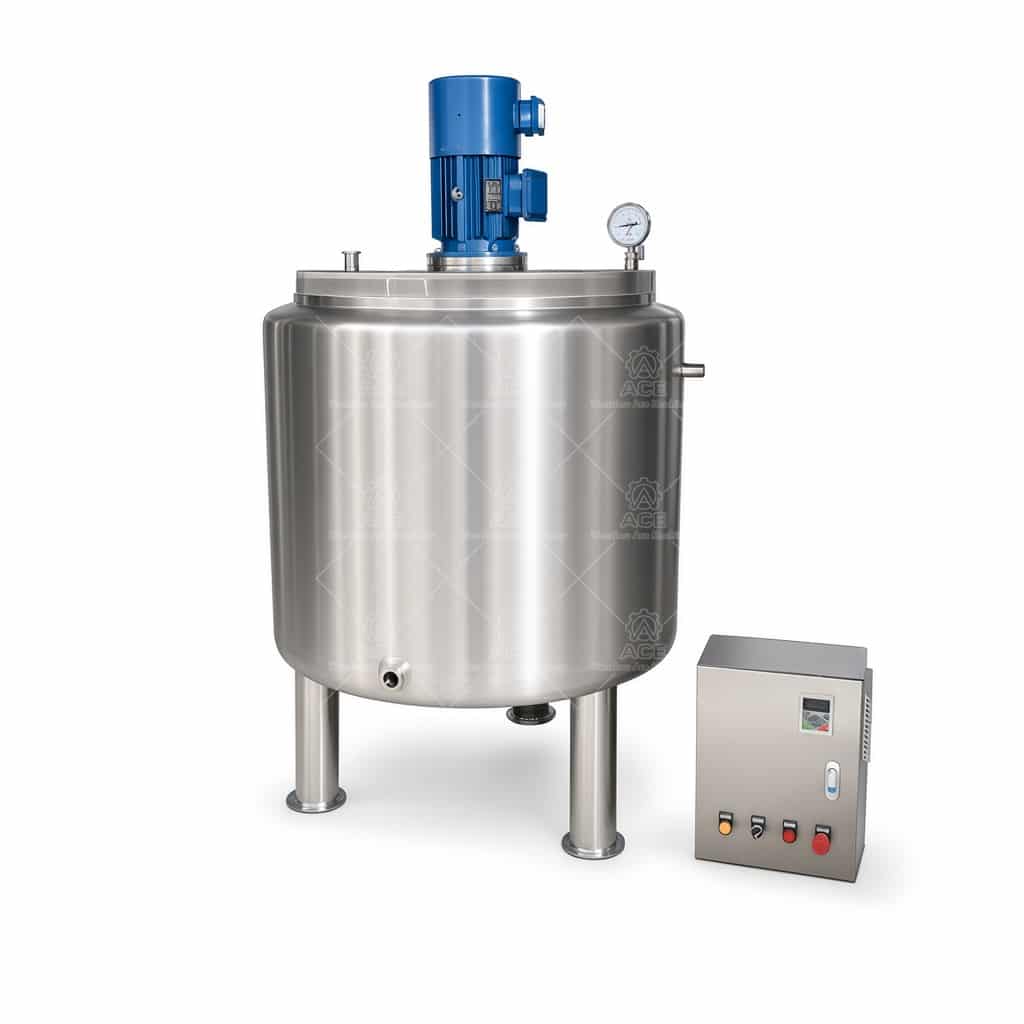

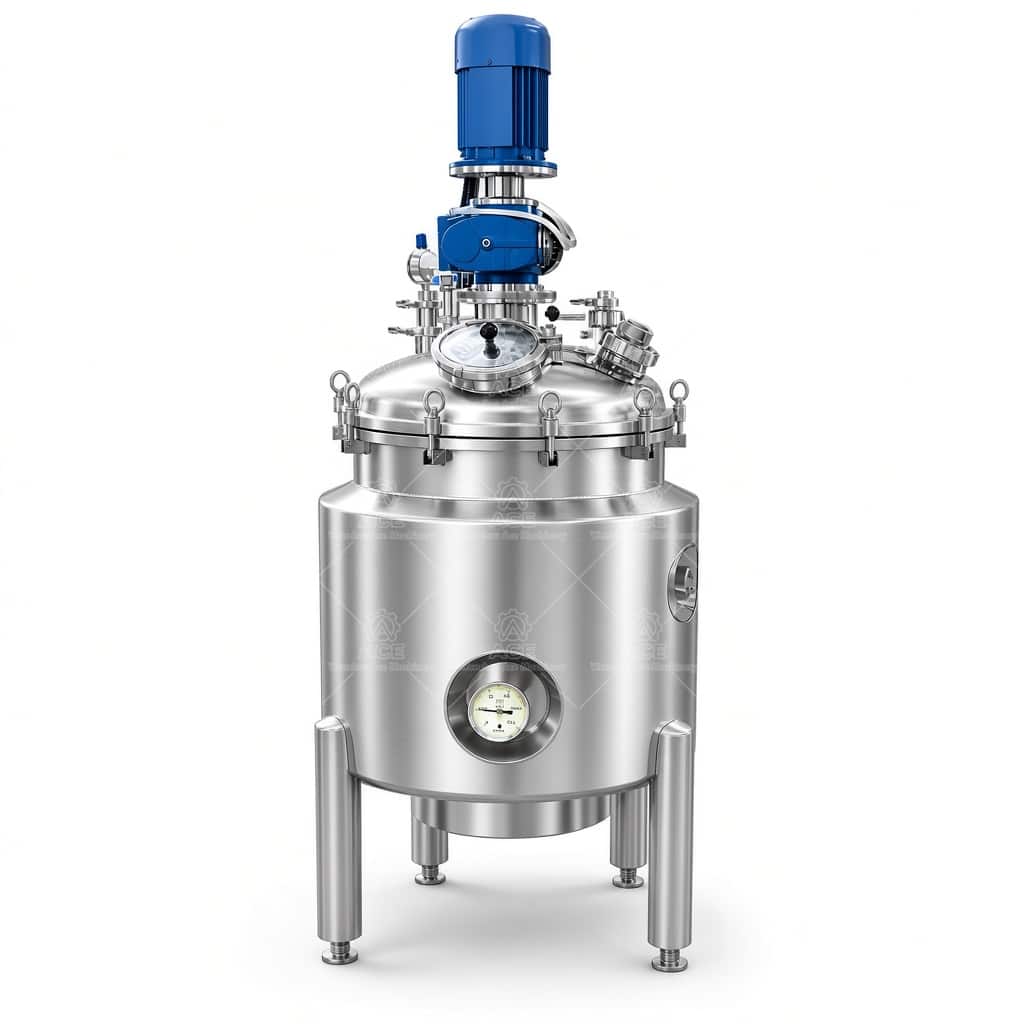

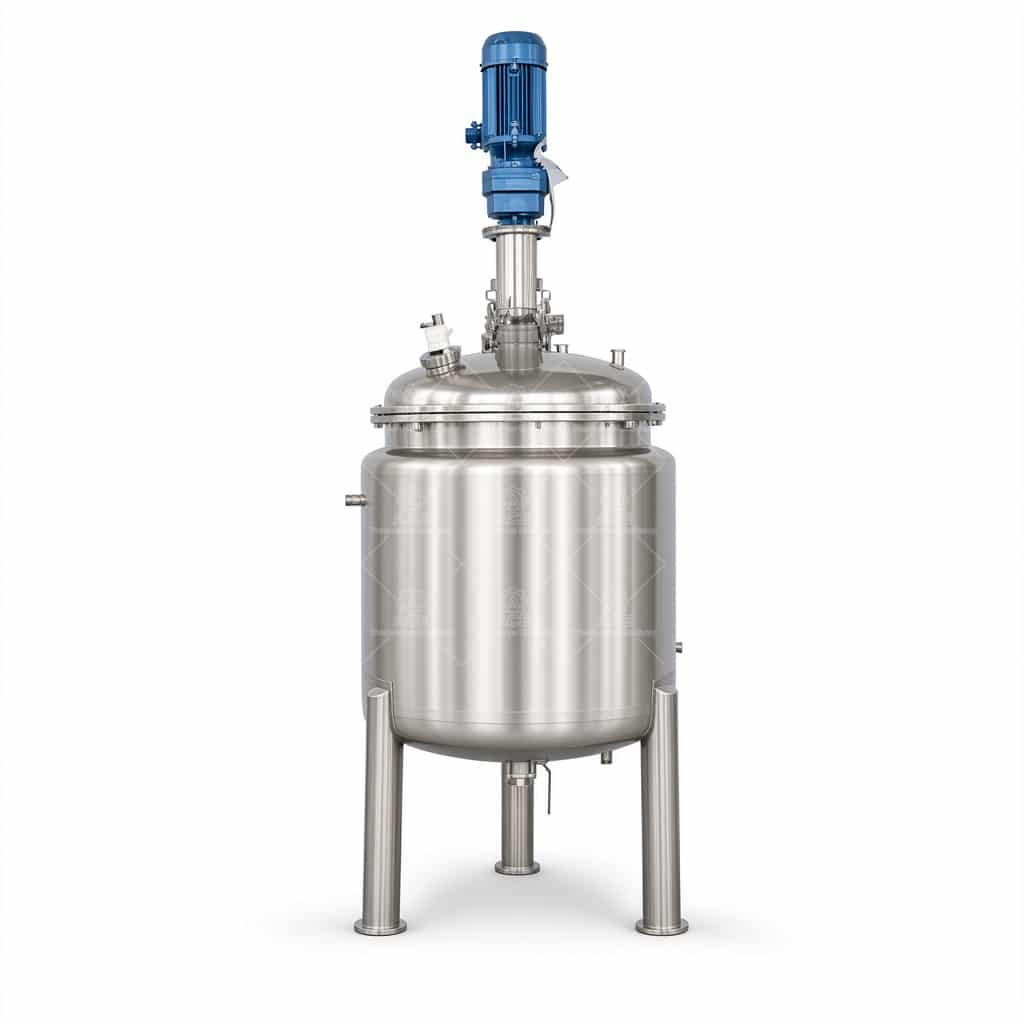

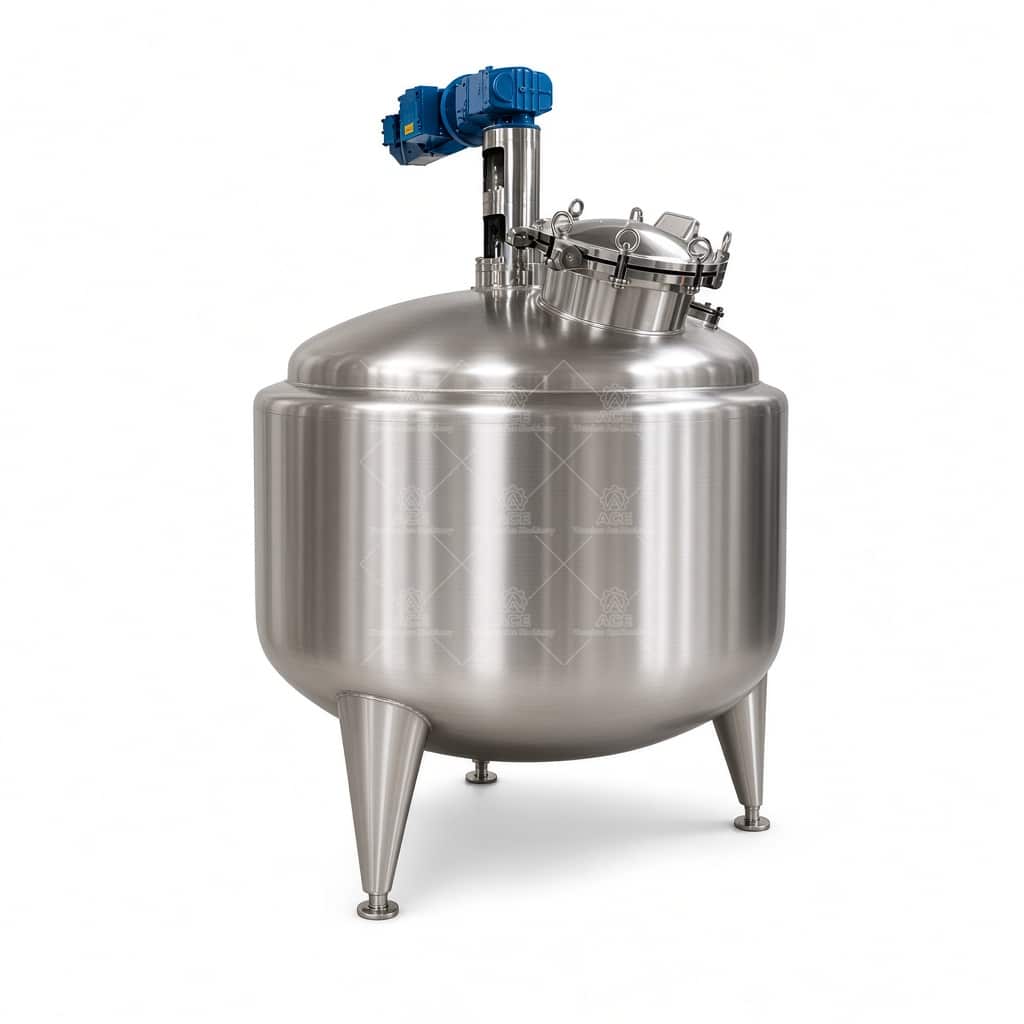

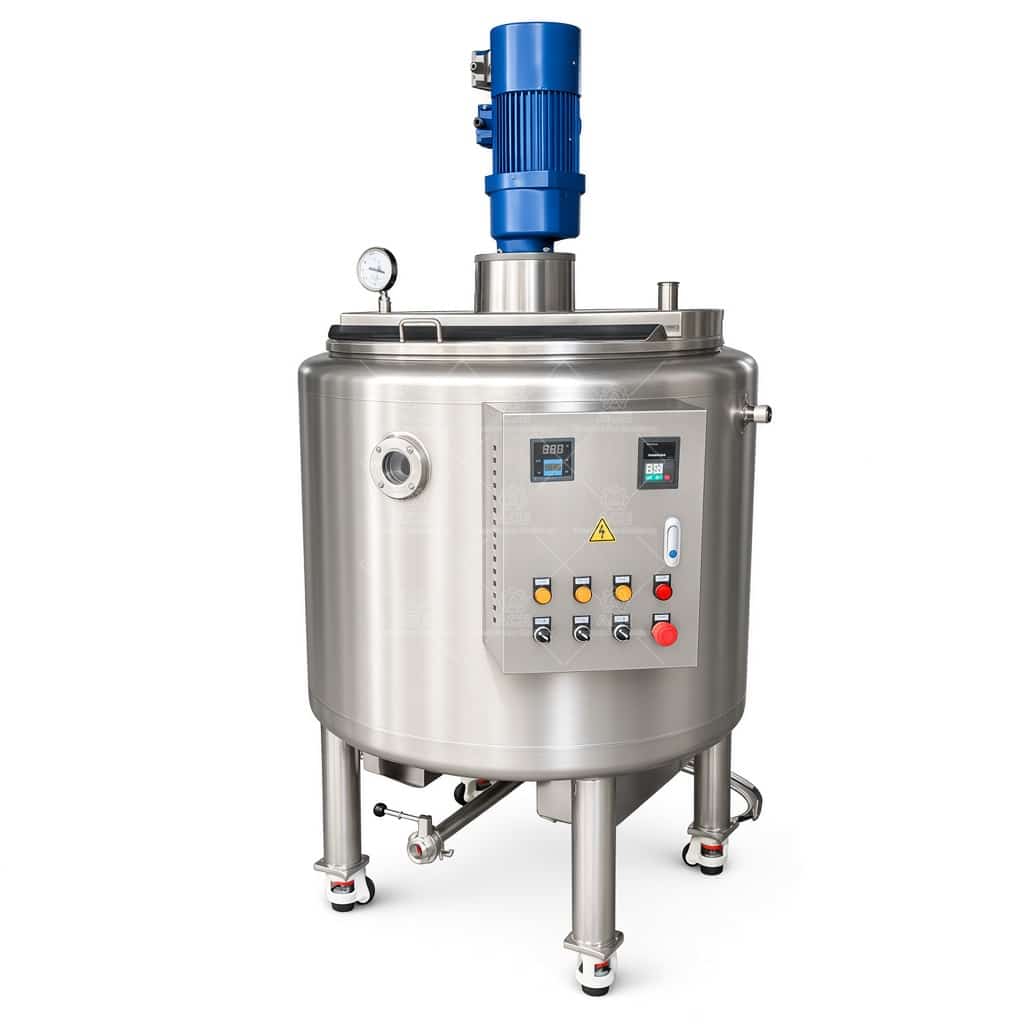

Jacketed Dairy and Beverage Mixing Tank for Yogurt and Emulsion Processing
A configurable jacketed mixing vessel for yogurt bases, dairy liquids, beverage premixes, and emulsion batches. Vessel material, agitator, drive, jacket service, temperature controls, seals, and surface finish are selected around the recipe and plant utilities. Share batch volume, viscosity, temperature profile, cleaning method, and pressure requirements to establish a practical equipment configuration.
- Capacity: 50 liters to 30,000 liters
- Mixer power: 1.5 kW to 55 kW
- Material: 304 or 316L
- Voltage: 110V to 600V
- Heating method: Electric or steam heating
- Layer:single/double jacket/three jacket
- Mixer types: Impeller-type, Anchor-type, Turbine-type, High-shear-type, Magnetic mixer, Anchor-type mixer with scrapers,dispersing
- Optional: platform, wheels, ladder,variable frequency drive,explosion-proof device
- Certificates: ASME, CE, GMP, UL, ATEX, ISO 9001
- Our equipment supports customisation, global delivery, and a 1-year warranty.
- If you have drawings, we can process them for you.
Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909
Price range: $2,401.65 through $2,808.49
Guaranteed Safe Checkout
Recommend RPM: 0-960RPM
Viscosity: Low/medium viscosity
Application: Mainly Liquid mixing
Recommend RPM: 0-200RPM
Viscosity: Low/medium viscosity
Application: Mainly Liquid mixing
Recommend RPM: 30RPM
Viscosity: Medium/High viscosity
Application: Melting, High viscosity product mixing, For single wall tank
Recommend RPM: 30RPM
Viscosity: Medium/High viscosity
Application: Melting, High viscosity product mixing, For jacket tank
Recommend RPM: 1480/2850 RPM
Viscosity: Low/medium viscosity
Application: Liquid powder mixing and dispersion
Recommend RPM: 2800 - 3200 RPM
Viscosity: Low/medium/High viscosity
Application: Liquid powder mixing and homogenizing
Recommend RPM: 0-355RPM
Viscosity: Low/medium viscosity
Application: Install at bottom, No mechanical seal working condition
Recommend RPM: As above
Viscosity: Low/medium viscosity
Application: Liquid powder mixing and dispersion For tank volume >300L
Process vessel for dairy, beverage, and emulsion batches
This jacketed mixing vessel is configured around the product and batch sequence, rather than treated as a single standard tank for every process. Yogurt bases may need controlled heating and gentle circulation; beverage syrup preparation may call for faster dissolution; emulsions can require a higher-shear mixing stage. We review the recipe, batch size, viscosity, heating and cooling steps, and cleaning method before recommending vessel geometry and agitator layout.
Construction and configuration
Product-contact surfaces are commonly specified in 304 or 316L stainless steel. The appropriate grade depends on ingredients, cleaning chemicals, chloride exposure, and sanitation requirements. Welds in contact areas should be continuous, dressed, and finished to the agreed surface requirement. Internal corners, outlet geometry, and fittings also need to suit drainage and cleaning; polishing alone does not compensate for poor hygienic design.
The double jacket can be engineered for a compatible heating or cooling medium, with utility connections and design conditions confirmed for the site. Temperature sensors, control valves, insulation, and controls are selected to match the required process accuracy and heat-up time. Actual thermal performance depends on product volume, starting temperature, viscosity, jacket area, and utility capacity.
Agitator selection is equally process-specific. An anchor or sweep agitator can help move viscous product along the vessel wall, while a propeller or other axial-flow impeller may suit lower-viscosity liquids. Emulsion processing may require a separate high-shear head. Motor and gearbox sizing depend on working volume, product resistance, speed range, and duty cycle. Seal arrangement is chosen with operating pressure, temperature, cleaning practice, and maintenance access in mind.
Typical specification basis
| Item | Configuration basis |
|---|---|
| Working capacity | Set by batch size, headspace, and mixing behavior |
| Vessel material | 304 or 316L stainless steel, subject to product compatibility |
| Jacket service | Heating or cooling medium and site utility conditions |
| Agitation | Impeller type, speed, and drive sized to the recipe |
| Controls and finish | Defined by process, sanitation, and facility requirements |
Applications and purchasing questions
Typical duties include yogurt base heating, dairy liquid blending, beverage premix preparation, and batch emulsion processing. Before requesting a quotation, share batch volume, ingredient viscosity, temperature profile, required heating or cooling time, cleaning method, available utilities, and any hygienic or regulatory criteria. For carbonation-related work, clarify whether the vessel only prepares a liquid for downstream carbonation or must operate under pressure; pressure service requires a separately engineered and rated design.
FAQ
Can one agitator handle yogurt and beverage batches? Sometimes, but viscosity and shear requirements can differ substantially. We assess the full recipe range before specifying a common drive and impeller.
What determines the final vessel size? Batch volume, necessary headspace, foam behavior, heating duty, and cleaning access all affect usable capacity and geometry.
