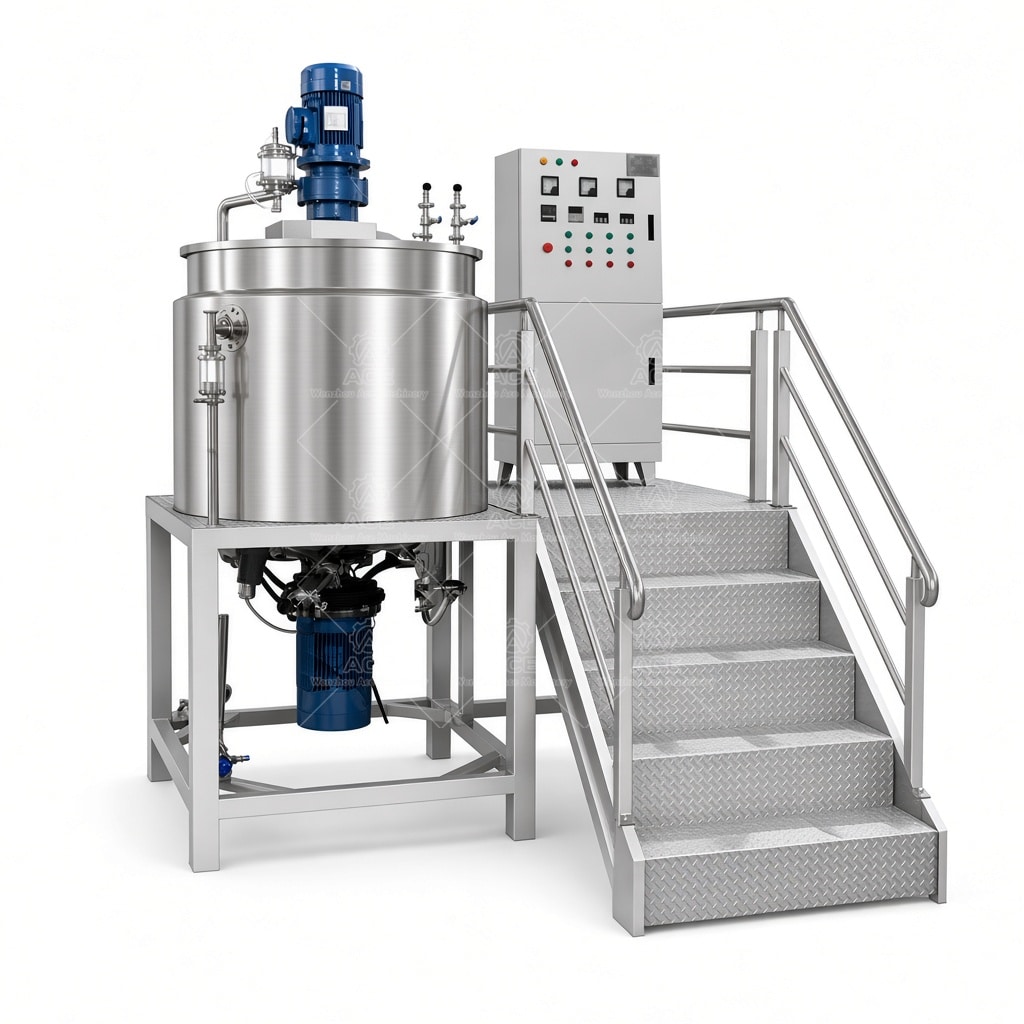

Industrial Mayonnaise Vacuum Emulsifier and Homogenizer Machine - Image 1

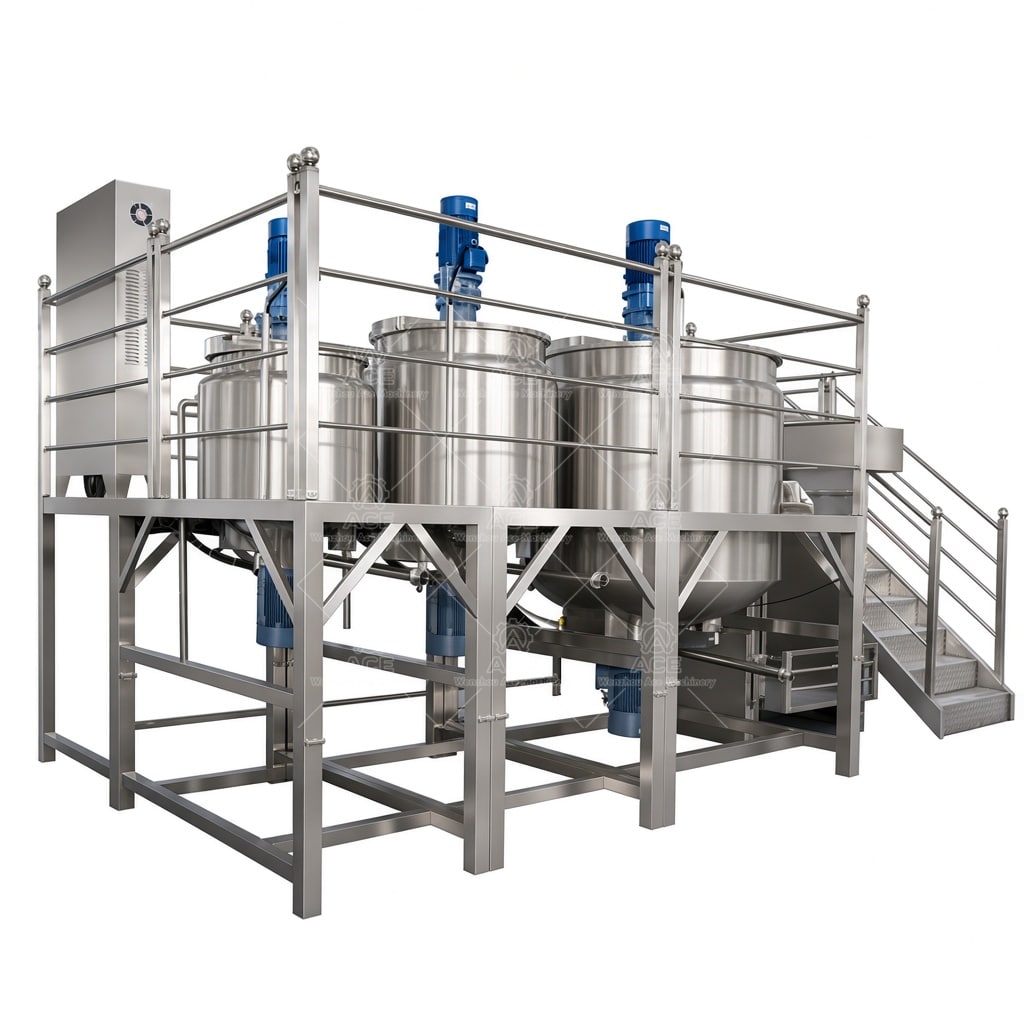

Industrial Mayonnaise Vacuum Emulsifier and Homogenizer Machine - Image 2

Click to enlarge

Industrial Mayonnaise Vacuum Emulsifier and Homogenizer Machine

Industrial mayonnaise production equipment combines vacuum processing, vessel agitation, and high-shear homogenization to support controlled emulsification. Configuration depends on batch size, recipe viscosity, ingredient sequence, temperature requirements, cleaning method, and plant utilities. Share these process details with our engineering team to define suitable materials, seals, drives, heating options, and discharge arrangements.

Capacity: 50 liters to 30,000 liters
Mixer power: 1.5 kW to 55 kW
Material: 304 or 316L
Voltage: 110V to 600V
Heating method: Electric or steam heating
Layer:single/double jacket/three jacket
Mixer types: Impeller-type, Anchor-type, Turbine-type, High-shear-type, Magnetic mixer, Anchor-type mixer with scrapers,dispersing
Optional: platform, wheels, ladder,variable frequency drive,explosion-proof device
Certificates: ASME, CE, GMP, UL, ATEX, ISO 9001
Our equipment supports customisation, global delivery, and a 1-year warranty.
If you have drawings, we can process them for you.

Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909

Price range: $9,077.73 through $10,157.07

Ask For A Quotation

Guaranteed Safe Checkout

Mayonnaise production equipment for controlled emulsification

Mayonnaise production depends on a stable oil-in-water emulsion, consistent texture, and reliable batch-to-batch results. Our vacuum emulsifier homogenizer is configured around the recipe, batch size, ingredient addition sequence, and required discharge method. Vacuum can help limit air incorporation during processing, while the homogenizing head disperses the oil phase into the aqueous phase. Actual results depend on formulation, temperature, mixing sequence, and operating settings; trials with the intended recipe are useful when defining the process.

Construction and process configuration

Product-contact surfaces are commonly specified in 304 or 316L stainless steel. The appropriate grade depends on ingredients, cleaning chemicals, chloride exposure, and sanitation requirements. We discuss internal weld finishing, surface finish, drainability, and access for inspection during design. Seal selection also needs attention: product viscosity, temperature, cleaning method, and shaft arrangement all affect material compatibility and service life.

Agitator and drive choices should match the batch rather than a nominal vessel volume. A slow-speed scraper or anchor can help move viscous product from the vessel wall; a high-shear rotor-stator performs the emulsifying work. Motor and gearbox sizing depend on viscosity, fill level, startup conditions, and required processing time. Heating or cooling may be specified through a jacket or another agreed arrangement. Temperature-control accuracy and heating capacity depend on the batch, utility conditions, and heat-transfer design.

Configuration data to confirm

Item	Design basis
Working capacity	Set from target batch size, usable volume, and headspace needs
Product-contact material	304 or 316L stainless steel, subject to recipe and cleaning conditions
Mixing system	Agitator and homogenizer selected for viscosity and process sequence
Temperature system	Heating, cooling, and control requirements defined by the recipe
Discharge and cleaning	Configured for product flow, access, and the plant’s cleaning procedure

Applications and practical questions

Typical applications include mayonnaise, sandwich spreads, dressings, and related viscous emulsified foods. The same machine concept may suit cosmetic creams or other emulsions, but contact materials, seals, and cleaning provisions must be reviewed for that product.

Can one configuration handle different recipes? Often, but viscosity, oil content, batch size, and cleaning changeover requirements can call for different impellers, drives, or process steps.

What should be confirmed before ordering? Share the batch size, ingredient sequence, target temperature, product viscosity or a representative sample, required cycle time, cleaning method, utilities, and site electrical standards. These details let our engineers recommend a workable vessel and drive arrangement instead of selecting equipment by capacity alone.
