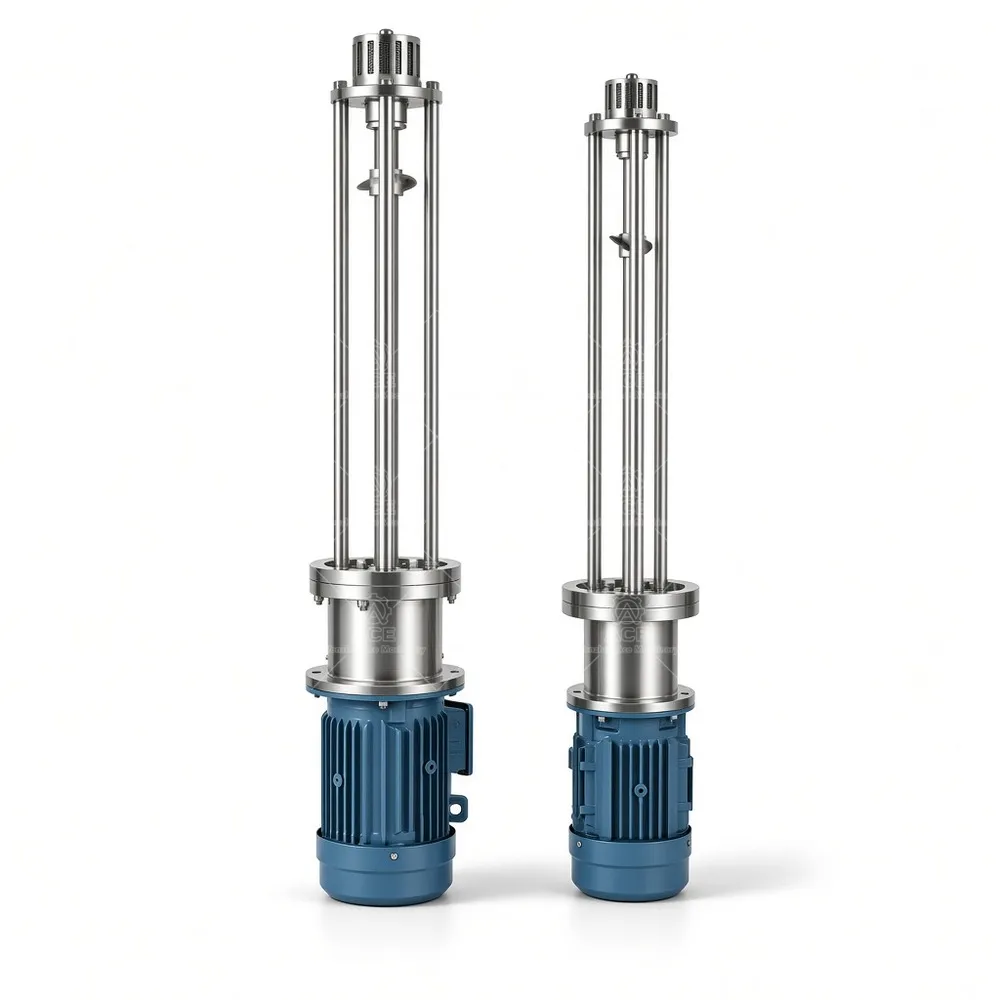

Batch High Shear Homogenizer Mixer for Liquid Soap and Shampoo
- Material: 304 or 316L
- Voltage: 110V 208V 220V 380V 400V 415V 480V 600V
- Certificates: CE, GMP, UL, ATEX, ISO 9001
- Power：0.75KW-55KW （1 HP – 74 HP）
- Motor brands: ABB, Chinese brands, SEW, Siemens (optional)
- 1-year free warranty with door-to-door delivery.
- Optional: Variable-frequency drive, control panel
- MADE IN CHINA
- We have it in stock.
Please contact our sales team before placing your order.
Email:info@ace-chn.com
Tel:+86 18626835909
WeChat: ace-chn
Price range: $902.44 through $954.87
Guaranteed Safe Checkout
We manufacture and sell the following types of mixers
Mix, emulsify, homogenize, disintegrate and dissolve
Ideal for disintegrating solids and incorporating powders
Reduce mixing times by up to 80%
Reduce mixing times by up to 90%
Quickly disperse and hydrate powders, even at higher viscosities
Easy to move and lift
Features heating, cooling, vacuum, and other functions
Recommended RPM: 1480/2850 RPM
A batch high shear mixer earns its place when simple stirring no longer holds a formula together. Liquid soap, shampoo, creams, sauces, and chemical dispersions can fail at powder addition or emulsification. Our high shear mixing equipment combines a dispersing head and rotor-stator action to shear, disperse, and emulsify, giving an industrial high shear mixer for pilot and production.
Configuration details
- Speed control: VFD available for 0 to 3000 rpm, based on configuration.
- Voltage: 220V to 480V. Final voltage, frequency, phase, and electrical setup confirmed for the destination market.
- Motor power: 1.5 kW to 55 kW, selected around product and batch duty.
- Mixing functions: high shear, dispersing, emulsifying, and powder incorporation into liquids.
- Wetted parts: 304 or 316L stainless steel, as specified.
- Mounting: mobile or fixed. A mobile high shear mixer suits multiple vessels; fixed suits a dedicated tank.
- Customization: motor power, voltage, controls, mixing head, and other details configurable.
- Manufacturer: Ace Mixer, an industrial mixing equipment manufacturer.
Matching the unit to your process
To specify a batch high shear mixer, start with batch size and vessel dimensions. Viscosity, solids content, and powder addition rate guide the head and motor choice. Target rpm and power need to match duty, not tank volume. Confirm local voltage, frequency, and phase before ordering. Check head design and wetted parts against the formula and cleaning routine. A variable speed high shear mixer gives operators room to adjust shear during scale-up or formula changes; a VFD high shear mixer supports controlled starts. For powder-heavy products, a high shear mixer for powder dispersion reduces lump formation. A stainless steel high shear mixer is available in 304 or 316L where the process calls for it.
Applications
Food and beverage processing, cosmetics and personal care, pharmaceutical and healthcare formulations, chemical processing, and paints or coatings use batch high shear mixing equipment. Powder dispersion and liquid-liquid emulsification are common duties. Head style, material, and operating parameters depend on product viscosity, ingredients, and process requirements.
FAQ
Can one unit cover several batch sizes? Not always. Shaft length, head position, and power must suit the vessel and fill level.
Mobile or fixed mounting? Mobile suits several tanks with manageable changeover. Fixed suits a dedicated vessel.
What is needed for a quote? Batch size, viscosity and solids, target rpm, motor power, and local electrical specs.
Send batch size, material properties, target rpm, motor power, and local voltage, frequency, and phase. Ace Mixer will recommend a configuration and quote the batch high shear mixer.
Ace Mixer builds batch high shear homogenizer mixers for liquid soap, shampoo, and other emulsified products. Configure motor power, VFD speed control, voltage, 304 or 316L wetted parts, and mixer head details around your batch size, viscosity, and powder dispersion needs. Share process details for a practical recommendation and quote.
