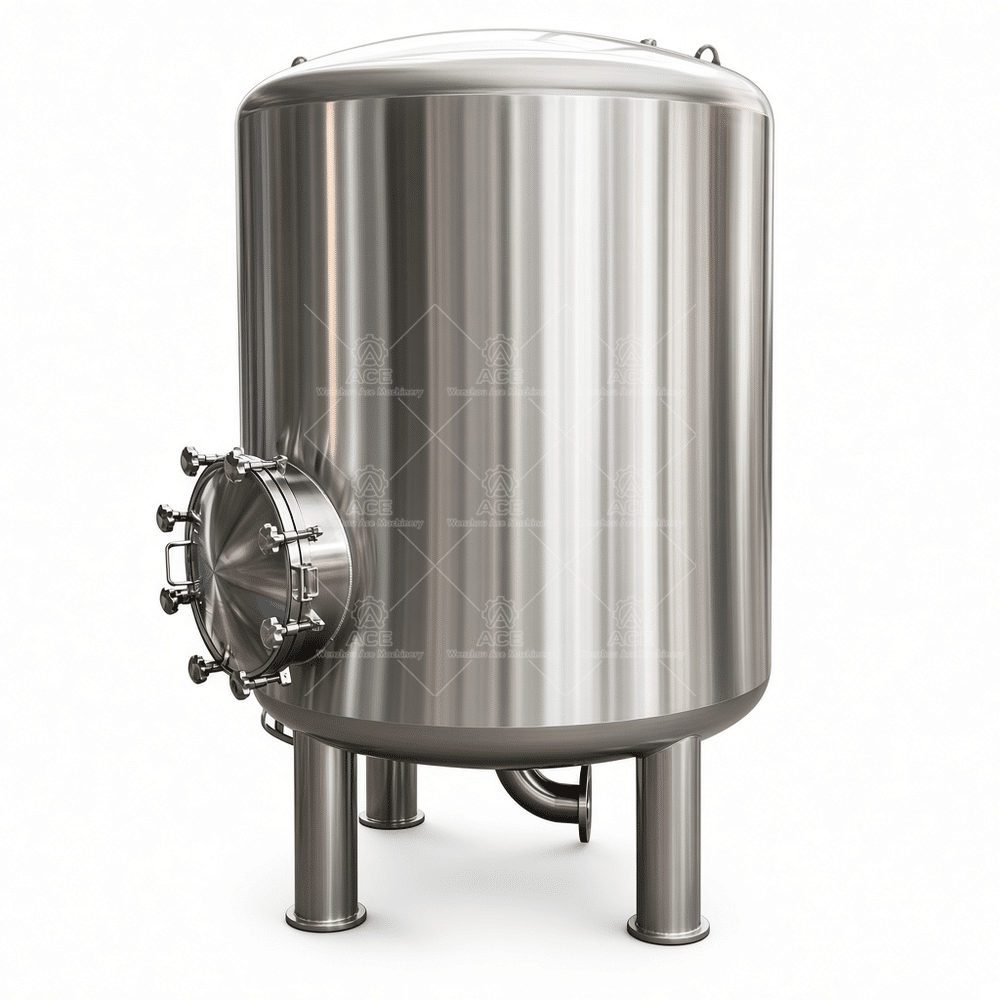

Custom Stainless Steel Water Storage Tank for Chemical Industrial Fast Delivery
Our stainless steel water storage tanks are built for chemical and industrial use. Choose from SUS304 or SUS316L, custom sizes, and fast delivery. Each tank is welded with full penetration and finished to your required surface. Ideal for water, chemicals, and food processing. Send your requirements for a tailored quote.
- Tank Capacity: [50L–100,000L or specify actual capacity]
- Tank Type: [Vertical / Horizontal / Single-wall / Double-wall / Jacketed]
- Material: 304 or 316L
- Optional Features: [Insulation / Heating / Cooling / Agitator / Level Gauge / Manway / CIP Spray Ball / Load Cells / Wheels / Custom Connections]
- Surface Finish: [2B / Brushed / Polished / Mirror Polish]
- If you have drawings, we can process them for you.
Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909
Price range: $2,942.89 through $3,691.56
Guaranteed Safe Checkout
We build stainless steel storage tanks for industrial and chemical applications. Our shop floor produces welded vessels from 500 liters to 50,000 liters, with custom dimensions to fit your existing layout. If you need a tank that holds a specific liquid at a specific temperature, we can match the material and surface finish to the job.
Material selection is the first decision. For most water and neutral chemicals, SUS304 (304 stainless) works well. For chloride-rich media, acidic solutions, or hygienic processing, we recommend SUS316L. The molybdenum content in 316L resists pitting and crevice corrosion. We do not guess—we ask about your stored product, pH, temperature, and cleaning method before quoting.
Welding is done with TIG, full penetration on the wetted side. We grind and passivate the weld seams to restore the oxide layer. Interior surfaces can be 2B, BA, or mirror polish, depending on whether you need easy cleaning or just basic drainage. For food and pharma, we use sanitary tri-clamp connections and slope the bottom for complete drain.
These tanks are not one-size-fits-all. A chemical tank needs a vent or a pressure rating; a water tank might need a simple manhole. We fabricate flat or cone bottoms, open or closed tops, with or without insulation and heating jackets. Agitation, level sensors, and sight glasses are optional. We build to your process, not to a catalog.
Our typical delivery time is 20–30 days, depending on size and customization. We ship worldwide, with proper packing for sea freight.
Technical Specifications
| Parameter | Value |
|---|---|
| Capacity | Custom (500–50,000 L) |
| Material | SUS304 / SUS316L |
| Design Pressure | Atmospheric, vacuum, or pressure (per request) |
| Surface Finish | 2B, BA, mirror polish |
| Connections | Flanged, threaded, tri-clamp |
| Options | Heating jacket, insulation, agitator, level gauges |
Frequently Asked Questions
Q: How do I choose between 304 and 316L?
A: If you store chlorides or acids above 5% concentration, go with 316L. For clean water and mild chemicals, 304 is sufficient. We also consider CIP chemicals—caustic and nitric acid can affect 304 over time.
Q: Can you build a tank for vacuum service?
A: Yes, but vacuum requires additional stiffening rings and a thicker shell. We need the operating pressure and temperature to design it correctly.
Q: What about cleaning?
A: We can add spray balls for CIP and slope the bottom to 1–2% for full drainage. For manual cleaning, a manhole and washdown nozzle are standard options.
Q: What information do you need for a quote?
A: Tell us the liquid, capacity, working temperature, site dimensions, and any required connections. Also mention if you need pressure or vacuum rating.
Before you request a quote, measure your available floor space and ceiling height. Know the liquid\’s density and viscosity—this affects the tank\’s wall thickness and agitator power. We will review your process and recommend the right configuration. Send us your requirements and we will provide a detailed drawing and price.
