304/316L Stainless Steel Mobile Storage Tank with Wheels | Vertical Beverage Processing Container
Mobile 304/316L stainless steel storage tank with wheels for beverage processing. Vertical design, sanitary finish, custom capacity. Ideal for flexible buffer storage in food and beverage lines.
- Tank Capacity: [50L–100,000L or specify actual capacity]
- Tank Type: [Vertical / Horizontal / Single-wall / Double-wall / Jacketed]
- Material: 304 or 316L
- Optional Features: [Insulation / Heating / Cooling / Agitator / Level Gauge / Manway / CIP Spray Ball / Load Cells / Wheels / Custom Connections]
- Surface Finish: [2B / Brushed / Polished / Mirror Polish]
- If you have drawings, we can process them for you.
Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909
Price range: $2,515.88 through $3,190.39
Guaranteed Safe Checkout

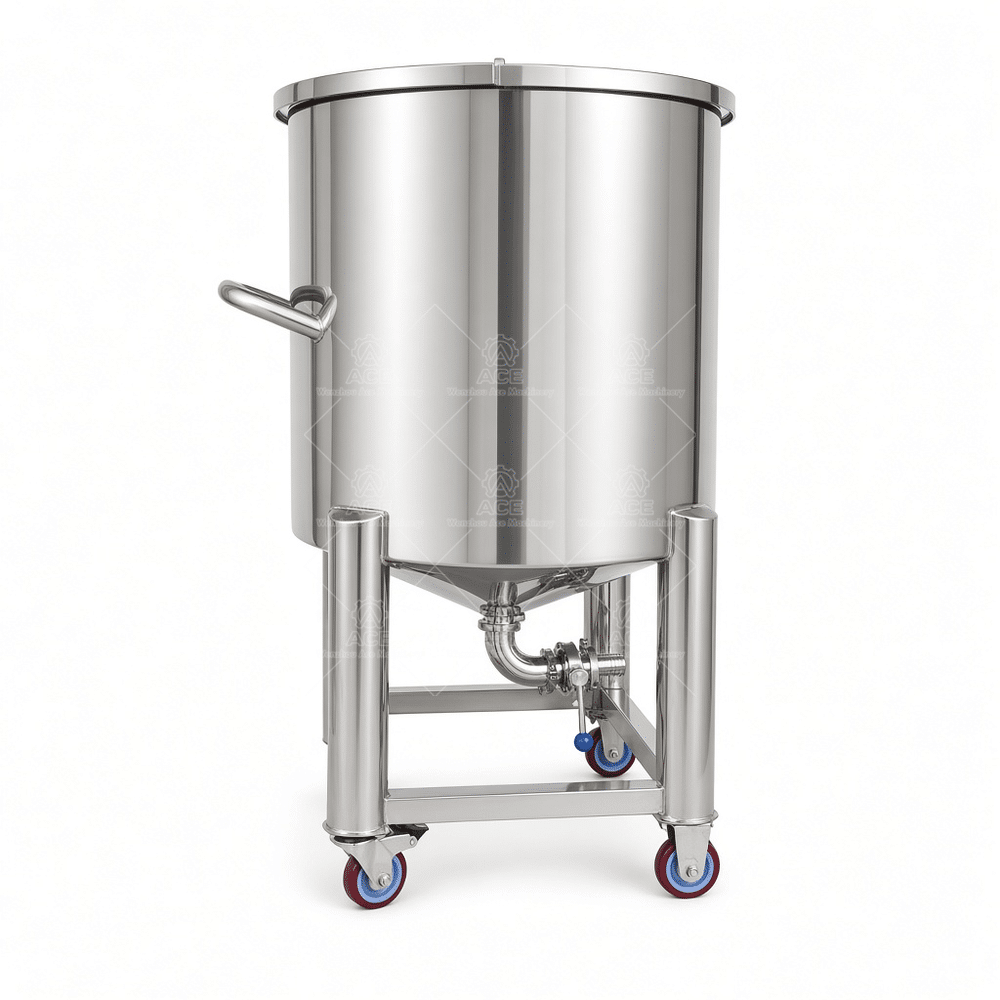

We build vertical storage tanks that are meant to be moved. This mobile bucket-style tank is fabricated from 304 or 316L stainless steel, with welded wheels or casters, so it can be repositioned between filling stations, pasteurizers, or packaging lines without a forklift. It is a practical piece of equipment for beverage processing facilities that need flexible, sanitary buffer storage.
The tank body is formed from rolled stainless steel plate with full-penetration TIG welds on the internal seams. After welding, we passivate the interior and mechanically polish the contact surfaces to a Ra ≤ 0.8 µm finish. That matters for cleaning: a smoother surface means less bacterial adhesion and shorter CIP cycles. For 316L construction, we use low-carbon material to reduce sensitization during welding, which keeps the tank resistant to chloride-induced corrosion—useful if you are storing acidic juices, brines, or cleaning with high-temperature caustic solutions.
Standard configuration includes a dished or flat bottom, a hinged or clamp-on top cover, and an optional bottom outlet valve. Wheels are heavy-duty polypropylene or stainless steel, depending on your floor conditions and load weight. We can add leveling legs, a sight glass, a level indicator, or a manual agitator if your process requires mixing. The tank is designed for atmospheric pressure only. If you need vacuum or pressure service, that requires a different head design and a stamped pressure vessel rating—we can build that too, but it is not this model.
This tank is suited for storing water, juice, milk, wine, edible oil, or chemical solutions, provided the material grade is selected correctly. For most food and beverage applications, 304 is sufficient. Switch to 316L when you are handling more aggressive media or if your washdown environment is salty or humid.
Technical Specifications
| Material | 304 or 316L stainless steel |
|---|---|
| Capacity | Custom, typically 50–1000 L |
| Type | Vertical, mobile (with wheels) |
| Surface Finish | Ra ≤ 0.8 µm internal, brushed external |
| Wheels | PP or SS, swivel with brake (optional) |
| Options | Sight glass, level gauge, outlet valve, lid lock |
FAQ
Q: Can I use this tank for hot liquid?
Yes, up to 100°C for short periods. For sustained high-temperature use, we recommend a vented lid and insulated jacket.
Q: How do I clean it?
Manual washdown or simple CIP spray ball. The smooth interior and rounded corners make cleaning straightforward.
Q: What size wheels should I choose?
It depends on total weight. For 500 L, use 4-inch wheels; for 1000 L, go to 5-inch or larger. We can advise based on your floor and load.
When you are ready to order, tell us the product you will store, the working volume you need, the material grade (304 or 316L), the operating temperature, and your floor space. Also mention if you need any special outlet connections or accessories. With those details, we can give you a precise quote and a tank that fits your line.
