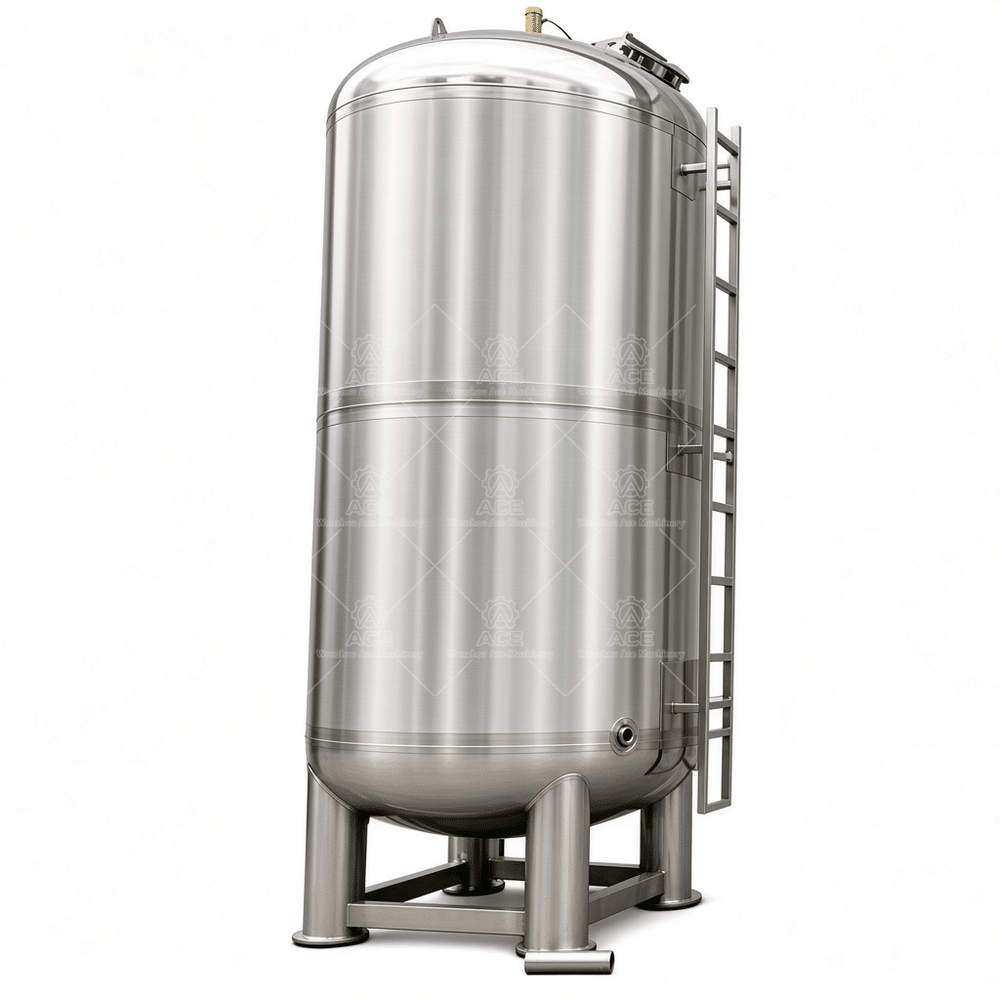

1000L SS316L Stainless Steel Storage Tank for Chemical, Beverage, Juice & Water
A 1000L SS316L stainless steel storage tank for chemical, beverage, juice, and water applications. Features mirror-polished interior, full-penetration welds, and optional heating, cooling, or agitation. Built for hygienic processing and easy maintenance, with custom configurations available from our factory.
- Tank Capacity: [50L–100,000L or specify actual capacity]
- Tank Type: [Vertical / Horizontal / Single-wall / Double-wall / Jacketed]
- Material: 304 or 316L
- Optional Features: [Insulation / Heating / Cooling / Agitator / Level Gauge / Manway / CIP Spray Ball / Load Cells / Wheels / Custom Connections]
- Surface Finish: [2B / Brushed / Polished / Mirror Polish]
- If you have drawings, we can process them for you.
Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909
Price range: $2,755.78 through $3,380.79
Guaranteed Safe Checkout
Built for Real-World Liquid Handling
This 1000L SS316L storage tank is designed for transport and stationary use across chemical, beverage, juice, and drinking water applications. We fabricate it in our own workshop, where every weld and polish is checked by hand. The tank holds a full 1000 liters of working volume, with a sloped bottom for complete drainage—no stagnant pockets left behind.
Material choice matters. We use SS316L because it resists chloride corrosion better than 304, especially when the tank sees acidic juices, caustic cleaning solutions, or chlorinated water. The surface finish is mirror-polished inside (Ra ≤ 0.8 µm) to meet hygiene standards and make cleaning fast. Outside, we offer a brushed or matte finish depending on your preference.
Welds are full-penetration TIG, then ground and polished to blend with the parent metal. All openings—inlet, outlet, vent, manhole—are reinforced and positioned according to your process layout. The tank comes with four adjustable legs or a saddle base for transport. We can add insulation, a heating jacket, or a mixer if your process needs them.
Technical Specifications
| Capacity | 1000 L (working volume) |
| Material | SS316L (1.4404) |
| Internal finish | Ra ≤ 0.8 µm, mirror polish |
| External finish | Brushed or matte |
| Design | Atmospheric, vertical or horizontal |
| Options | Insulation, heating/cooling jacket, agitator, level sensor, CIP spray ball |
Where It Works
This tank fits food and beverage lines—think juice storage, wine settling, or water treatment. It also handles mild chemicals like detergents or polymer solutions, as long as the pH range is within SS316L limits. We do not recommend it for strong acids or chlorides above 500 ppm without checking compatibility first.
Frequently Asked Questions
Q: How do I choose between 304 and 316L?
If your liquid contains salt, chlorine, or acidic components, go with 316L. For plain water or neutral liquids, 304 is cheaper. Tell us what you store and we\’ll confirm.
Q: Can I use this tank under pressure or vacuum?
Standard version is atmospheric only. For pressure or vacuum, we need to redesign the shell thickness and head shape—contact us with your rated pressure.
Q: What details do you need for a quote?
Send us the liquid type, working temperature, required capacity, available floor space, and any special fittings. That allows us to propose the right configuration without guesswork.
We build these tanks to order, typically two to four weeks depending on options. If you need a reliable SS316L storage tank that won\’t fail mid-production, tell us your process parameters and we\’ll get you a detailed quote with drawings.
