304 5.5kW Single-Stage Emulsifying Pump for Cosmetic, Dairy & Beverage Mixing
- Material: 304 or 316L
- Voltage: 110V 208V 220V 380V 400V 415V 480V 600V
- Certificates: CE, GMP, UL, ATEX, ISO 9001
- Power：0.75KW-55KW （1 HP – 74 HP）
- Motor brands: ABB, Chinese brands, SEW, Siemens (optional)
- 1-year free warranty with door-to-door delivery.
- Optional: Variable-frequency drive, control panel
- MADE IN CHINA
- We have it in stock.
Please contact our sales team before placing your order.
Email:info@ace-chn.com
Tel:+86 18626835909
WeChat: ace-chn
Price range: $1,514.98 through $1,602.55
Guaranteed Safe Checkout
We manufacture and sell the following types of mixers
Mix, emulsify, homogenize, disintegrate and dissolve
Ideal for disintegrating solids and incorporating powders
Reduce mixing times by up to 80%
Reduce mixing times by up to 90%
Quickly disperse and hydrate powders, even at higher viscosities
Easy to move and lift
Features heating, cooling, vacuum, and other functions
Recommended RPM: 1480/2850 RPM
Built for inline emulsifying, not batch guesswork

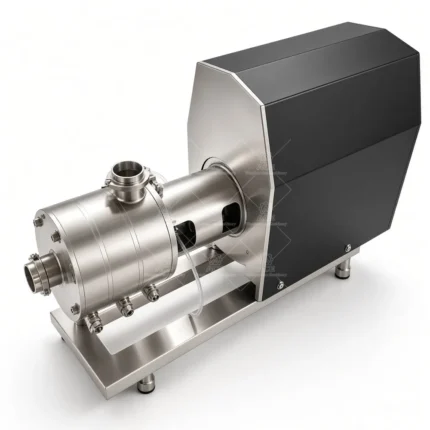

The Ace Mixer 304 5.5 kW single-stage emulsifying pump is a rotor-stator unit for processors who need tighter control over droplet size, powder wet-out, and batch repeatability. It mounts in a pipe run or circulation loop, so the product passes through the shear head while the tank stays closed and the line keeps moving. For many formulas, that means less foam, less open-tank handling, and shorter mix cycles than a conventional agitator alone.
The single-stage rotor-stator creates high shear in a narrow working gap. Liquids, oils, and powders are drawn into the head, accelerated, and forced through the stator slots. The result is mechanical dispersing and emulsifying—not a promise of a fixed particle size. Performance depends on viscosity, solids loading, flow rate, and the product\’s sensitivity to heat and aeration. We size the head and motor around those variables rather than selling one pump as a universal answer.
Where it fits on the line
Inline installation suits recirculation loops, transfer lines, and continuous blending skids. It can replace some batch-side mixing steps where a tank agitator struggles to wet out gums, stabilizers, or starch. Typical duties include oil-in-water emulsions, sauces, dairy beverages, liquid flavor concentrates, creams and lotions, shampoos, and compatible chemical dispersions. Hygienic and chemical applications need the right seal, elastomer, and connection choice; 304 stainless covers many wet parts, but aggressive products may call for alternate contact materials. A VFD is useful where flow and shear need adjustment between products.
FAQ for buyers
Can it run on a tank loop? Yes, with correct piping, back pressure, and venting. Avoid dead legs and make sure the suction line is sized for the viscosity.
Will it eliminate all lumps? It reduces agglomerates and improves dispersion, but powder addition rate and premix method still matter. Feed powders into the vortex or use a suitable powder incorporation point.
What maintenance should we plan? Inspect seals and rotor-stator clearance during scheduled shutdowns. Abrasive solids shorten life, so tell us about them before selection.
What do you need to recommend a configuration? Send batch size, product viscosity and solids, target flow, available motor power, seal preference, connection standard, and local voltage/frequency. We’ll confirm the 5.5 kW single-stage build or propose a closer match.
For a quote on the Ace Mixer emulsifying pump, share your process details and electrical specs with our technical team.
Ace Mixer\’s 304 stainless 5.5 kW single-stage emulsifying pump handles inline emulsification, powder wet-out, and dispersion in cosmetic, dairy, beverage, and compatible chemical lines. It mounts in pipe runs or recirculation loops to improve batch consistency and reduce open-tank mixing. Available with VFD and customizable seals, connections, and contact materials to match your process.
