26000L 304 Stainless Steel Water Storage Tank with Legs – Factory Direct
Factory-direct 26,000L single-layer water storage tank in 304 stainless steel. Cone bottom, gusseted legs, tri-clamp connections, and smooth welds for clean service. Built for atmospheric duty in food, beverage, and water treatment applications.
- Tank Capacity: [50L–100,000L or specify actual capacity]
- Tank Type: [Vertical / Horizontal / Single-wall / Double-wall / Jacketed]
- Material: 304 or 316L
- Optional Features: [Insulation / Heating / Cooling / Agitator / Level Gauge / Manway / CIP Spray Ball / Load Cells / Wheels / Custom Connections]
- Surface Finish: [2B / Brushed / Polished / Mirror Polish]
- If you have drawings, we can process them for you.
Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909
Price range: $2,991.53 through $3,656.55
Guaranteed Safe Checkout
This 26,000-liter single-layer water storage tank is built for facilities that need dependable bulk liquid storage without the lead time or markup of a distributor. We fabricate it from 304 stainless steel — the standard choice for potable water, food processing, and many industrial applications where corrosion resistance and cleanability matter more than extreme chemical compatibility.
The tank body is formed from rolled 304 sheet, welded by certified welders using TIG process. All interior welds are ground smooth to eliminate crevices where bacteria or residue can collect. The exterior is brushed to a #4 finish, which handles the wear of a production environment better than a mirror polish. Standard configuration includes a cone bottom for complete drainage, a manway for internal access, and tri-clamp connections sized to your piping. Legs are reinforced gusseted supports, sized to handle the full working weight of the tank — and we always recommend confirming floor loading with a structural engineer before installation.
This is not a pressure vessel. It is designed for atmospheric storage only. If your process requires vacuum or pressure, we will need to discuss a different head design, wall thickness, and ASME or PED certification — that is a separate product line. For standard water storage, CIP return, or blending duties near atmospheric pressure, this tank performs reliably for decades with minimal upkeep.
304 is suitable for water, juices, dairy, wine, chemicals with near-neutral pH, and many cosmetic and pharmaceutical intermediates. If you are storing brine, strong acids, or chlorides, we will recommend 316L instead — and we will tell you plainly when a project exceeds what a single-layer tank should do.
Specifications
| Capacity | 26,000 L (6,868 gal) |
| Material | 304 stainless steel, 18-8 grade |
| Construction | Single layer, atmospheric design |
| Bottom | Cone bottom, fully drainable |
| Surface | Exterior #4 brush, interior smooth weld finish |
| Mounting | Gusseted legs with base plates |
| Connections | Tri-clamp, sized to process piping |
FAQ
Can this tank hold hot water or steam? 304 handles elevated temperatures, but continuous steam service requires a pressure-rated design and different wall thickness. Let us know your actual temperature range.
What cleaning method is recommended? For water storage, standard CIP spray ball is sufficient. If you rotate products, we can add a higher-flow cleaning head.
Can I add a mixer or heating jacket later? Yes, we can weld on additional nozzles or a half-pipe jacket before shipment. Retrofitting in the field is more expensive — better to plan it now.
What is the lead time? We build in batches. Current lead time is typically 3–4 weeks after drawing approval, depending on port congestion.
To get an accurate quote, please send us the liquid you plan to store, working capacity needed, available floor space, operating temperature, and any mixing or heating requirements. Include your connection sizes and desired accessories — we will confirm the configuration and send a technical drawing for approval before production.
Related Products
1000L SS316L Vertical Stainless Steel Storage Tank for Chemical, Beverage, Juice & Pure Water
Price range: $2,708.30 through $3,254.29

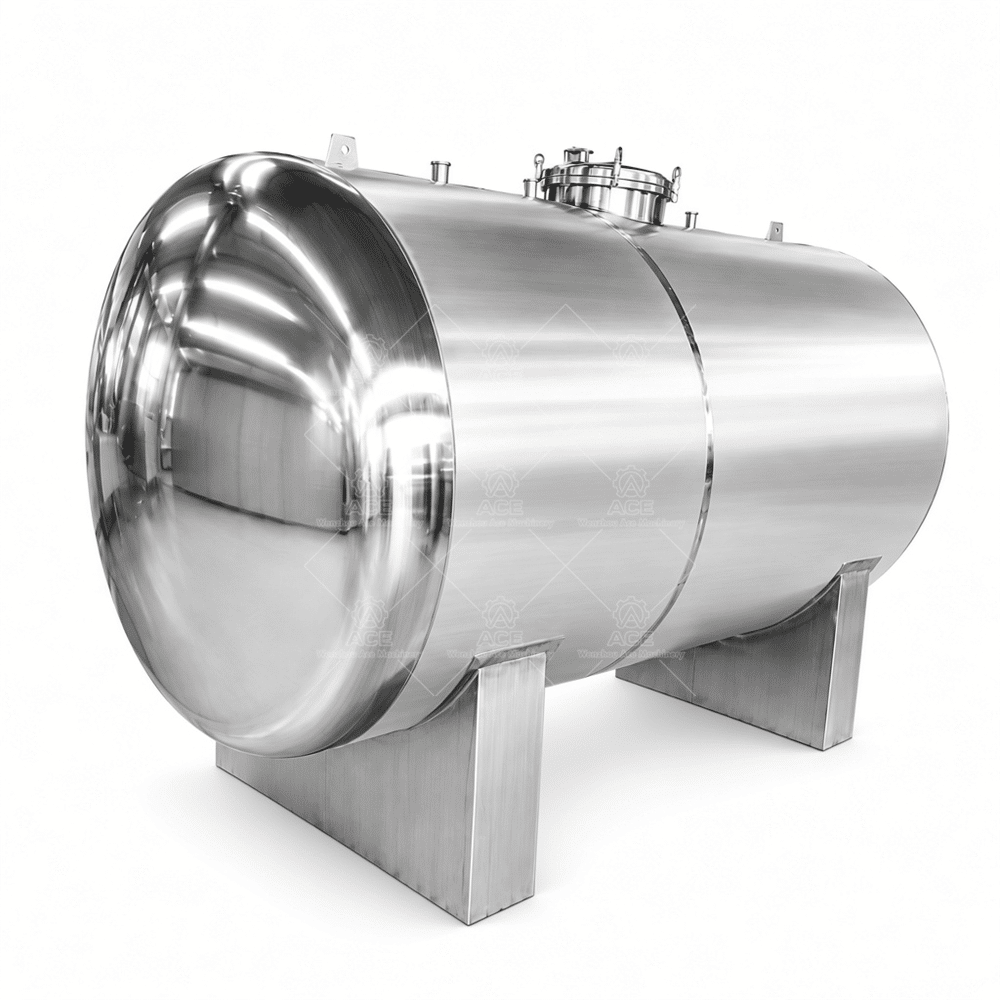

10000L Stainless Steel Water Tank SS304 Horizontal Storage Food Grade
Price range: $2,862.08 through $3,506.91
Food Grade 304 Stainless Steel Edible Oil Storage Tank Pressure Vessel 100-5000L
Price range: $2,722.95 through $3,533.57
1000L 2000L 3000L SS304 Electric Heating Hot Water Tank Food Grade Stainless Steel Storage
Price range: $2,941.81 through $3,600.78
200L-1000L Stainless Steel Heating/Cooling Storage Tank for Hair Conditioner, Olive Oil, Hair Dye, Mascara, Lipstick
Price range: $2,617.50 through $3,155.40

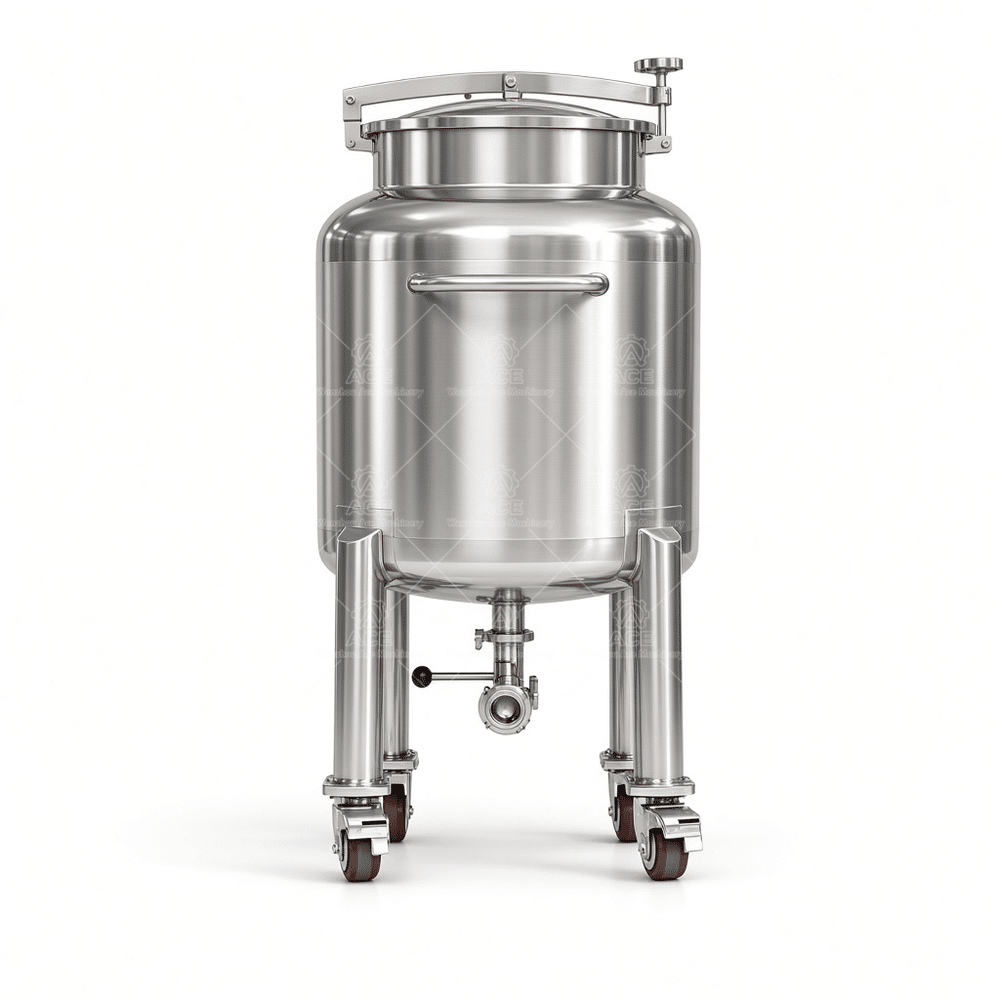

OEM Stainless Steel Sanitary Horizontal Movable Liquid Storage Tank
