20000L 20 Ton Horizontal Stainless Steel Storage Tank for Water, Edible Oil & Bulk Liquids
20,000 liter horizontal single-wall stainless steel storage tank for water, edible oil, and bulk liquids. SUS304/SUS316L construction with optional sanitary polish. Suitable for food processing and light chemical applications.
- Tank Capacity: [50L–100,000L or specify actual capacity]
- Tank Type: [Vertical / Horizontal / Single-wall / Double-wall / Jacketed]
- Material: 304 or 316L
- Optional Features: [Insulation / Heating / Cooling / Agitator / Level Gauge / Manway / CIP Spray Ball / Load Cells / Wheels / Custom Connections]
- Surface Finish: [2B / Brushed / Polished / Mirror Polish]
- If you have drawings, we can process them for you.
Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909
Price range: $2,505.23 through $3,135.55
Guaranteed Safe Checkout

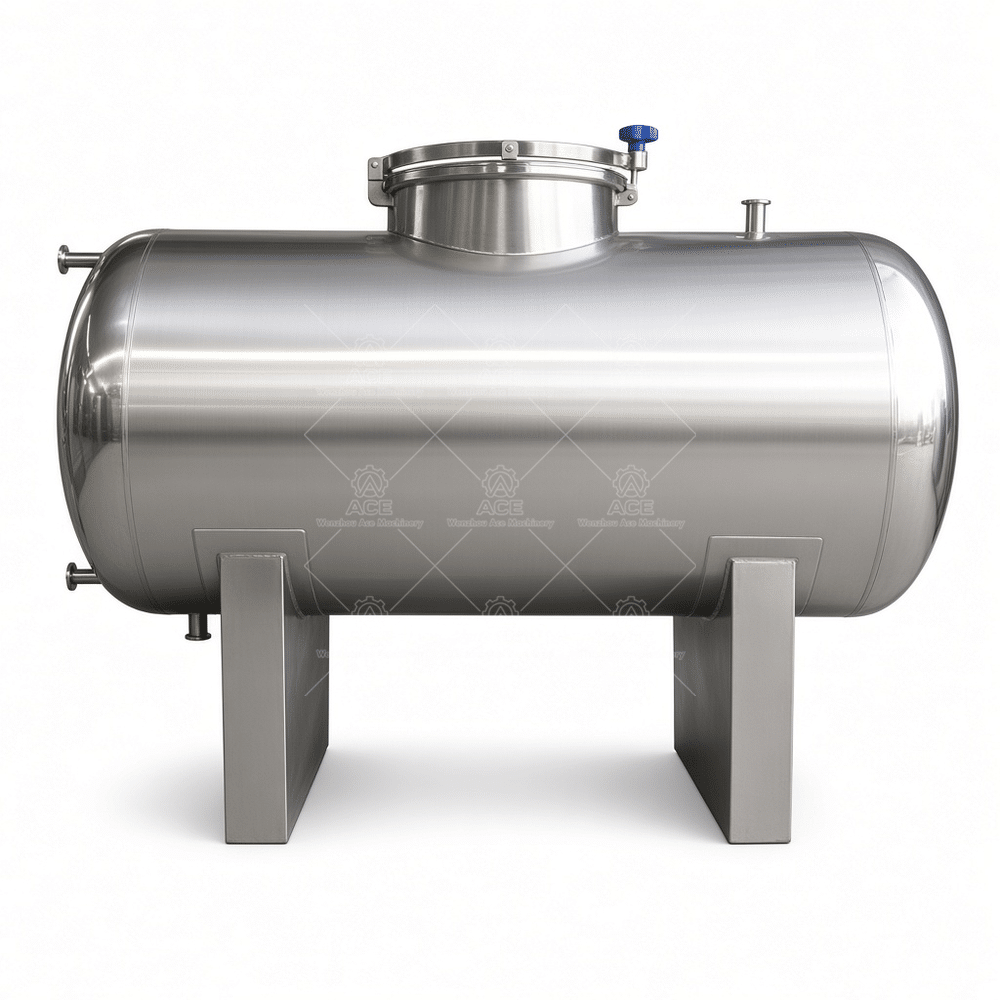

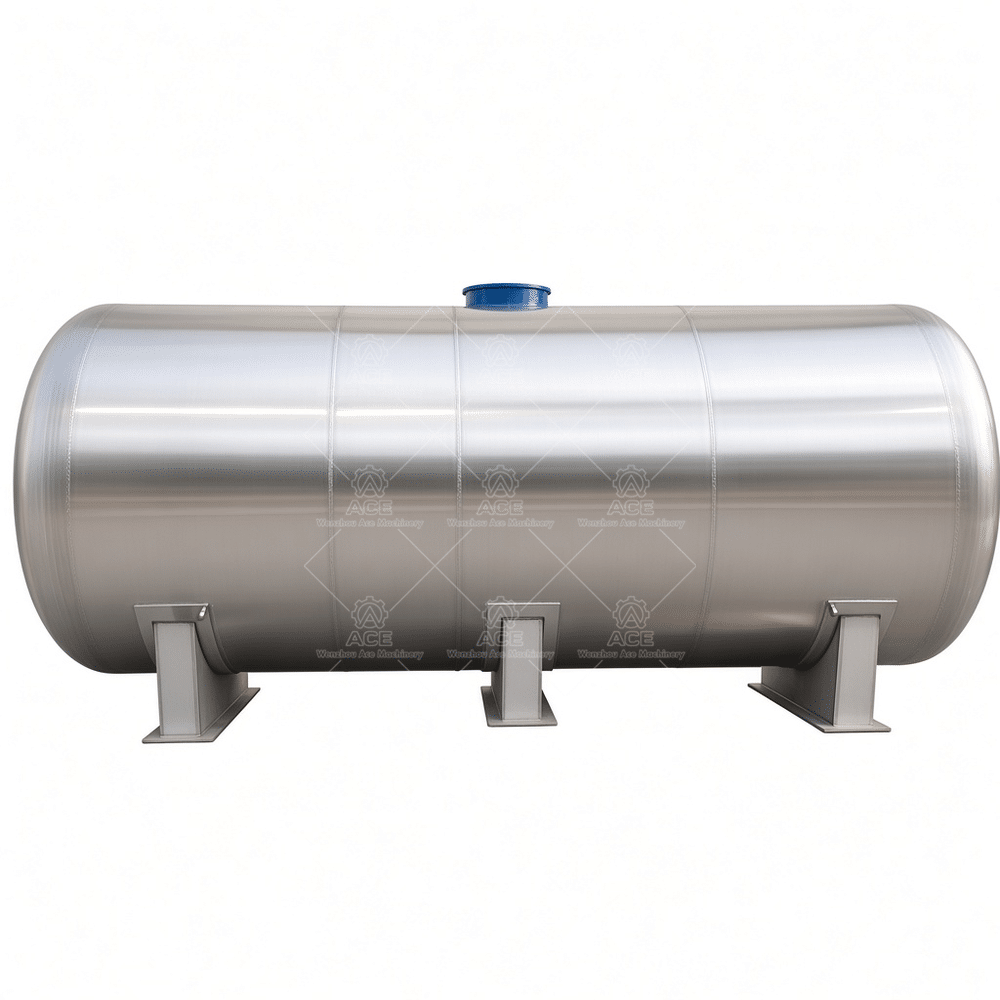

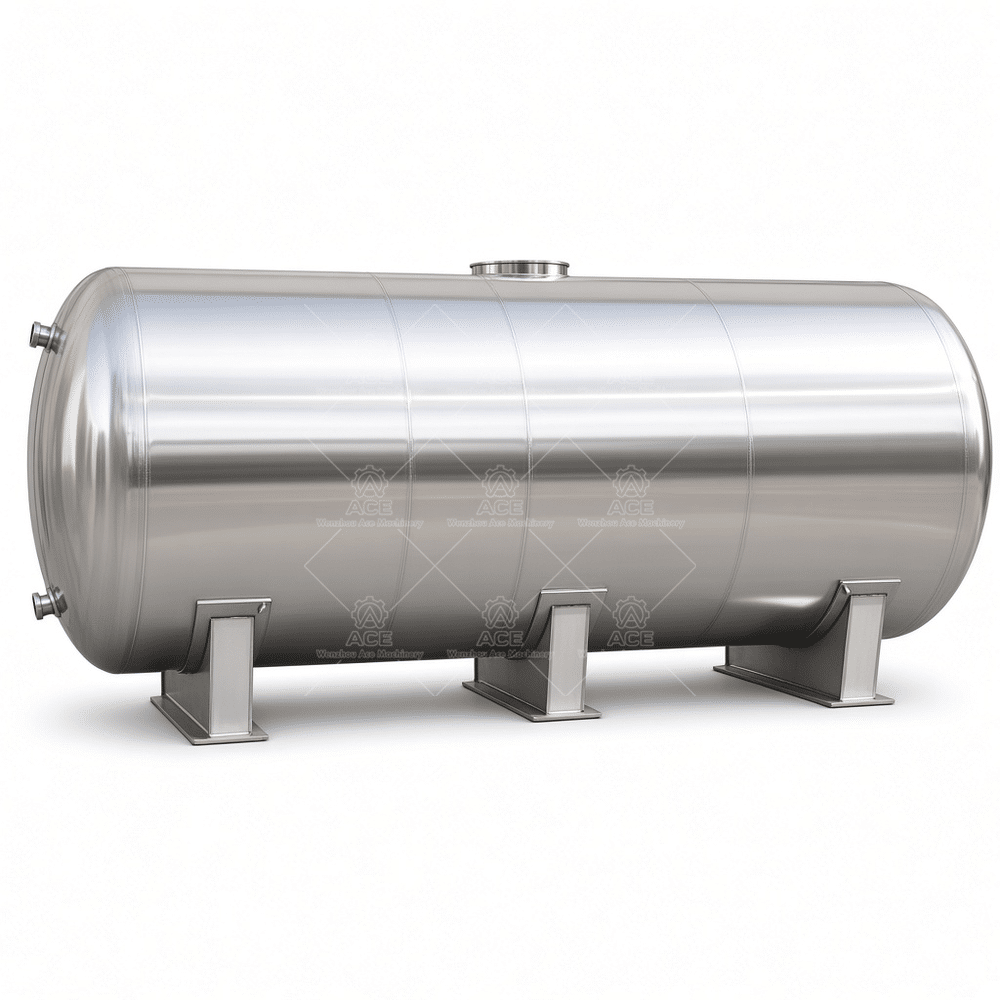

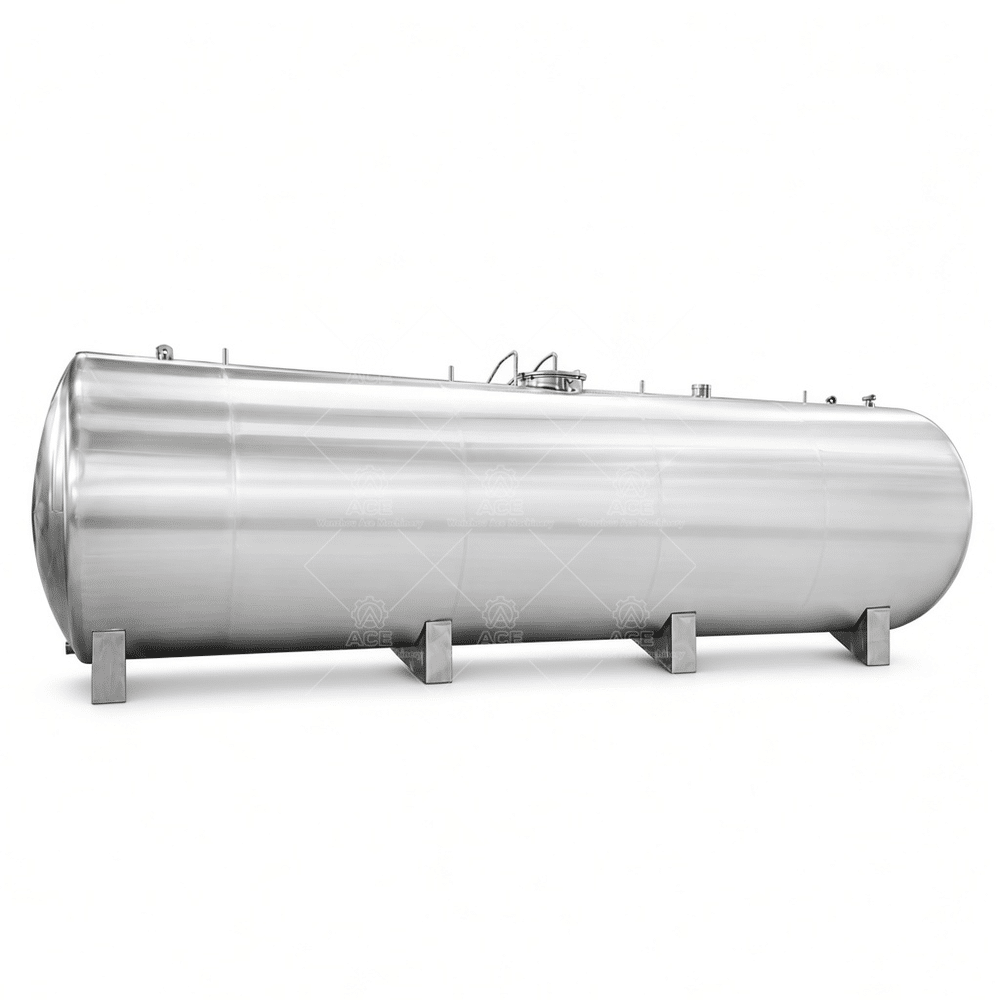

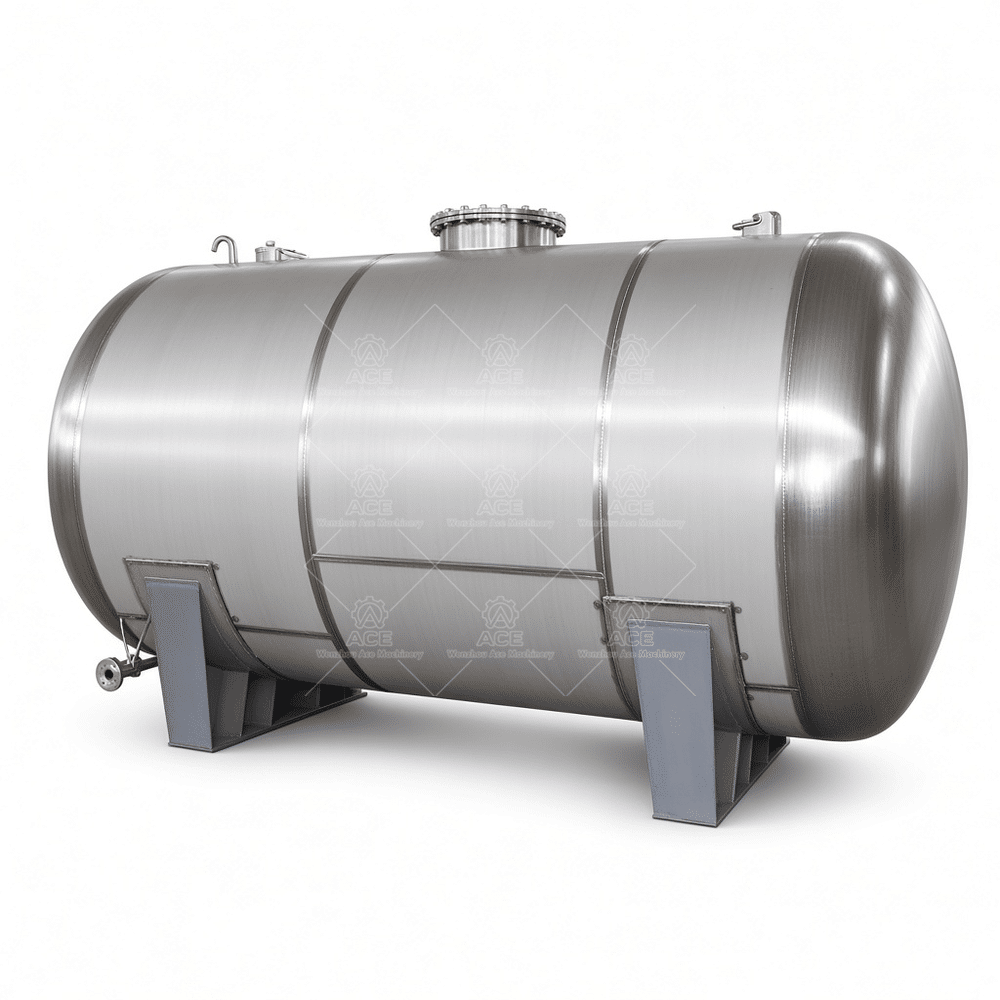

20,000 Liter Horizontal Single-Wall Stainless Steel Storage Tank
This tank is built for bulk liquid containment where straightforward, dependable storage matters more than complex processing features. The horizontal orientation keeps the center of gravity low, which simplifies transport and installation in facilities with limited ceiling height. We manufacture this vessel from rolled stainless steel plate with full-penetration TIG welding on the shell seams and heads.
The standard build uses SUS304 grade stainless steel, which handles water, edible oils, and a wide range of non-corrosive liquids without issue. For fluids with higher chloride content, acidic characteristics, or where stricter sanitary standards apply, we recommend SUS316L. The interior is pickled and passivated, leaving a clean surface that resists pitting. For food-grade service, we offer mechanical polishing to a 0.4–0.6 µm Ra finish, which makes routine washdowns and sanitation straightforward.
This is a single-wall, atmospheric pressure vessel. It is not designed for vacuum service or internal pressure above static head. If your process involves heating, cooling, agitation, or transfer with a pump that could pressurize the tank, we need to discuss a modified design before fabrication. Vacuum or pressure duty requires properly rated heads, reinforcement rings, and vacuum bars — do not assume a standard tank can handle those conditions.
Applications for this size range include raw water storage, edible oil holding, liquid feed supplements, and intermediate bulk storage in food processing or light chemical facilities. The horizontal design also works well where floor space is tight and vertical tanks would interfere with existing piping or building structure.
Common Specifications
| Capacity | 20,000 L (20 m³ / 5,283 gal) |
| Configuration | Horizontal, single wall |
| Material | SUS304 / SUS316L stainless steel |
| Design Pressure | Atmospheric (static head only) |
| Standard Fittings | Manway, inlet/outlet nozzles, vent, drain |
| Surface Finish | Pickled & passivated; optional polish |
FAQ
Can this tank be used for storing milk or juice?
Yes, with a 316L upgrade and a sanitary polish finish. We also recommend tri-clamp connections and a sloped bottom for complete drainage.
Can you add a heating jacket or insulation?
We can, but that changes the design from a simple single-wall vessel. Let us know your target temperature and heating medium, and we will provide the right configuration.
What is the wall thickness?
It depends on the tank diameter, liquid density, and whether the tank will be installed outdoors with wind or snow loads. Send us your site conditions and we will calculate the appropriate plate thickness.
Before requesting a quote, prepare the following details: the liquid you are storing, its temperature and density, required working volume, available footprint, and whether you need any mixing, heating, or level instrumentation. With that information, we can confirm the material grade, wall thickness, and nozzle layout for your specific installation. Contact our sales engineers with these parameters to receive a detailed quotation.
