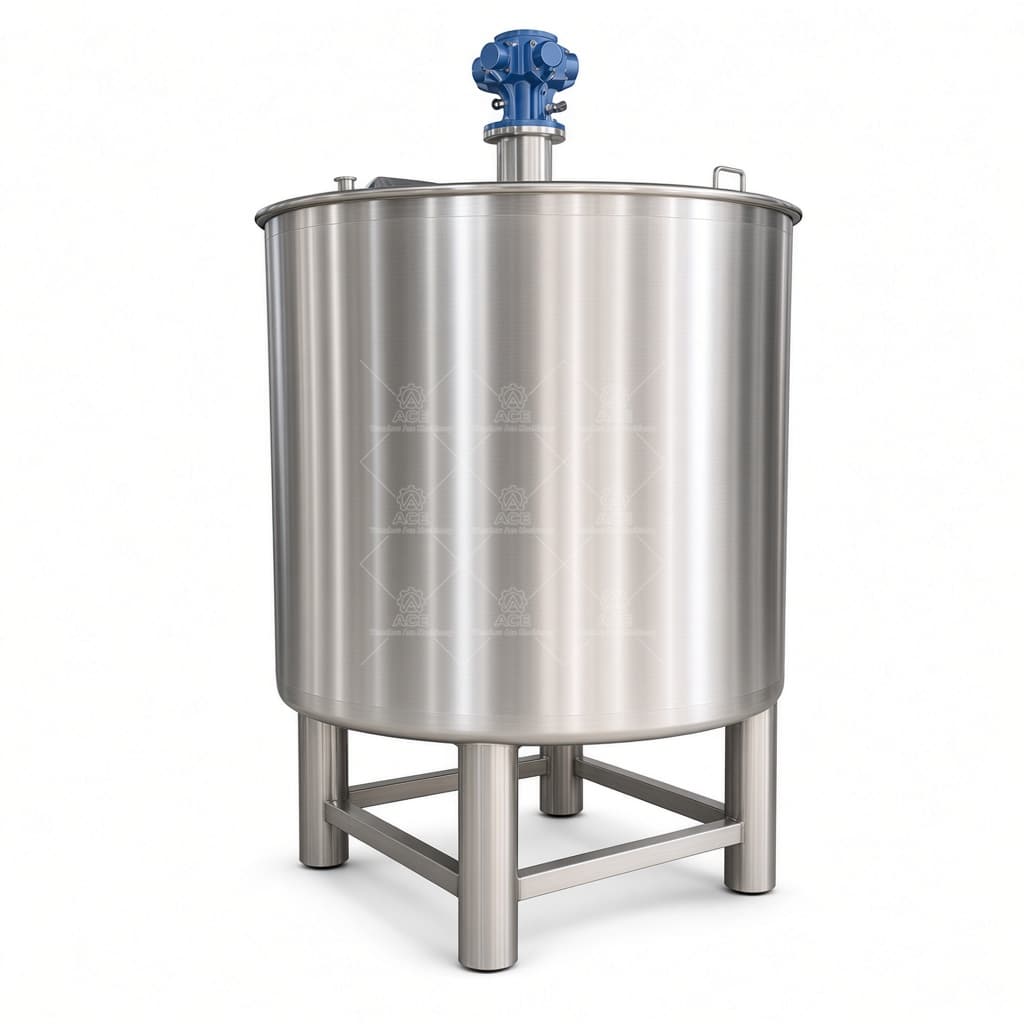

1000–3000L Electric Heating Mixing Tank with Agitator and Pump

Name: 1000–3000L Electric Heating Mixing Tank with Agitator and Pump - Ace Mixer
SKU: ACE-JBG-0414
Availability: InStock
Rating: 5.00 (2 reviews)

This 1000–3000 L electric heating mixing tank combines a configurable agitator and transfer pump for batch processing. The heating arrangement, tank materials, impeller, drive, and pump are selected around product properties, temperature targets, cleaning requirements, and transfer conditions. Share your working volume, viscosity, heating profile, and plant utilities to help define a suitable configuration.

Capacity: 50 liters to 30,000 liters
Mixer power: 1.5 kW to 55 kW
Material: [SUS304 / SUS316L]
Voltage: 110V / 220V / 380V / 400V / 440V / 480V / 600V
Heating method: [Electric / Steam / Thermal Oil / Hot Water / No Heating]
Cooling method: [Cooling Jacket / Dimple Jacket / Coil / No Cooling]
Agitation system: [Top Entry Agitator / Anchor Mixer / Paddle / Turbine / High-Shear Mixer / Customized]
Optional features: [Insulation / Load Cells / Temperature Sensor / Pressure Gauge / Manhole / CIP / PLC Control / Explosion-Proof Motor]
Certificates: ASME, CE, GMP, UL, ATEX, ISO 9001
Working pressure: [Atmospheric / Positive Pressure / Vacuum / Specify pressure]
If you have drawings, we can process them for you.

Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909

Price range: $2,104.14 through $2,362.74

Ask For A Quotation

Guaranteed Safe Checkout

Electric Heating Mixing Tank, 1000–3000 L

This tank combines electric heating, mechanical agitation, and a transfer pump in a configurable process vessel. It is intended for production steps where a batch must be heated while mixing, then moved to a downstream vessel or filling line. The required working volume, product viscosity, heating rate, and transfer distance all affect the final configuration; nominal capacity alone is not enough to size the equipment.

Construction and process design

We select wetted-part material to match the product, cleaning chemistry, and operating conditions. Stainless steel grade, wall thickness, and surface finish should be confirmed against corrosivity, hygiene requirements, and any applicable process standards. Weld joints in product-contact areas can be specified for smooth finishing and cleanability. Seal material and pump design also depend on product compatibility, temperature, viscosity, and whether the process involves frequent cleaning or sanitary handling.

Electric heating can be configured to suit the required heat-up profile and available utilities. Jacket or other heating arrangements, control method, and temperature-sensing locations are established during engineering; they should account for batch size, heat-sensitive ingredients, and the risk of localized overheating. Insulation may be considered to reduce heat loss. The control system and electrical details must be matched to the plant supply and installation environment.

Agitation, drive, and transfer

Impeller style and position are selected from the mixing objective—not just tank capacity. Low-viscosity blending, suspended solids, and thicker products can require different flow patterns and drive torque. Motor and gearbox sizing depend on viscosity, batch behavior, speed range, and operating duty. The pump should be selected for the product and transfer route, including required flow, line length, elevation, and solids content where relevant. A pump that is too small can slow discharge; an unsuitable type may damage shear-sensitive product or be difficult to clean.

Technical specifications

Item	Configuration basis
Capacity	1000–3000 L range; working volume to be confirmed
Heating	Electric; arrangement and controls depend on process requirements
Agitator	Type, speed, and drive sized for product properties
Pump	Selected for fluid, flow, and transfer conditions
Materials and finish	Specified for product contact and cleaning needs

Applications and purchasing questions

Typical applications include heated blending of liquid ingredients, preparation of sauces or beverage bases, and batch processing of cosmetic or chemical formulations. Is the stated capacity gross or usable? That distinction matters when foam, expansion, or headspace is required. Can the pump handle the actual viscosity and temperature? Confirm these conditions before finalizing the layout.

To request a quotation, provide batch volume, product description and viscosity range, target temperatures and heat-up time, mixing objective, cleaning method, transfer distance and elevation, available electrical supply, and installation constraints. These details let our engineers recommend a practical tank, agitator, heater, and pump arrangement rather than relying on a capacity label alone.
