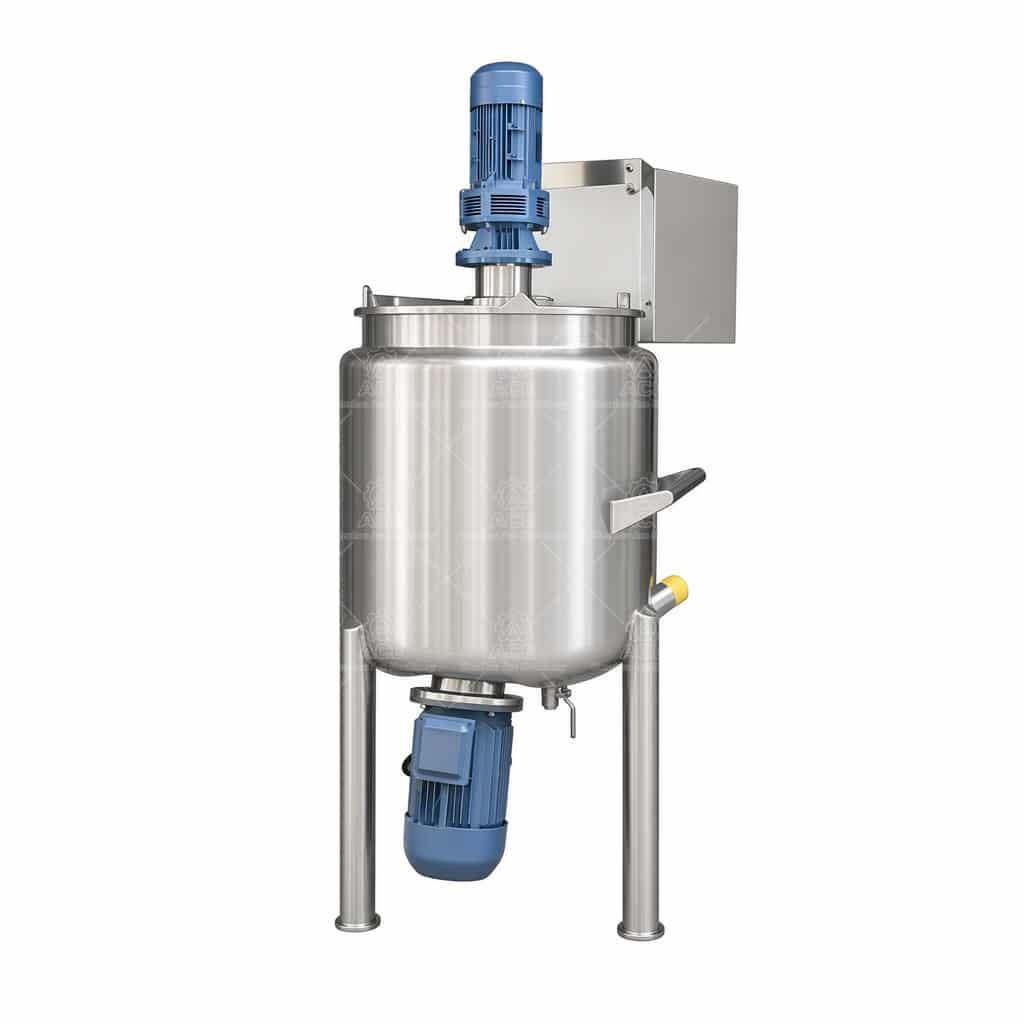

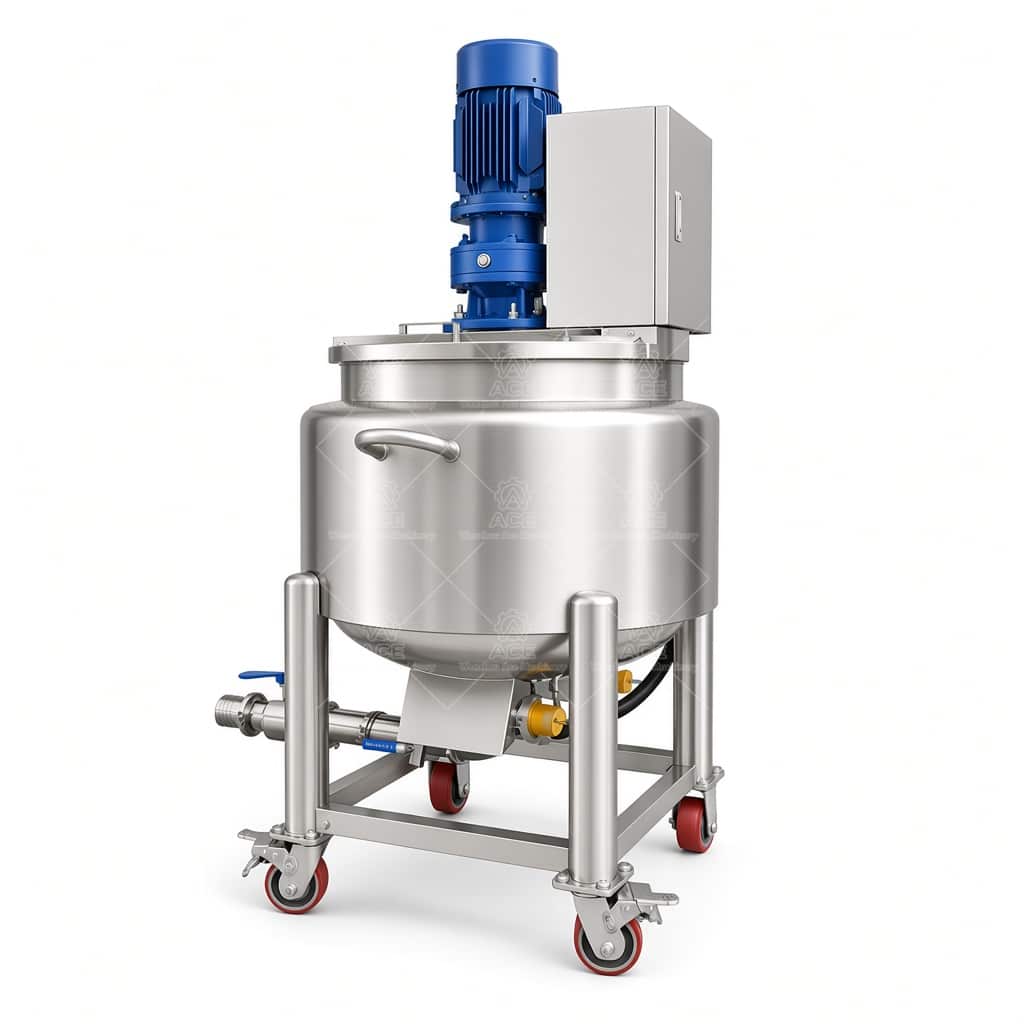

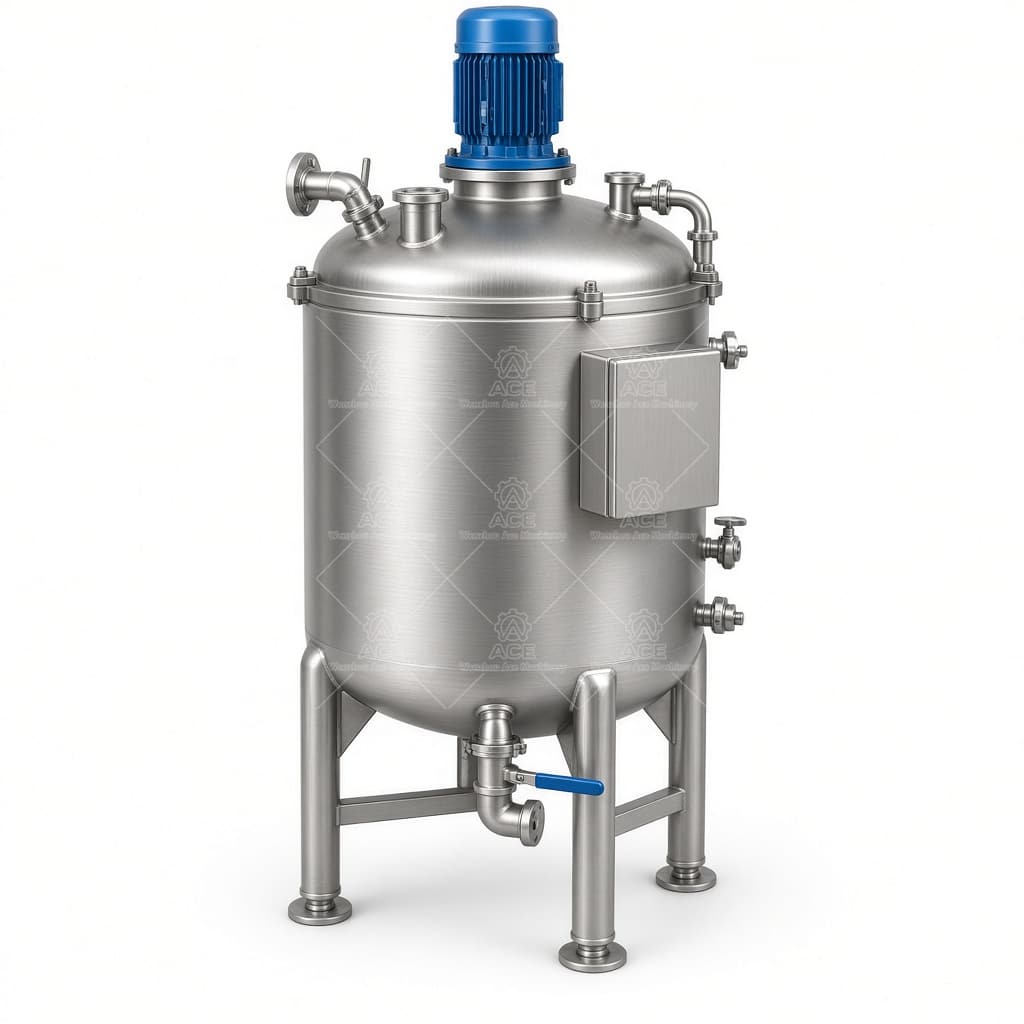

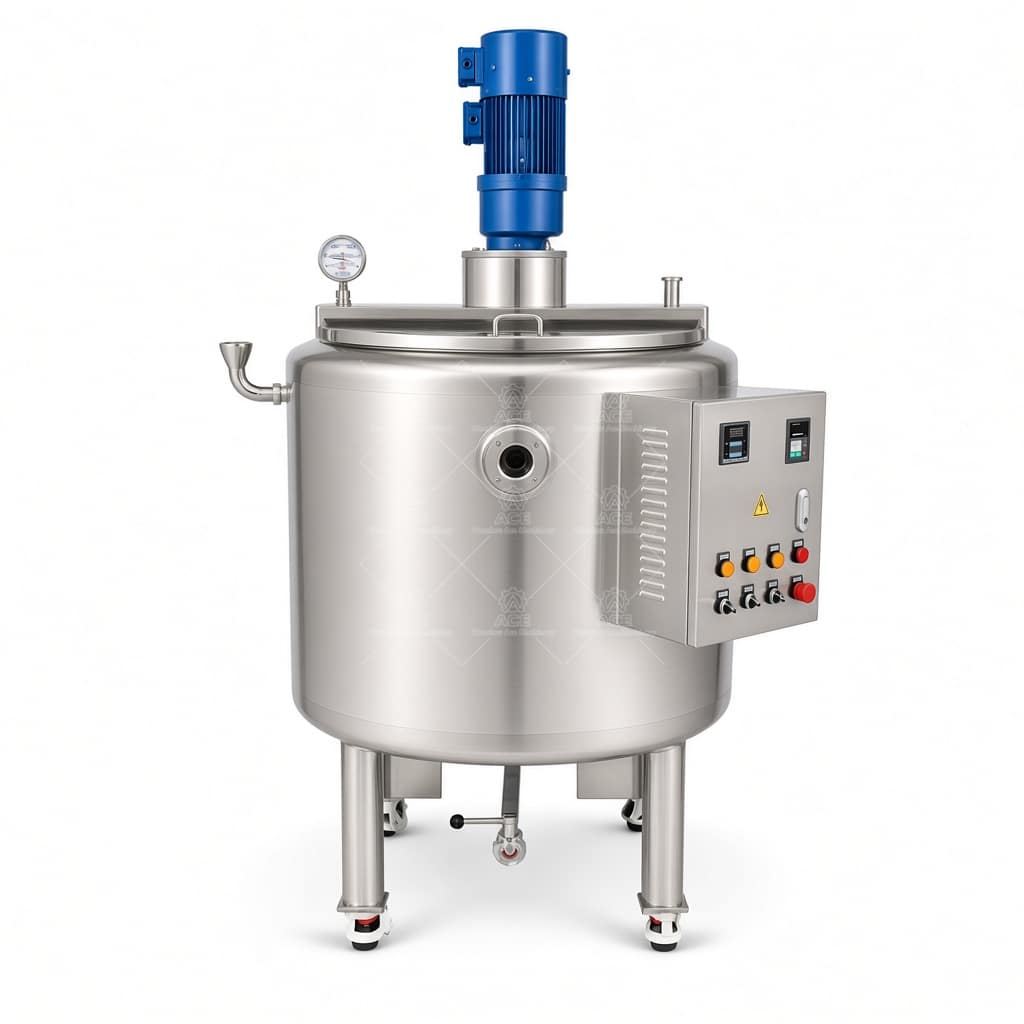

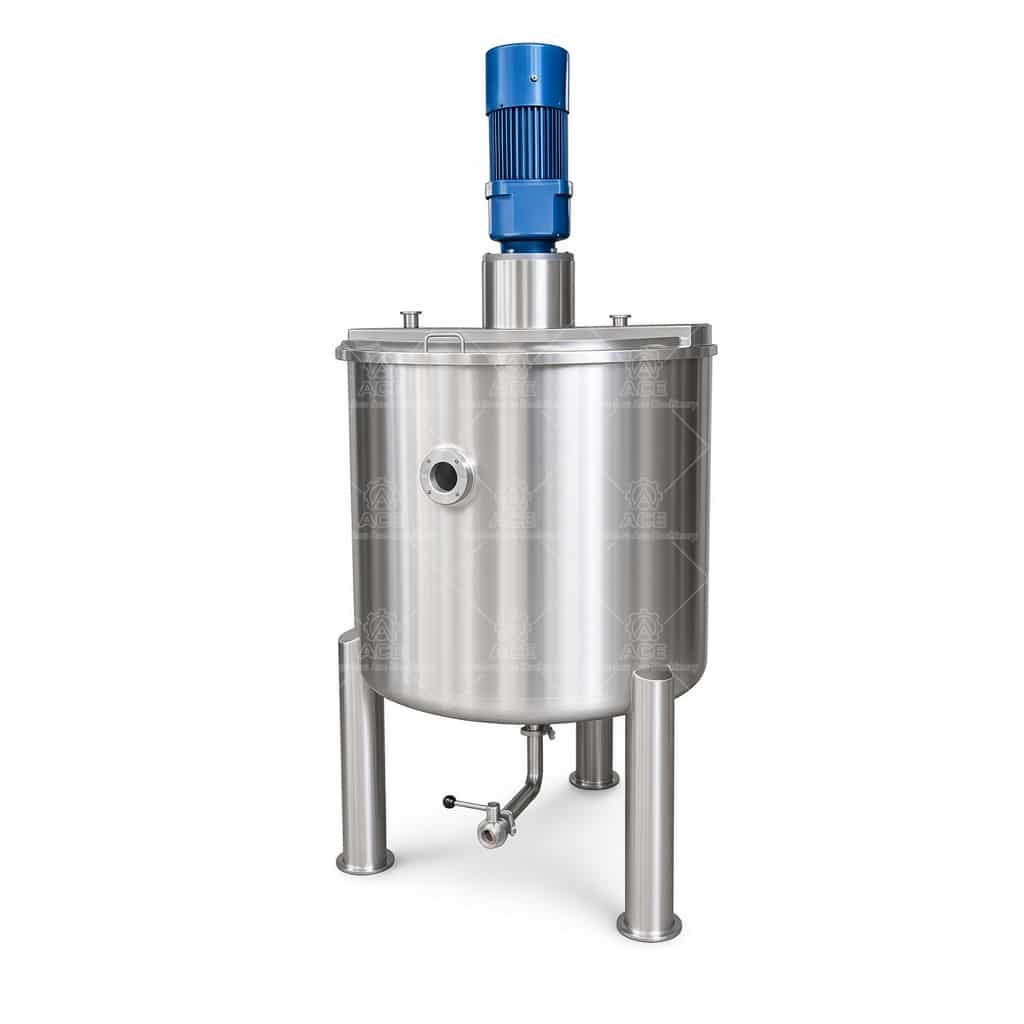

1000L Soap and Detergent Mixing Tank with Agitator and Heater

This 1000L mixing tank is intended for soap, detergent, and similar liquid formulations that require controlled blending and, when needed, heat to reduce viscosity or support dissolution. The useful working volume is determined by foam behavior, batch expansion, powder addition, and the headspace required for safe agitation. We confirm those conditions before fixing the vessel dimensions.

Construction and Process Design

Stainless steel is commonly selected for the product-contact shell, with the grade matched to the chemistry. Type 304 may suit many mild detergent formulations, while Type 316L is generally considered when chloride exposure, stronger chemicals, or stricter corrosion resistance is involved. Welded joints should be continuously finished where hygiene and cleanability matter. Internal welds can be ground and polished to the required finish; the final surface specification should be agreed rather than assumed.

Seal selection depends on temperature, surfactants, solvents, and cleaning chemicals. Mechanical seals, packing arrangements, sanitary fittings, spray balls, bottom outlets, manways, sight glasses, and load cells can be configured around the process. A jacket, internal heating element, or another heating arrangement may be used. Heating capacity and control range depend on batch mass, starting temperature, target temperature, heat-transfer area, insulation, and available utilities. A temperature sensor and controller are normally coordinated with the heater to prevent uncontrolled heating.

Agitation and Drive Selection

The agitator is not chosen from tank volume alone. Low-viscosity detergent requires a different impeller and speed range than concentrated soap or a shear-sensitive blend. We review viscosity, solids content, foaming tendency, required mixing time, and whether powder wetting is involved before selecting the motor, gearbox, shaft, and impeller. A variable-frequency drive can help operators adjust speed as viscosity changes during the batch.

Technical Specifications

FAQ

Can the tank handle foaming products? Yes, but headspace, agitator speed, inlet arrangement, and possible foam-control measures must be reviewed together.

Is 1000L the working volume? Not automatically. The production batch size should leave suitable headspace for agitation and thermal expansion.

What information is needed for a quotation? Send the batch size, product viscosity, ingredients, corrosive components, target temperature, heating utility, mixing time, cleaning method, electrical supply, and required sanitary or surface-finish standard. These details allow us to recommend a practical tank, drive, seal, and control package rather than an oversized or underpowered configuration.
