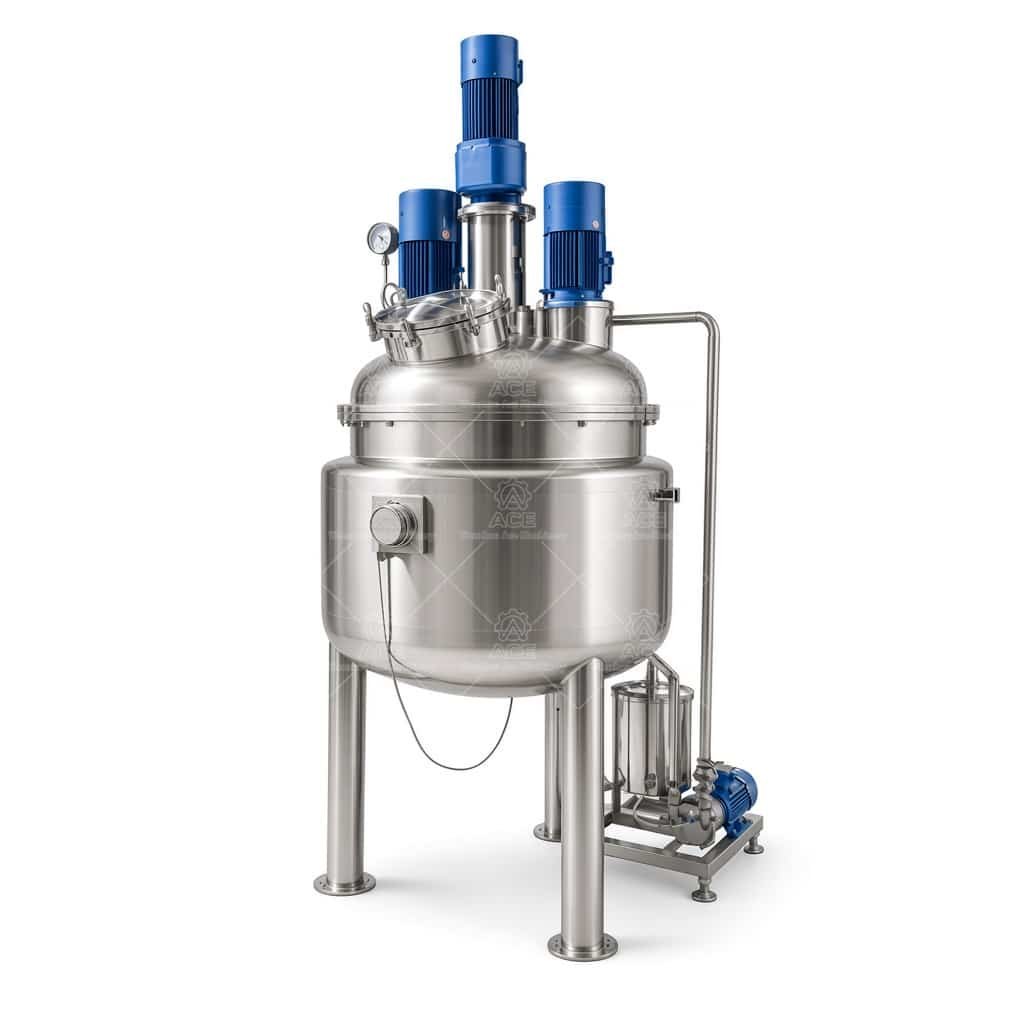

Vacuum Homogenizer Emulsifier Reactor for Sunscreen, Body Butter & Gel
Stainless steel vacuum homogenizer emulsifier reactor built for sunscreen, body butter, and gel production. Jacketed heating and cooling, rotor-stator or scraper agitation, vacuum-rated mechanical seal, and CIP-ready surfaces. Configured to your batch volume, formula chemistry, viscosity, and process pressure. Send your material, capacity, temperature, and mixing requirements for a factory-direct quote.
- Capacity: 50 liters to 30,000 liters
- Mixer power: 1.5 kW to 55 kW
- Material: [SUS304 / SUS316L]
- Voltage: 110V / 220V / 380V / 400V / 440V / 480V / 600V
- Heating method: [Electric / Steam / Thermal Oil / Hot Water / No Heating]
- Cooling method: [Cooling Jacket / Dimple Jacket / Coil / No Cooling]
- Agitation system: [Top Entry Agitator / Anchor Mixer / Paddle / Turbine / High-Shear Mixer / Customized]
- Optional features: [Insulation / Load Cells / Temperature Sensor / Pressure Gauge / Manhole / CIP / PLC Control / Explosion-Proof Motor]
- Certificates: ASME, CE, GMP, UL, ATEX, ISO 9001
- Working pressure: [Atmospheric / Positive Pressure / Vacuum / Specify pressure]
- If you have drawings, we can process them for you.
Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909
$3,414.05 – $4,368.28Price range: $3,414.05 through $4,368.28
Guaranteed Safe Checkout

Recommend RPM: 0-960RPM
Viscosity: Low/medium viscosity
Application: Mainly Liquid mixing

Recommend RPM: 0-200RPM
Viscosity: Low/medium viscosity
Application: Mainly Liquid mixing

Recommend RPM: 30RPM
Viscosity: Medium/High viscosity
Application: Melting, High viscosity product mixing, For single wall tank

Recommend RPM: 30RPM
Viscosity: Medium/High viscosity
Application: Melting, High viscosity product mixing, For jacket tank

Recommend RPM: 1480/2850 RPM
Viscosity: Low/medium viscosity
Application: Liquid powder mixing and dispersion

Recommend RPM: 2800 - 3200 RPM
Viscosity: Low/medium/High viscosity
Application: Liquid powder mixing and homogenizing

Recommend RPM: 0-355RPM
Viscosity: Low/medium viscosity
Application: Install at bottom, No mechanical seal working condition

Recommend RPM: As above
Viscosity: Low/medium viscosity
Application: Liquid powder mixing and dispersion For tank volume >300L
A vacuum homogenizing reactor does three jobs in one vessel: it melts and blends the oil and water phases, it pulls vacuum to strip entrained air, and it forces the batch through a high-shear head until the droplet size distribution holds. Sunscreen, body butter, and gels all live or die on that last step. A batch that looks fine in a beaker can separate on a warehouse shelf six months later.
We fabricate these units from 304 or 316L stainless steel. 316L is the practical choice when the formula carries electrolytes, organic UV filters, or acidic actives; 304 handles neutral creams and anhydrous butters without issue. Inner shells are welded, ground, and polished, with 300-grit mechanical finish as standard and mirror polishing available. We passivate welds and pressure-test jackets before final assembly. Where a buyer needs material certificates or surface roughness reports, we prepare them with the order rather than after shipment.
Heating usually runs through the jacket with steam, hot water, or thermal oil; the same jacket handles cooling with chilled water. Agitator selection follows viscosity more than tank size. A scraper-frame anchor suits thick body butter, a rotor-stator head suits sunscreen and gels, and concentric shafts carry both when one product line needs each. Vacuum level, design temperature, and pressure class are set by your process data, not by a stock specification sheet.
Configuration Parameters
| Working volume | Fixed against your batch size and fill ratio |
| Material of construction | 304 or 316L, contact parts confirmed against formula chemistry |
| Inner shell thickness | Determined by design pressure and vessel diameter |
| Heating / cooling | Jacketed, medium selected by required ramp rate |
| Design pressure and temperature | Per your stated process conditions |
| Agitation | Anchor, paddle, or rotor-stator, single or concentric shaft |
| Seal | Mechanical seal, vacuum-rated |
| Surface finish | Mechanical polish or mirror polish on wetted surfaces |
| Options | CIP spray ball, load cells, jacket insulation, discharge pump, control panel |
Typical installations sit in cosmetics, personal care, pharmaceutical creams, and food emulsion lines. Cleaning matters as much as mixing here: dished bottoms, flush drain valves, and a spray ball cut changeover time between fragrance or active-heavy formulas.
Before quoting, we need material and chemistry, batch and working volume, operating and design temperature, whether the process runs at atmosphere, under pressure, or in vacuum, viscosity and solids content, and the mixing result you expect. Cleaning and compliance requirements round out the picture.
Send those details to our engineering team and we will come back with a vessel configuration, utility requirements, and a factory-direct price.
