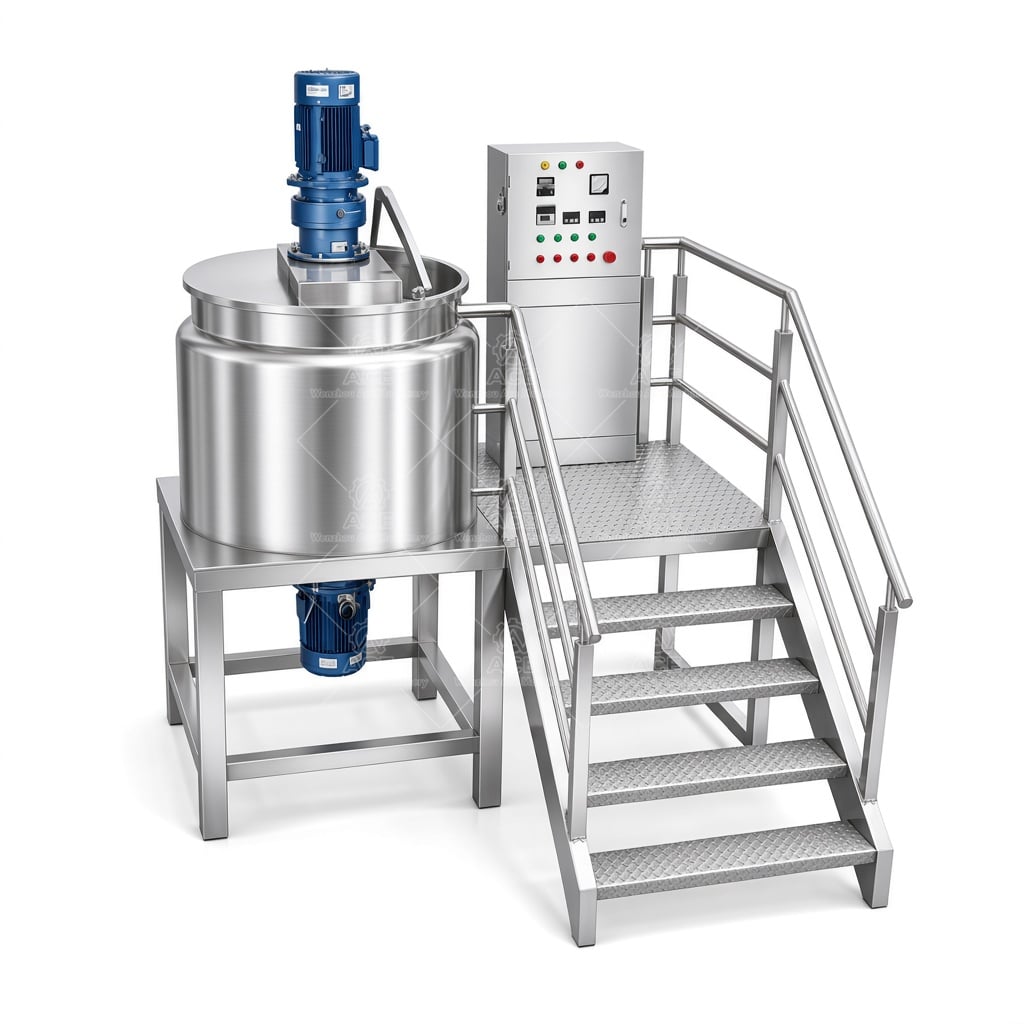

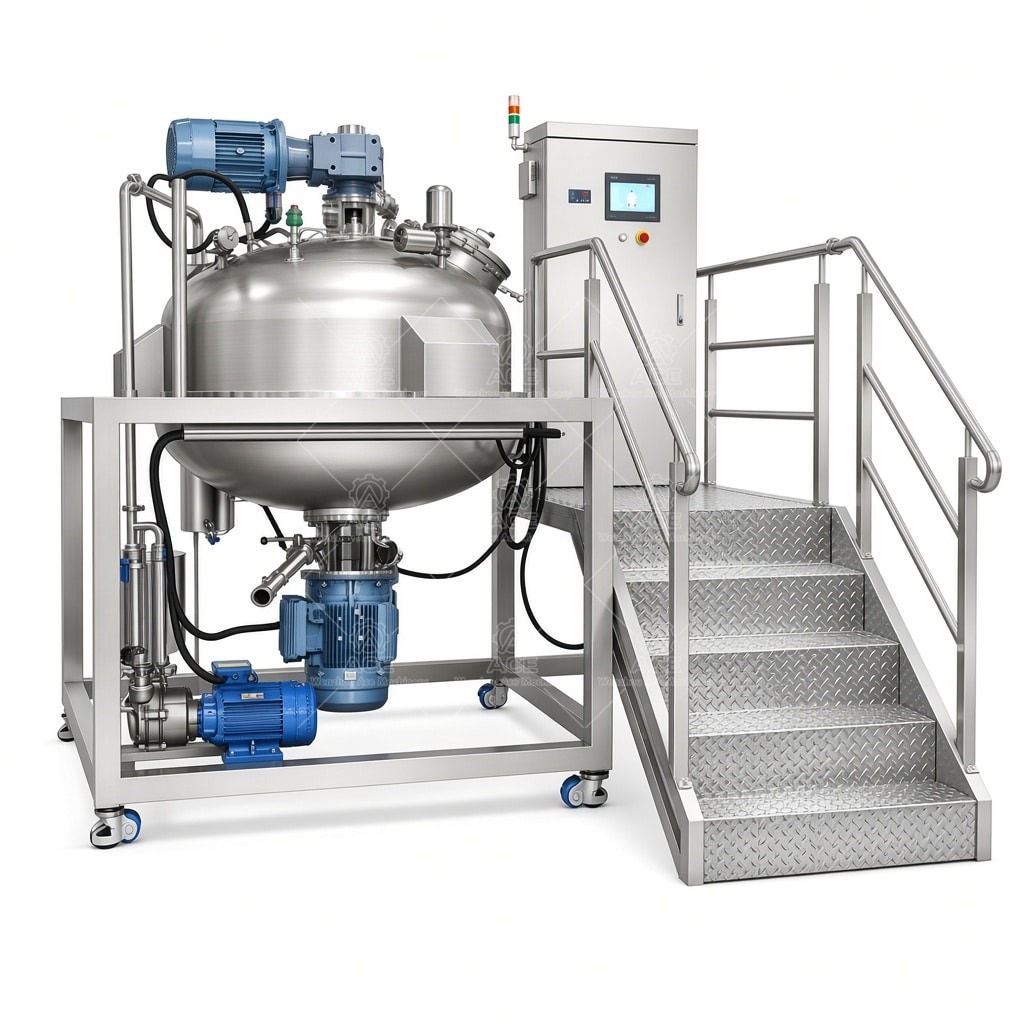

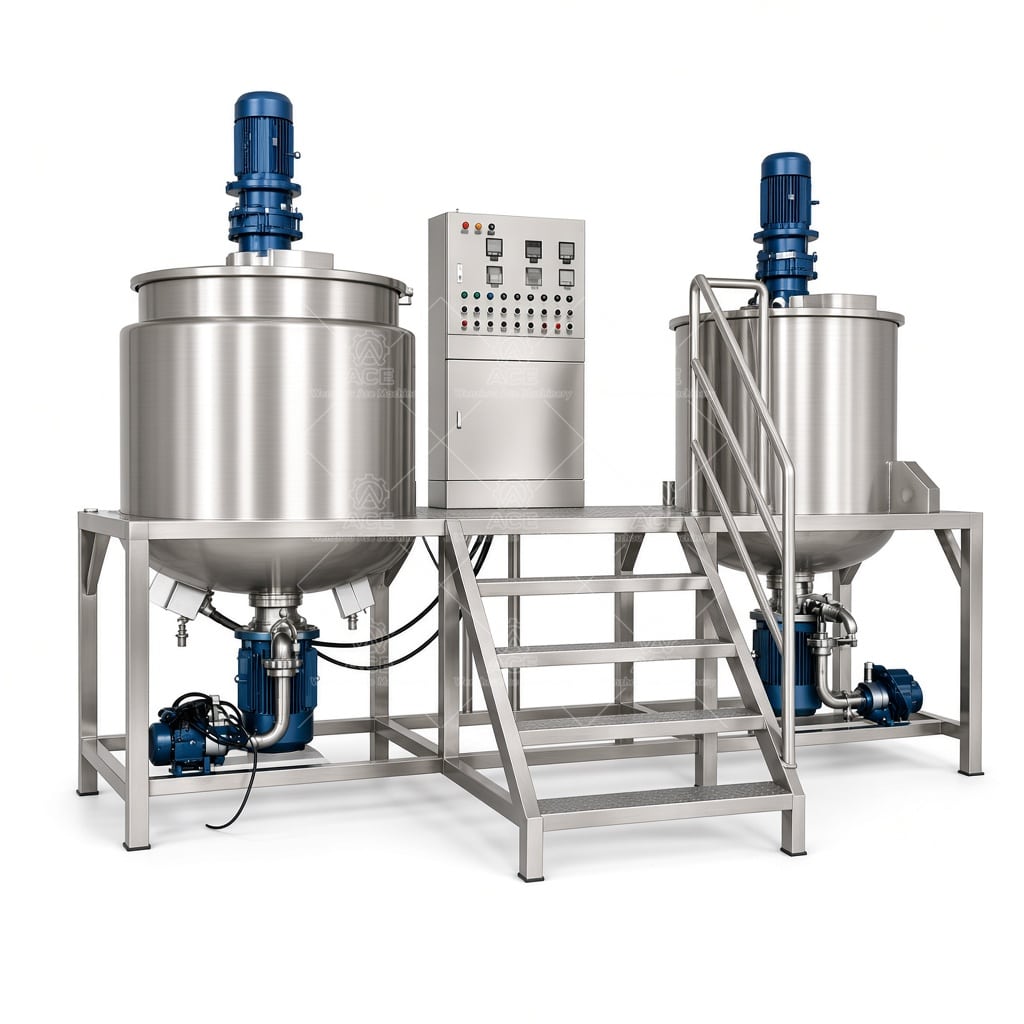

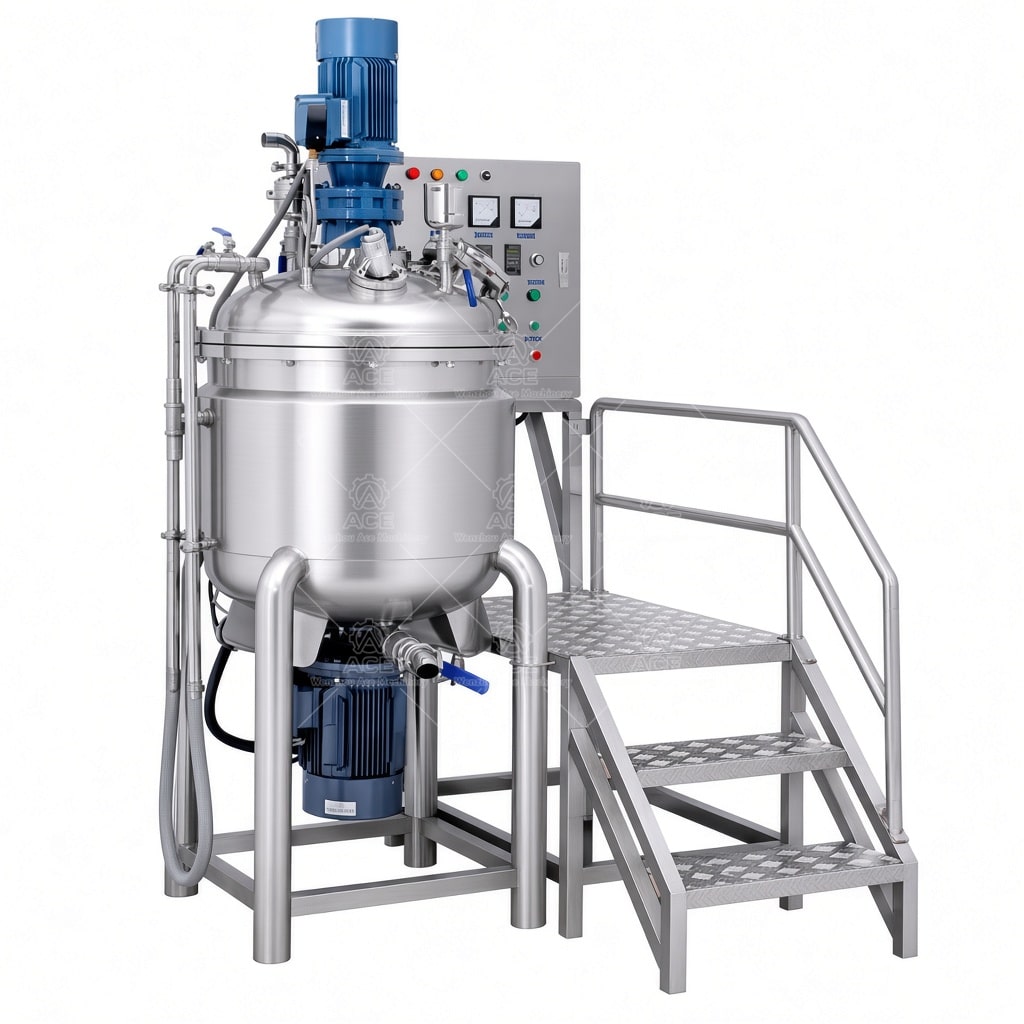

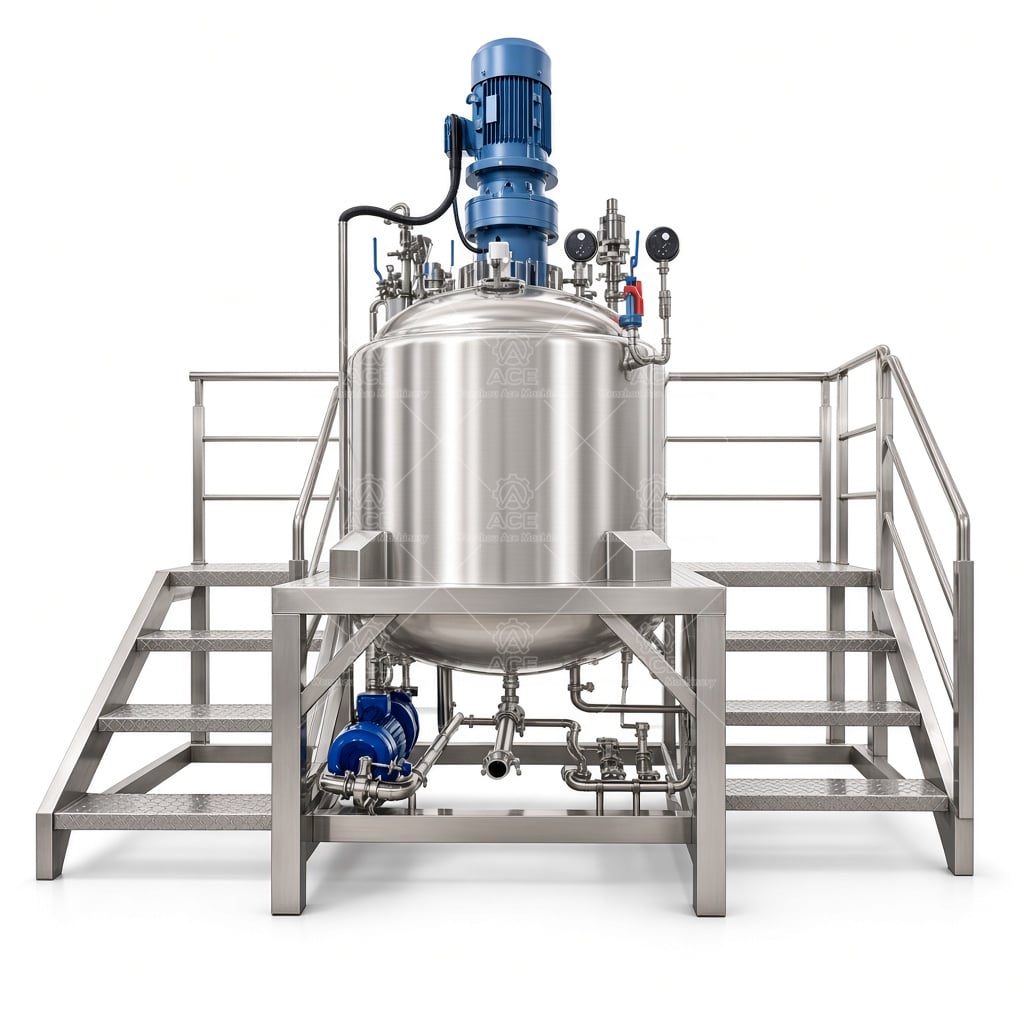

Vacuum Emulsifier Homogenizer for Lipstick and Cream Production

This vacuum emulsifier homogenizer is configurable for lipstick bases, creams, and other cosmetic batches that require controlled heating, mixing, or deaeration. Vessel capacity, stainless steel grade, agitation, homogenizer, seals, vacuum system, and controls are selected around the formulation and production process. Share batch size, viscosity, temperature range, cleaning method, and plant utilities to support an accurate equipment recommendation.

Capacity: 50 liters to 30,000 liters
Mixer power: 1.5 kW to 55 kW
Material: 304 or 316L
Voltage: 110V to 600V
Heating method: Electric or steam heating
Layer:single/double jacket/three jacket
Mixer types: Impeller-type, Anchor-type, Turbine-type, High-shear-type, Magnetic mixer, Anchor-type mixer with scrapers,dispersing
Optional: platform, wheels, ladder,variable frequency drive,explosion-proof device
Certificates: ASME, CE, GMP, UL, ATEX, ISO 9001
Our equipment supports customisation, global delivery, and a 1-year warranty.
If you have drawings, we can process them for you.

Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909

Price range: $8,777.22 through $9,855.06

Ask For A Quotation

Guaranteed Safe Checkout

Vacuum Mixing for Lipstick and Cream Batches

Lipstick bases and creams can be difficult to process consistently. Waxes must melt without scorching, powders need to disperse without persistent lumps, and air entrained during mixing can affect filling and appearance. We configure this vacuum emulsifier homogenizer around the product recipe, batch size, and required cleaning method rather than assuming one agitator or rotor speed will suit every formulation.

The vessel may use a jacket for heating or cooling, with the heat-transfer method and temperature-control arrangement selected for the required process range and plant utilities. Anchor or scraper-style agitation can help move viscous material along the vessel wall; a high-shear homogenizer is specified when the formulation needs finer dispersion or emulsification. Motor and reducer sizing depend on viscosity, batch volume, temperature, and the point in the process when the product is thickest. Vacuum level and cycle requirements should also be defined against the recipe and downstream filling needs.

Construction and Configuration

Product-contact parts are commonly specified in stainless steel, with grade selected according to ingredients, cleaning chemicals, and applicable plant requirements. Welds in wetted areas should be finished to support cleanability, and the internal surface finish should be agreed during design review. Seal materials require compatibility checks with oils, solvents, fragrance components, and wash conditions. These details matter: a finish or seal suitable for one cream may not be appropriate for a wax-rich lipstick batch.

We review vessel geometry, access for charging solid ingredients, discharge arrangement, and cleanout access before finalizing the layout. Controls can be configured to suit the operator’s process sequence and facility requirements. For production with frequent color changes, cleaning access and batch transfer can be as important as nominal mixing capacity.

Technical Specification Guide

Parameter	Configuration basis
Working capacity	Set from batch size, headspace, and mixing behavior
Contact materials	Stainless steel grade selected for product and cleaning conditions
Heating and cooling	Jacket or other agreed method, subject to utility availability
Agitation and homogenizer	Selected for viscosity, dispersion needs, and process sequence
Vacuum system	Specified according to deaeration requirements
Controls and seals	Configured for site standards and product compatibility

Applications and FAQs

Typical applications include lipstick and balm bases, emulsified creams, and other cosmetic products requiring controlled heating, mixing, or deaeration.

Can one machine handle both lipstick and cream?
Potentially, but the formulations, cleaning changeover, agitator design, and temperature needs must be reviewed together.

What should we send for a quotation?
Provide batch volume, ingredient and viscosity details, process temperatures, mixing sequence, vacuum needs, cleaning method, available utilities, and site electrical requirements. These details let our engineers recommend a configuration without guessing at critical operating conditions.
