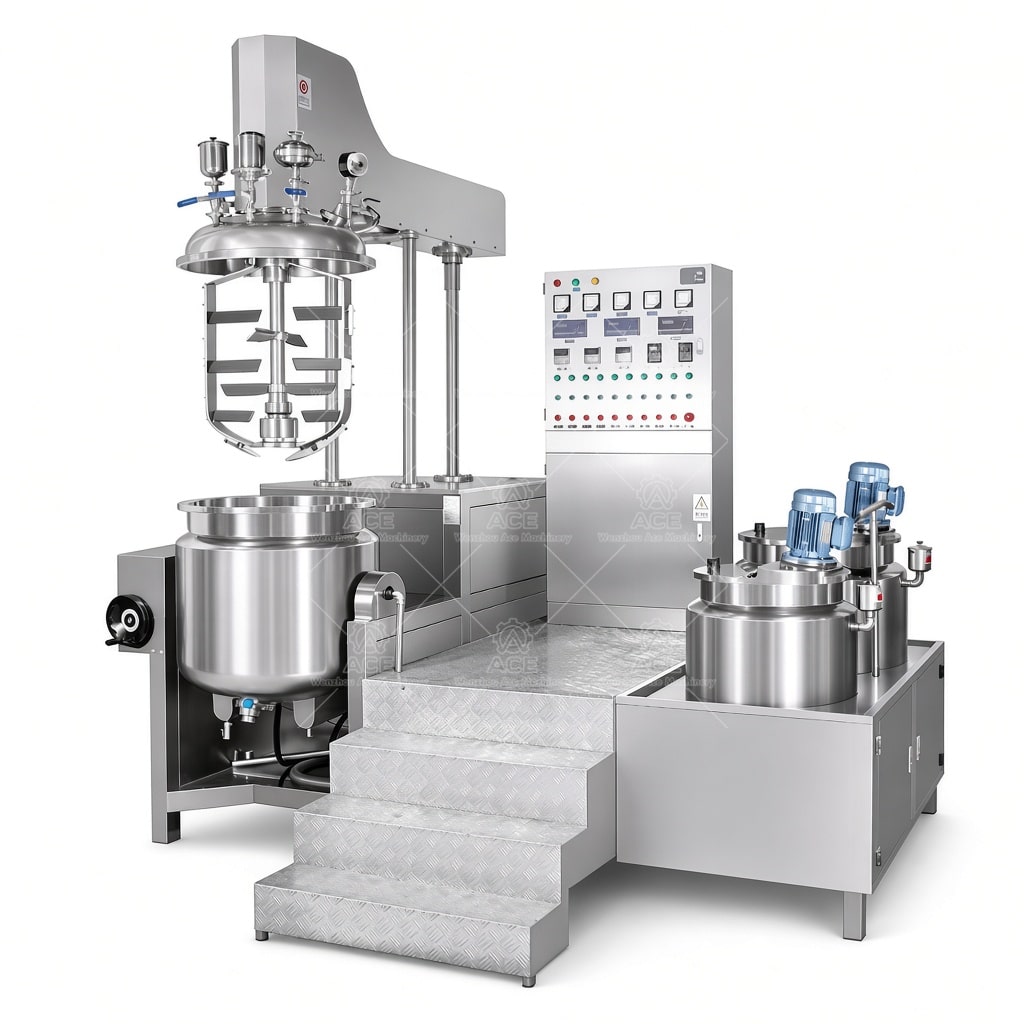

Vacuum Homogenizer Mixer for Cream, Lotion, Shampoo & Mayonnaise
Vacuum homogenizer mixer configured for viscous products such as cosmetic creams, lotions, shampoos, and mayonnaise. Vessel material, agitator, homogenizing head, heating or cooling, seals, and vacuum arrangement are selected around the recipe, batch size, cleaning method, and site utilities. Share process details to define a suitable configuration.
- Capacity: 50 liters to 30,000 liters
- Mixer power: 1.5 kW to 55 kW
- Material: 304 or 316L
- Voltage: 110V to 600V
- Heating method: Electric or steam heating
- Layer:single/double jacket/three jacket
- Mixer types: Impeller-type, Anchor-type, Turbine-type, High-shear-type, Magnetic mixer, Anchor-type mixer with scrapers,dispersing
- Optional: platform, wheels, ladder,variable frequency drive,explosion-proof device
- Certificates: ASME, CE, GMP, UL, ATEX, ISO 9001
- Our equipment supports customisation, global delivery, and a 1-year warranty.
- If you have drawings, we can process them for you.
Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909
$9,460.83 – $10,560.18Price range: $9,460.83 through $10,560.18
Guaranteed Safe Checkout

Recommend RPM: 0-960RPM
Viscosity: Low/medium viscosity
Application: Mainly Liquid mixing

Recommend RPM: 0-200RPM
Viscosity: Low/medium viscosity
Application: Mainly Liquid mixing

Recommend RPM: 30RPM
Viscosity: Medium/High viscosity
Application: Melting, High viscosity product mixing, For single wall tank

Recommend RPM: 30RPM
Viscosity: Medium/High viscosity
Application: Melting, High viscosity product mixing, For jacket tank

Recommend RPM: 1480/2850 RPM
Viscosity: Low/medium viscosity
Application: Liquid powder mixing and dispersion

Recommend RPM: 2800 - 3200 RPM
Viscosity: Low/medium/High viscosity
Application: Liquid powder mixing and homogenizing

Recommend RPM: 0-355RPM
Viscosity: Low/medium viscosity
Application: Install at bottom, No mechanical seal working condition

Recommend RPM: As above
Viscosity: Low/medium viscosity
Application: Liquid powder mixing and dispersion For tank volume >300L
Vacuum Mixing for Viscous Products
This vacuum emulsifying mixer is configured for batches that need controlled blending, dispersion, or emulsification, including cosmetic creams, lotions, shampoos, and mayonnaise. Product behavior matters more than the name on the recipe: oil-to-water ratio, viscosity, batch size, powder additions, and target texture all affect the vessel and mixing arrangement. Vacuum processing can help limit air entrainment, but the required vacuum level and operating sequence depend on the formulation.
Construction and Process Options
We select wetted materials according to the product and cleaning regime. 304 stainless steel may suit some applications; 316L is often specified where formulation chemistry, food contact requirements, or cleaning agents call for greater corrosion resistance. Weld quality, drainability, internal surface finish, and seal compatibility should be agreed during design review. The specified polish and any sanitary fittings should match the actual process and inspection requirements rather than being chosen by default.
Heating or cooling can be arranged through a jacket or another process-specific method. Temperature range, heating medium, batch size, and heat-sensitive ingredients determine the control approach. The drive system and agitator are likewise selected around viscosity and flow behavior. A wall-sweeping agitator can help move material near the vessel surface; a high-speed homogenizing head supports dispersion, but its size, location, and operating speed need to suit the batch. Excessive shear or an unsuitable sequence can affect texture, introduce heat, or make discharge difficult.
Specification Guide
| Item | Design basis |
|---|---|
| Working capacity | Set from batch size, headspace, and operating volume |
| Wetted material | 304 or 316L, subject to product and cleaning needs |
| Mixing system | Agitator and homogenizer selected for viscosity and process |
| Temperature control | Heating/cooling method and range confirmed for the recipe |
| Vacuum, motor, seals | Specified after process, utility, and site review |
FAQ
Can one setup handle both cosmetics and food? Potentially, but contact materials, seals, cleaning procedures, and applicable site requirements must be reviewed for each use.
What should be included in a quotation request? Send batch volume, ingredient sequence, viscosity or a representative sample, target temperature, mixing time, cleaning method, available utilities, and required output or discharge arrangement. These details let our engineers recommend a buildable configuration rather than guess at a standard machine.
