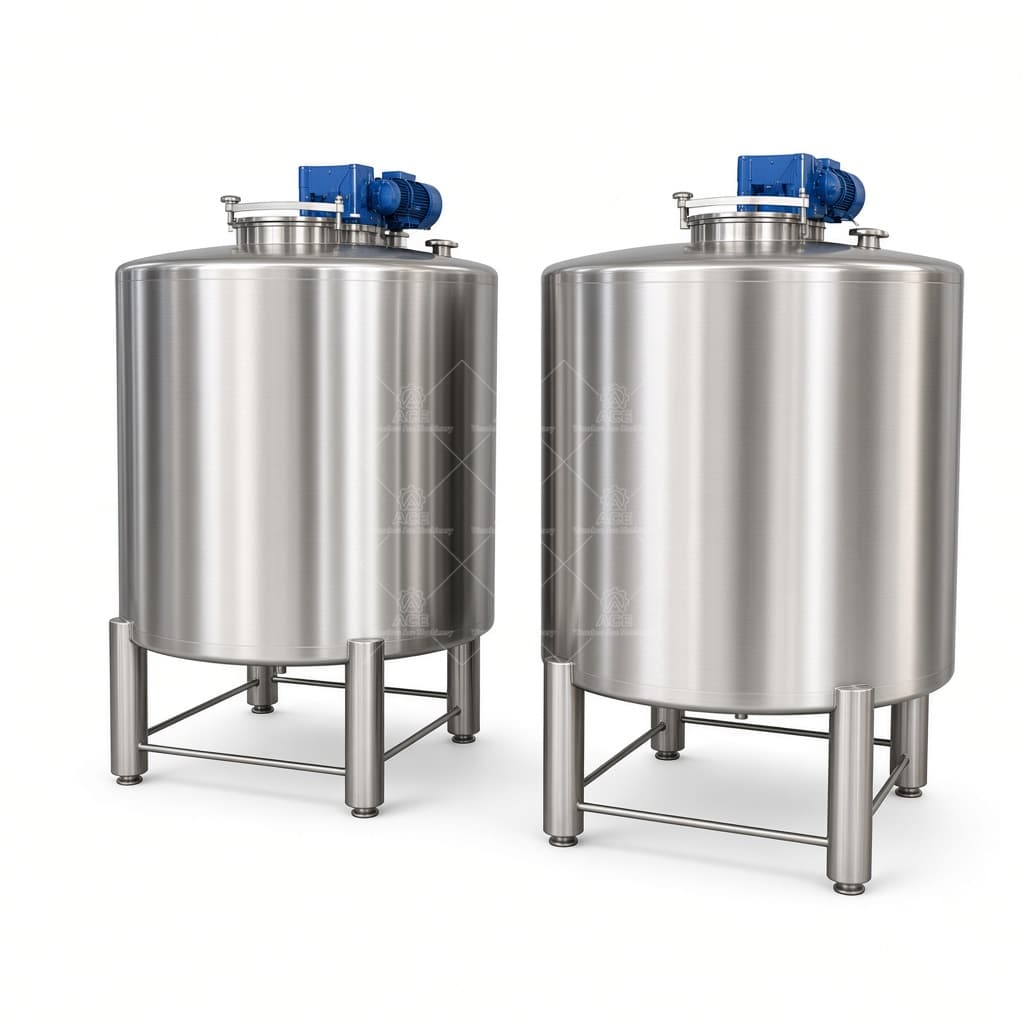

Twin 500L Cosmetic Mixing Tanks for Lotion Cream Shampoo and Liquid Soap

This twin-vessel mixing system is listed with two 500 L tanks for body lotion, cream, shampoo, and liquid soap production. Final vessel capacity, agitator style, drive, materials, surface finish, heating, and controls should be matched to the formulation and batch process. Share viscosity, batch size, temperature requirements, and cleaning method to define a suitable configuration.

Capacity: 50 liters to 30,000 liters
Mixer power: 1.5 kW to 55 kW
Material: 304 or 316L
Voltage: 110V to 600V
Heating method: Electric or steam heating
Layer:single/double jacket/three jacket
Mixer types: Impeller-type, Anchor-type, Turbine-type, High-shear-type, Magnetic mixer, Anchor-type mixer with scrapers,dispersing
Optional: platform, wheels, ladder,variable frequency drive,explosion-proof device
Certificates: ASME, CE, GMP, UL, ATEX, ISO 9001
Our equipment supports customisation, global delivery, and a 1-year warranty.
If you have drawings, we can process them for you.

Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909

Price range: $2,987.46 through $3,566.43

Ask For A Quotation

Guaranteed Safe Checkout

Process configuration for two 500 L vessels

This equipment is listed as a two-tank, 500 L configuration for manufacturing body lotion, cream, shampoo, and liquid soap. Before sizing the system, confirm whether 500 L refers to nominal vessel volume or usable batch volume. Foam allowance, headspace, transfer losses, and the minimum working level all affect the amount a vessel can reliably process.

We configure the mixing system around the product’s viscosity and process sequence. A low-viscosity shampoo may need a different impeller and circulation pattern than a thick cream or lotion. The motor, reducer, shaft, and agitator style should be selected against batch size, viscosity over the full process, required mixing time, and any powder incorporation. High-shear mixing can help with dispersion or emulsification, but it adds heat and may entrain air; it should be specified only when the formulation requires it.

Materials and fabrication

Product-contact surfaces are commonly specified in stainless steel, with 304 or 316L selected according to formulation chemistry, cleaning agents, and corrosion risk. Weld finishing, internal polish, drainability, and gasket compatibility matter in daily production: a surface that is difficult to clean can become a recurring changeover problem. The required finish, inspection criteria, seal materials, and any sanitary fittings should be agreed during design review. Vessel construction and external finish can be matched to the installation environment.

Heating is not confirmed in the source specification. If the process needs temperature control, the heating method and control range must be established from the formulation, batch cycle, and utility availability. Jacket type, heating medium, sensor location, and cooling requirements affect both temperature uniformity and cycle time.

Configuration details to confirm

Item	Current information
Vessel arrangement	Two vessels listed at 500 L each; confirm nominal versus working capacity
Products	Body lotion, cream, shampoo, and liquid soap
Agitator and drive	To be selected for viscosity, batch conditions, and mixing duty
Materials, finish, heating, controls	Confirm against formulation and plant requirements

Frequently asked questions

Can one configuration handle both shampoo and cream? Possibly, but viscosity range, shear needs, and cleaning requirements determine whether a shared setup is practical.

What information supports an accurate quotation? Provide batch size, ingredient viscosity, process temperatures, mixing sequence, cleaning method, available utilities, and site electrical requirements.

To identify the right configuration, send representative product data and clarify whether both vessels run independently or as part of a shared process. Those details let our engineers recommend the drive, agitator, materials, and optional heating without guessing at critical specifications.
