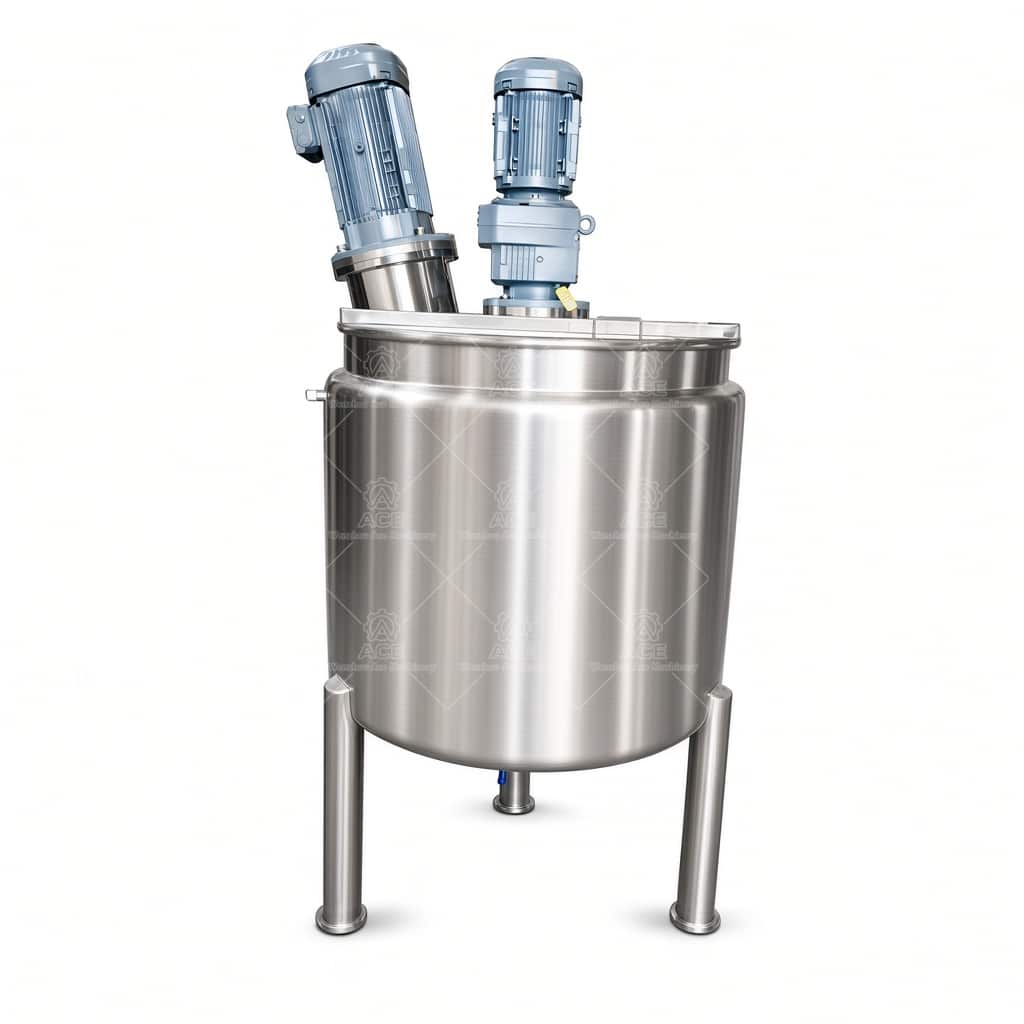

Tomato Paste Mixing and Storage Tank with Agitator - Image 1

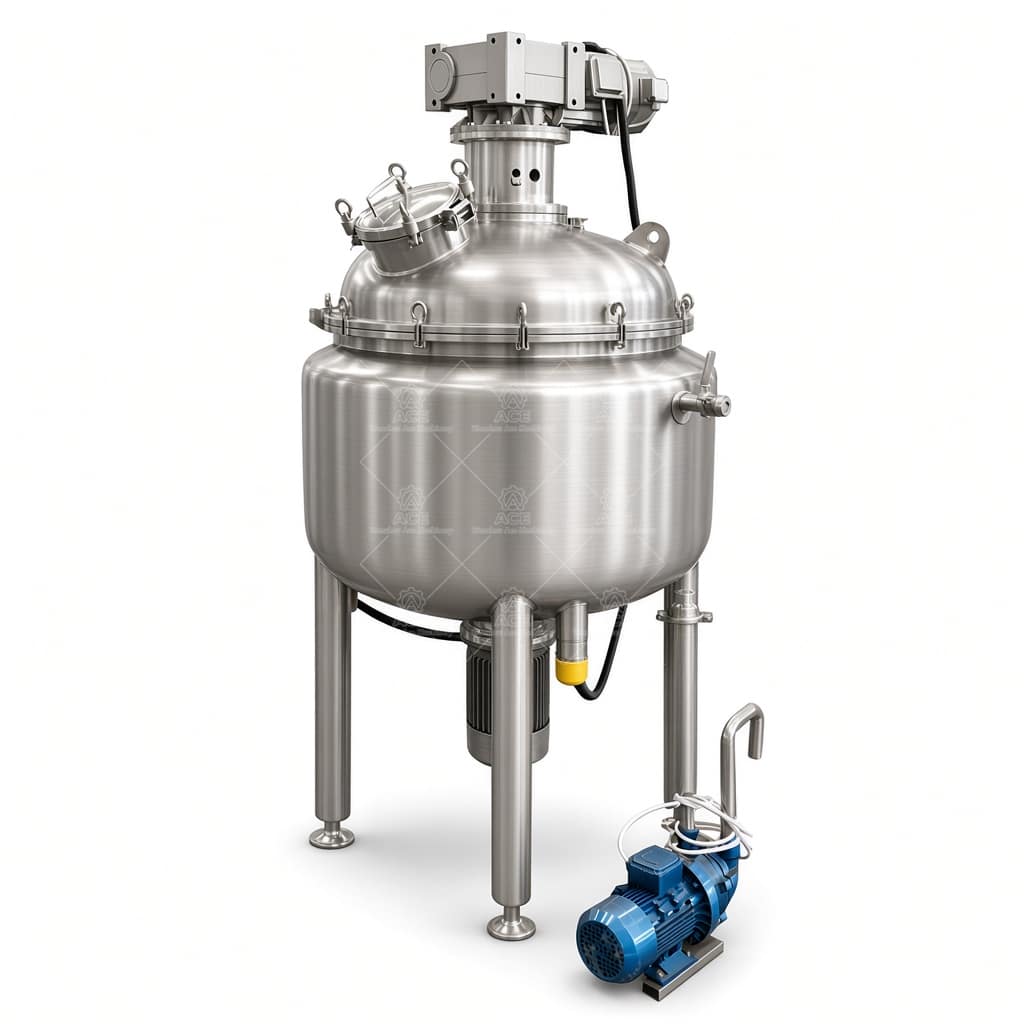

Tomato Paste Mixing and Storage Tank with Agitator - Image 2

Click to enlarge

Tomato Paste Mixing and Storage Tank with Agitator

This agitated storage tank is configured around tomato paste viscosity, batch volume, holding time, and transfer requirements. Agitator style, drive torque, stainless steel grade, internal finish, seals, and optional heating are determined from the recipe and cleaning process. Share your operating conditions and layout constraints so our engineers can recommend a practical tank configuration.

Capacity: 50 liters to 30,000 liters
Mixer power: 1.5 kW to 55 kW
Material: 304 or 316L
Voltage: 110V to 600V
Heating method: Electric or steam heating
Layer:single/double jacket/three jacket
Mixer types: Impeller-type, Anchor-type, Turbine-type, High-shear-type, Magnetic mixer, Anchor-type mixer with scrapers,dispersing
Optional: platform, wheels, ladder,variable frequency drive,explosion-proof device
Certificates: ASME, CE, GMP, UL, ATEX, ISO 9001
Our equipment supports customisation, global delivery, and a 1-year warranty.
If you have drawings, we can process them for you.

Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909

Price range: $2,111.18 through $2,528.35

Ask For A Quotation

Guaranteed Safe Checkout

Agitated storage for viscous tomato paste

Tomato paste can settle, form temperature gradients, or become difficult to discharge after a production hold. We configure this tank around the paste’s solids content, batch size, transfer method, and required holding time. The agitator keeps the product moving during storage or blending; it is not a substitute for a pump or a process system designed to break down large lumps.

Tank geometry and impeller selection depend on viscosity and operating conditions. A slow-speed anchor or sweep-style agitator may suit high-viscosity paste and help move product near the vessel wall. Other impeller designs may be more appropriate when the paste is diluted or blended with liquid ingredients. Motor and gearbox sizing should account for startup torque, fill level, product temperature, and the possibility of a cold, more resistant batch. We confirm these details before specifying the drive.

Materials and fabrication

Product-contact stainless steel is commonly selected as 304 or 316, subject to the recipe, cleaning chemicals, and chloride exposure. The correct grade should be confirmed against the actual process rather than assumed from the product name. Welds in contact areas should be continuous and finished to suit the required sanitation and cleanability. Internal polishing level, drainability, and the presence of crevices matter; a polished surface alone does not compensate for poor geometry.

Seal selection depends on temperature, cleaning procedure, and product contact requirements. If heating is needed to maintain a pumpable paste, a jacket or another heat-transfer arrangement can be evaluated. Heating surface, temperature control, and insulation depend on the required temperature range and allowable product exposure. Excessive local heat can affect product quality, so the control approach should be reviewed with the process team.

Configuration details

Item	Engineering basis
Capacity and dimensions	Batch volume, working fill, headspace, and installation limits
Agitator	Paste viscosity, solids, mixing duty, and discharge needs
Drive	Required torque, speed, duty cycle, and site power
Materials and finish	Recipe, cleaning chemistry, and sanitation requirements
Heating and controls	Specified only when process temperature management is required

Food processors use agitated tanks to hold paste between cooking and filling, blend ingredients, or maintain consistency before transfer. Similar duties occur in sauce and prepared-food production. Cleaning access, agitator removal, bottom outlet location, and connection sizes should be settled early; these details can affect both hygiene and line layout.

Frequently asked questions

Can one agitator handle every tomato paste? No. Solids content, temperature, batch depth, and target circulation affect the required impeller and drive.

Is heating included? Not by default. We assess heating needs, control accuracy, and product temperature limits from the process brief.

What should we send for a quotation? Provide batch and working volumes, paste characteristics, operating and cleaning temperatures, cleaning method, desired transfer rate, available utilities, and site dimensions. These inputs let our engineers recommend a tank configuration without guessing at critical duty conditions.
