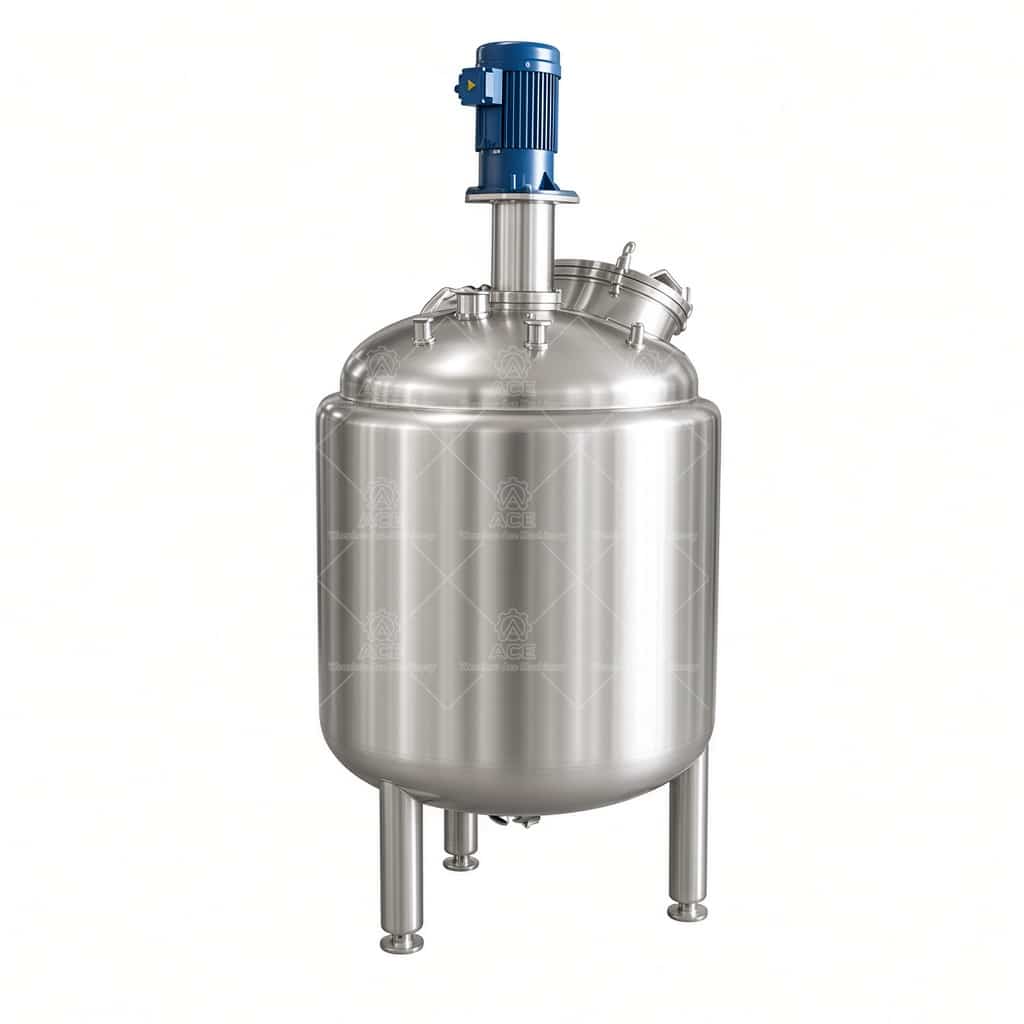

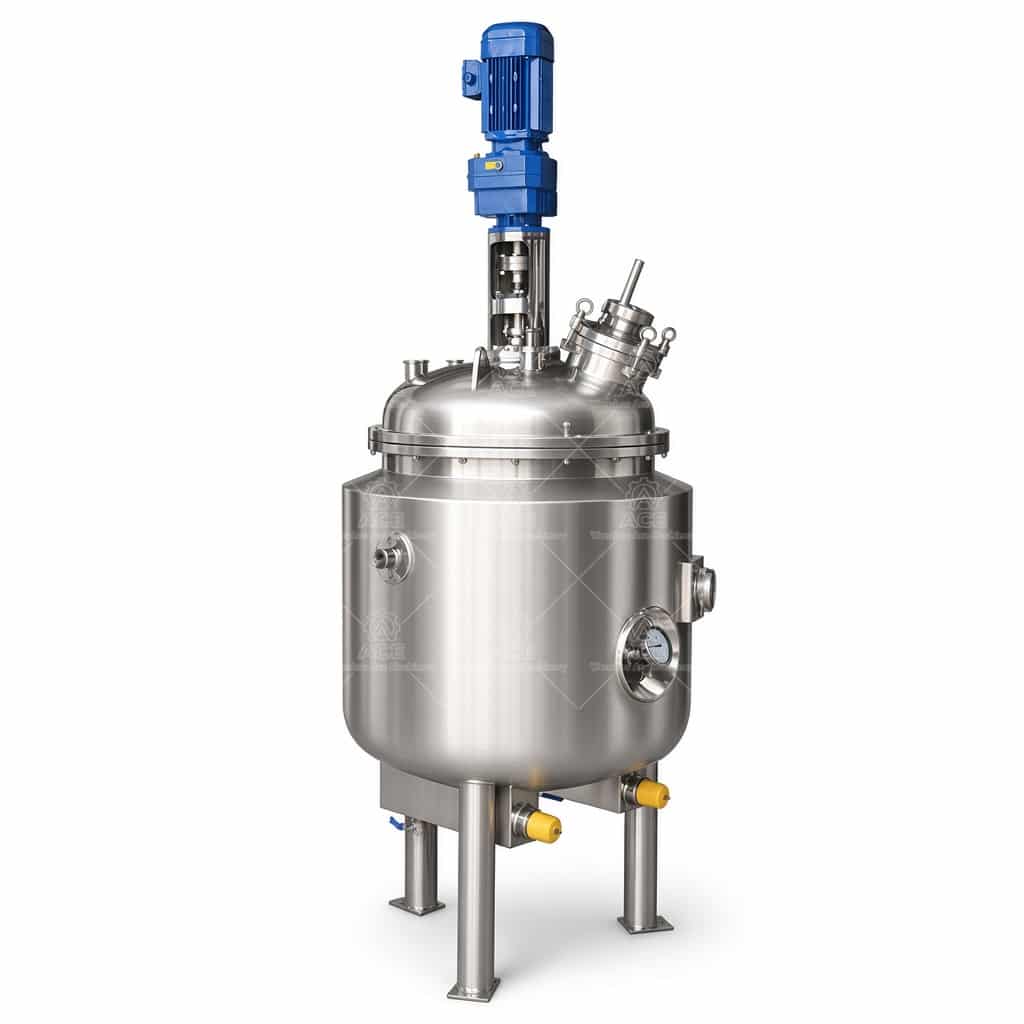

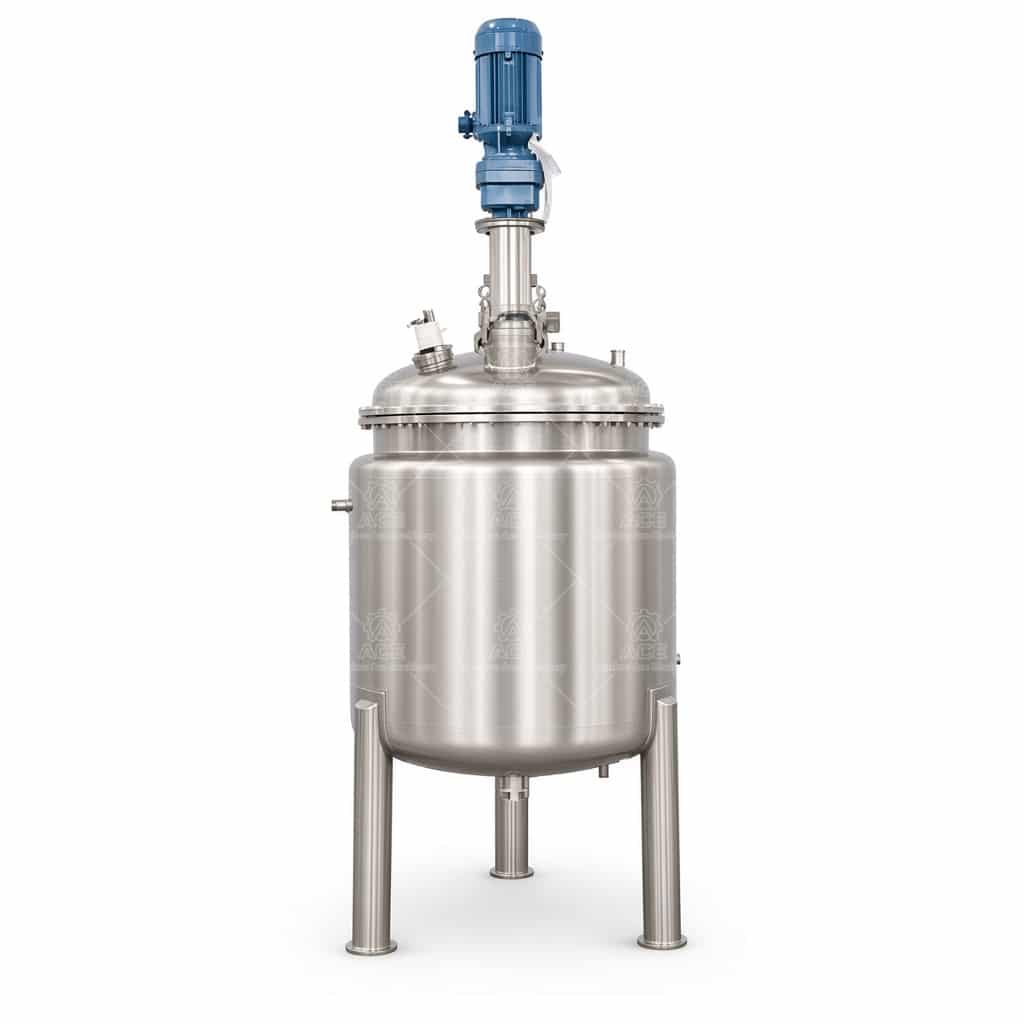

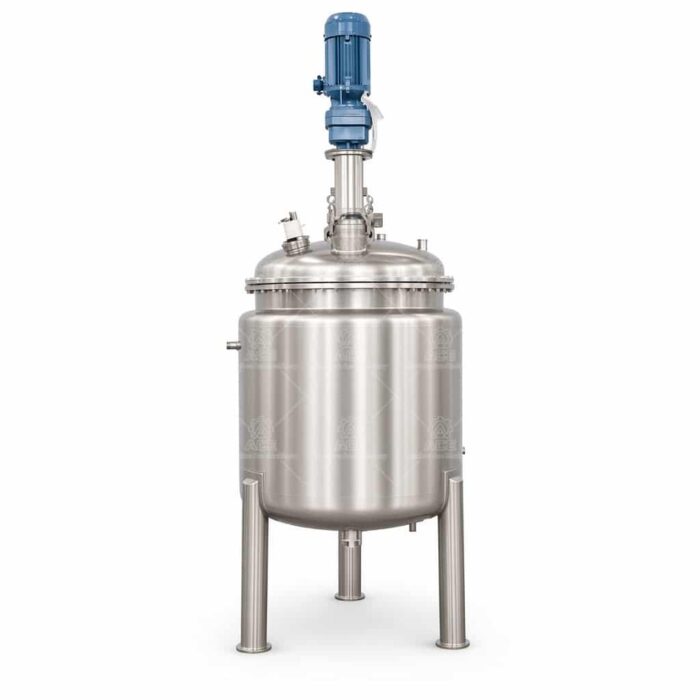

SUS316 Jacketed Vacuum Chemical Reactor Kettle for Laboratory Melting & Heating

SUS316 jacketed vacuum reactor for laboratory melting and heating. Full vacuum rating, customizable agitator, and precise temperature control for chemical, pharmaceutical, and cosmetic processes.

Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:[email protected]
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909

Price range: $3,525.69 through $4,542.85

Ask For A Quotation​

Guaranteed Safe Checkout

Optional agitator
Propeller mixer

Recommend RPM: 0-960RPM
Viscosity: Low/medium viscosity
Application: Mainly Liquid mixing

Paddle mixer

Recommend RPM: 0-200RPM
Viscosity: Low/medium viscosity
Application: Mainly Liquid mixing

Anchor Agitator

Recommend RPM: 30RPM
Viscosity: Medium/High viscosity
Application: Melting, High viscosity product mixing, For single wall tank

Scraper agitator

Recommend RPM: 30RPM
Viscosity: Medium/High viscosity
Application: Melting, High viscosity product mixing, For jacket tank

Dispersion mixer

Recommend RPM: 1480/2850 RPM
Viscosity: Low/medium viscosity
Application: Liquid powder mixing and dispersion

Homogenizer

Recommend RPM: 2800 - 3200 RPM
Viscosity: Low/medium/High viscosity
Application: Liquid powder mixing and homogenizing

Magnetic mixer
Magnetic mixer

Recommend RPM: 0-355RPM
Viscosity: Low/medium viscosity
Application: Install at bottom, No mechanical seal working condition

Anchor & Homogenizer combine

Recommend RPM: As above
Viscosity: Low/medium viscosity
Application: Liquid powder mixing and dispersion For tank volume >300L

Product description

This jacketed reactor is built for labs and pilot plants that need reliable vacuum operation and precise temperature control. We fabricate the vessel from SUS316 stainless steel, which handles a wider range of chemicals and chloride exposure than 304. The full vacuum rating means you can pull negative pressure without worrying about collapse or seal failure.

The jacket is designed for both heating and cooling. You can run hot oil, steam, or cold water through it depending on your process. For melting applications, the large heat transfer surface ensures even warming, so you don\’t get hot spots that degrade heat-sensitive materials. The kettle is welded with full penetration and then polished to a smooth finish on all wetted surfaces. This reduces product sticking and makes cleaning between batches much easier.

We pay close attention to the shaft seal and stirring system because that is where most lab reactors develop problems. Depending on your setup, we can fit a mechanical seal or a magnetic drive for zero-leak operation under vacuum. The agitator can be anchor-style, paddle, or turbine type, matched to your viscosity and mixing requirements.

This reactor suits chemical synthesis, pharmaceutical intermediate processing, cosmetic batch production, and food ingredient melting. It also handles resin and adhesive development where consistent heating and vacuum de-airing are required.

Technical Specifications

  • Material: SUS316 stainless steel
  • Jacket: Heating and cooling capable
  • Design Temperature: Consult factory for range
  • Working Pressure: Full vacuum to low pressure
  • Stirring: Customizable agitator types
  • Sealing: Mechanical seal or magnetic drive
  • Surface Finish: Mirror polish on wetted parts

Common Questions

Can this reactor handle solvents? Yes, but the specific solvent and concentration affect seal selection. Send us your chemical list.

What is the maximum operating temperature? It depends on the jacket media and gasket material. We can extend the range with special seals.

How do I clean it between batches? The polished interior and removable agitator make manual cleaning straightforward. CIP options are available if needed.

Before requesting a quote, gather these details: your material composition, batch volume, working temperature, pressure requirements, and how viscous the product is. Also note whether you need heating only or both heating and cooling. With that information, we can recommend the right vessel geometry, agitator, and seal arrangement for your specific process. Send us your process parameters and we will get back with a configuration and pricing.
