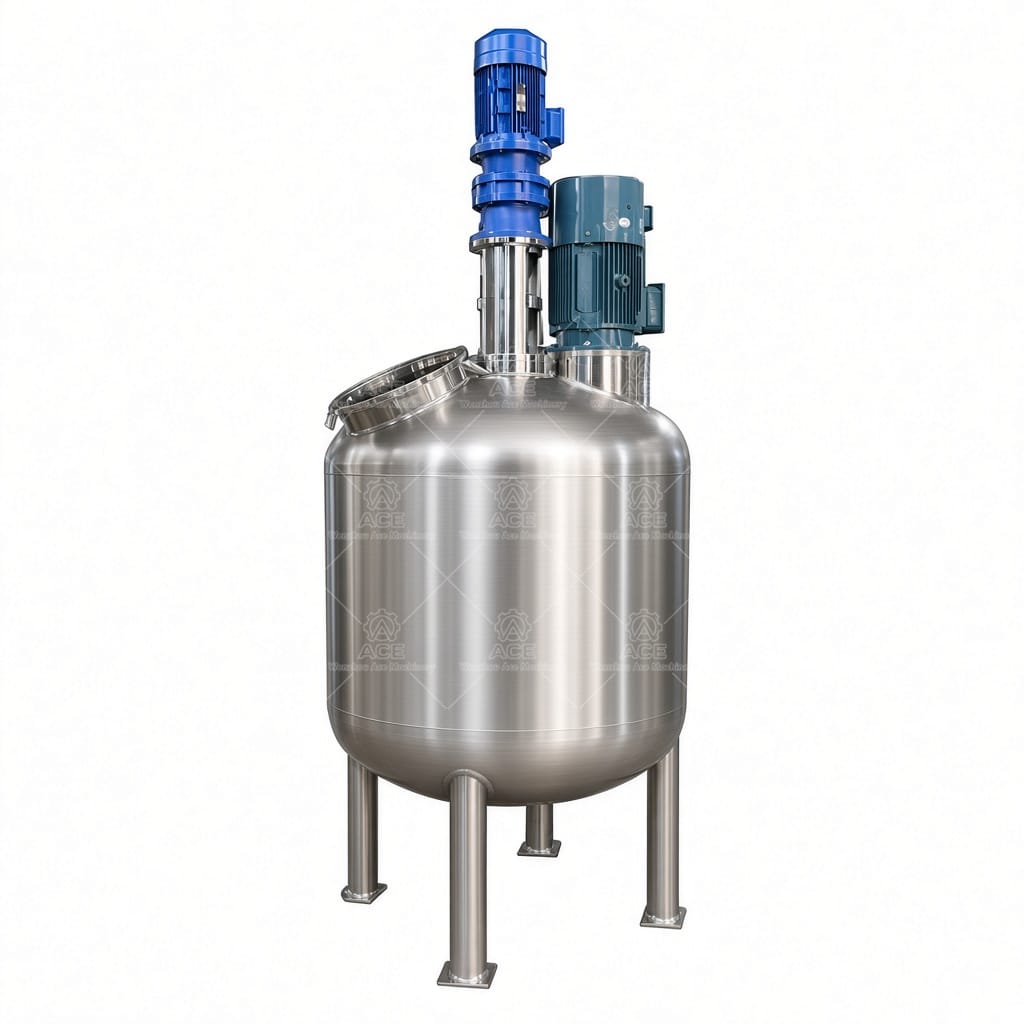

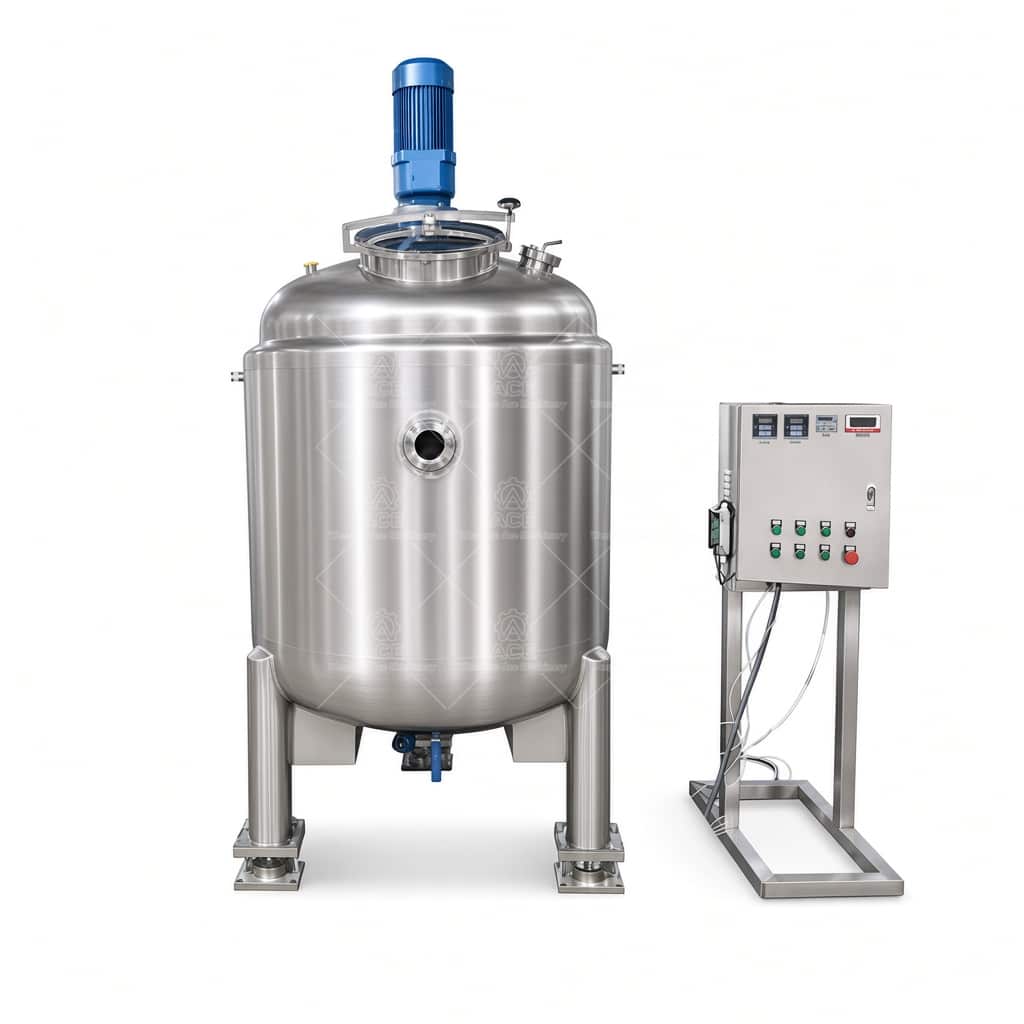

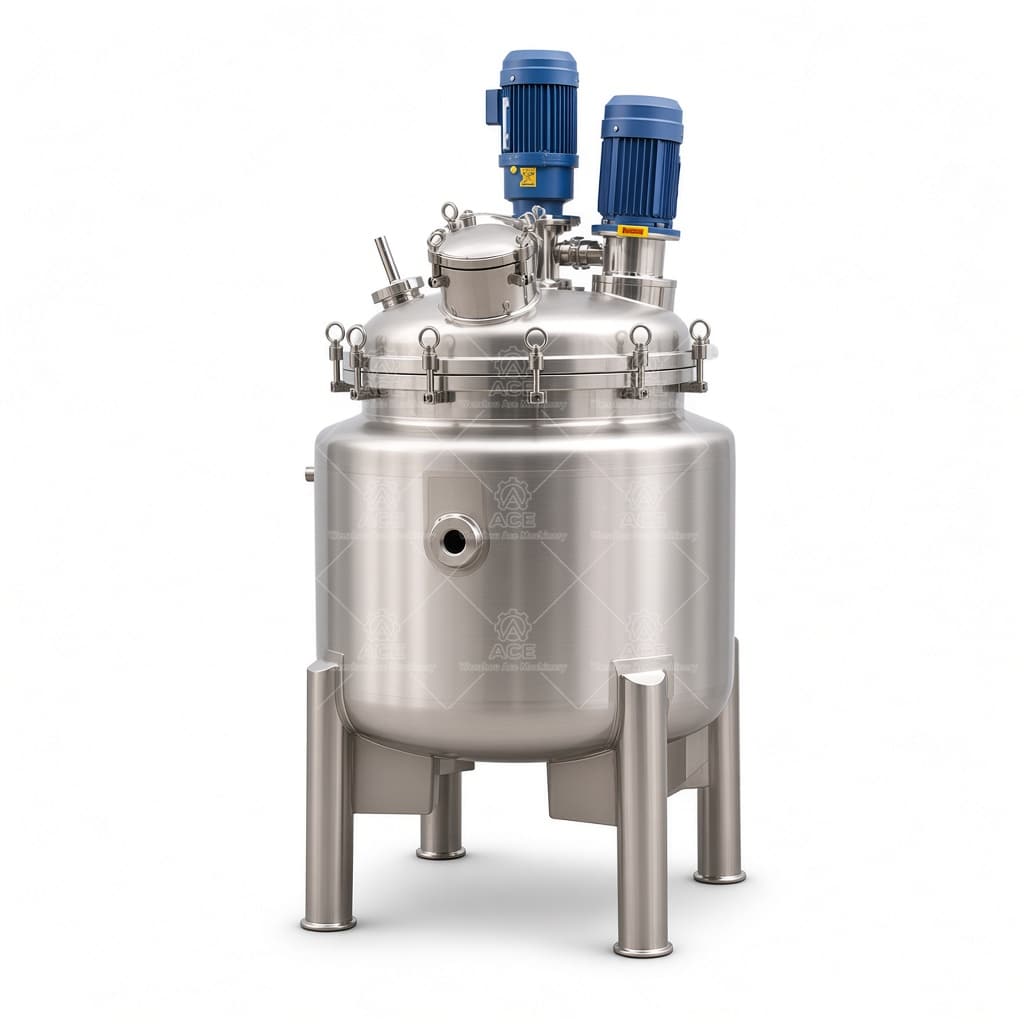

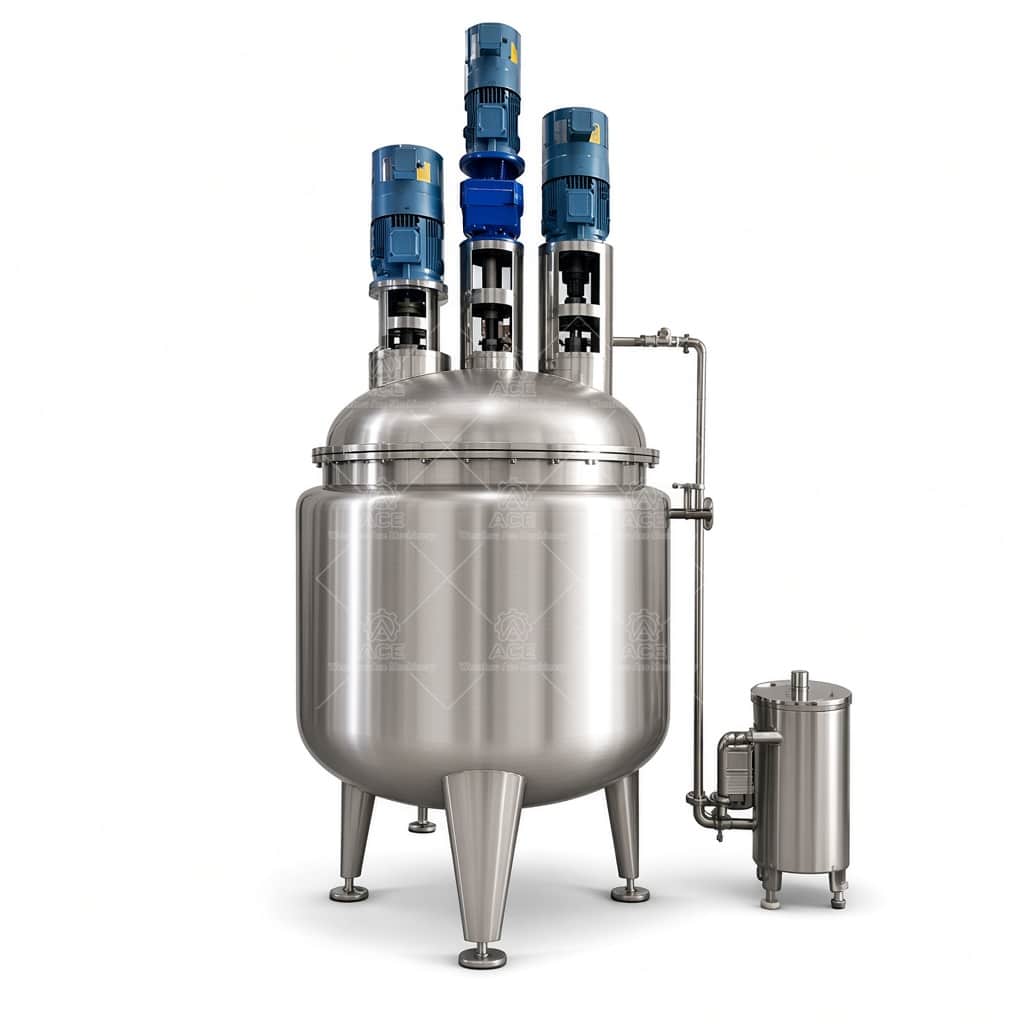

Stainless Steel Fermentation Tank with Agitator for Wine, Yogurt & Juice
Stainless steel fermenter tank with top-mounted agitator for wine, yogurt, and juice production. Custom capacities, heating/cooling jackets, and sanitary mirror-polish interior available.
- Capacity: 50 liters to 30,000 liters
- Mixer power: 1.5 kW to 55 kW
- Material: [SUS304 / SUS316L]
- Voltage: 110V / 220V / 380V / 400V / 440V / 480V / 600V
- Heating method: [Electric / Steam / Thermal Oil / Hot Water / No Heating]
- Cooling method: [Cooling Jacket / Dimple Jacket / Coil / No Cooling]
- Agitation system: [Top Entry Agitator / Anchor Mixer / Paddle / Turbine / High-Shear Mixer / Customized]
- Optional features: [Insulation / Load Cells / Temperature Sensor / Pressure Gauge / Manhole / CIP / PLC Control / Explosion-Proof Motor]
- Certificates: ASME, CE, GMP, UL, ATEX, ISO 9001
- Working pressure: [Atmospheric / Positive Pressure / Vacuum / Specify pressure]
- If you have drawings, we can process them for you.
Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909
$3,761.33 – $4,735.51Price range: $3,761.33 through $4,735.51
Guaranteed Safe Checkout

Recommend RPM: 0-960RPM
Viscosity: Low/medium viscosity
Application: Mainly Liquid mixing

Recommend RPM: 0-200RPM
Viscosity: Low/medium viscosity
Application: Mainly Liquid mixing

Recommend RPM: 30RPM
Viscosity: Medium/High viscosity
Application: Melting, High viscosity product mixing, For single wall tank

Recommend RPM: 30RPM
Viscosity: Medium/High viscosity
Application: Melting, High viscosity product mixing, For jacket tank

Recommend RPM: 1480/2850 RPM
Viscosity: Low/medium viscosity
Application: Liquid powder mixing and dispersion

Recommend RPM: 2800 - 3200 RPM
Viscosity: Low/medium/High viscosity
Application: Liquid powder mixing and homogenizing

Recommend RPM: 0-355RPM
Viscosity: Low/medium viscosity
Application: Install at bottom, No mechanical seal working condition

Recommend RPM: As above
Viscosity: Low/medium viscosity
Application: Liquid powder mixing and dispersion For tank volume >300L
This fermenter is built for processors who need a reliable vessel for both storage and active fermentation. We manufacture it as a single unit that handles wine must, yogurt cultures, juice batches, and similar liquid products where temperature control and gentle agitation matter.
The tank is constructed from stainless steel with a fully welded interior. No dead corners, no crevices where product can hide. Interior welds are ground flush and polished to a mirror finish, which makes cleaning straightforward and reduces the risk of bacterial buildup between batches. For yogurt or wine production, that surface quality directly affects product consistency.
Agitation is handled by a top-mounted agitator, sized to your specific product viscosity. A wine must with skins requires different torque than a thin juice. We match the impeller type and motor power to your actual process, not to a generic specification sheet. The shaft seal is selected based on whether you run the tank under pressure, vacuum, or atmospheric conditions.
Heating and cooling jackets are configured around your process needs. Some customers need steam heating for pasteurization, others need glycol cooling for fermentation temperature control. We can build the jacket as a full dimple jacket, half-pipe coil, or plain limpet coil depending on heat transfer requirements and available utilities.
Standard operating pressure is atmospheric, but we do build pressurized vessels for specific applications. Design temperature typically ranges from 0°C to 143°C, but confirm your actual process conditions when requesting a quote.
Typical Applications
- Wine fermentation and storage
- Yogurt incubation and cooling
- Juice fermentation and blending
- General liquid storage with agitation
Technical Specifications
| Capacity | Custom (typically 500L – 30,000L) |
|---|---|
| Material | SS304 / SS316L inner tank |
| Inner wall thickness | Per design pressure and capacity |
| Heating | Steam / electric / hot water |
| Cooling | Glycol / chilled water |
| Working pressure | Atmospheric or custom |
| Design temperature | 0°C – 143°C (typical) |
| Agitator | Top-mounted, custom impeller |
| Seal | Mechanical seal or packing |
| Finish | Mirror polish interior, satin exterior |
Buyer\’s Checklist
Before requesting a quote, define these parameters:
- Product type and chemical composition
- Batch volume and working volume
- Operating and design temperature
- Pressure requirements (atmospheric, pressurized, vacuum)
- Viscosity and solids content
- Heating/cooling requirements
- Mixing intensity needed
- Cleaning and compliance standards (e.g., FDA, 3A)
These details determine the tank construction, agitator sizing, jacket type, and seal selection. Submit your process requirements — material, batch size, temperature, pressure, and agitation needs — and we will configure the appropriate vessel with a quotation.
