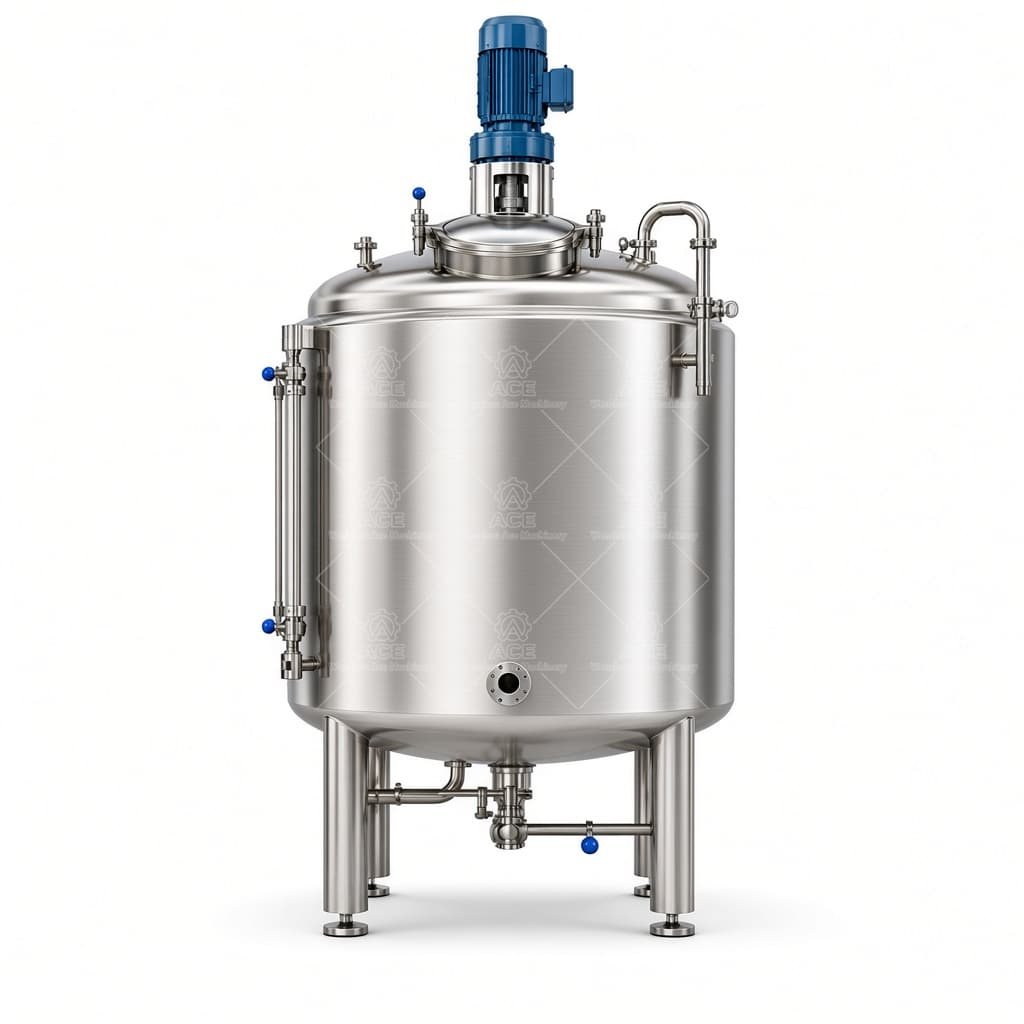

Flanged Jacketed Stainless Steel Mixing Reactor for Adhesive Glue Production - Image 1

Flanged Jacketed Stainless Steel Mixing Reactor for Adhesive Glue Production - Image 2

Click to enlarge

Flanged Jacketed Stainless Steel Mixing Reactor for Adhesive Glue Production

Flanged jacketed stainless steel mixing reactor engineered for adhesive glue production. Features 304/316L construction, optional dimple or half-pipe jacket, mechanical seals, and custom agitation. Built for uniform heat transfer, vacuum or pressure service, and easy cleaning. Request a quote with your batch volume and temperature requirements.

Capacity: 50 liters to 30,000 liters
Mixer power: 1.5 kW to 55 kW
Material: [SUS304 / SUS316L]
Voltage: 110V / 220V / 380V / 400V / 440V / 480V / 600V
Heating method: [Electric / Steam / Thermal Oil / Hot Water / No Heating]
Cooling method: [Cooling Jacket / Dimple Jacket / Coil / No Cooling]
Agitation system: [Top Entry Agitator / Anchor Mixer / Paddle / Turbine / High-Shear Mixer / Customized]
Optional features: [Insulation / Load Cells / Temperature Sensor / Pressure Gauge / Manhole / CIP / PLC Control / Explosion-Proof Motor]
Certificates: ASME, CE, GMP, UL, ATEX, ISO 9001
Working pressure: [Atmospheric / Positive Pressure / Vacuum / Specify pressure]
If you have drawings, we can process them for you.

Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909

Price range: $3,441.79 through $4,407.90

Ask For A Quotation

Guaranteed Safe Checkout

Adhesive production puts real demands on mixing equipment. The batch has to stay at temperature, the agitator has to handle viscosity shifts, and the vessel needs to hold pressure without leaking. This flanged jacketed stainless steel reactor is built for that kind of service.

We fabricate the vessel from 304 or 316L stainless steel, depending on your formulation chemistry. The jacket is dimple or half-pipe type, or a full jacket, selected by your heating and cooling requirements. In adhesive glue processes, you typically need uniform heat transfer to control viscosity and prevent scorching near the wall. The flange design gives you a removable top for cleaning and maintenance, which matters when you switch between adhesive formulas.

Weld seams are fully penetrated and passivated. Interior surfaces can be electropolished to Ra ≤ 0.4 µm if required. The shaft seal is a mechanical seal rated for vacuum or pressure service; we can also fit a double mechanical seal with barrier fluid for solvent-based adhesives.

Agitator choice depends on your material. Low viscosity glue can use a standard anchor or turbine, while high viscosity products benefit from a heavy-duty anchor with scraped wall blades. We match the gearbox and motor to your torque needs, not just the tank size.

Technical Specifications

Attribute	Value
Capacity	Custom from lab to production scale
Material	304 or 316L stainless steel
Jacket	Dimple, half-pipe, or full jacket
Working pressure	As specified by process
Design temperature	As specified by process
Mixing agitation	Anchor, turbine, or scraped-wall
Shaft seal	Single or double mechanical seal
Surface finish	Ra ≤ 0.8 µm standard; electropolish available

Frequently Asked Questions

What stainless steel grade is recommended?

For most adhesives, 316L offers better corrosion resistance with acidic or chloride-containing formulations. 304 is acceptable for neutral water-based systems.

Can this reactor handle vacuum?

Yes. We design the head and flanged joint for full vacuum or internal pressure up to your specified rating. Confirm the working pressure when requesting a quote.

How is the jacket heated?

Common options include steam, hot oil, or water circulation. We size the jacket area and nozzle connections to match your utility supply and required heat-up rate.

What about cleaning?

Manual cleaning via the manway works for many sites, but spray balls or CIP nozzles can be added for automated washdown.
