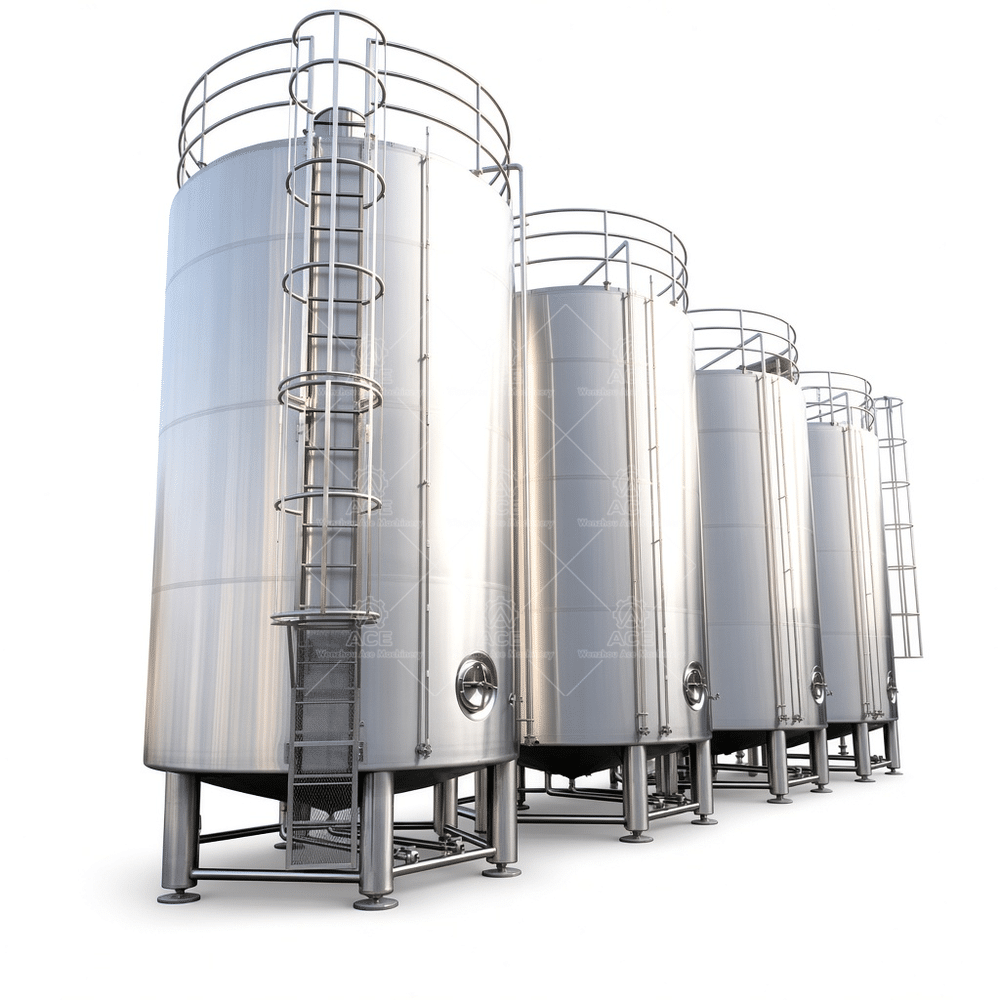

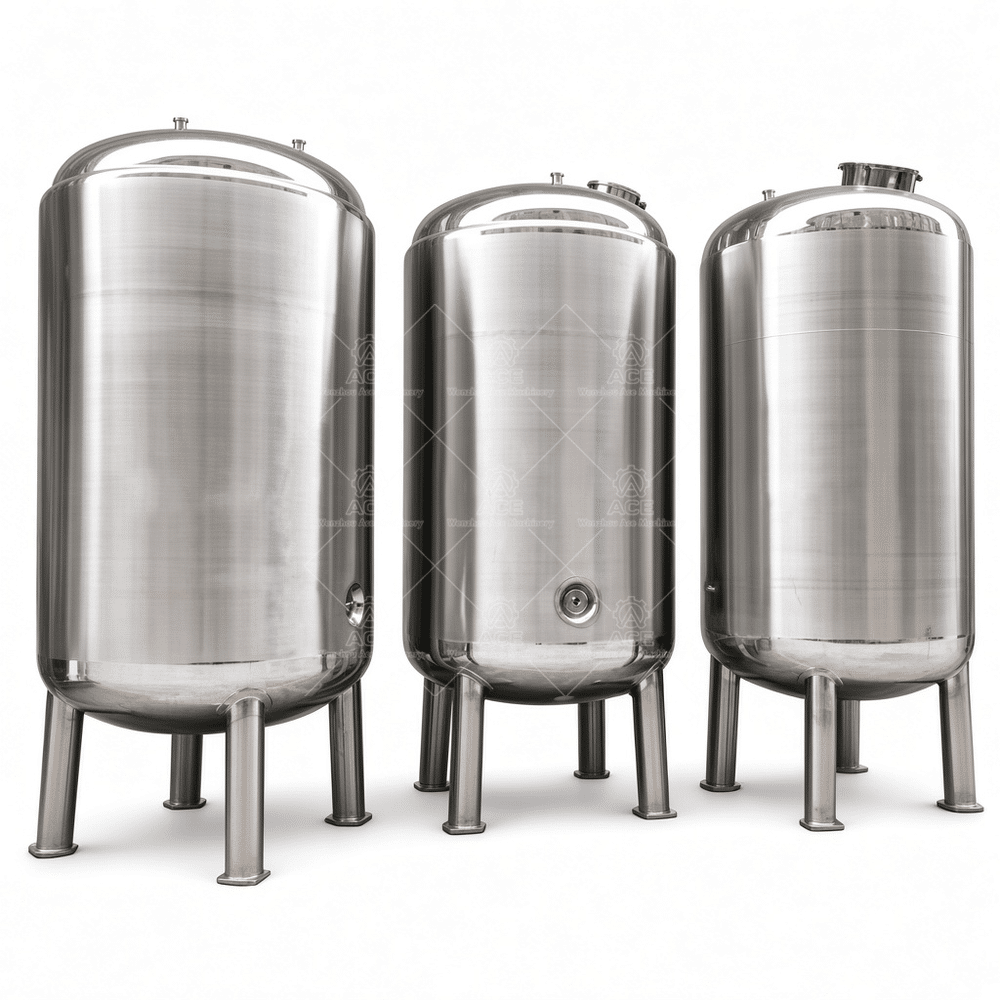

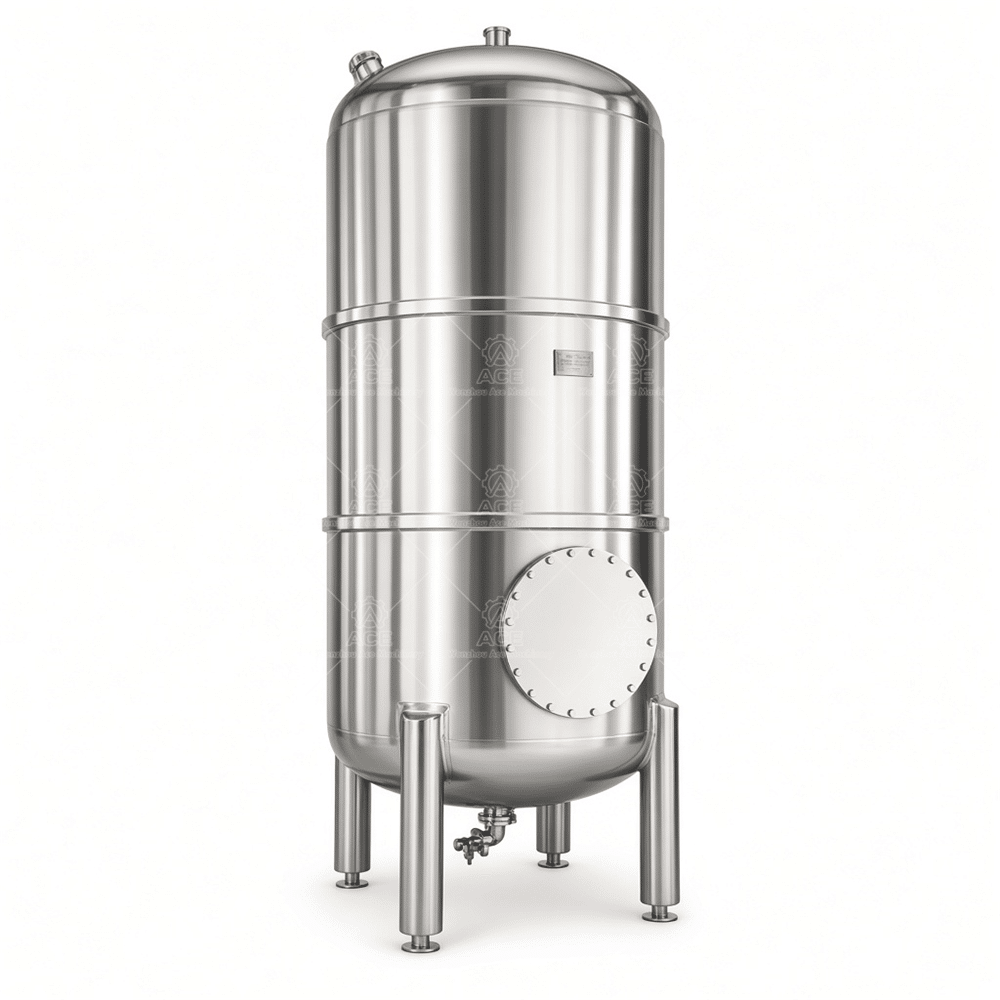

Stainless Steel 304/316L Water Storage Tanks 30000L-50000L with 2-Year Warranty
These 30000L to 50000L stainless steel water storage tanks are built from 304 or 316L grade material, suitable for potable water, food processing, and chemical applications. With a 2-year warranty and customizable connections, they offer reliable bulk storage for industrial facilities.
- Tank Capacity: [50L–100,000L or specify actual capacity]
- Tank Type: [Vertical / Horizontal / Single-wall / Double-wall / Jacketed]
- Material: 304 or 316L
- Optional Features: [Insulation / Heating / Cooling / Agitator / Level Gauge / Manway / CIP Spray Ball / Load Cells / Wheels / Custom Connections]
- Surface Finish: [2B / Brushed / Polished / Mirror Polish]
- If you have drawings, we can process them for you.
Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909
Price range: $2,915.82 through $3,513.85
Guaranteed Safe Checkout
Industrial Water Storage Tanks: 304/316L Stainless Steel, 30,000L to 50,000L
We manufacture these tanks for facilities that need reliable, long-term bulk water storage. The 30,000L and 50,000L capacities are common sizes in food processing, chemical blending, and municipal water systems. We build them from either 304 or 316L stainless steel, depending on the water chemistry and cleaning requirements.
Material selection matters. 304 is suitable for potable water and most neutral liquids. 316L adds molybdenum for better resistance to chlorides and acidic conditions—common when storing treated water or cleaning with chlorine-based sanitizers. We match the grade to your specific environment. No guesswork.
Manufacturing and Construction Details
Tank shells are rolled from single sheets of 304 or 316L, welded with TIG or MIG using filler wire matching the base metal. Internal seams are ground smooth, and external welds are brushed to passivation. We offer two surface finishes: 2B mill finish for general storage, or 400-grit polished for clean-in-place (CIP) systems and food-contact applications.
Standard design includes flat or dished bottom (for full drainage), fixed or open top with bolted manway. Connections are made to your specification—tri-clamp for sanitary lines, flanged for pipeline integration, or threaded for smaller ports. Each tank is hydrostatically tested before shipment.
Typical Applications
- Beverage and dairy plants: CIP water, ingredient mixing
- Chemical processing: dilute acids, caustic solutions (316L)
- Water treatment: RO permeate, backwash holding
- Pharmaceutical intermediates: purified water (with electropolishing option)
Technical Specifications
| Parameter | Value |
|---|---|
| Capacity | 30,000L / 50,000L (custom intermediate sizes available) |
| Material | 304 or 316L stainless steel, Grade 1.4301/1.4404 |
| Wall thickness | 3–6 mm depending on diameter and pressure requirement |
| Surface finish | 2B or 400 grit polish (internal/external) |
| Design pressure | Atmospheric standard; vacuum or pressure options require separate engineering |
| Warranty | 2 years against defects in material and workmanship |
Frequently Asked Questions
- Which grade should I use for drinking water?
- Both 304 and 316L are safe. Choose 316L if your water is chlorinated above 5 ppm or has high chloride content.
- Can I use this tank for hot water?
- Yes, up to 100°C at atmospheric pressure. For higher temperatures or pressurized service, we need to redesign the tank accordingly.
- Do you provide insulation or heating jackets?
- We can add external insulation with cladding, or a dimple jacket for heating/cooling. Specify the temperature control method when ordering.
- How is the tank shipped?
- We ship as one piece for 30,000L; 50,000L may require split-shipment depending on container dimensions. We’ll advise based on your port.
How to Order the Right Tank
To get a correct quotation, please provide:
– Storage liquid and its chemical composition
– Required working volume and available floor space (diameter x height)
– Operating temperature and any heating/cooling needs
– Material grade preference (we can help decide)
– Connection types and locations
– Whether you need CIP, manway, or level sensors.
Send these details to our engineering team. We will confirm the configuration and lead time within one working day.
