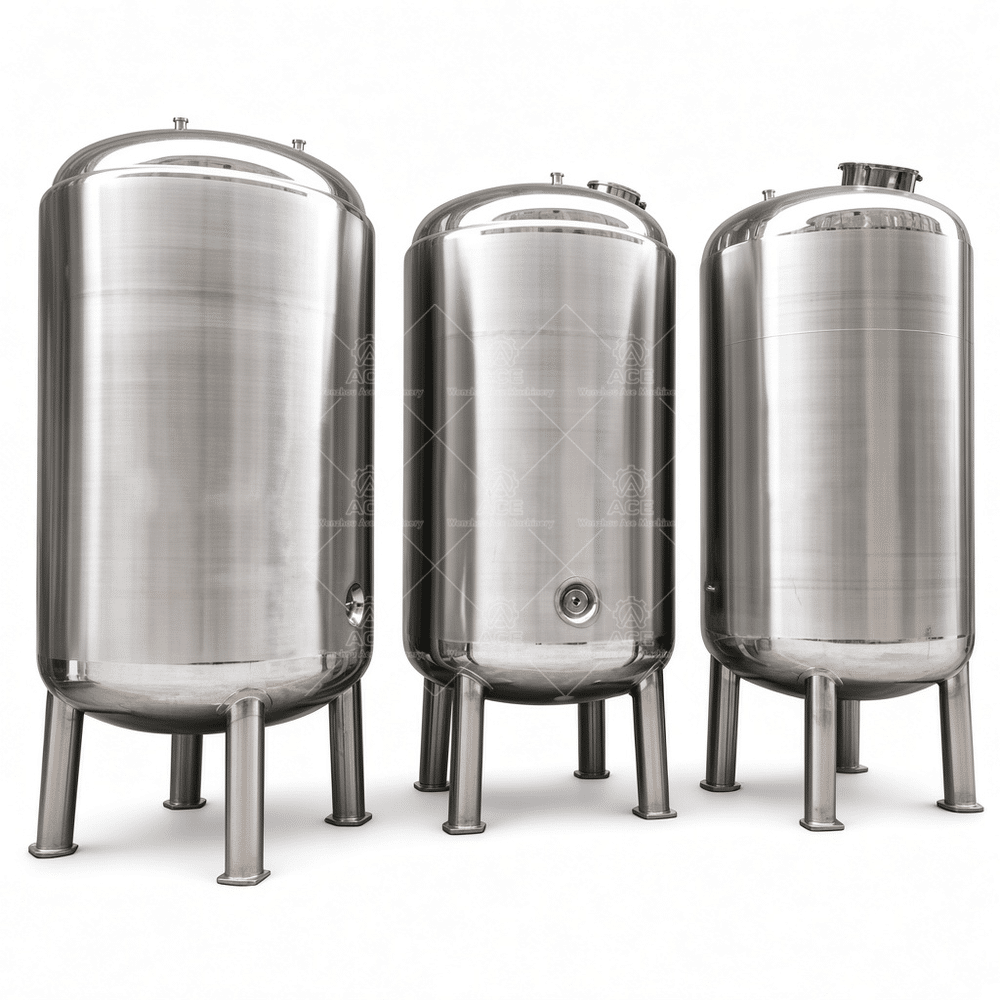

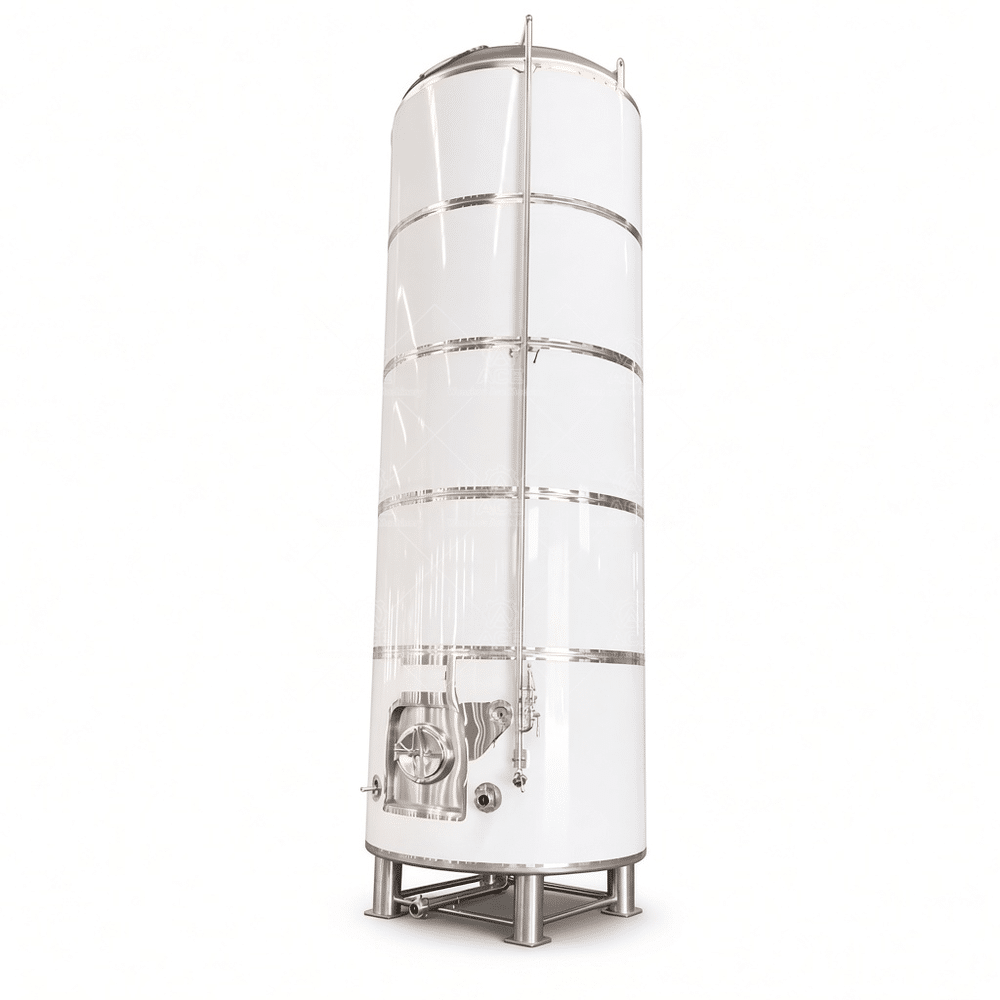

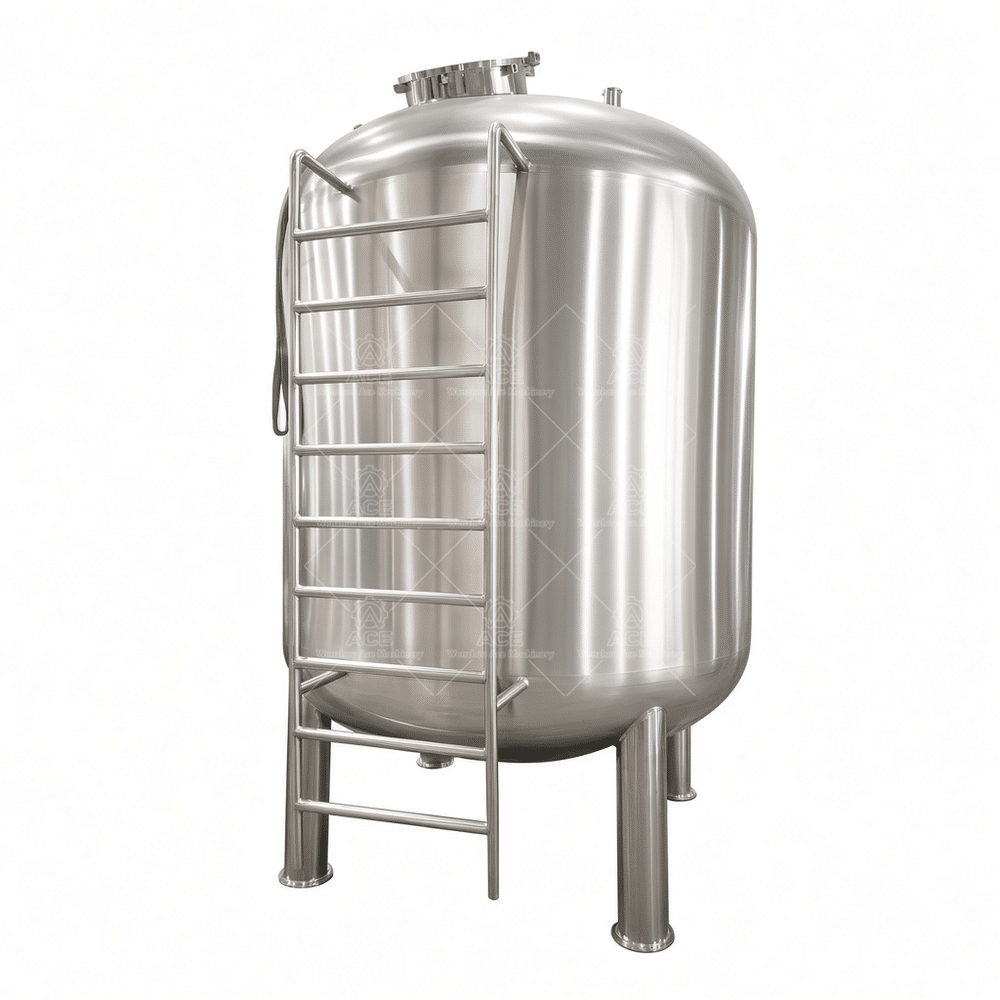

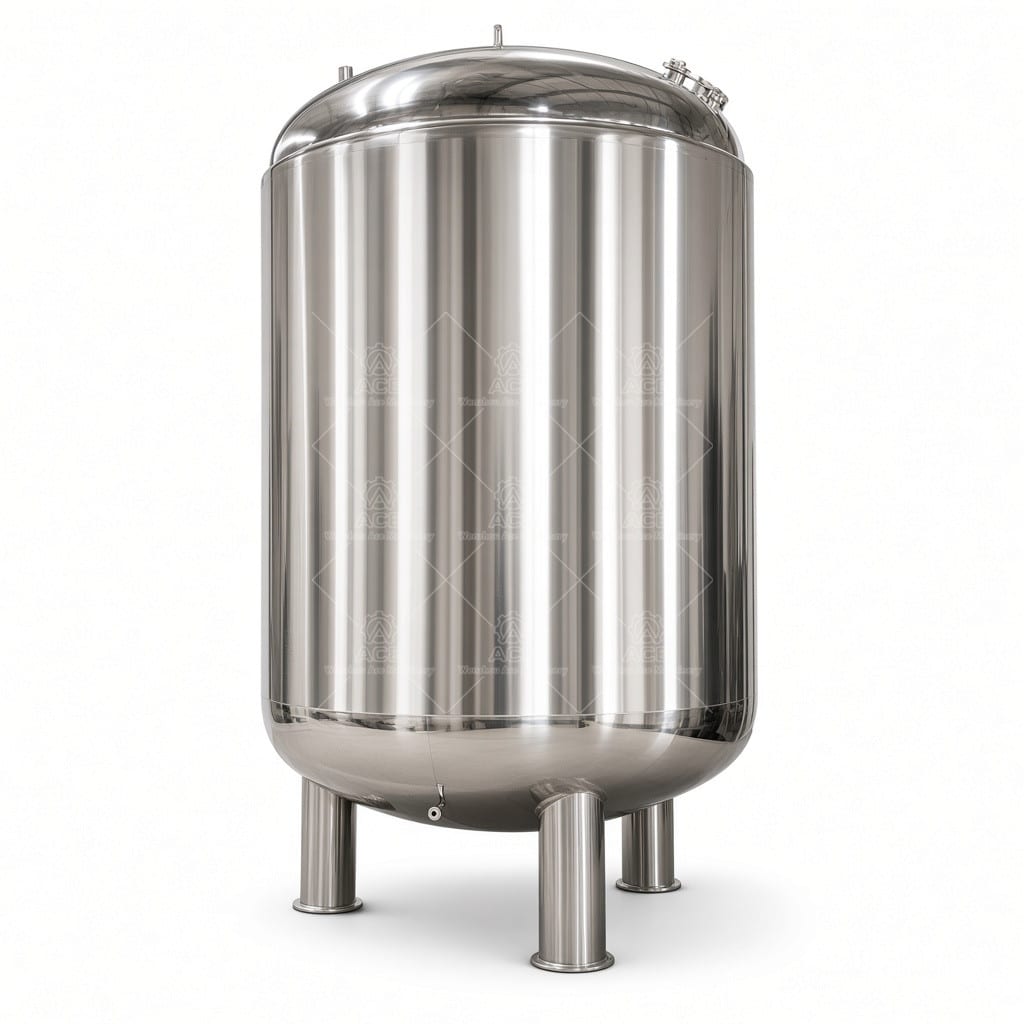

Customized Stainless Steel Storage Tanks for Water, Oil, Cosmetic, Food & Perfume
Customized stainless steel storage tanks for water, oil, cosmetics, food, and perfume. Available in SUS304 or SUS316L with custom capacity, surface finish, and optional heating or mixing. Built for industrial reliability.
- Tank Capacity: [50L–100,000L or specify actual capacity]
- Tank Type: [Vertical / Horizontal / Single-wall / Double-wall / Jacketed]
- Material: 304 or 316L
- Optional Features: [Insulation / Heating / Cooling / Agitator / Level Gauge / Manway / CIP Spray Ball / Load Cells / Wheels / Custom Connections]
- Surface Finish: [2B / Brushed / Polished / Mirror Polish]
- If you have drawings, we can process them for you.
Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909
Price range: $2,809.15 through $3,570.99
Guaranteed Safe Checkout

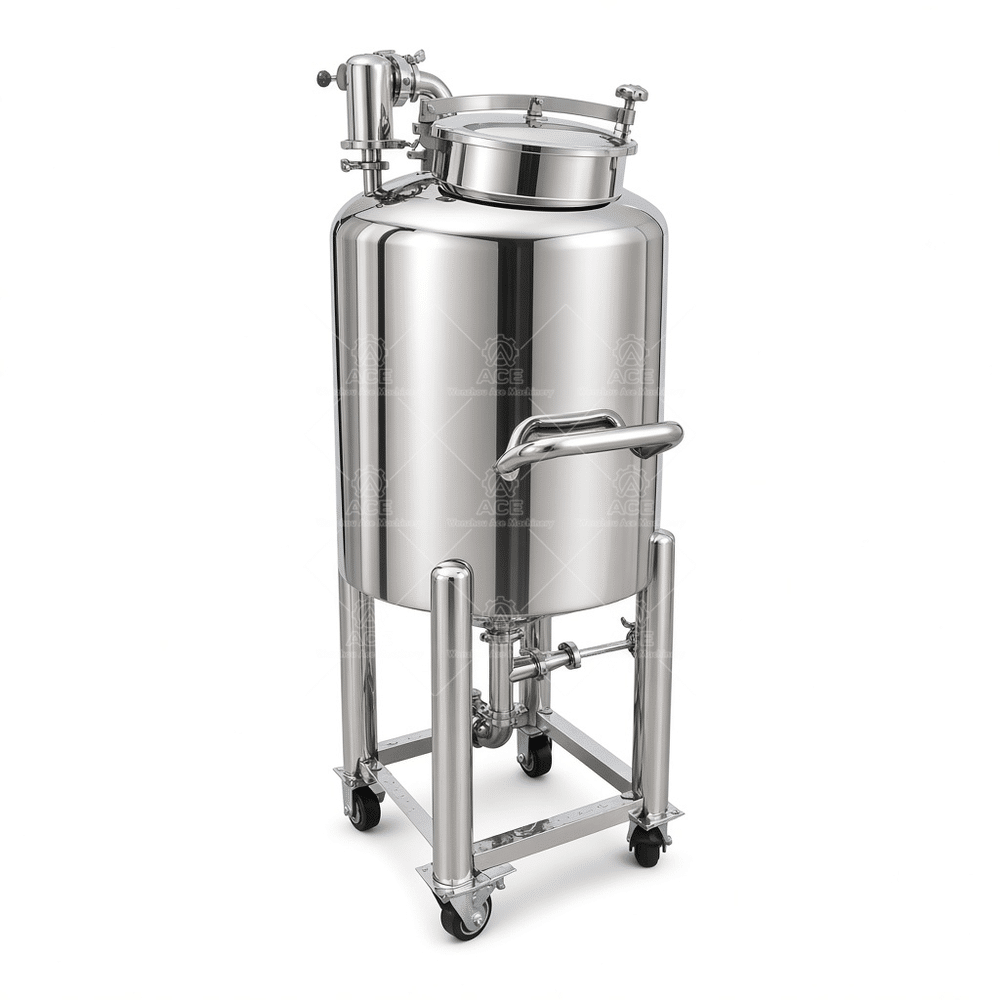

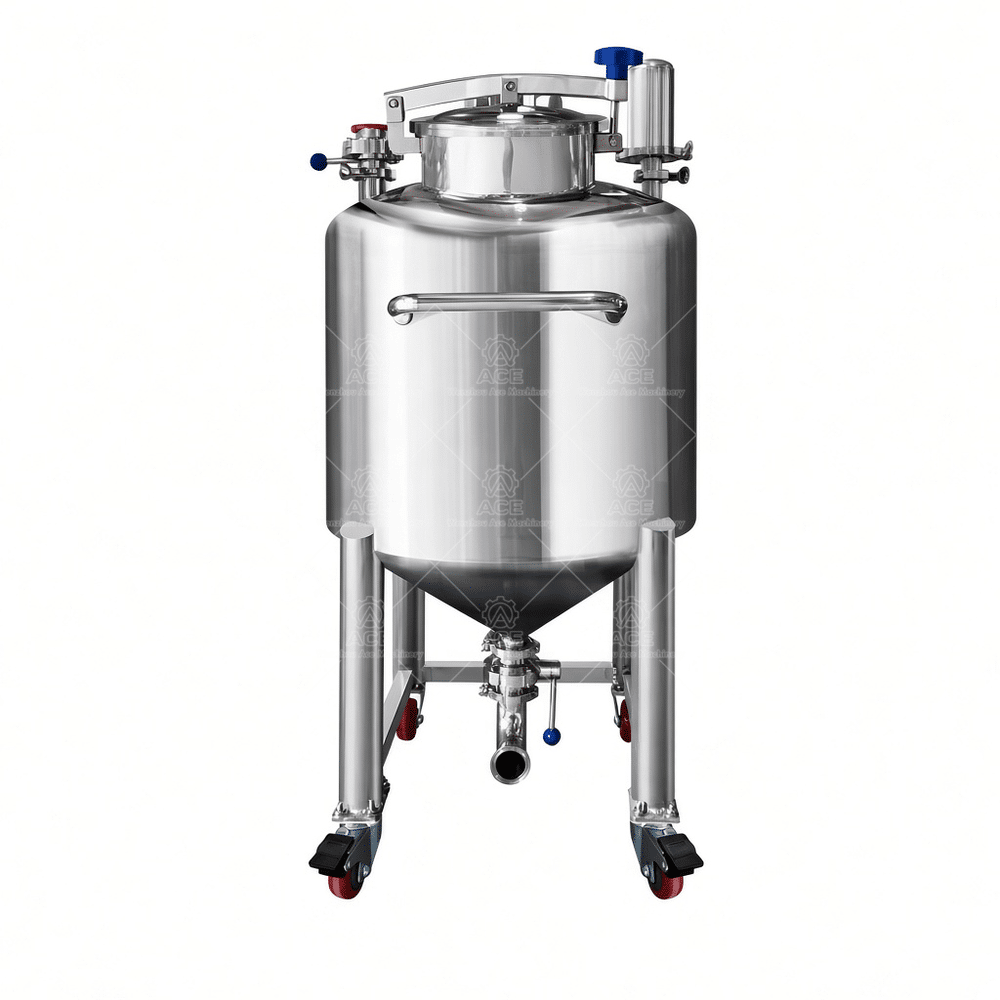

Customized Stainless Steel Transfer & Storage Vessels
We build stainless steel storage tanks for a range of industries—food processing, cosmetics, essential oils, water treatment, and chemical handling. If you need a movable transfer container or a fixed vessel with a specific capacity, we can fabricate it to your process requirements.
The tank\’s material grade depends on what you store. For most food, beverage, and cosmetic applications, SUS304 offers good corrosion resistance and is cost-effective. For acidic products, saline solutions, or harsher chemical environments, SUS316L provides better pitting resistance. We weld with full penetration and back-purge with argon to ensure clean, oxidation-free seams. Interior surfaces are polished according to your requirements—from 180 grit for general industrial use to mirror finish for hygiene-sensitive processes.
We also pay attention to the details that affect daily operation: manholes sized for cleaning access, drain valves positioned for complete emptying, and leg or saddle designs that suit your installation floor. If you need heating or cooling, we can add a dimple jacket or half-pipe coil. For mixing, we can include top-entry agitators with appropriate shaft seals.
Applications
- Food & beverage: storing edible oils, syrups, liquid ingredients
- Cosmetics & perfume: batch storage, alcohol-based solutions
- Water treatment: potable water, filtration feed tanks
- Chemical: compatible liquid storage (verify compatibility before ordering)
Specifications
| Capacity | Custom (typically 100L to 50,000L) |
| Material | SUS304 / SUS316L |
| Surface finish | 180–320 grit, mirror polish optional |
| Type | Vertical / horizontal / movable transfer tank |
| Options | Agitator, heating/cooling jacket, level sensor, CIP spray ball |
Buying Guide
Before requesting a quote, prepare the following details:
- What liquid will be stored and its chemical composition
- Required working capacity and available installation space
- Operating temperature and whether heating/cooling is needed
- Whether the tank operates under atmospheric, vacuum, or pressure conditions—note that pressurized or vacuum-rated vessels require special design and are not standard
- Cleaning method (manual or CIP) and any required surface finish
Send us your product, capacity, material grade preference, working temperature, tank dimensions, and any special requirements. Our engineers will confirm the appropriate configuration and provide a quotation.
