SS304 Stainless Steel Enzyme Reactor Tank for Chemical & Biological Fermentation
SS304 stainless steel enzyme reactor tank for chemical and biological fermentation. Customizable capacity, heating, cooling, and agitation. Ideal for enzyme production, drinking water treatment, and food processing. Factory-direct with material certification.
- Capacity: 50 liters to 30,000 liters
- Mixer power: 1.5 kW to 55 kW
- Material: [SUS304 / SUS316L]
- Voltage: 110V / 220V / 380V / 400V / 440V / 480V / 600V
- Heating method: [Electric / Steam / Thermal Oil / Hot Water / No Heating]
- Cooling method: [Cooling Jacket / Dimple Jacket / Coil / No Cooling]
- Agitation system: [Top Entry Agitator / Anchor Mixer / Paddle / Turbine / High-Shear Mixer / Customized]
- Optional features: [Insulation / Load Cells / Temperature Sensor / Pressure Gauge / Manhole / CIP / PLC Control / Explosion-Proof Motor]
- Certificates: ASME, CE, GMP, UL, ATEX, ISO 9001
- Working pressure: [Atmospheric / Positive Pressure / Vacuum / Specify pressure]
- If you have drawings, we can process them for you.
Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909
$3,930.49 – $5,024.35Price range: $3,930.49 through $5,024.35
Guaranteed Safe Checkout

Recommend RPM: 0-960RPM
Viscosity: Low/medium viscosity
Application: Mainly Liquid mixing

Recommend RPM: 0-200RPM
Viscosity: Low/medium viscosity
Application: Mainly Liquid mixing

Recommend RPM: 30RPM
Viscosity: Medium/High viscosity
Application: Melting, High viscosity product mixing, For single wall tank

Recommend RPM: 30RPM
Viscosity: Medium/High viscosity
Application: Melting, High viscosity product mixing, For jacket tank

Recommend RPM: 1480/2850 RPM
Viscosity: Low/medium viscosity
Application: Liquid powder mixing and dispersion

Recommend RPM: 2800 - 3200 RPM
Viscosity: Low/medium/High viscosity
Application: Liquid powder mixing and homogenizing

Recommend RPM: 0-355RPM
Viscosity: Low/medium viscosity
Application: Install at bottom, No mechanical seal working condition

Recommend RPM: As above
Viscosity: Low/medium viscosity
Application: Liquid powder mixing and dispersion For tank volume >300L

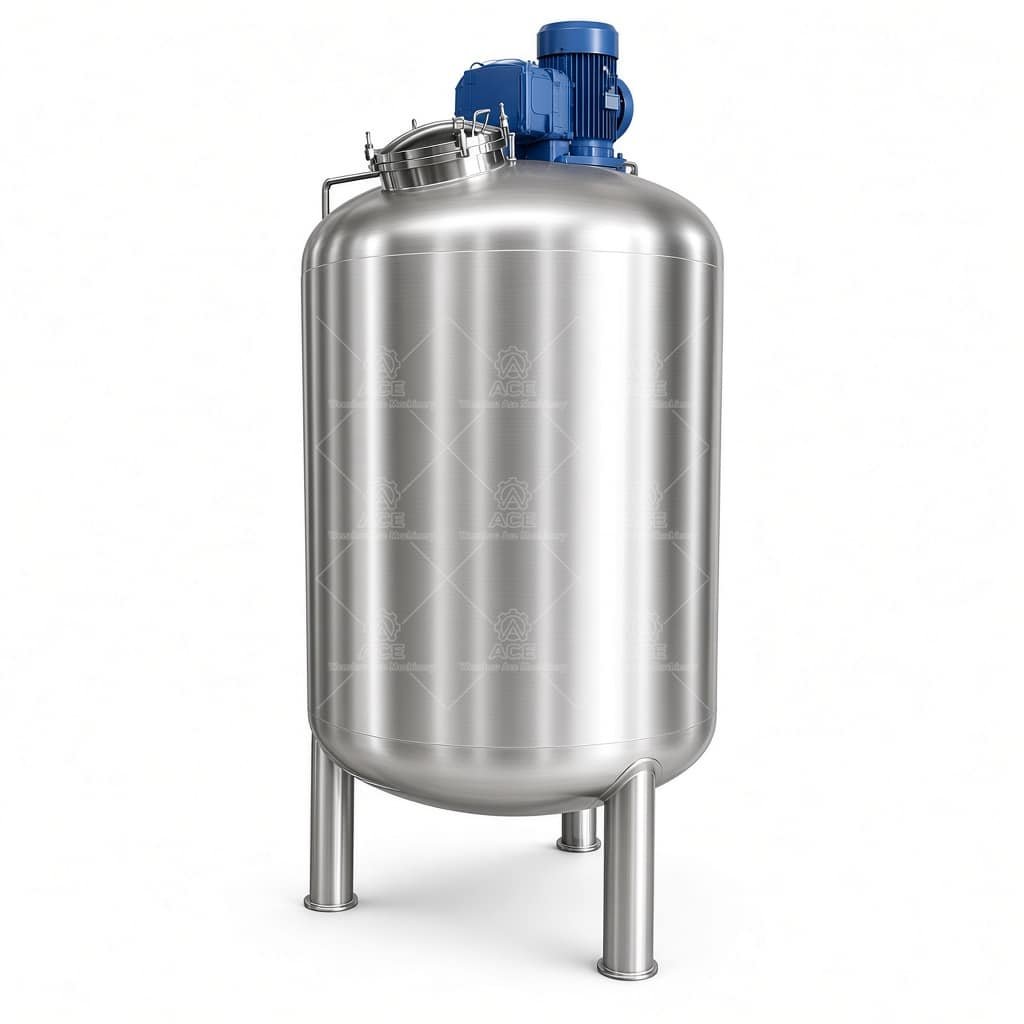

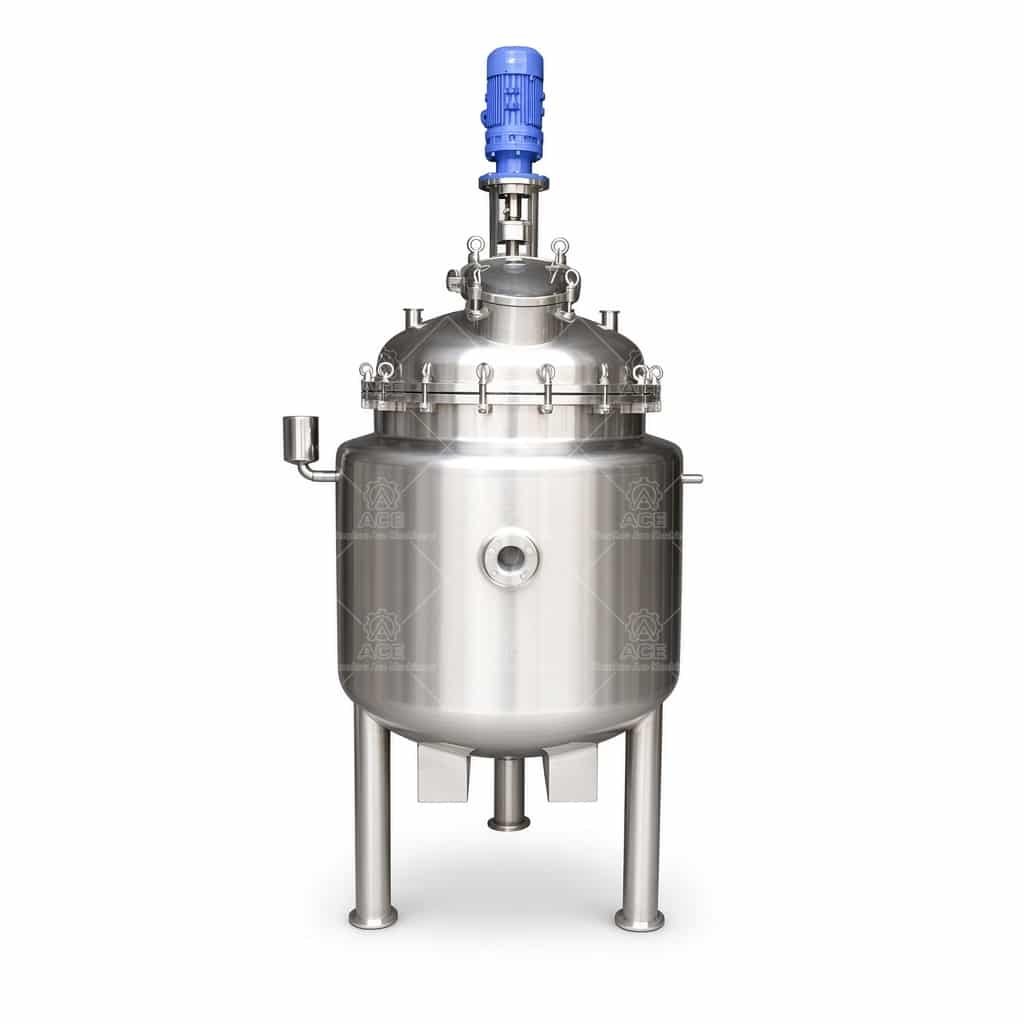

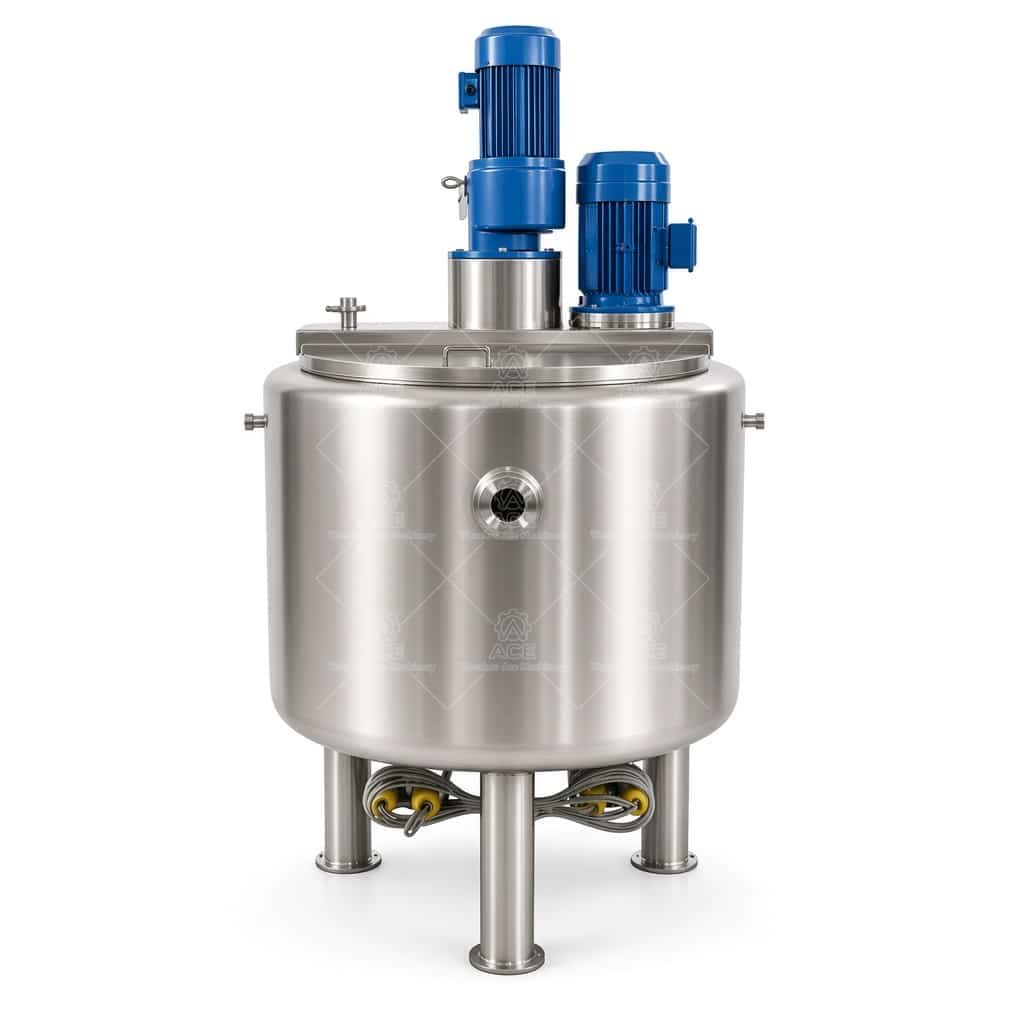

SS304 Enzyme Reactor & Fermentation Tank
This stainless steel reactor is built for chemical and biological liquid fermentation processes, including enzyme production and potable water treatment applications. We fabricate it from SS304 as standard, with the option to upgrade to SS316L when your process involves higher chloride levels or stricter corrosion requirements.
The vessel is designed around practical production needs. Inner tank wall thickness, heating/cooling jackets, and agitation systems are matched to your specific batch volume and process conditions. We do not guess—we ask for your working temperature, pressure, and mixing requirements before recommending a configuration.
Material & Manufacturing Details
All wetted parts are made from certified stainless steel. Welds are full-penetration and autogenous where possible, followed by pickling and passivation. Interior surfaces are electropolished to a Ra ≤ 0.6 µm finish for hygiene-sensitive applications like enzyme fermentation. Exterior surfaces are brushed or matte finished to reduce fingerprints and ease cleaning.
The agitation system can be tailored: anchor, turbine, or magnetic-drive impellers, each matched to your viscosity and solid content. Sealing is handled with single or double mechanical seals, depending on whether you run under vacuum or positive pressure.
Applications
- Enzyme fermentation (amylase, protease, cellulase)
- Chemical mixing and reaction
- Drinking water treatment and storage
- Food and beverage processing
- Pharmaceutical intermediate production
Technical Specifications
| Material | SS304 / SS316L (optional) |
| Capacity | Custom (50L – 50,000L) |
| Design Pressure | Atmospheric to 10 bar (custom) |
| Design Temperature | Up to 150°C |
| Heating | Jacket, coil, or electric heating |
| Cooling | Jacket or coil with cooling water |
| Stirring | Anchor / Turbine / Magnetic drive |
| Sealing | Single or double mechanical seal |
| Finish | Ra ≤ 0.6 µm internal, brushed external |
FAQ
Q: How do I choose between SS304 and SS316L?
SS304 is fine for most fermentation and chemical processes. Switch to SS316L if your media contains chlorides, acids, or if you need extra corrosion resistance for long service life.
Q: What heating method works best?
For fast temperature ramps, use a jacket with thermal oil or steam. Electric heating is cleaner for smaller batches. We match the heat transfer area to your batch size to avoid hot spots.
Q: Can this tank handle vacuum?
Yes, if we know the operating pressure range. We\’ll adjust wall thickness and reinforcing rings accordingly.
Q: How is cleaning handled?
We offer spray balls or CIP nozzles for automated cleaning. The polished interior and smooth welds make manual cleaning straightforward.
Procurement Checklist
Before requesting a quote, prepare these details:
- Material type, chemical composition, and concentration
- Batch volume and working volume
- Operating and design temperature
- Pressure (atmospheric, positive, or vacuum)
- Viscosity and solids content
- Heating/cooling requirements
- Mixing goal (homogeneous, suspension, heat transfer)
Send us these parameters, and our engineers will recommend the right vessel configuration and quote. We are a factory-direct manufacturer, so you get honest advice and competitive pricing—no middlemen.
