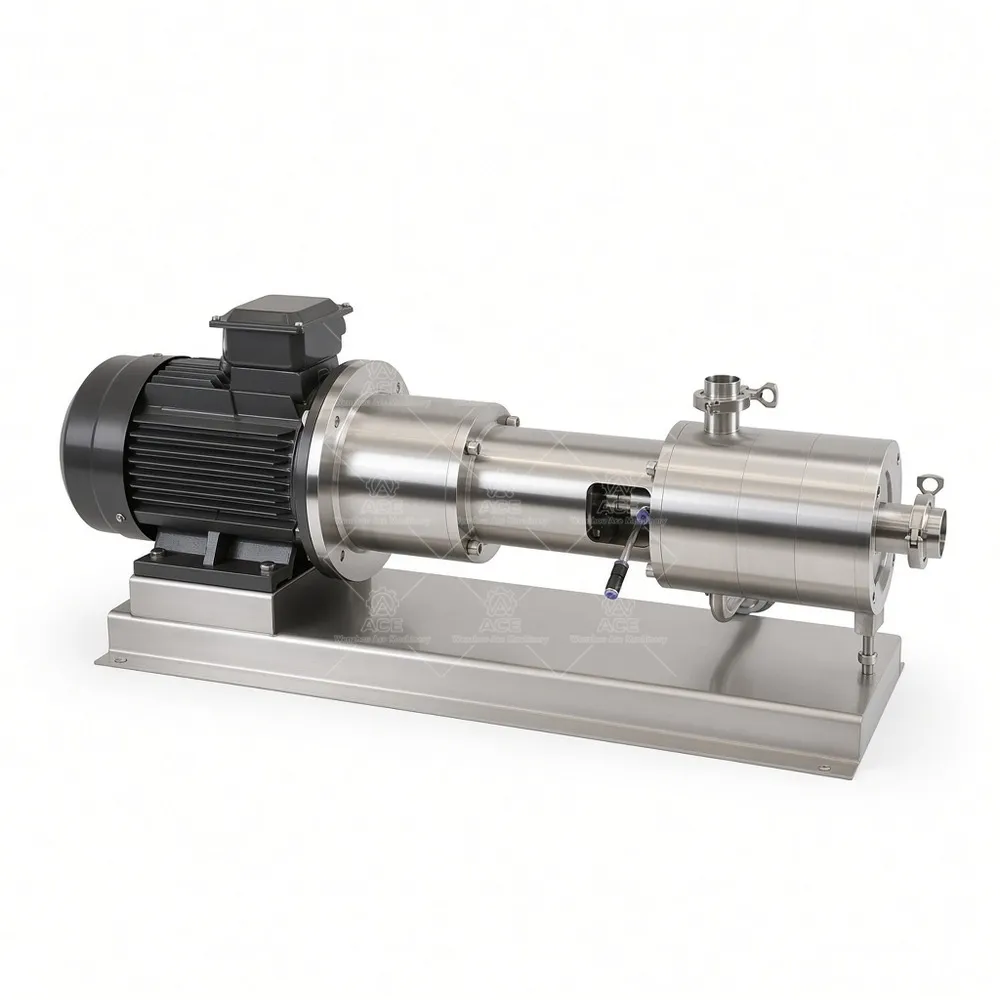

Sanitary Inline High Shear Emulsion Pump 2.2kW Homogenizer
- Material: 304 or 316L
- Voltage: 110V 208V 220V 380V 400V 415V 480V 600V
- Certificates: CE, GMP, UL, ATEX, ISO 9001
- Power：0.75KW-55KW （1 HP – 74 HP）
- Motor brands: ABB, Chinese brands, SEW, Siemens (optional)
- 1-year free warranty with door-to-door delivery.
- Optional: Variable-frequency drive, control panel
- MADE IN CHINA
- We have it in stock.
Please contact our sales team before placing your order.
Email:info@ace-chn.com
Tel:+86 18626835909
WeChat: ace-chn
Price range: $1,876.71 through $2,035.10
Guaranteed Safe Checkout
We manufacture and sell the following types of mixers
Mix, emulsify, homogenize, disintegrate and dissolve
Ideal for disintegrating solids and incorporating powders
Reduce mixing times by up to 80%
Reduce mixing times by up to 90%
Quickly disperse and hydrate powders, even at higher viscosities
Easy to move and lift
Features heating, cooling, vacuum, and other functions
Recommended RPM: 1480/2850 RPM
Most cream and lotion lines do not fail in the tank. They fail at the finishing step. A single-stage sanitary emulsion pump gives that step a repeatable mechanical shear zone instead of relying on a paddle that runs longer and longer.
Liquid enters the rotor–stator head, is accelerated to the rotor rim, and is forced through the stator slots at high velocity. Shear, cavitation, and turbulent impact break down droplets and break apart powder agglomerates. Nothing protrudes into the product path except the rotor, so flow stays steady and CIP is straightforward.
What the hardware gives you
- Inline or loop mounting. Mount it in a transfer line or a recirculation loop off the bottom of the tank. Existing vessels and agitators stay in service, and the pump handles homogenizing and powder wet-out downstream.
- 2.2 kW, single stage. A matched motor for low-to-medium viscosity emulsions at normal production rates. Tip speed and throughput decide droplet size more than motor size does, so we size on your flow, viscosity, and target texture.
- Repeatable results. Fixed rotor–stator geometry means one pass equals one defined shear dose. Operators stop hand-mixing until the batch \’looks right.\’
- 316L stainless wetted parts, sanitary seals, tri-clamp or DIN connections, polished contact surfaces. Motors, seal faces, and elastomer options change with the product and the cleaning chemistry.
- VFD optional. One unit can pre-mix at low tip speed and emulsify at high tip speed without a second machine.
When inline beats a batch tank
Recirculation wins when you already have a vessel and just need better dispersion, when batch sizes vary, or when a formula is sensitive to long hold times. For very high-viscosity pastes, or products needing an extended sweep in a jacketed tank, a batch homogenizer still makes sense. We would rather say that up front than sell you a pump that fights your recipe.
Where these units run
Sauces, dressings, and syrups; dairy and beverage concentrates; starch, gum, and stabilizer slurries; creams, lotions, shampoos, and liquid detergents; liquid pharmaceutical dispersions; waterborne coatings, adhesives, and emulsions. Every chemistry needs its own seal and elastomer check — one configuration will not cover a whole plant.
Questions we get before the PO
Can it handle powders? Yes, if the powder is fed into a wetted stream at a controlled rate. Dumping dry powder into a running pump is how you plug a line.
What flow rate? It depends on viscosity and how many passes your formula needs. Send us the loop volume and we will estimate pass time.
How is it cleaned? Flush with water or solvent and run CIP through the chamber. Rotor clearance is set at build, with no field adjustment.
Tell us batch size, viscosity range, solids content, target motor power, and your local voltage and frequency, and we will come back with a configuration, a price, and the lead time on the seals and connections you need.
Ace Mixer\’s single-stage sanitary emulsion pump pairs a 2.2 kW drive with a high-shear rotor–stator head for inline emulsifying, powder wet-out, and agglomerate breakdown. It mounts in a transfer line or tank recirculation loop, giving creams, lotions, sauces, and chemical emulsions a repeatable shear dose without a batch homogenizer. 316L wetted parts, VFD option, custom seals and connections.
Single-stage in-line mixer

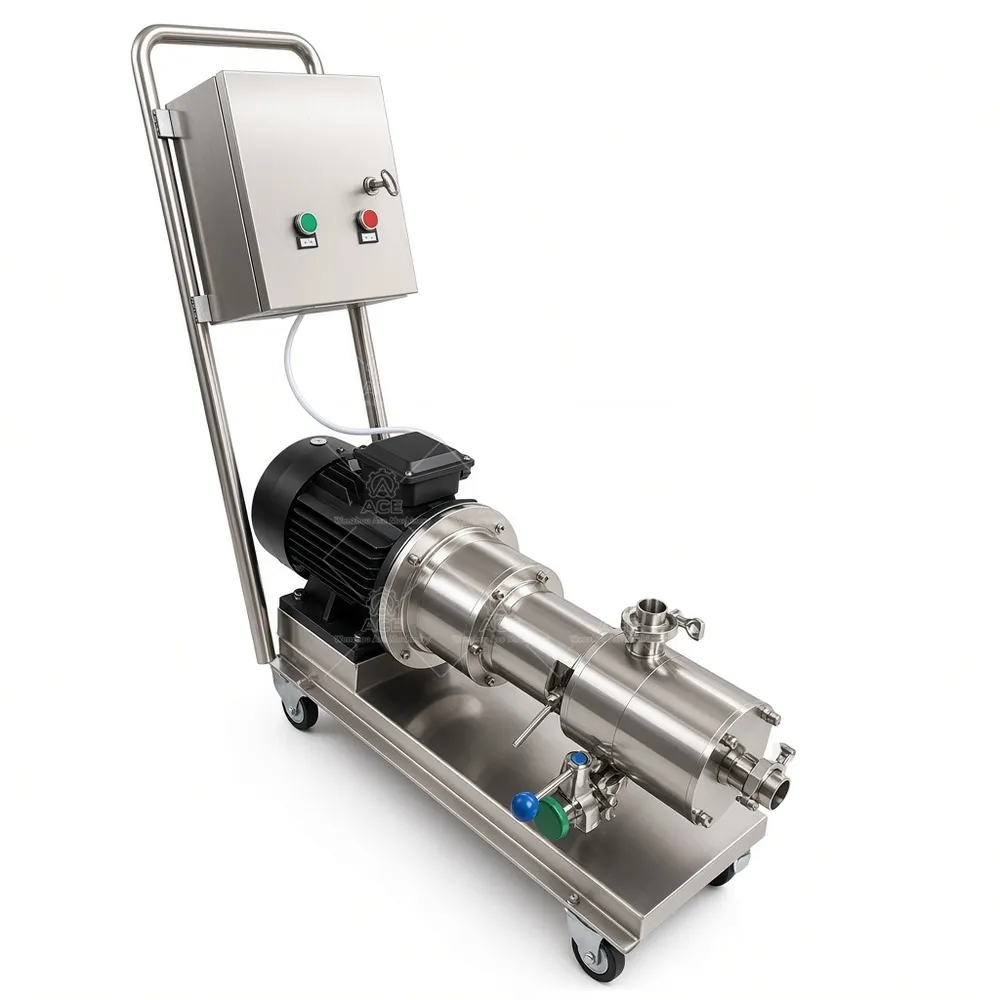

Three-stage in-line mixer
High-Shear Mixer with lift
High shear mixer
