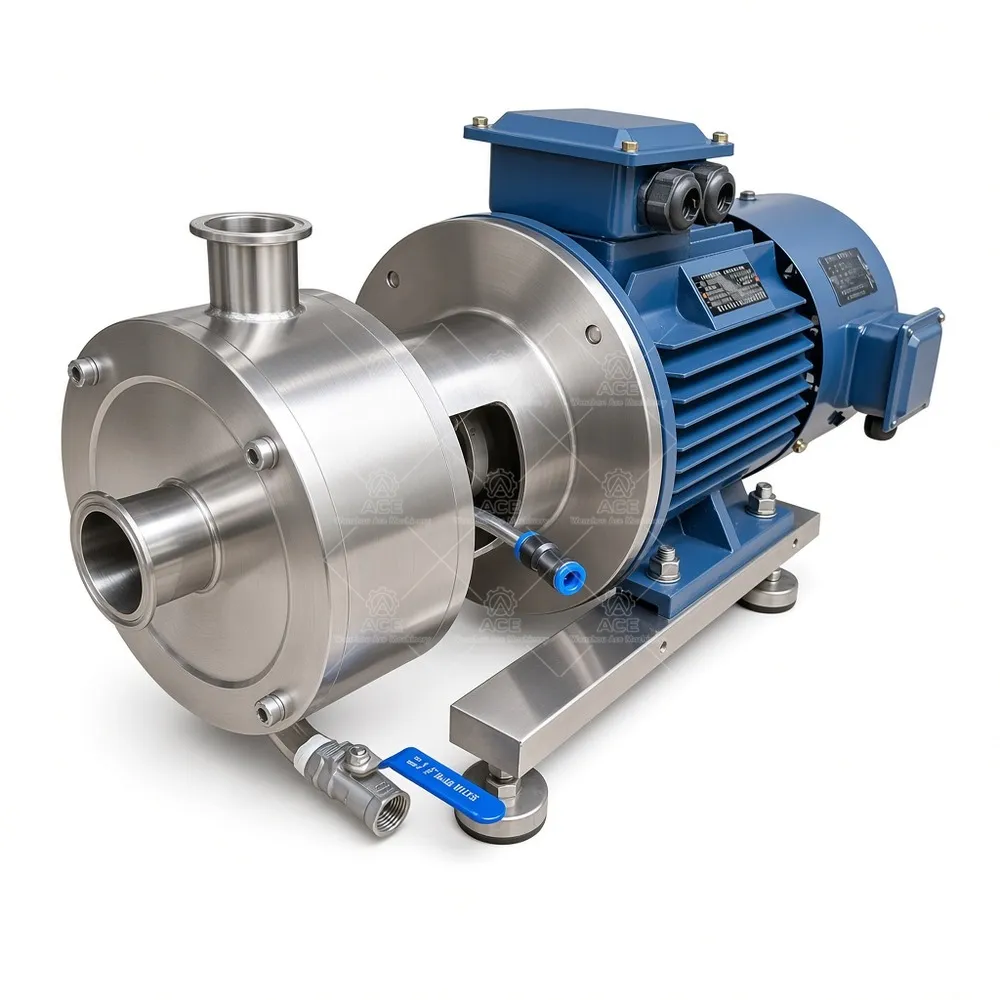

Sanitary Inline High Shear Homogenizer for Lipstick & Viscous Cosmetics
- Material: 304 or 316L
- Voltage: 110V 208V 220V 380V 400V 415V 480V 600V
- Certificates: CE, GMP, UL, ATEX, ISO 9001
- Power：0.75KW-55KW （1 HP – 74 HP）
- Motor brands: ABB, Chinese brands, SEW, Siemens (optional)
- 1-year free warranty with door-to-door delivery.
- Optional: Variable-frequency drive, control panel
- MADE IN CHINA
- We have it in stock.
Please contact our sales team before placing your order.
Email:info@ace-chn.com
Tel:+86 18626835909
WeChat: ace-chn
Price range: $2,166.84 through $2,335.64
Guaranteed Safe Checkout
We manufacture and sell the following types of mixers
Mix, emulsify, homogenize, disintegrate and dissolve
Ideal for disintegrating solids and incorporating powders
Reduce mixing times by up to 80%
Reduce mixing times by up to 90%
Quickly disperse and hydrate powders, even at higher viscosities
Easy to move and lift
Features heating, cooling, vacuum, and other functions
Recommended RPM: 1480/2850 RPM
Built for viscous emulsions and sanitary processing
This Ace Mixer in-line homogenizer uses a high-speed rotor-stator head to handle lipstick masses, cosmetic creams, and other high-viscosity emulsions where simple tank agitation falls short. The pump mounts directly in a pipe or recirculation loop, so you can homogenize, disperse, and transfer in one pass instead of tying up a batch tank with a long, manual mix cycle.
For production teams, the practical benefit is repeatability. A rotor-stator works the product through tight shear gaps, breaking down agglomerates and helping stabilize oil-water emulsions. That means fewer visible specks, less lump formation, and more consistent color and texture from batch to batch. The sanitary construction suits cosmetic, food, and pharmaceutical environments where cleanability and material traceability matter.
Where it fits on the line
- Cosmetics and personal care: lipstick, creams, lotions, shampoos, conditioners, and liquid detergents.
- Food and beverage: sauces, dressings, mayonnaise, syrups, dairy blends, and dispersion of starches, gums, and stabilizers.
- Pharmaceutical and chemical: liquid formulations, excipient dispersions, water-based emulsions, and compatible chemical dispersions.
In-line installation is often a better fit than batch mixing when you want to recirculate an existing tank, reduce air entrainment, or add shear without changing vessel geometry. We can supply different motor sizes, seals, flange connections, and contact materials to match your product and cleaning routine. VFD options are available when you need to tune tip speed to the formulation rather than running one fixed speed.
FAQ
Can one unit handle every lipstick formula? No. Viscosity, wax content, pigment loading, and temperature all affect the right rotor-stator configuration. Share your formula range before selecting a head.
Do we need a VFD? Often yes for development work or multi-product lines. For a single fixed formulation, a fixed-speed motor may be enough.
What about cleanability? Sanitary connections and seal choice matter. Tell us your CIP/SIP practice and we will recommend a compatible build.
How do we size the pump? We need batch size, product viscosity, desired flow rate, solids content, discharge pressure, and local voltage.
Send your process details to Ace Mixer for a technical review and quotation. Include batch size, material characteristics, required motor power, and electrical specifications so we can recommend the correct in-line homogenizer configuration.
Ace Mixer sanitary in-line homogenizer for high-viscosity cosmetics, lipstick emulsions, creams, and sanitary dispersions. High-shear rotor-stator mixing in a pipe or recirculation loop helps reduce lumps, improve batch consistency, and shorten manual mixing time. Available with customizable motor, seals, connections, and VFD options for production lines.

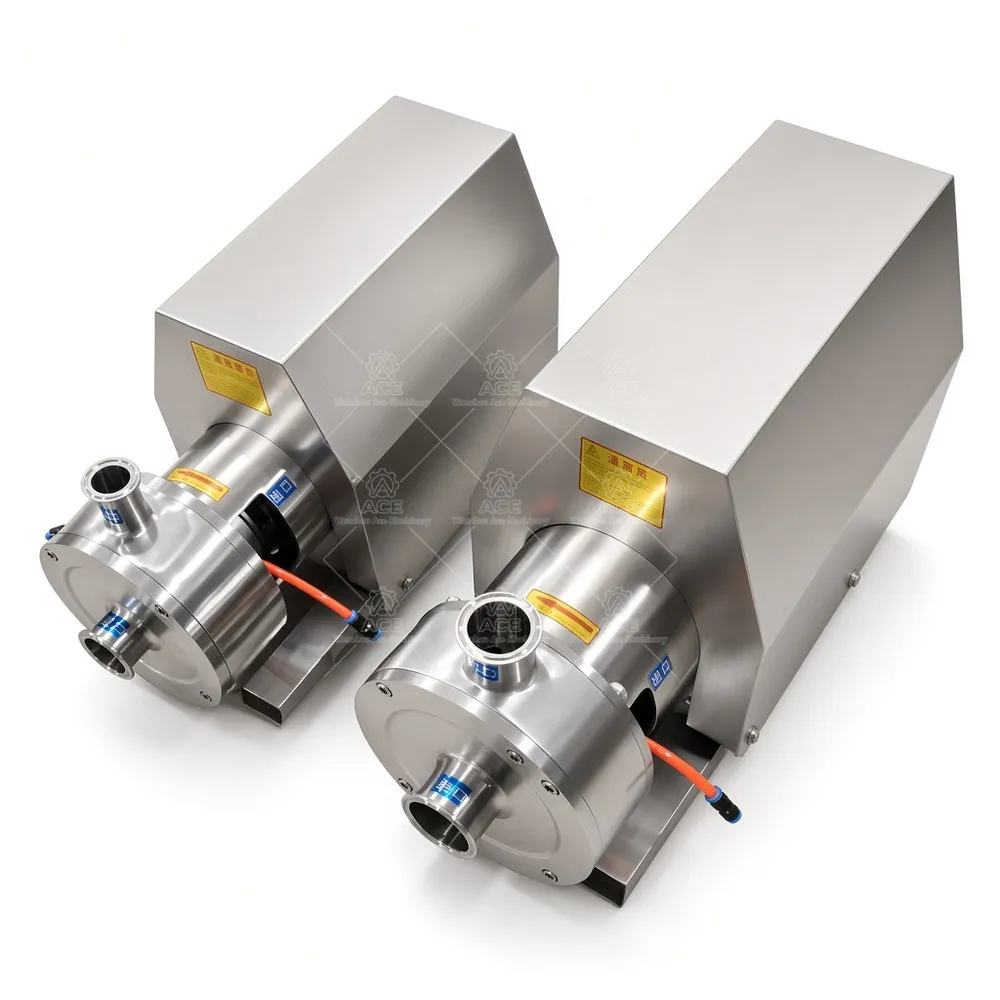

Single-stage in-line mixer

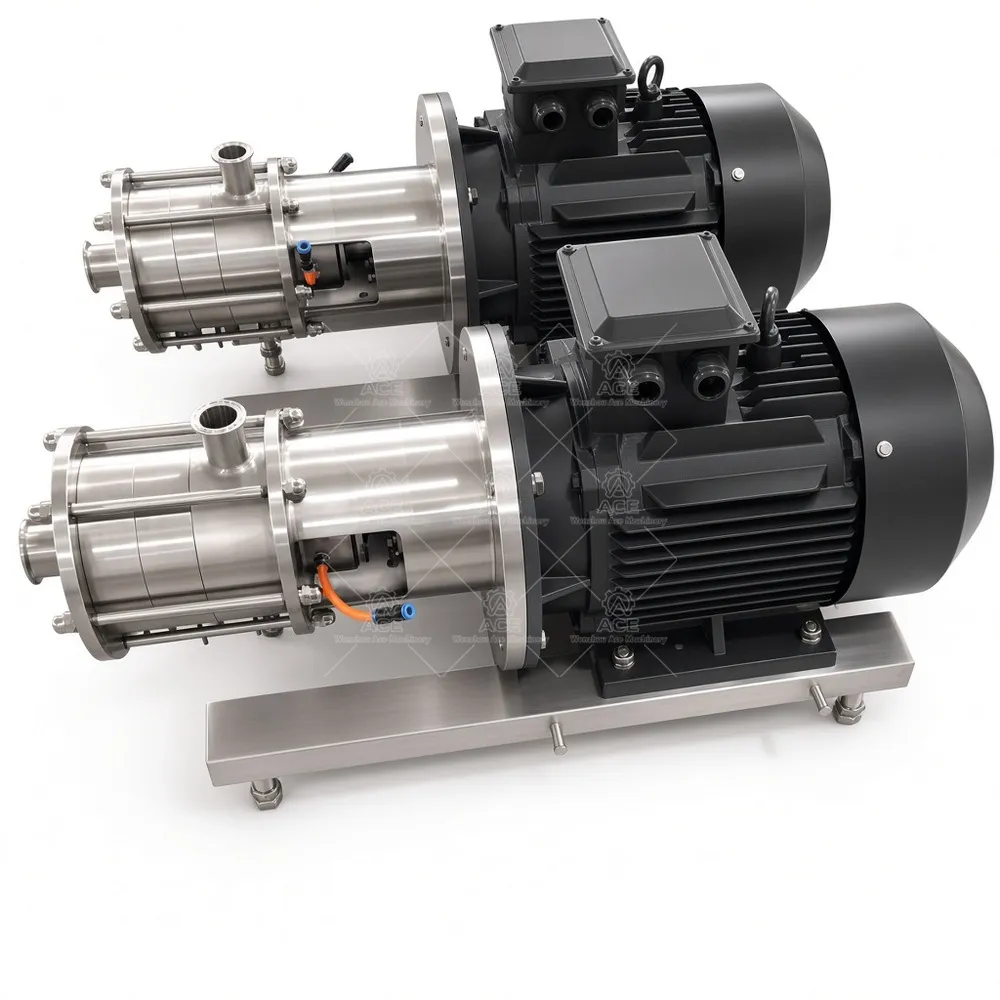

Three-stage in-line mixer

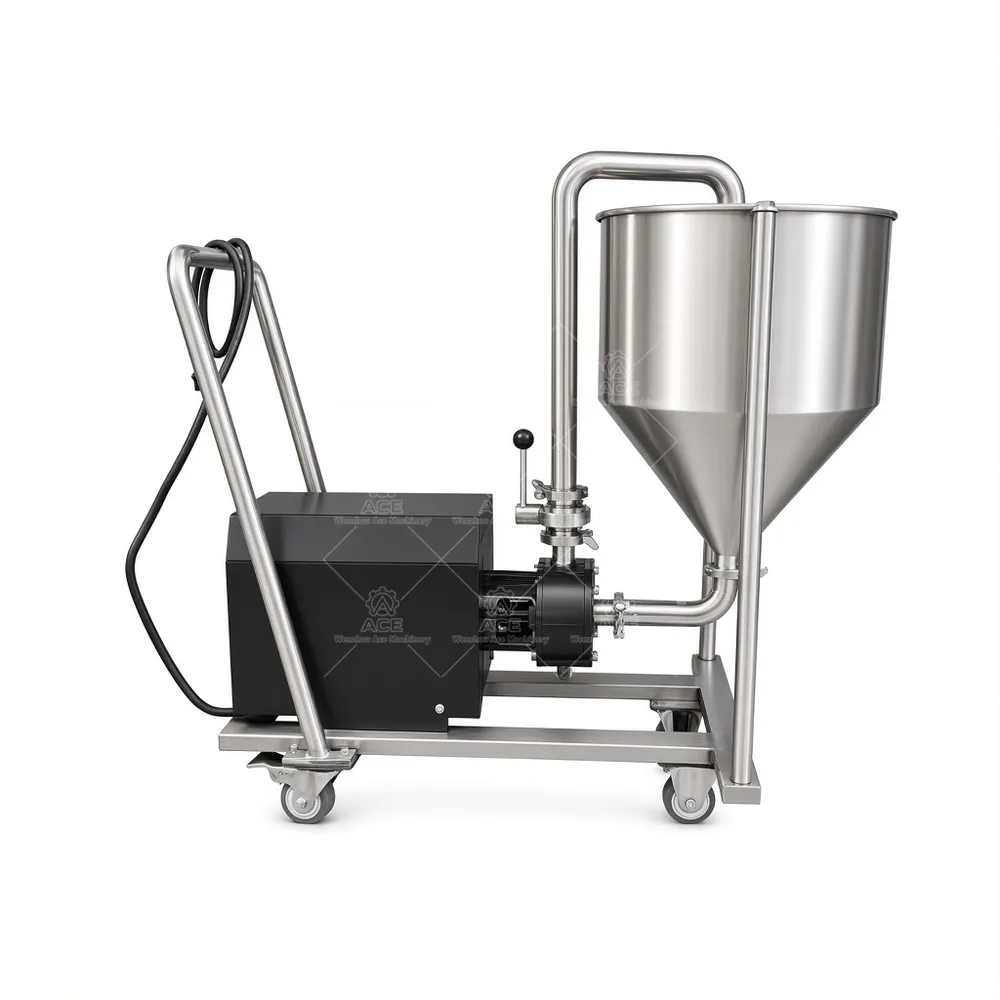

High-Shear Mixer with lift
High shear mixer
