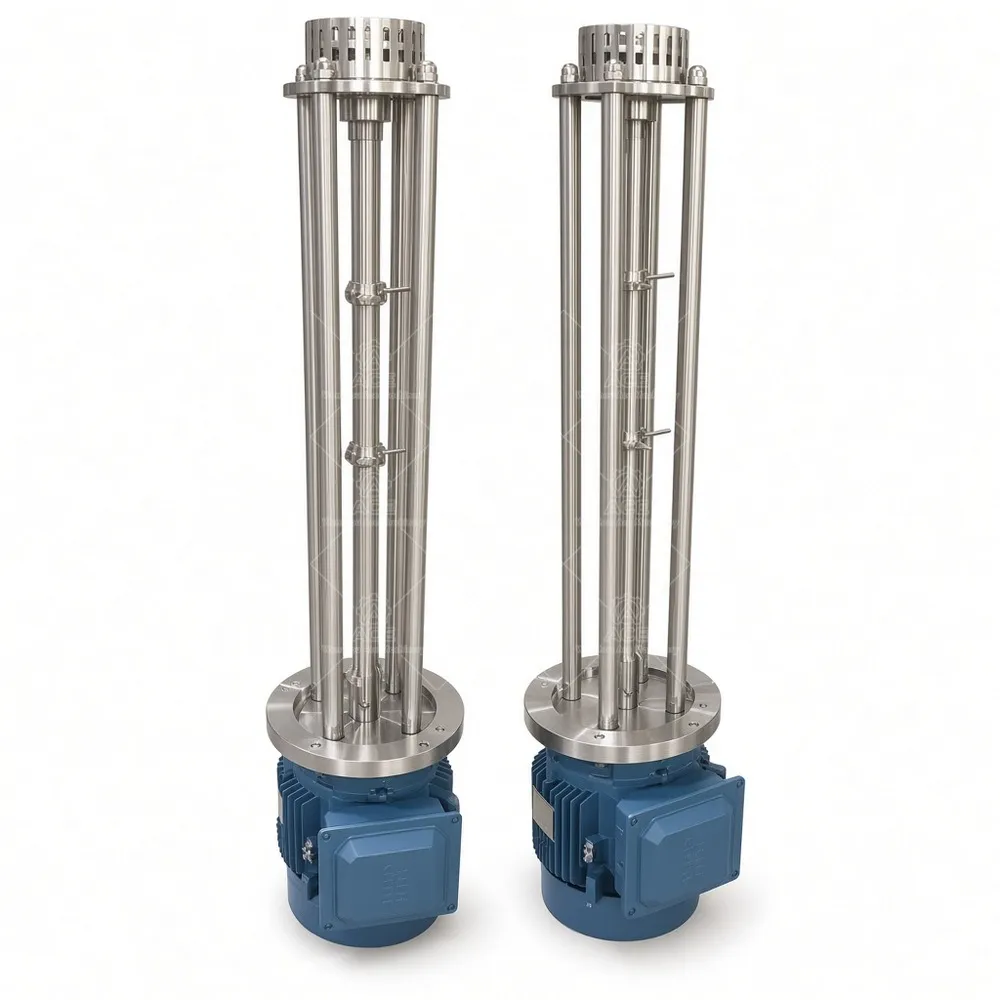

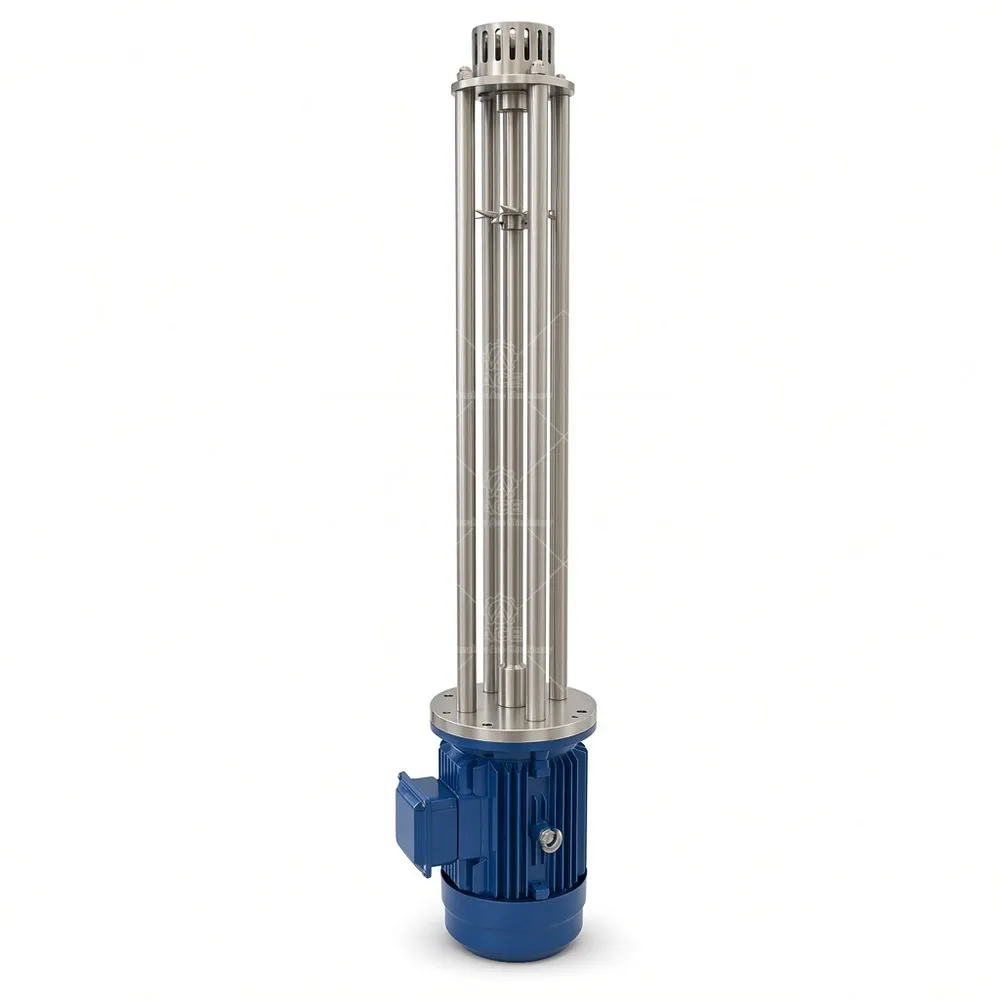

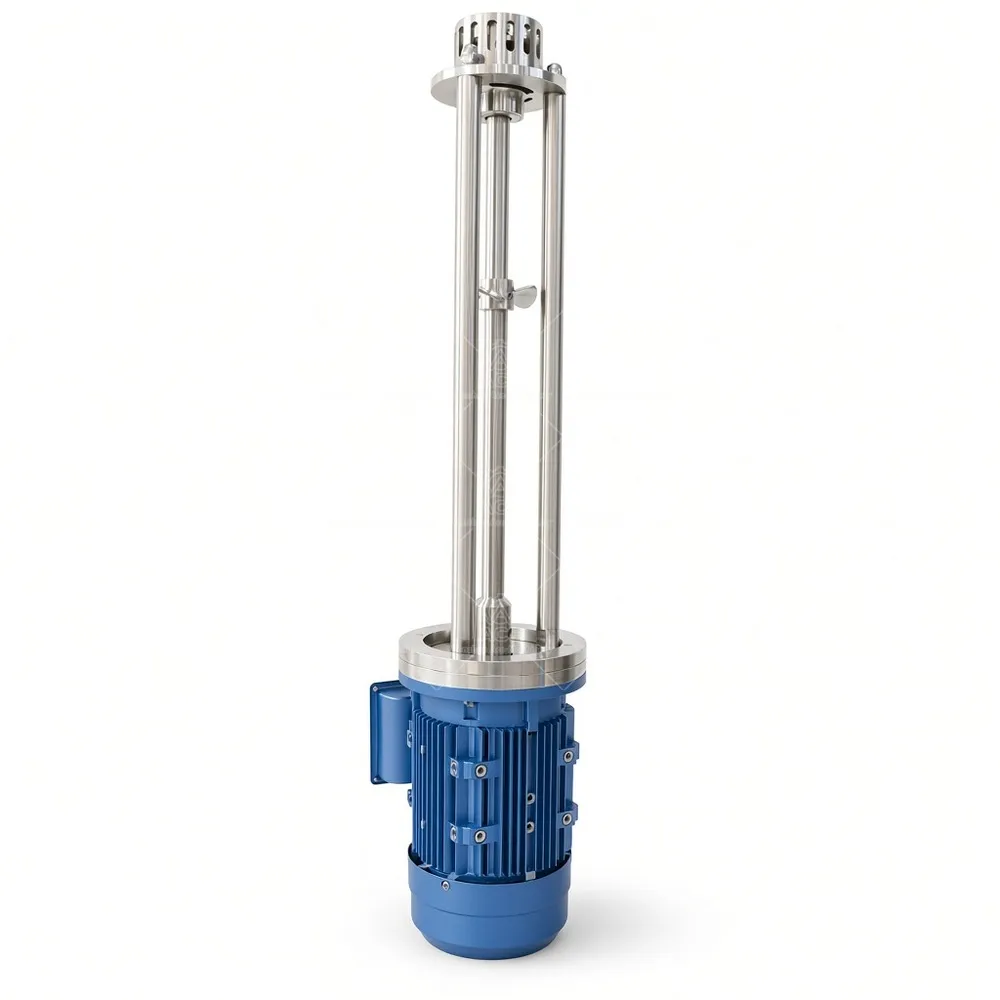

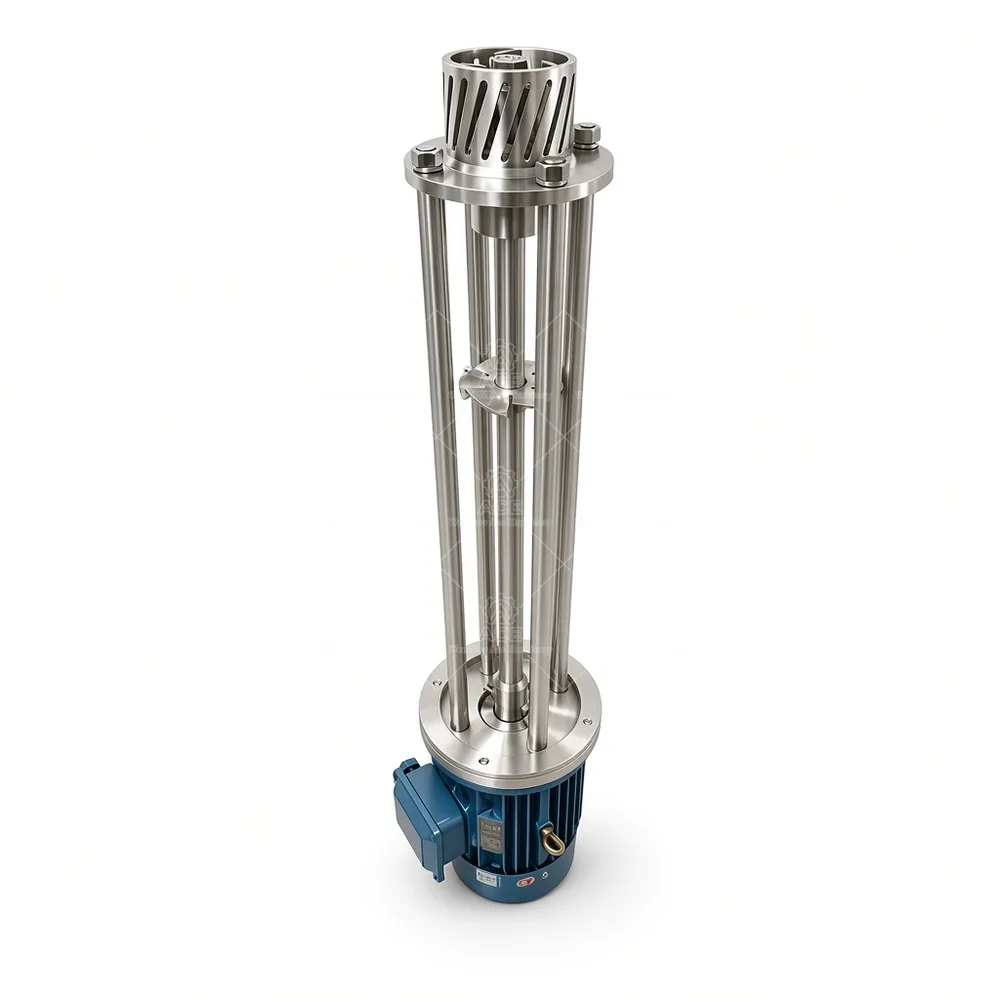

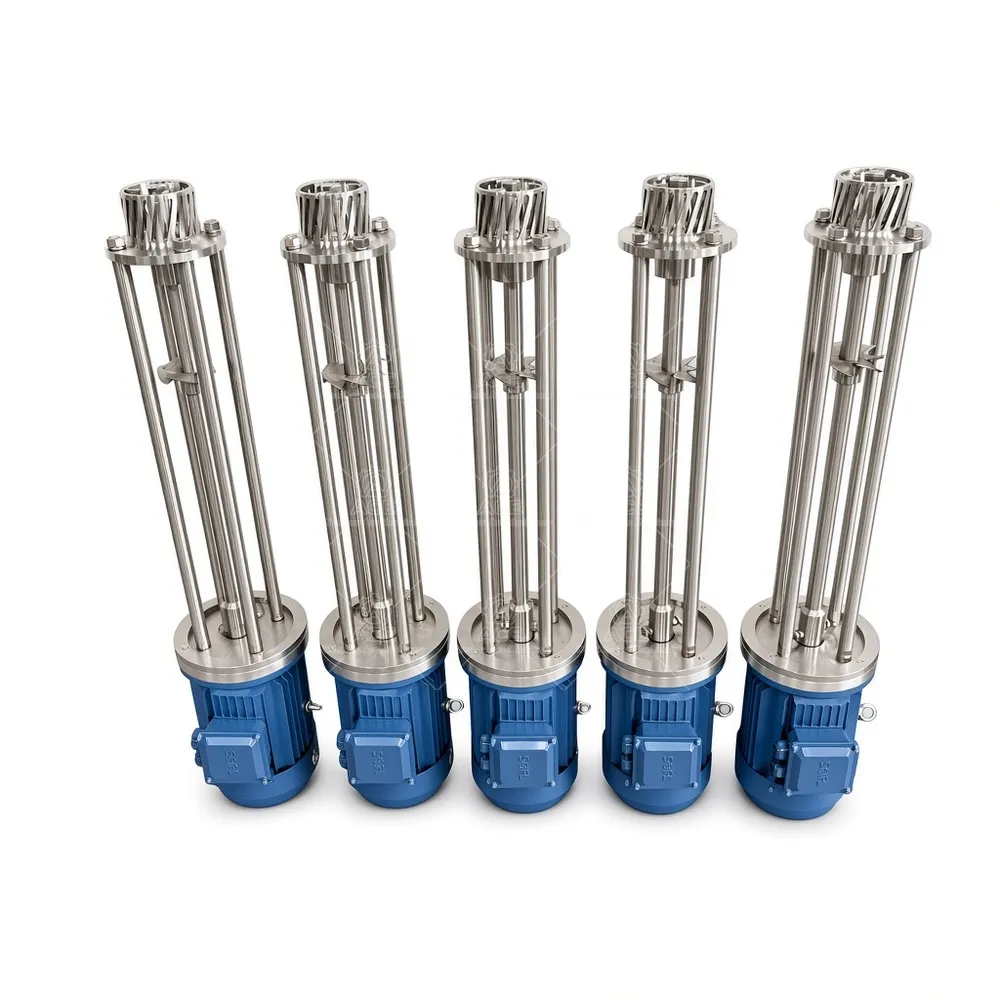

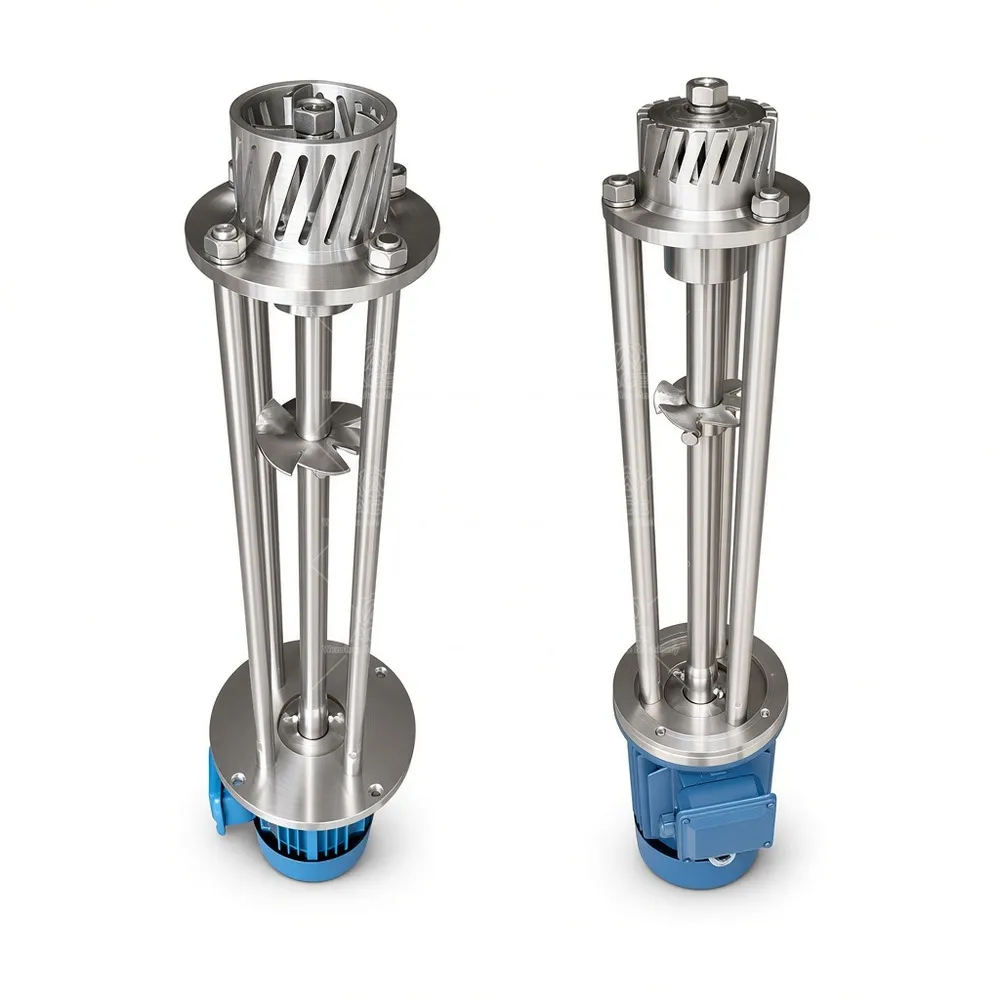

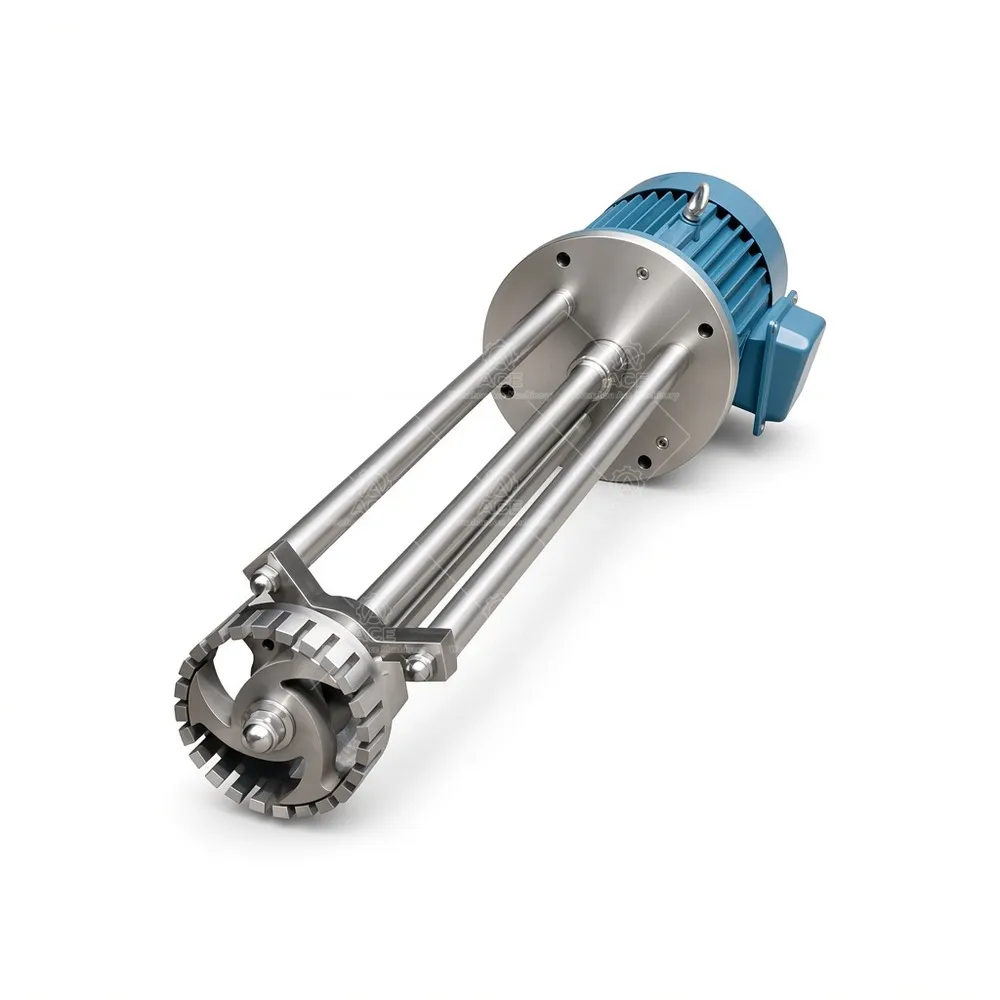

Sanitary High-Shear Batch Mixer Homogenizer for Shampoo, Jelly & Detergent
- Material: 304 or 316L
- Voltage: 110V 208V 220V 380V 400V 415V 480V 600V
- Certificates: CE, GMP, UL, ATEX, ISO 9001
- Power：0.75KW-55KW （1 HP – 74 HP）
- Motor brands: ABB, Chinese brands, SEW, Siemens (optional)
- 1-year free warranty with door-to-door delivery.
- Optional: Variable-frequency drive, control panel
- MADE IN CHINA
- We have it in stock.
Please contact our sales team before placing your order.
Email:info@ace-chn.com
Tel:+86 18626835909
WeChat: ace-chn
Price range: $1,464.54 through $1,562.96
Guaranteed Safe Checkout
We manufacture and sell the following types of mixers
Mix, emulsify, homogenize, disintegrate and dissolve
Ideal for disintegrating solids and incorporating powders
Reduce mixing times by up to 80%
Reduce mixing times by up to 90%
Quickly disperse and hydrate powders, even at higher viscosities
Easy to move and lift
Features heating, cooling, vacuum, and other functions
Recommended RPM: 1480/2850 RPM
Specifying a batch high shear mixer for shampoo, shower jelly, laundry detergent, jam paste, or emulsion-based products starts with the vessel and the fluid, not the headline speed. At Ace Mixer, we build sanitary high-shear mixer homogenizers around the actual batch: low-viscosity detergents need strong turnover; thick pastes and jellies demand more torque and a head that keeps product moving into the shear zone.
Configuration that fits the process
This industrial high shear mixer can be supplied as a fixed unit or as a mobile high shear mixer for multi-tank rooms. Optional VFD control makes it a variable speed high shear mixer, with 0 to 3000 rpm depending on motor and configuration. Motor power spans 1.5 kW to 55 kW. Voltage is confirmed for 220 to 480 V, with frequency, phase, and electrical arrangement matched to the destination market. Wetted stainless steel parts are available in 304 or 316L; shaft, head, and contact materials are specified against the product.
Functions include high-speed shearing, dispersion, emulsification, and powder incorporation. A high shear mixer for powder dispersion works best when feed rate, head design, and vortex control suit the formulation. For liquid-liquid emulsification, head choice and speed profile matter as much as motor size.
Selection points for buyers
- Batch size and vessel size: define working volume, vessel diameter, and available mounting space.
- Viscosity and ingredients: note solids, gums, paste-like phases, and whether powder is added dry or pre-slurried.
- Speed and motor power: set a target rpm range and process reason, not a single number.
- Electrical supply: confirm voltage, frequency, and phase before order.
- Head and contact parts: choose stainless steel high shear mixer construction and head style for the product.
- Installation: decide between fixed and mobile high shear mixer layouts.
Applications
This high shear mixing equipment suits food and beverage processing, cosmetics and personal care, pharmaceutical and healthcare preparations, chemical processing, paints and compatible coatings, powder dispersion, and liquid-liquid emulsification. Suitable head, material, and operating parameters depend on viscosity, ingredients, and process requirements.
FAQ
Can one unit handle detergent and jam paste? Sometimes, but viscosity and batch size often point to different heads or power ratings. We check both before recommending.
Is a VFD necessary? For many formulations, a high shear mixer with VFD helps control vortexing, powder wet-out, and emulsion stability. It is optional and configured to the motor.
What information speeds up a quote? Batch size, vessel dimensions, viscosity, target rpm, motor power, material preference, mobile or fixed mounting, and local voltage/frequency/phase. Send these details and we will recommend a suitable batch high shear mixer configuration.
Ace Mixer supplies sanitary batch high shear mixer homogenizers for shampoo, shower jelly, laundry detergent, jam paste, and emulsion products. Configure optional VFD speed control from 0 to 3000 rpm, motor power from 1.5 to 55 kW, 220 to 480 V electrics, and 304 or 316L wetted parts. Choose fixed or mobile high shear mixing equipment based on batch size, viscosity, head design, and local power supply. Share process details for a suitable configuration and quote.
Single-stage in-line mixer
Three-stage in-line mixer
High-Shear Mixer with lift
High shear mixer
