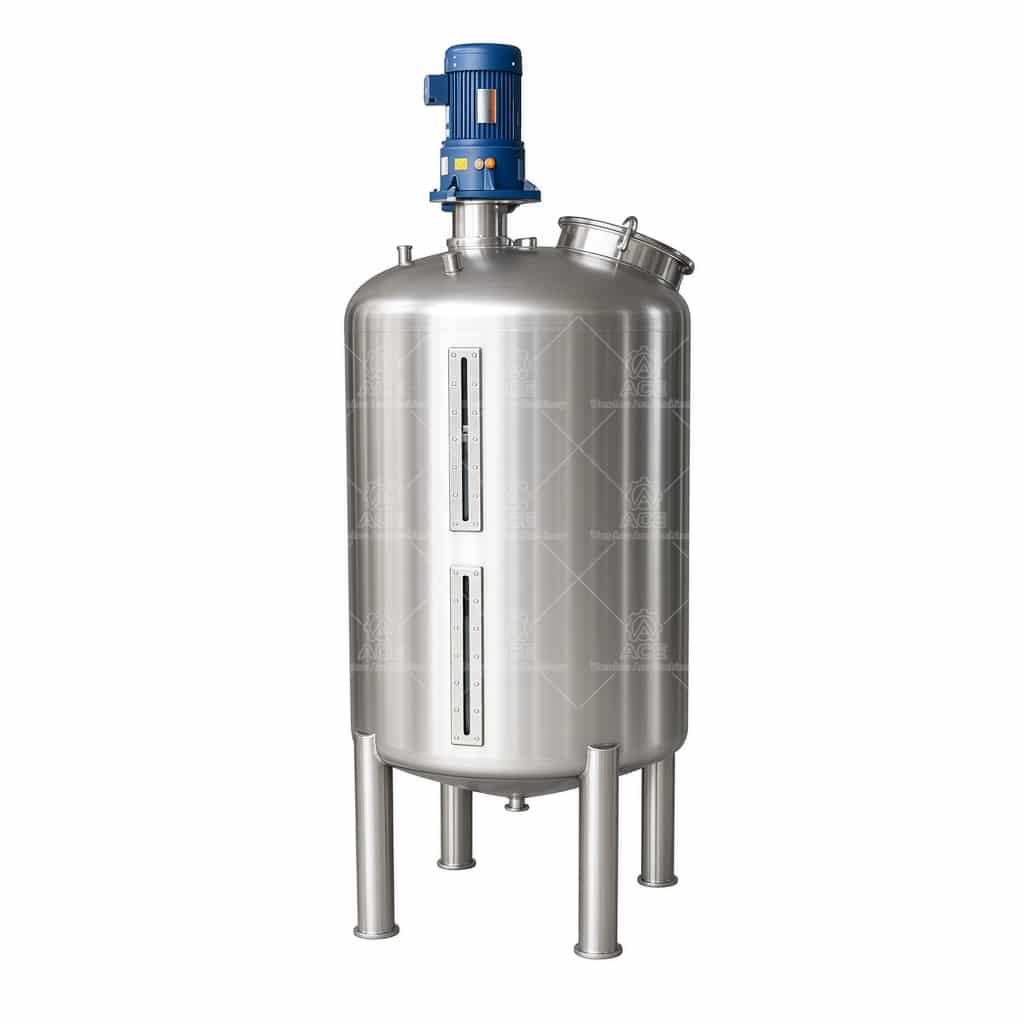

PLC Controlled Stainless Steel Reactor Tank 300L-10000L with Agitator - Image 1

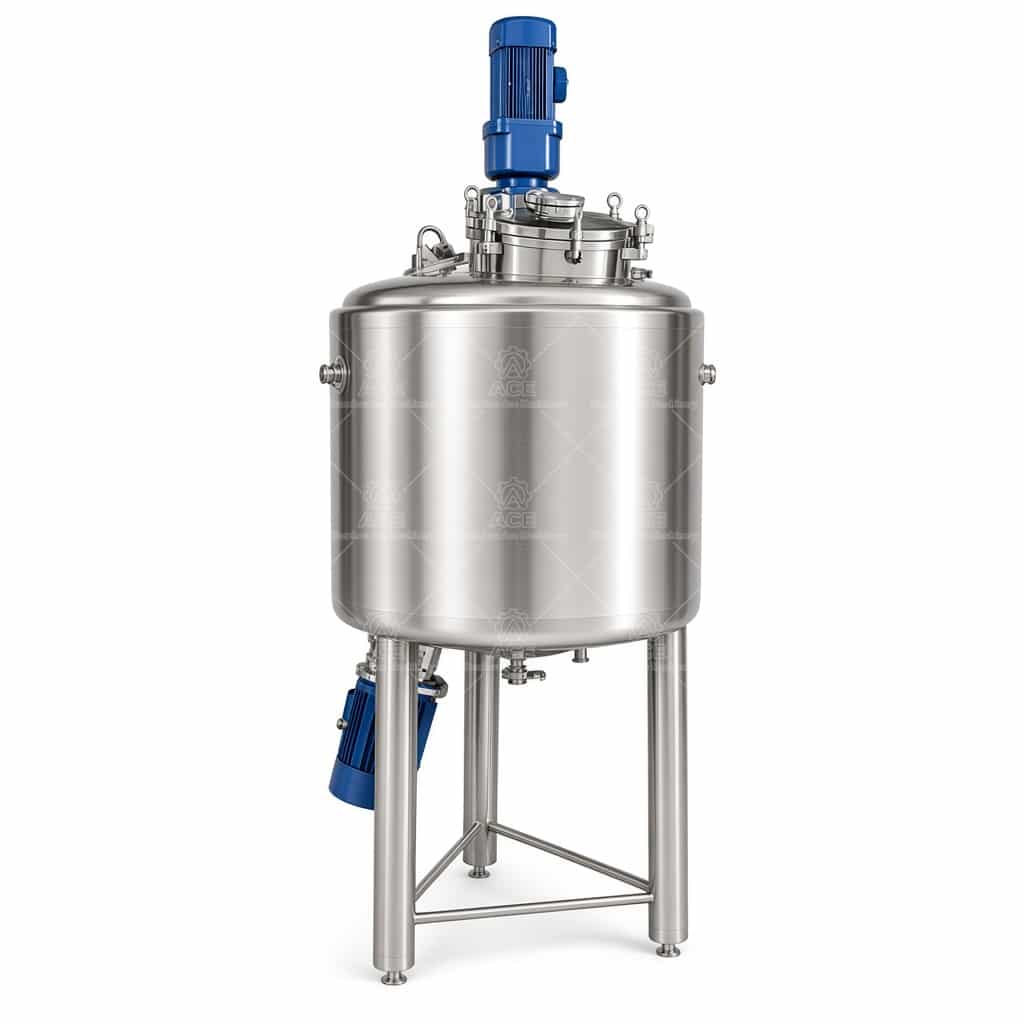

PLC Controlled Stainless Steel Reactor Tank 300L-10000L with Agitator - Image 2

PLC Controlled Stainless Steel Reactor Tank 300L-10000L with Agitator

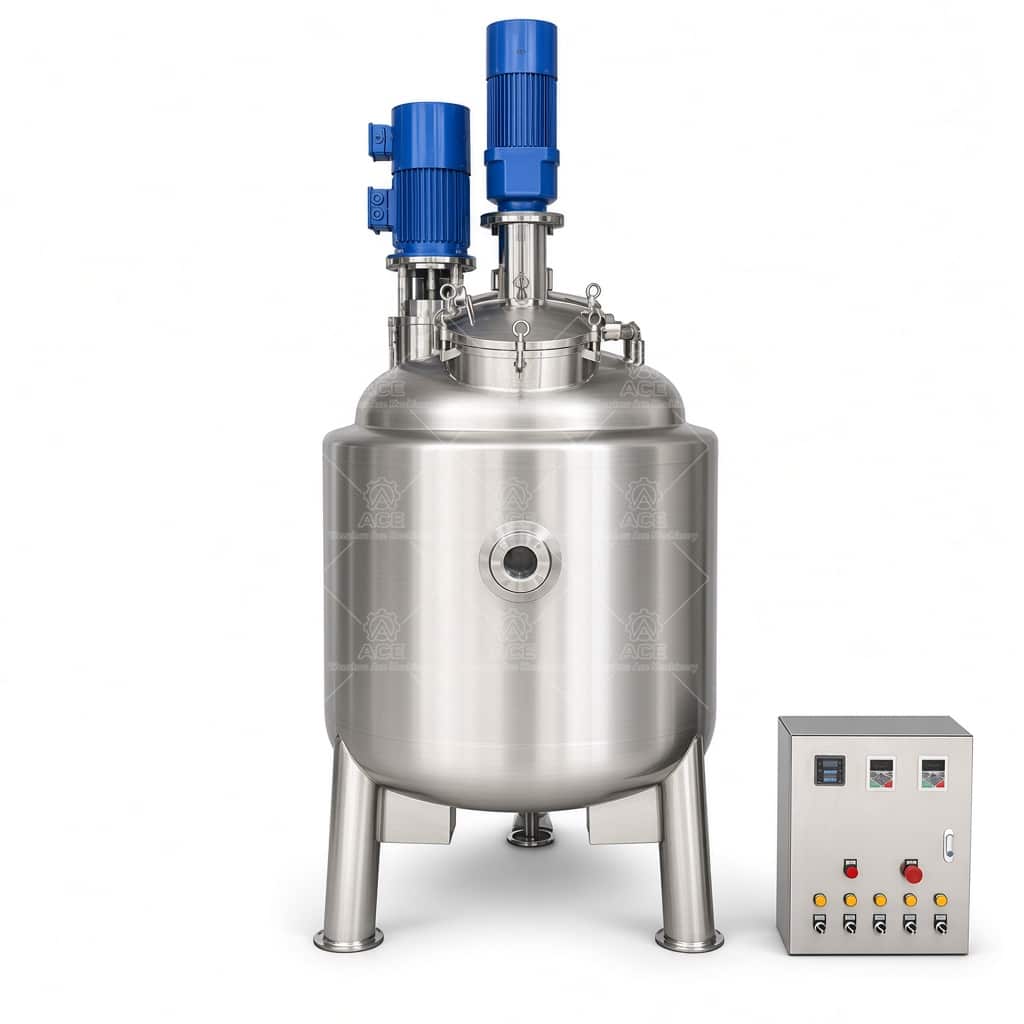

PLC Controlled Stainless Steel Reactor Tank 300L-10000L with Agitator - Image 3

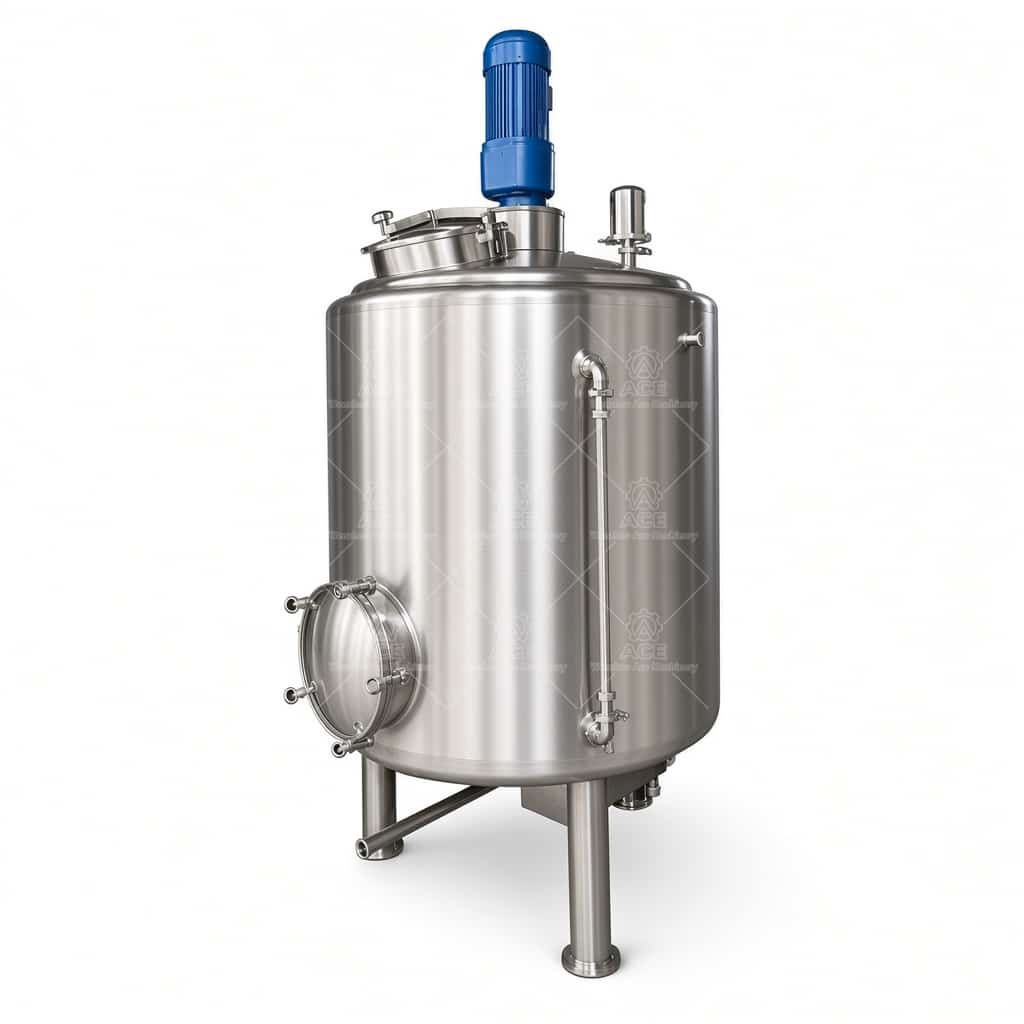

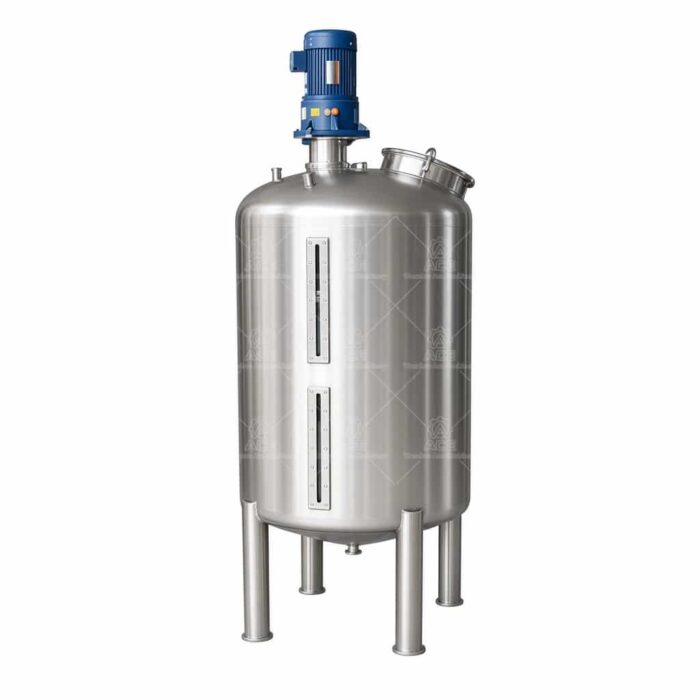

PLC Controlled Stainless Steel Reactor Tank 300L-10000L with Agitator - Image 4

PLC Controlled Stainless Steel Reactor Tank 300L-10000L with Agitator

PLC controlled stainless steel reactor tank from 300L to 10000L with custom agitator. Built for chemical, pharmaceutical, food, and cosmetics production with heating, cooling, and CIP options.

Capacity: 50 liters to 30,000 liters
Mixer power: 1.5 kW to 55 kW
Material: [SUS304 / SUS316L]
Voltage: 110V / 220V / 380V / 400V / 440V / 480V / 600V
Heating method: [Electric / Steam / Thermal Oil / Hot Water / No Heating]
Cooling method: [Cooling Jacket / Dimple Jacket / Coil / No Cooling]
Agitation system: [Top Entry Agitator / Anchor Mixer / Paddle / Turbine / High-Shear Mixer / Customized]
Optional features: [Insulation / Load Cells / Temperature Sensor / Pressure Gauge / Manhole / CIP / PLC Control / Explosion-Proof Motor]
Certificates: ASME, CE, GMP, UL, ATEX, ISO 9001
Working pressure: [Atmospheric / Positive Pressure / Vacuum / Specify pressure]
If you have drawings, we can process them for you.

Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909

Price range: $3,454.79 through $4,268.74

Ask For A Quotation

Guaranteed Safe Checkout

We build jacketed reactor vessels for production lines that need repeatable results. This stainless steel tank reactor is available from 300L to 10,000L working capacity, with PLC control and an agitator system matched to your process. It is suitable for liquid mixing, chemical reactions, heating, cooling, and holding duties across the chemical, pharmaceutical, food, and cosmetics sectors.

The vessel is fabricated from stainless steel with a polished internal surface. All wetted parts are welded by certified welders, and the welds are ground and passivated to maintain corrosion resistance. The tank can be configured with a jacket or half-pipe coil for heating or cooling. We do not fix a standard wall thickness because the required thickness depends on your working pressure, vessel size, and specific gravity of the contents. Send us those details, and our engineers will calculate the correct plate thickness.

Agitator selection is not a one-size-fits-all decision. For low-viscosity liquids, a standard turbine or paddle works well. For suspensions or products that settle, we recommend a scraper or anchor agitator. For emulsifying or fine dispersion, a high-shear mixer can be integrated. The PLC control system manages temperature, agitation speed, holding time, and process alarms, which gives you a consistent batch profile every time.

The standard configuration includes a top-mounted agitator, bottom discharge valve, CIP spray ball, and a manhole for inspection and cleaning. If your process runs under pressure or vacuum, we can design the vessel accordingly. The sealing system can be a mechanical seal or stuffing box depending on your solvent, temperature, and hygiene requirements.

Technical Specifications (Typical Range)

Capacity	300L – 10,000L
Material	Stainless steel (wetted parts)
Internal finish	Mirror polish or matte, depending on application
Heating / cooling	Jacket or half-pipe coil (thermal oil, steam, or cooling water)
Control	PLC with touchscreen (customizable)
Agitator	Turbine, anchor, paddle, or high-shear (selected by process)
Sealing	Mechanical seal or packing seal

FAQ

Q: What information do you need for a quote?
Please tell us the material you will process, the batch volume, operating temperature, working pressure, and viscosity. If you need pressure or vacuum, include that as well.

Q: Can you customize the tank for food or pharmaceutical use?
Yes. For food and pharma, we adjust the internal finish, use appropriate gaskets, and can add a CIP system. Just specify your requirement during the inquiry.

Q: How is the heating or cooling system selected?
It depends on your temperature range and heating/cooling speed. Steam and thermal oil are common for heating; chilled water or glycol for cooling. We match the heat transfer area to your process needs.

Q: What about maintenance?
The mechanical seal and agitator are accessible from the top. The bottom valve is easy to disassemble. We provide a maintenance manual with each unit.

When you are ready to move forward, send us your process details: material composition, batch size, operating temperature, pressure requirements, and mixing needs. With that information, we can recommend the right vessel configuration and provide a quotation.
