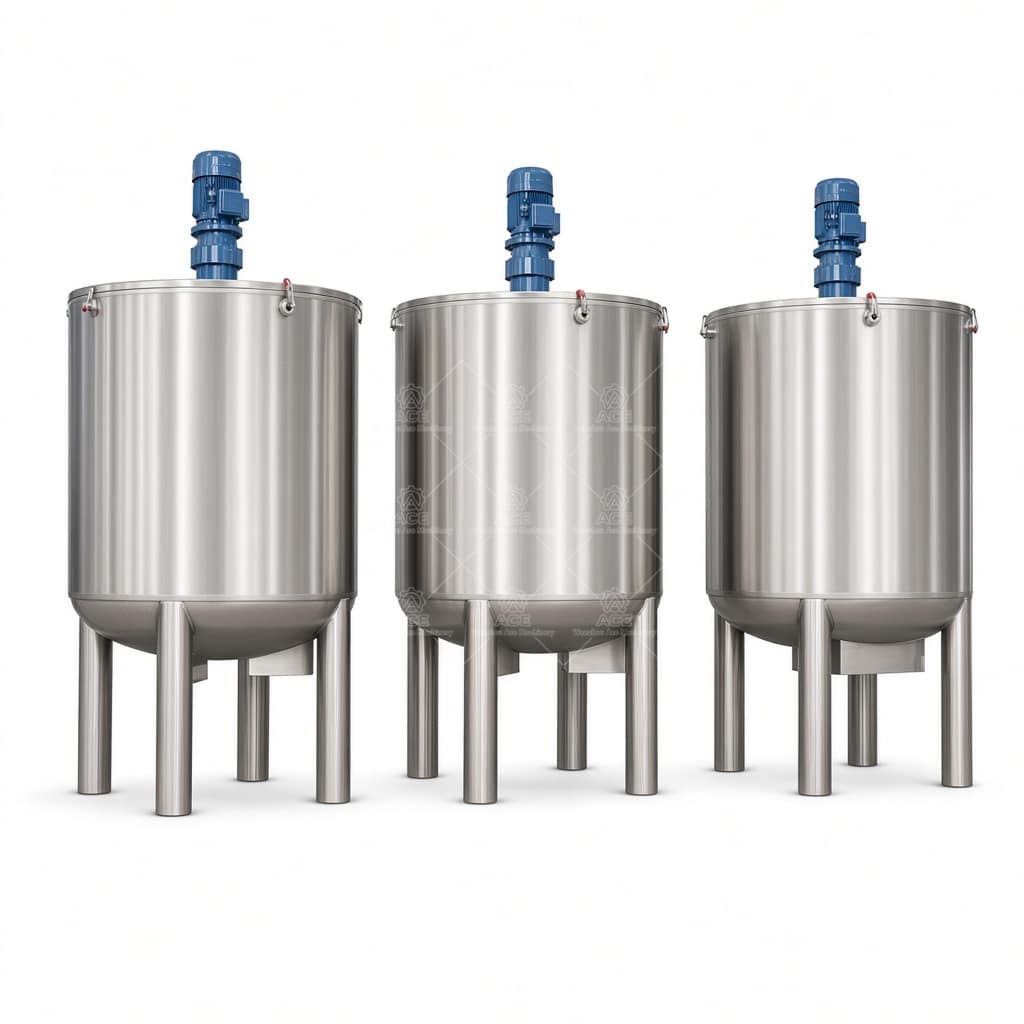

Paddle Agitator Mixer for Liquid Detergent and Beverage Tanks

Paddle agitator mixers are configured for liquid blending and batch circulation in detergent, beverage, and related process tanks. Agitator geometry, drive torque, shaft seals, materials, surface finish, and optional heating depend on the product and cleaning requirements. Share tank dimensions, batch volume, viscosity, temperature range, and mixing time to help determine a suitable design.

Capacity: 50 liters to 30,000 liters
Mixer power: 1.5 kW to 55 kW
Material: 304 or 316L
Voltage: 110V to 600V
Heating method: Electric or steam heating
Layer:single/double jacket/three jacket
Mixer types: Impeller-type, Anchor-type, Turbine-type, High-shear-type, Magnetic mixer, Anchor-type mixer with scrapers,dispersing
Optional: platform, wheels, ladder,variable frequency drive,explosion-proof device
Certificates: ASME, CE, GMP, UL, ATEX, ISO 9001
Our equipment supports customisation, global delivery, and a 1-year warranty.
If you have drawings, we can process them for you.

Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909

Price range: $2,007.67 through $2,345.56

Ask For A Quotation

Guaranteed Safe Checkout

Process fit and mixing approach

A paddle agitator is typically selected for blending liquids with modest viscosity, maintaining a uniform batch, or keeping ingredients in motion without the high shear of a rotor-stator mixer. In detergent production, it can blend surfactant solutions, water, and compatible additives; in beverage processing, tank geometry, sanitation requirements, and the recipe determine whether a paddle is suitable. Powders that form lumps, highly viscous products, or ingredients that need rapid dispersion may call for a different impeller or a secondary high-shear device.

We size the assembly around working volume, tank diameter and height, liquid properties, batch time, and the required surface movement. A paddle that is too small may leave stagnant zones; one that is too large or fast can draw air into the batch or create unnecessary load. Motor and gearbox selection follows the required torque and operating duty, not tank volume alone. Shaft support, seal arrangement, and access for cleaning also affect the design.

Construction and options

Wetted parts can be specified in stainless steel to suit the product and cleaning chemistry. Grade selection depends on chloride exposure, formulation, and sanitation practice; beverage service may require tighter hygienic detailing than general-purpose detergent mixing. Weld finish, internal corners, surface finish, and drainability should be agreed with the intended cleaning method. Mechanical seals or other shaft-sealing arrangements are selected according to leakage risk, pressure, temperature, and maintenance access.

If the process needs heat, the tank may be configured for a suitable heating method, such as a jacket, subject to vessel design and utility availability. Temperature control requires a defined operating range, sensor location, and heating duty. The paddle profile, number of blades, shaft dimensions, speed control, and drive mounting can be customized to the batch behavior and tank layout.

Configuration details

Item	Design basis
Capacity and tank geometry	Working volume, dimensions, and headspace
Wetted materials and finish	Product chemistry, cleaning agents, and hygiene target
Drive and agitator	Viscosity, batch time, torque, and mixing objective
Heating and controls	Required temperature range and available utilities

FAQ

Can one mixer handle detergent and beverage batches? The same basic arrangement may suit both, but product-contact materials, cleanability, seals, and changeover procedures must be reviewed for each use.

What should be sent for a quotation? Provide batch size, tank dimensions, product density or viscosity if known, ingredients, target mixing time, temperature range, cleaning method, power supply, and any sanitary or hazardous-area requirements. These details let our engineers recommend a practical configuration rather than sizing from capacity alone.
