Mobile Lift High Shear Homogenizer Mixer Emulsifier for Cream Shampoo
- Material: 304 or 316L
- Voltage: 110V 208V 220V 380V 400V 415V 480V 600V
- Certificates: CE, GMP, UL, ATEX, ISO 9001
- Power：0.75KW-55KW （1 HP – 74 HP）
- Motor brands: ABB, Chinese brands, SEW, Siemens (optional)
- 1-year free warranty with door-to-door delivery.
- Optional: Variable-frequency drive, control panel
- MADE IN CHINA
- We have it in stock.
Please contact our sales team before placing your order.
Email:info@ace-chn.com
Tel:+86 18626835909
WeChat: ace-chn
Price range: $2,224.34 through $3,630.75
Guaranteed Safe Checkout
We manufacture and sell the following types of mixers
Mix, emulsify, homogenize, disintegrate and dissolve
Ideal for disintegrating solids and incorporating powders
Reduce mixing times by up to 80%
Reduce mixing times by up to 90%
Quickly disperse and hydrate powders, even at higher viscosities
Easy to move and lift
Features heating, cooling, vacuum, and other functions
Recommended RPM: 1480/2850 RPM

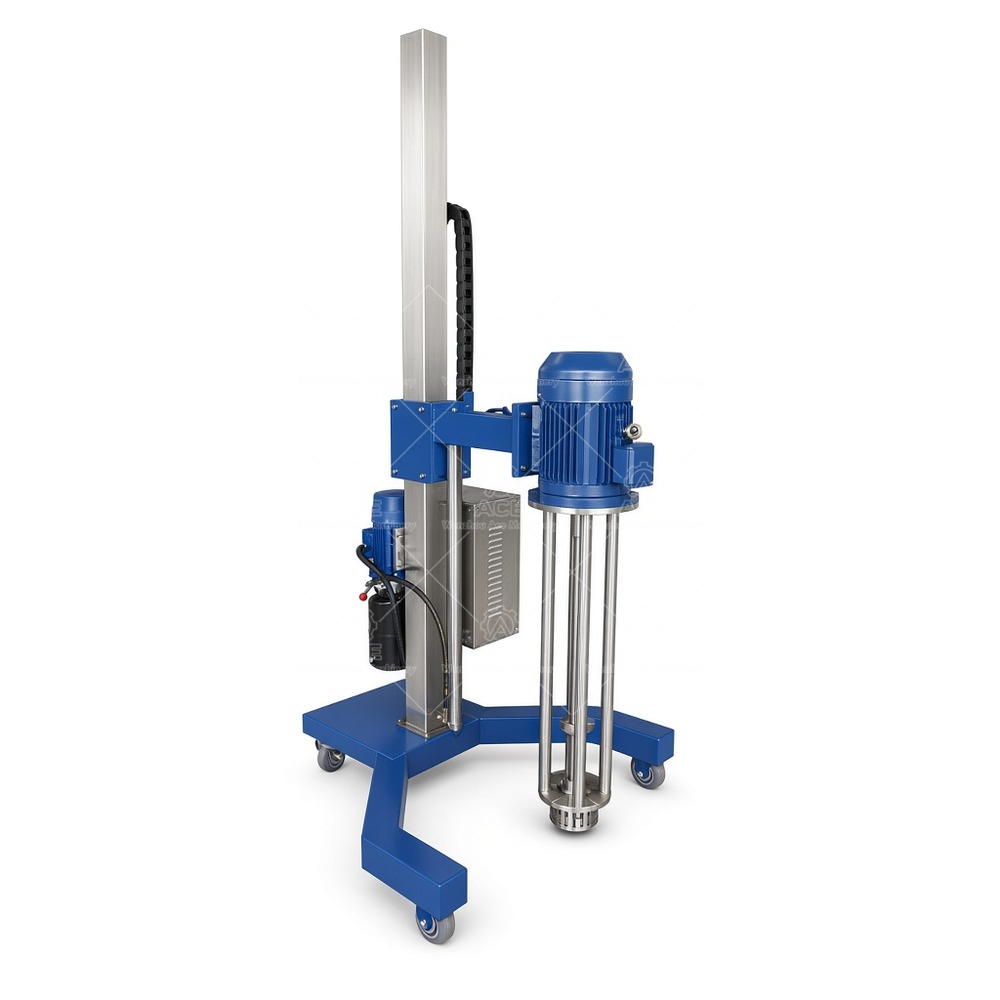

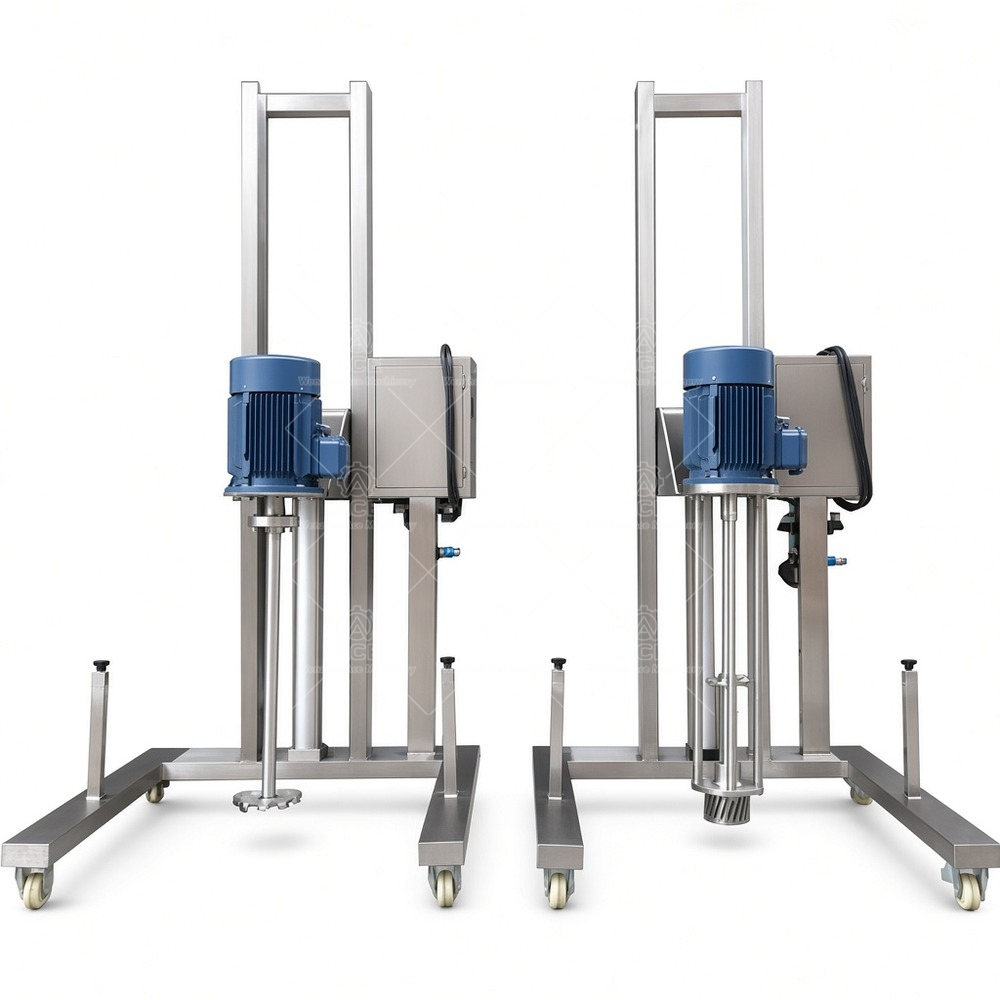

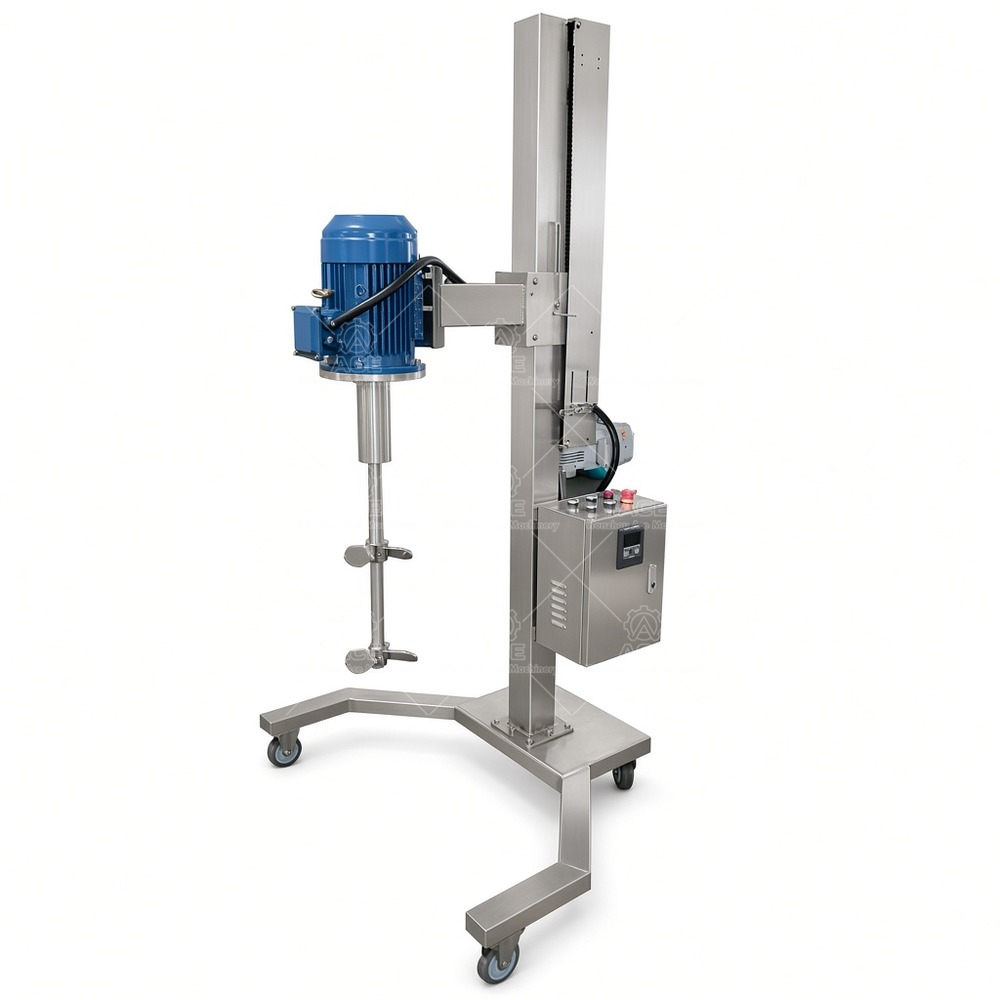

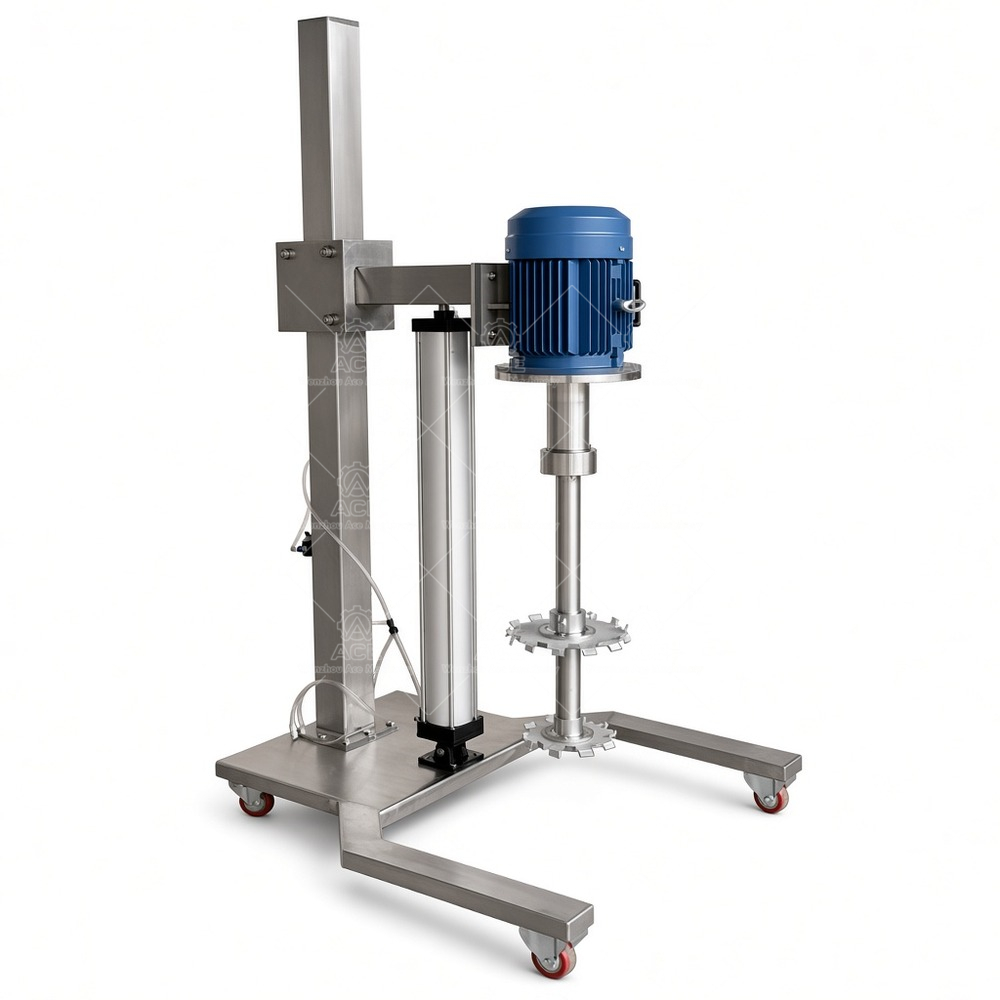

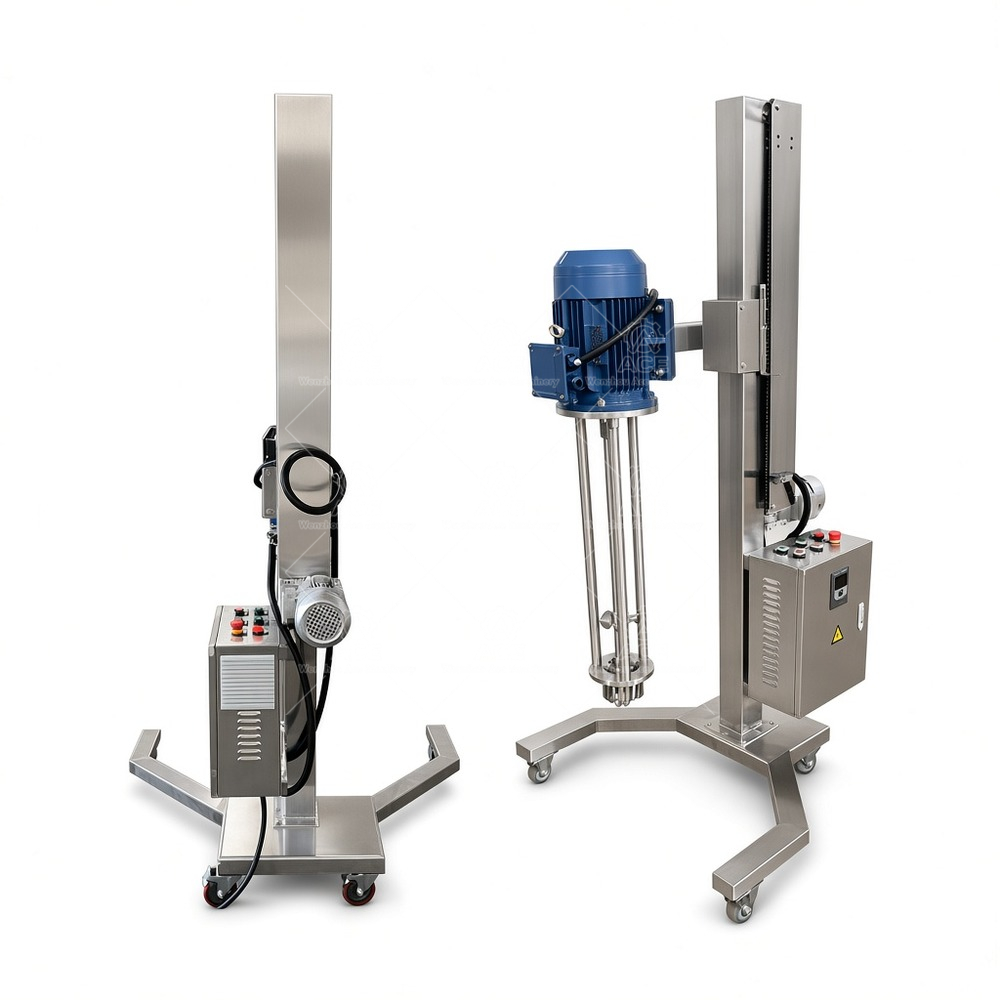

Mobile Lift High Shear Homogenizer for Creams, Gels, and Shampoo
This mobile lift high shear homogenizer is built for plants that need one batch high shear mixer to move between vessels and processing stations. Instead of dedicating a fixed unit to each tank, casters let operators reposition the machine where layout and aisle space allow. It handles high-speed shear, dispersion, emulsification, and powder wet-in for cosmetics cream, shower gel, carbomer shampoo, and similar formulations.
We configure each unit around the batch, not a catalog number. Motor power ranges from 1.5 kW to 11 kW; an optional VFD gives 0–3000 rpm speed control depending on motor and configuration. Voltage is confirmed from 220V to 480V, with frequency and phase matched to the destination. Stainless steel product-contact parts and mixing head design are specified to your formula and cleaning routine. In carbomer dispersions, the practical problem is avoiding lumps while keeping air entrainment under control; head type, speed profile, and vessel geometry matter more than a single horsepower figure.
Selection details that matter
- Batch size and vessel dimensions — lift height, shaft length, and head position must suit actual containers.
- Viscosity and solids — creams, gels, and shampoo bases load the motor differently; powder dispersion needs suitable head design.
- Speed and motor — choose VFD control if you need repeatable ramp-up and different products on one unit.
- Electrical supply — confirm voltage, frequency, and phase before quotation.
- Mobility vs fixed mounting — casters help where aisles and vessel layouts allow; fixed frames suit dedicated stations.
Applications
Use this industrial high shear mixer for cosmetic and personal care emulsions, pharmaceutical and healthcare formulations, food and beverage processing, chemical products, compatible paints and coatings, powder dispersion, and liquid-liquid emulsification. For powder dispersion, a high shear mixer for powder dispersion must match the head to the solids and liquid phase. The right mixing head, contact material, and operating parameters depend on viscosity, ingredients, and process requirements.
FAQ
Can one motor handle several products? Sometimes, but the answer depends on viscosity range, batch size, and speed. A variable speed high shear mixer with VFD gives more room, but it does not replace a proper process review.
Do you supply stainless steel contact parts? Yes, stainless steel high shear mixer configurations and contact materials can be specified. We confirm wetted parts against your formula and cleaning method.
What information speeds up a quote? Batch size, vessel size, product viscosity, target rpm, required motor power, and local electrical specifications.
Send those details to Ace Mixer. Our technical team will recommend a mobile or fixed configuration, mixing head, and control setup for your batch high shear mixing equipment.
Mobile lift high shear homogenizer mixer emulsifier for cosmetics cream, shower gel, carbomer shampoo and similar batches. Configure motor power, VFD speed control, voltage, mixing head and stainless steel contact parts with Ace Mixer. Share batch size, viscosity, target rpm and electrical details for a practical equipment recommendation and quote.
