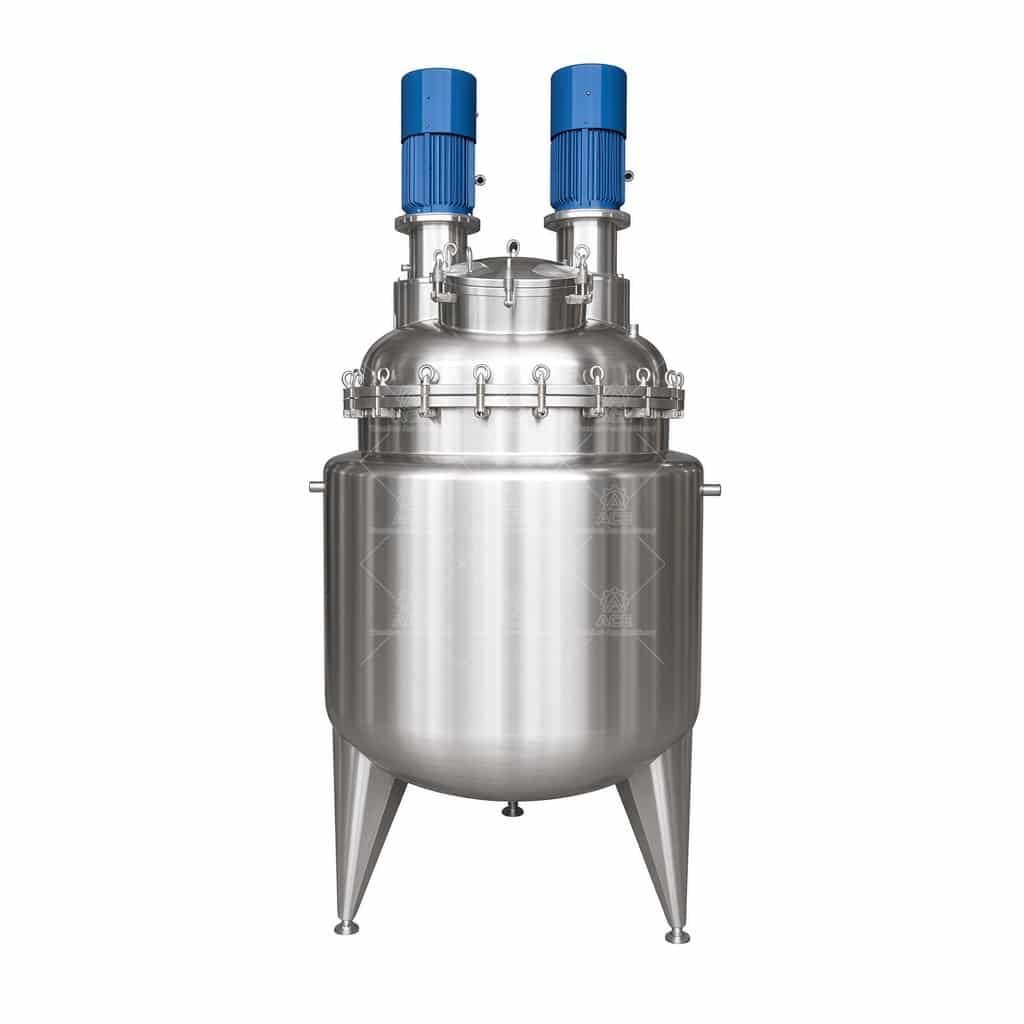

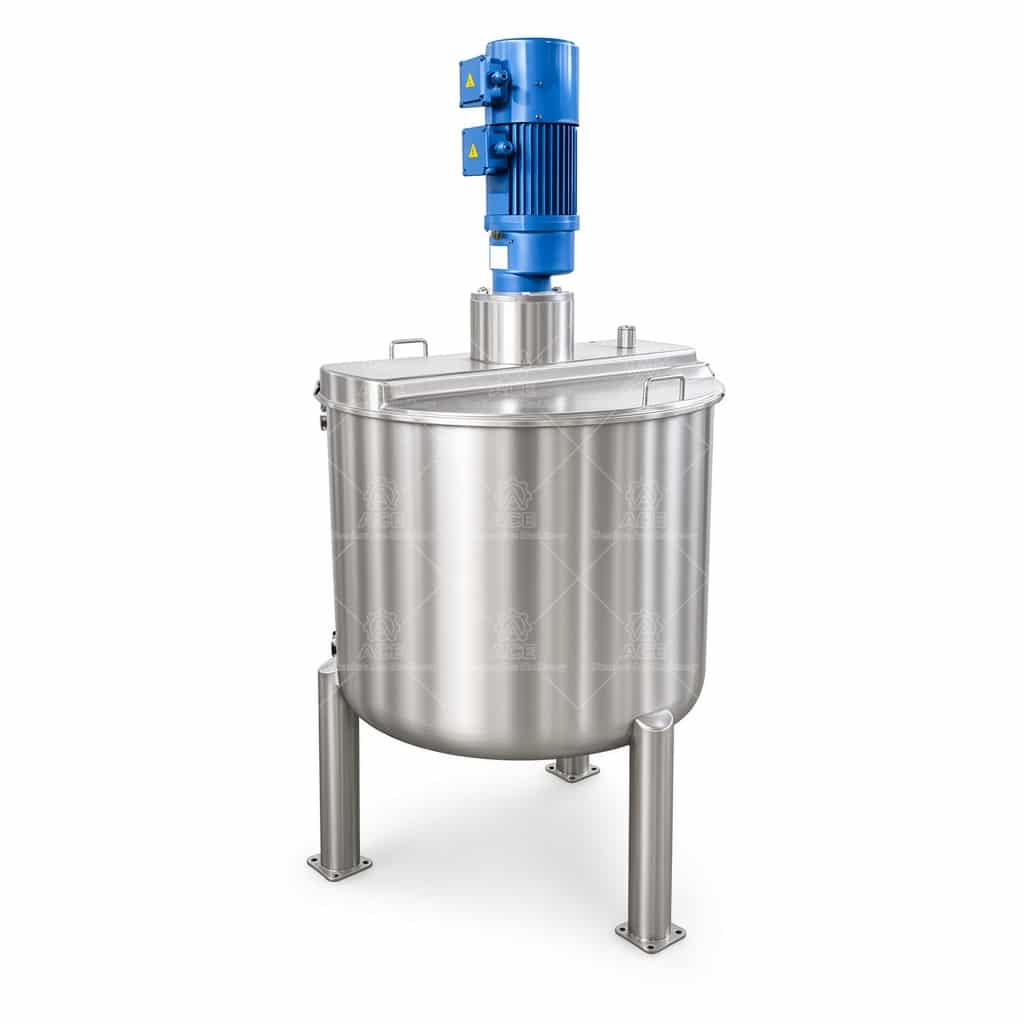

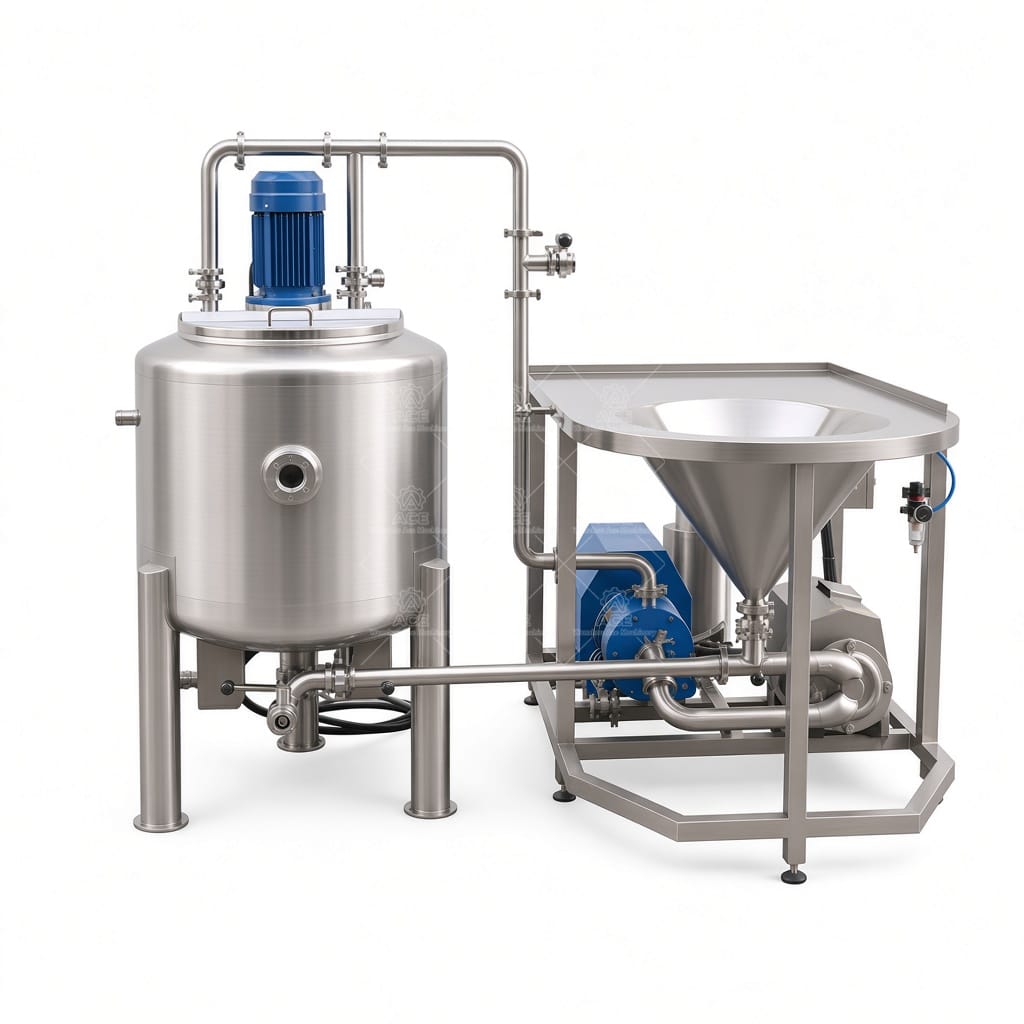

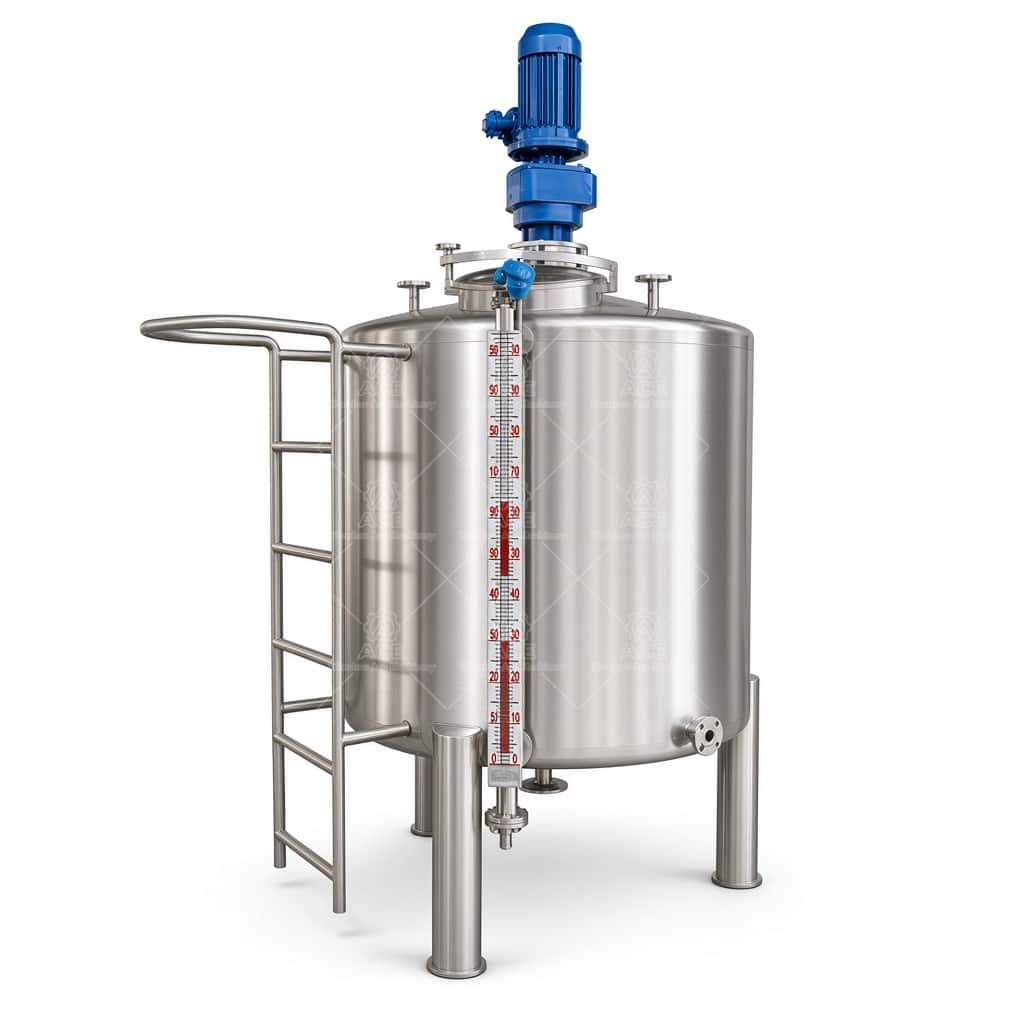

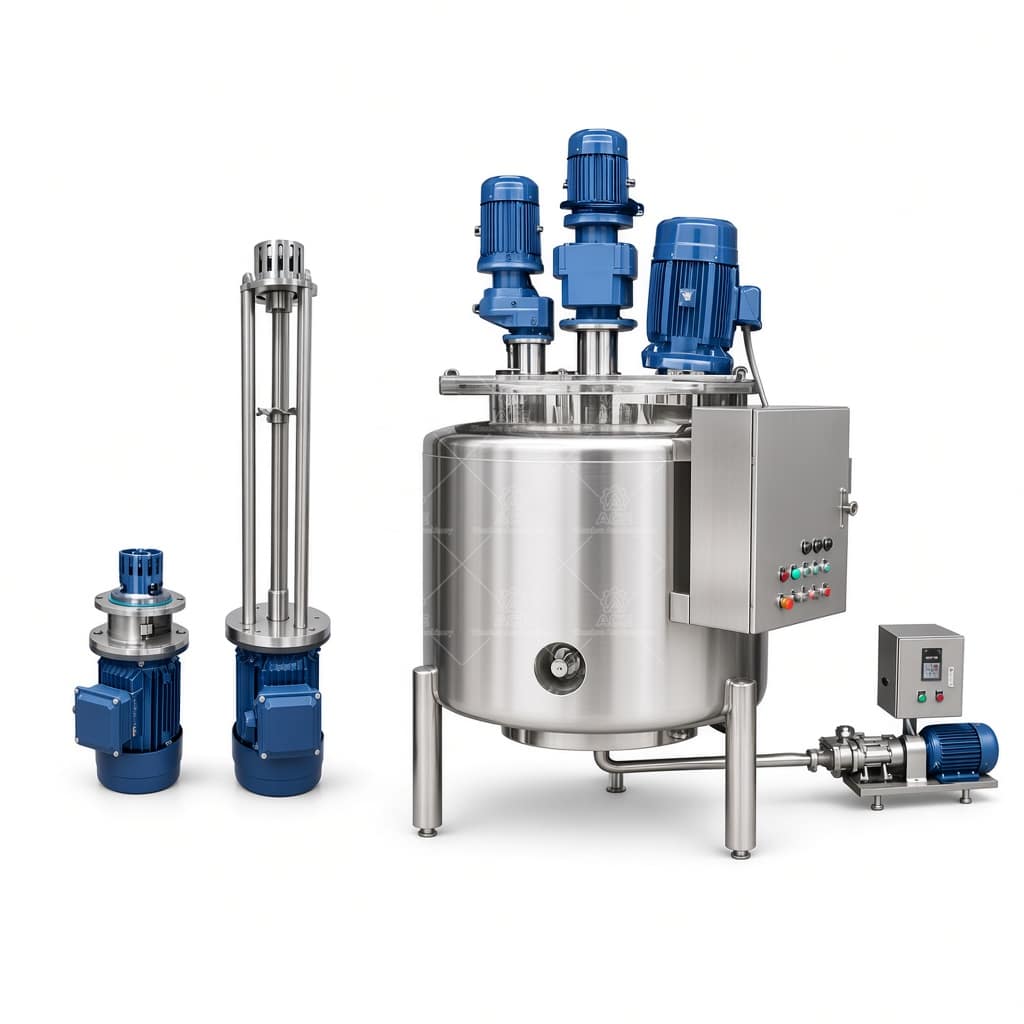

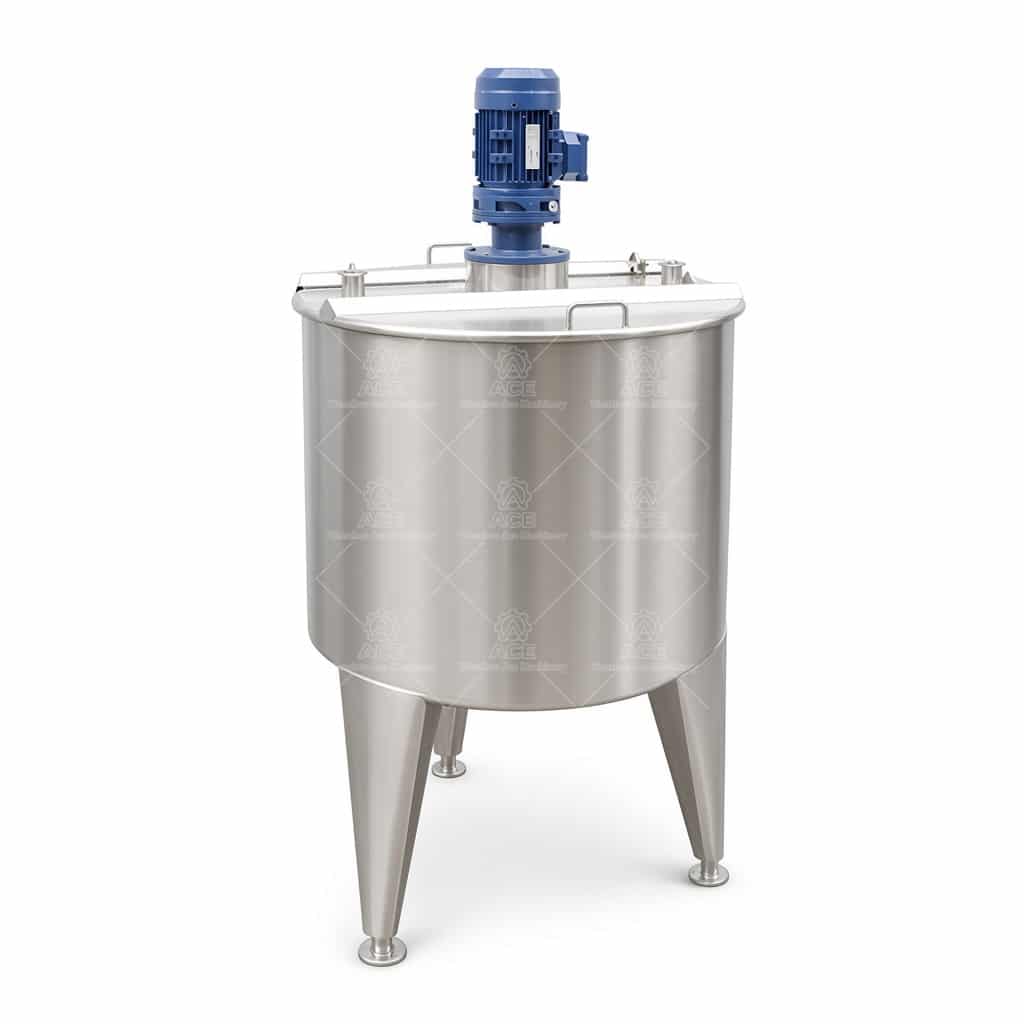

Liquid Mixing Tank with Homogenizer for Sanitizer, Mouthwash, Soap & Oil
A configurable liquid mixing tank for sanitizer, mouthwash, soap, oil, and polymer formulations. Vessel capacity, stainless steel grade, agitator, homogenizer, seals, and optional heating or cooling are selected around batch size, viscosity, shear needs, and cleaning requirements. Share your process details to develop a suitable equipment specification.
- Capacity: 50 liters to 30,000 liters
- Mixer power: 1.5 kW to 55 kW
- Material: 304 or 316L
- Voltage: 110V to 600V
- Heating method: Electric or steam heating
- Layer:single/double jacket/three jacket
- Mixer types: Impeller-type, Anchor-type, Turbine-type, High-shear-type, Magnetic mixer, Anchor-type mixer with scrapers,dispersing
- Optional: platform, wheels, ladder,variable frequency drive,explosion-proof device
- Certificates: ASME, CE, GMP, UL, ATEX, ISO 9001
- Our equipment supports customisation, global delivery, and a 1-year warranty.
- If you have drawings, we can process them for you.
Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909
Price range: $2,250.02 through $2,556.70
Guaranteed Safe Checkout
Recommend RPM: 0-960RPM
Viscosity: Low/medium viscosity
Application: Mainly Liquid mixing
Recommend RPM: 0-200RPM
Viscosity: Low/medium viscosity
Application: Mainly Liquid mixing
Recommend RPM: 30RPM
Viscosity: Medium/High viscosity
Application: Melting, High viscosity product mixing, For single wall tank
Recommend RPM: 30RPM
Viscosity: Medium/High viscosity
Application: Melting, High viscosity product mixing, For jacket tank
Recommend RPM: 1480/2850 RPM
Viscosity: Low/medium viscosity
Application: Liquid powder mixing and dispersion
Recommend RPM: 2800 - 3200 RPM
Viscosity: Low/medium/High viscosity
Application: Liquid powder mixing and homogenizing
Recommend RPM: 0-355RPM
Viscosity: Low/medium viscosity
Application: Install at bottom, No mechanical seal working condition
Recommend RPM: As above
Viscosity: Low/medium viscosity
Application: Liquid powder mixing and dispersion For tank volume >300L
Liquid Mixing Tank with Homogenizer
This tank is configured for liquid products that need controlled blending, ingredient dispersion, or batch-to-batch consistency. Typical applications include hand sanitizer, mouthwash, liquid soap, oils, and polymer-based mixtures. The right setup depends on viscosity, foaming tendency, solids content, cleaning requirements, and the finished product’s sensitivity to heat or shear.
We size the vessel and select the mixing system around the process, not just the batch volume. A top-entry agitator can support bulk circulation, while a high-shear homogenizer can help disperse powders or reduce droplet size. These duties are not interchangeable: excessive shear may introduce foam or heat, while a circulation-focused impeller may not fully disperse difficult ingredients. Motor and gearbox selection depends on viscosity, batch level, and required mixing time.
Construction and process options
Product-contact parts are commonly specified in 304 or 316L stainless steel. The choice depends on the formulation, cleaning chemicals, and corrosion exposure; 316L may be appropriate for more demanding chloride or chemical conditions, but compatibility should be confirmed against the actual recipe. Welds, internal finish, drainability, and seal materials also affect cleanability. We clarify the required surface finish and hygienic details before fabrication rather than assuming one standard suits every process.
Heating or cooling can be considered when the formula requires temperature control. Jacket type, heat-transfer medium, insulation, and control approach depend on the batch size and temperature range. Seal arrangement and shaft design are selected with the product, cleaning method, and operating conditions in mind. For sanitary products, confirm cleaning and, where required, validation expectations before finalizing the design.
Specification overview
| Item | Configuration basis |
|---|---|
| Working capacity | Set to batch size and usable headspace |
| Vessel material | 304 or 316L, subject to compatibility review |
| Agitation | Impeller and drive selected for viscosity and mixing duty |
| Homogenizer | Optional; selected for dispersion and shear requirements |
| Temperature control | Optional heating or cooling, based on process needs |
Common questions
Can one mixer handle soap, mouthwash, and oil? A shared system may be possible, but viscosity, cleaning changeover, seals, and cross-contamination controls need review.
What information is needed for a quotation? Provide batch volume, ingredients or viscosity range, target temperature, mixing time, cleaning method, electrical supply, and any hygienic or documentation requirements. These details let our engineers recommend a practical vessel and drive configuration.
