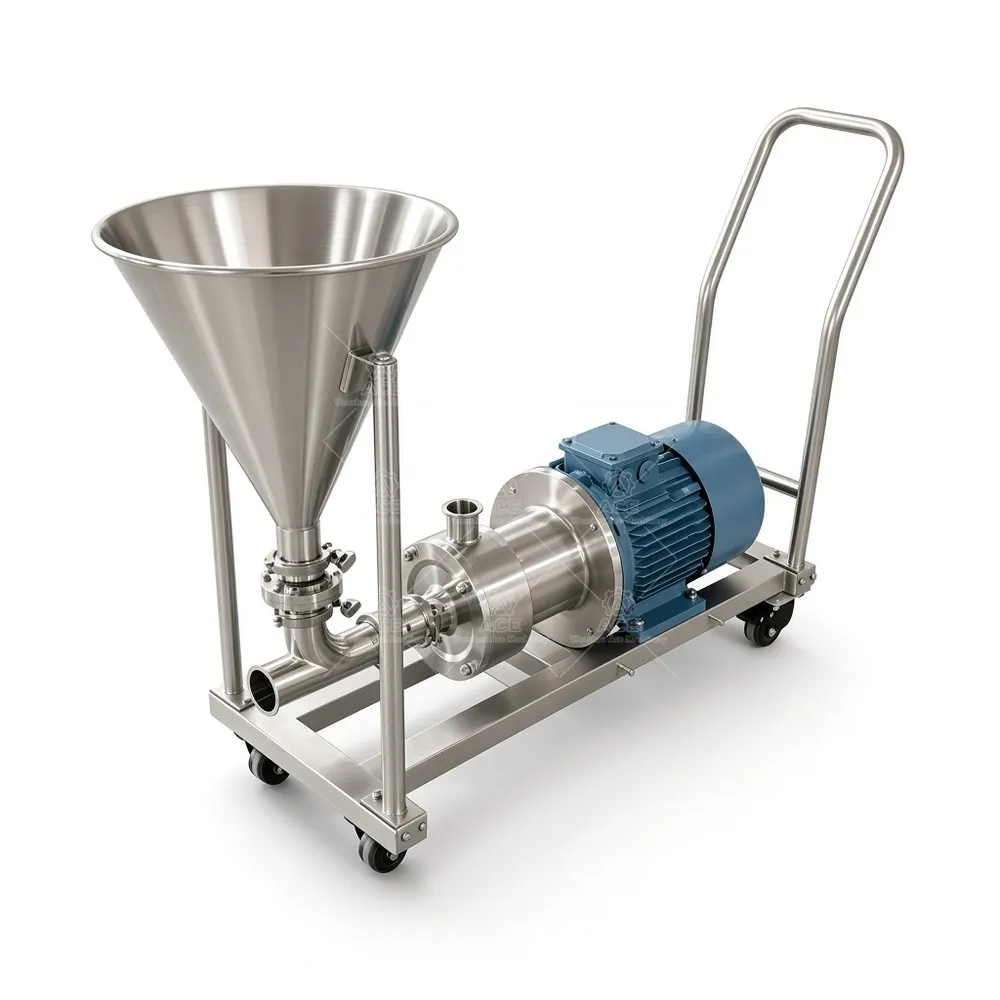

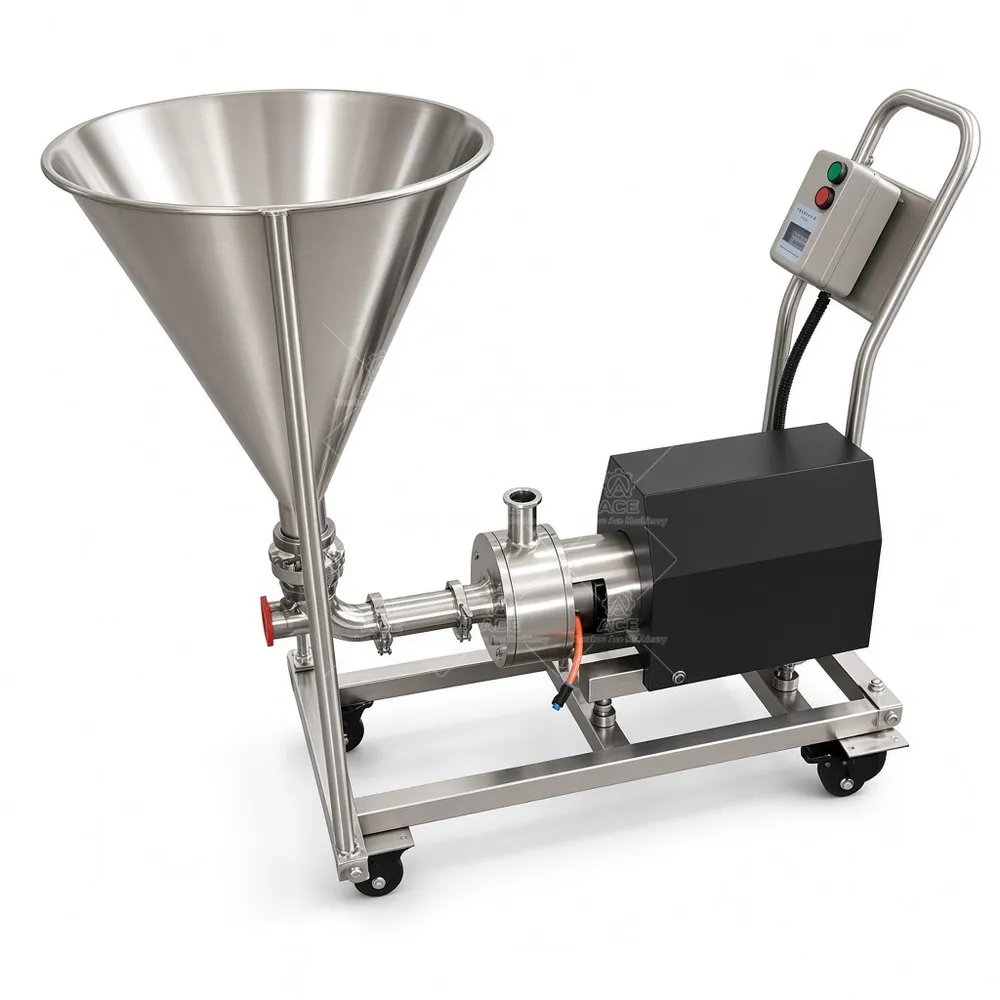

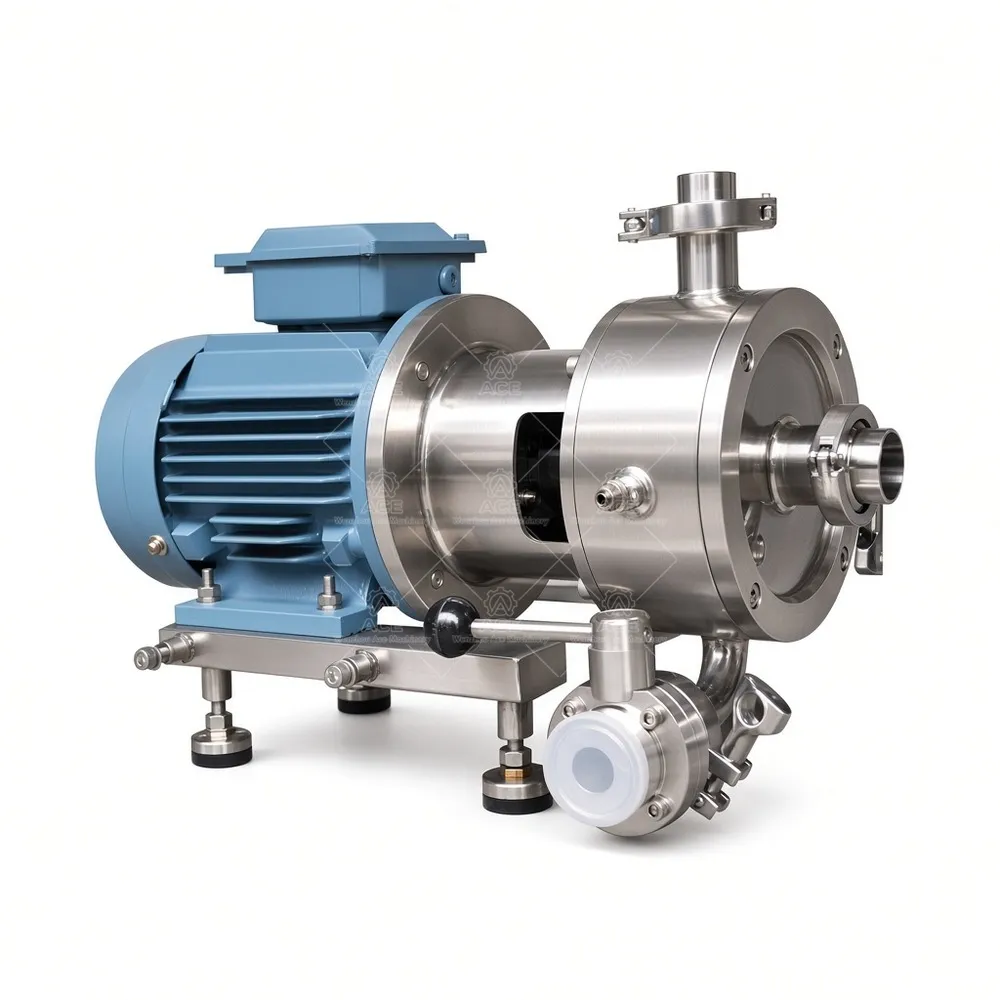

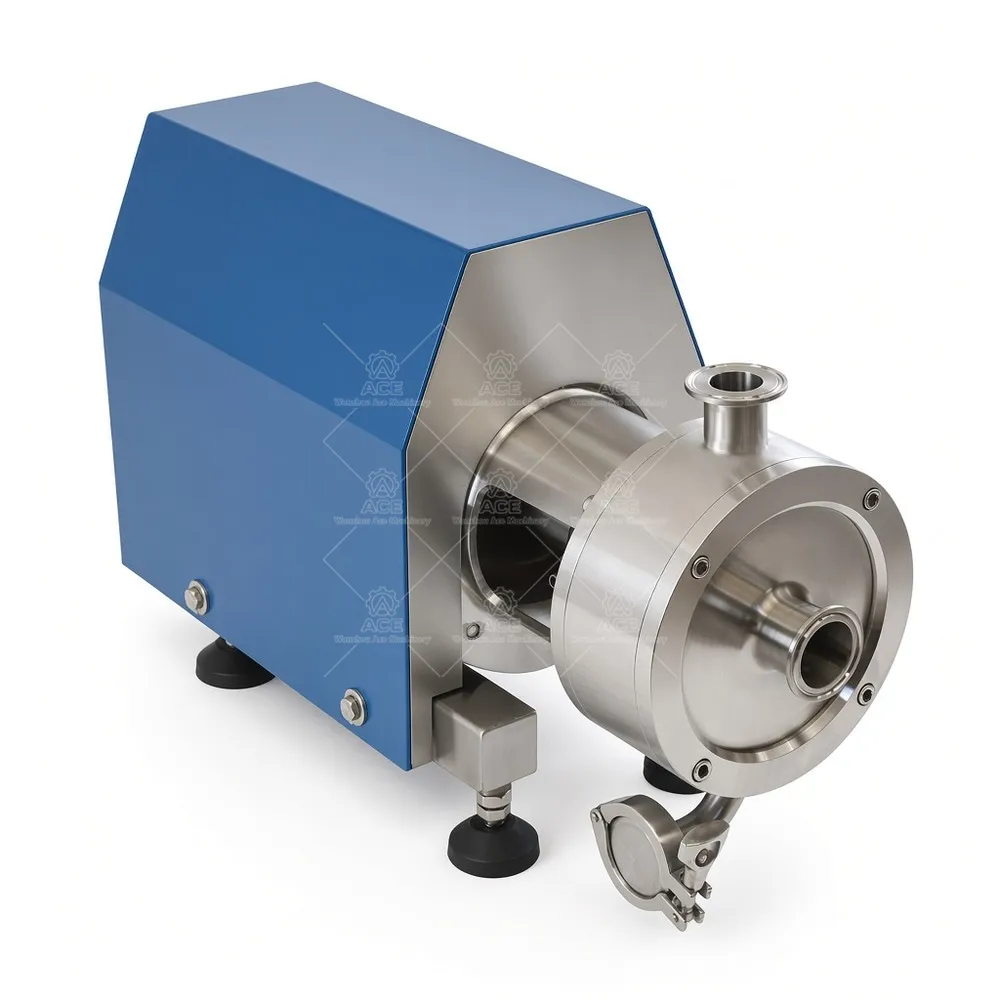

Hygienic Inline Multi Stage Powder Liquid Emulsifier Homogenizer Pump
- Material: 304 or 316L
- Voltage: 110V 208V 220V 380V 400V 415V 480V 600V
- Certificates: CE, GMP, UL, ATEX, ISO 9001
- Power：0.75KW-55KW （1 HP – 74 HP）
- Motor brands: ABB, Chinese brands, SEW, Siemens (optional)
- 1-year free warranty with door-to-door delivery.
- Optional: Variable-frequency drive, control panel
- MADE IN CHINA
- We have it in stock.
Please contact our sales team before placing your order.
Email:info@ace-chn.com
Tel:+86 18626835909
WeChat: ace-chn
Price range: $2,090.47 through $2,271.71
Guaranteed Safe Checkout
We manufacture and sell the following types of mixers
Mix, emulsify, homogenize, disintegrate and dissolve
Ideal for disintegrating solids and incorporating powders
Reduce mixing times by up to 80%
Reduce mixing times by up to 90%
Quickly disperse and hydrate powders, even at higher viscosities
Easy to move and lift
Features heating, cooling, vacuum, and other functions
Recommended RPM: 1480/2850 RPM
What this pump does on a production line
Ace Mixer builds this hygienic multi-stage emulsifier as an inline rotor-stator pump for continuous or recirculation duty. Liquid enters the workhead, passes through staged rotor-stator slots, and leaves with tighter droplet size and fewer undispersed particles. Powder can be fed into the liquid stream upstream at a controlled rate; the shear zone wets it and breaks down lumps before they reach the tank. The result is more consistent batches and less manual stirring.
Because the unit sits in the pipe or loop, it usually fits close to existing tanks, transfer lines, and CIP circuits. That layout can reduce foam, minimize open-tank powder dust, and shorten mix time compared with batch-only methods. Stainless construction suits hygienic washdown, and VFD control lets operators tune speed to the product rather than running one fixed condition.
Practical features
- Inline rotor-stator workhead for emulsifying, dispersing, homogenizing, and powder wetting
- Multi-stage shear path for repeated exposure in a compact housing
- Continuous or recirculation operation for better batch repeatability
- Stainless steel body with optional motor, seal, connection, and wetted-material choices
- VFD available for speed adjustment and process control
Performance depends on viscosity, solids, powder loading, flow rate, and workhead choice. A single configuration will not suit every recipe, so we size the pump around the process rather than the other way around.
Applications
Food and beverage: sauces, dressings, mayonnaise, syrups, liquid flavors, dairy blends, beverages, and dispersion of starch, gums, stabilizers, and thickeners. Cosmetics and personal care: creams, lotions, shampoo, conditioner, liquid detergent, and oil-water emulsions. Pharmaceutical: liquid formulations and excipient dispersion where the equipment and process are suitable. Chemical: coatings, adhesives, waterborne formulations, emulsions, and compatible dispersions.
FAQ
Can it replace a batch mixer? Sometimes. It depends on batch size, loop volume, viscosity, solids, and powder load. Many plants use it with a tank loop rather than as a full replacement.
Will it handle every powder? No. Wettability, loading rate, and agglomeration tendency vary. A trial or application review is the safer route.
What should we send for a quote? Batch size, flow rate, viscosity, powder/liquid ratio, temperature, CIP needs, connection standard, motor power, local voltage and phase, and wetted-material requirements. We will recommend the workhead, seal, motor, and controls for your duty.
Send those details to Ace Mixer and our engineers will review the application and quote a suitable configuration.
Ace Mixer\’s hygienic inline multi stage emulsifier homogenizer pump handles powder wetting, dispersion, emulsification, and agglomeration reduction in continuous or loop processes. It integrates with existing tanks and lines, supports VFD and custom seals, connections, and wetted materials. Share batch size, viscosity, powder load, flow rate, and electrical specs for configuration and quote.
Single-stage in-line mixer

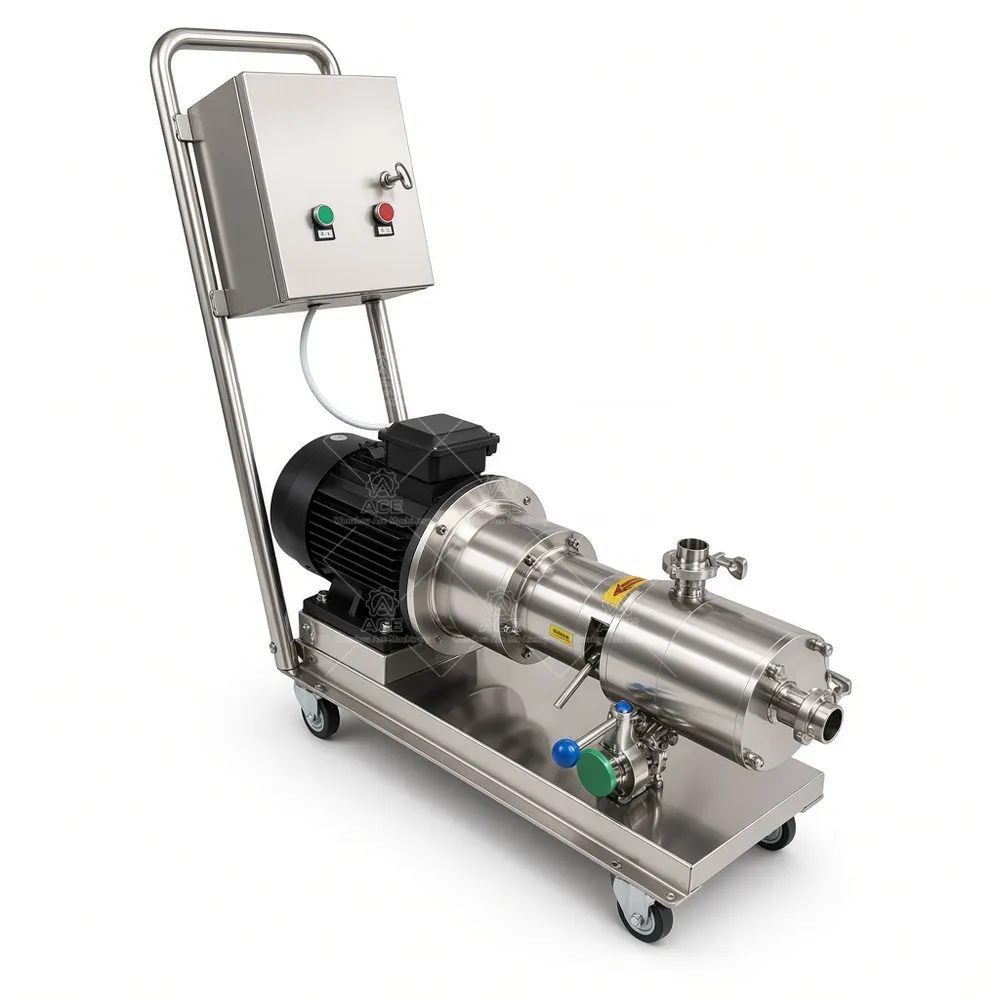

Three-stage in-line mixer
