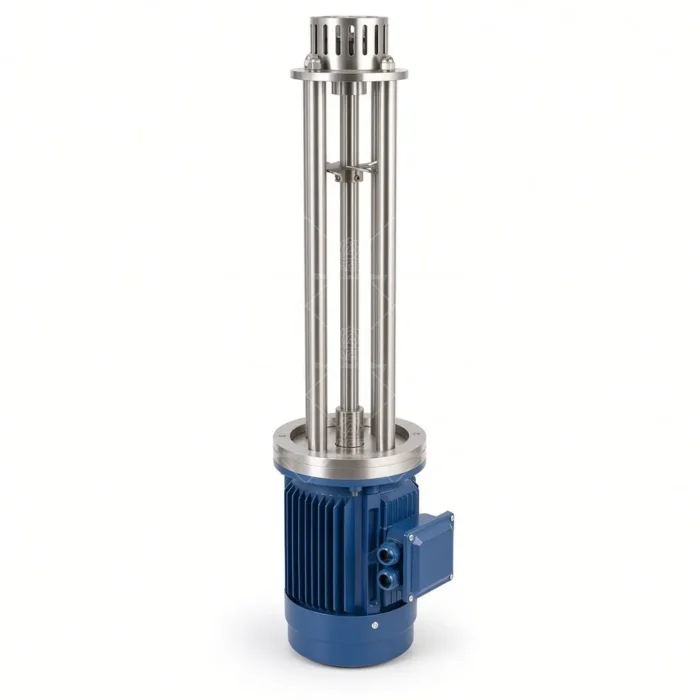

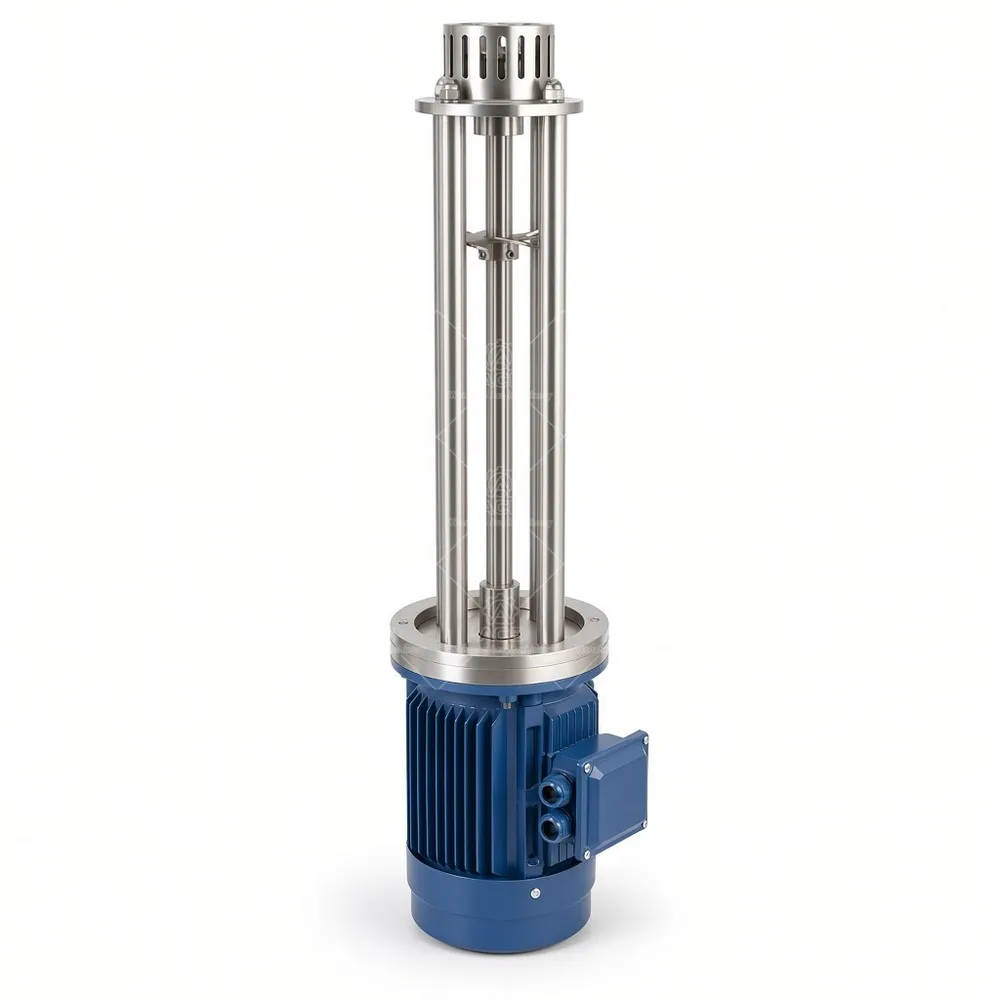

Batch High Shear Mixer Homogenizer for Shampoo, Body Wash & Cream
- Material: 304 or 316L
- Voltage: 110V 208V 220V 380V 400V 415V 480V 600V
- Certificates: CE, GMP, UL, ATEX, ISO 9001
- Power：0.75KW-55KW （1 HP – 74 HP）
- Motor brands: ABB, Chinese brands, SEW, Siemens (optional)
- 1-year free warranty with door-to-door delivery.
- Optional: Variable-frequency drive, control panel
- MADE IN CHINA
- We have it in stock.
Please contact our sales team before placing your order.
Email:info@ace-chn.com
Tel:+86 18626835909
WeChat: ace-chn
Price range: $579.13 through $611.33
Guaranteed Safe Checkout
We manufacture and sell the following types of mixers
Mix, emulsify, homogenize, disintegrate and dissolve
Ideal for disintegrating solids and incorporating powders
Reduce mixing times by up to 80%
Reduce mixing times by up to 90%
Quickly disperse and hydrate powders, even at higher viscosities
Easy to move and lift
Features heating, cooling, vacuum, and other functions
Recommended RPM: 1480/2850 RPM
Batch High Shear Mixing for Cosmetics and Personal Care
We build this high shear mixer for plants producing shampoos, body washes, creams, and carbomer-based gels. It combines high-speed shear, dispersing, and emulsifying in one batch vessel, with enough rotor energy to wet out powders and avoid lumpy carbomer dispersion. The right result depends on how you load powders, your viscosity curve, and the vessel geometry, so we configure the unit around the process rather than a catalog headline.
Configurable Specs
- Speed control: optional VFD, 0 to 3000 rpm depending on motor and configuration.
- Motor power: 1.5 kW to 55 kW, selected by batch size, viscosity, and required shear.
- Voltage: 220V to 480V; frequency, phase, and electrical setup confirmed for destination.
- Material: 304 or 316L stainless steel for wetted parts; other contact details by request.
- Functions: high shear, dispersion, emulsification, powder incorporation.
- Mounting: fixed or mobile high shear mixer arrangement, depending on vessel layout and floor space.
For a batch high shear mixer quote, send batch volume, container dimensions, product viscosity, solids content, target rpm, motor power preference, and local voltage/frequency/phase. If you need a mobile high shear mixer, tell us how the vessel is positioned and how the head will be lifted or moved. For carbomer and other powder dispersion, we review addition method and head design before recommending a configuration. Use it as a high shear mixer for powder dispersion when carbomer or similar solids must be incorporated without fish eyes.
Applications
Our industrial high shear mixing equipment is used in food and beverage processing, cosmetics and personal care, pharmaceutical and healthcare preparations, chemical processing, and compatible paints and coatings. A stainless steel high shear mixer can handle liquid-liquid emulsification and powder dispersion where the formulation allows it. This industrial high shear mixer can be specified for different vessel layouts. Suitable head style, contact material, and operating parameters still depend on viscosity, ingredients, and process requirements.
FAQ
Can you supply a variable speed high shear mixer with VFD? Yes. We match the VFD, motor, and control panel to your electrical supply and process speed range.
Which material should we choose, 304 or 316L? It depends on the formulation, cleaning chemistry, and corrosion risk. We confirm wetted-part materials before build.
Can the mixer be mobile? Yes, mobile and fixed arrangements are available. Share your vessel layout and handling method.
What information is needed for a recommendation? Batch size, vessel size, viscosity, ingredients, powder addition method, target rpm, motor power, and voltage/frequency/phase.
Send those details to Ace Mixer. Our team will review the application and propose a suitable batch high shear homogenizer configuration and quote.
Ace Mixer builds batch high shear mixers for shampoo, body wash, creams, and carbomer gels. Choose 1.5–55 kW motor power, 304 or 316L stainless steel, optional VFD speed control, and 220–480V electrical configuration. Fixed or mobile mounting, dispersion, emulsification, and powder incorporation are matched to batch size, viscosity, and process requirements.
